Surface Mount Bollard 140mm x 1200mm — Safety Yellow | Bolt-Down Base Plate

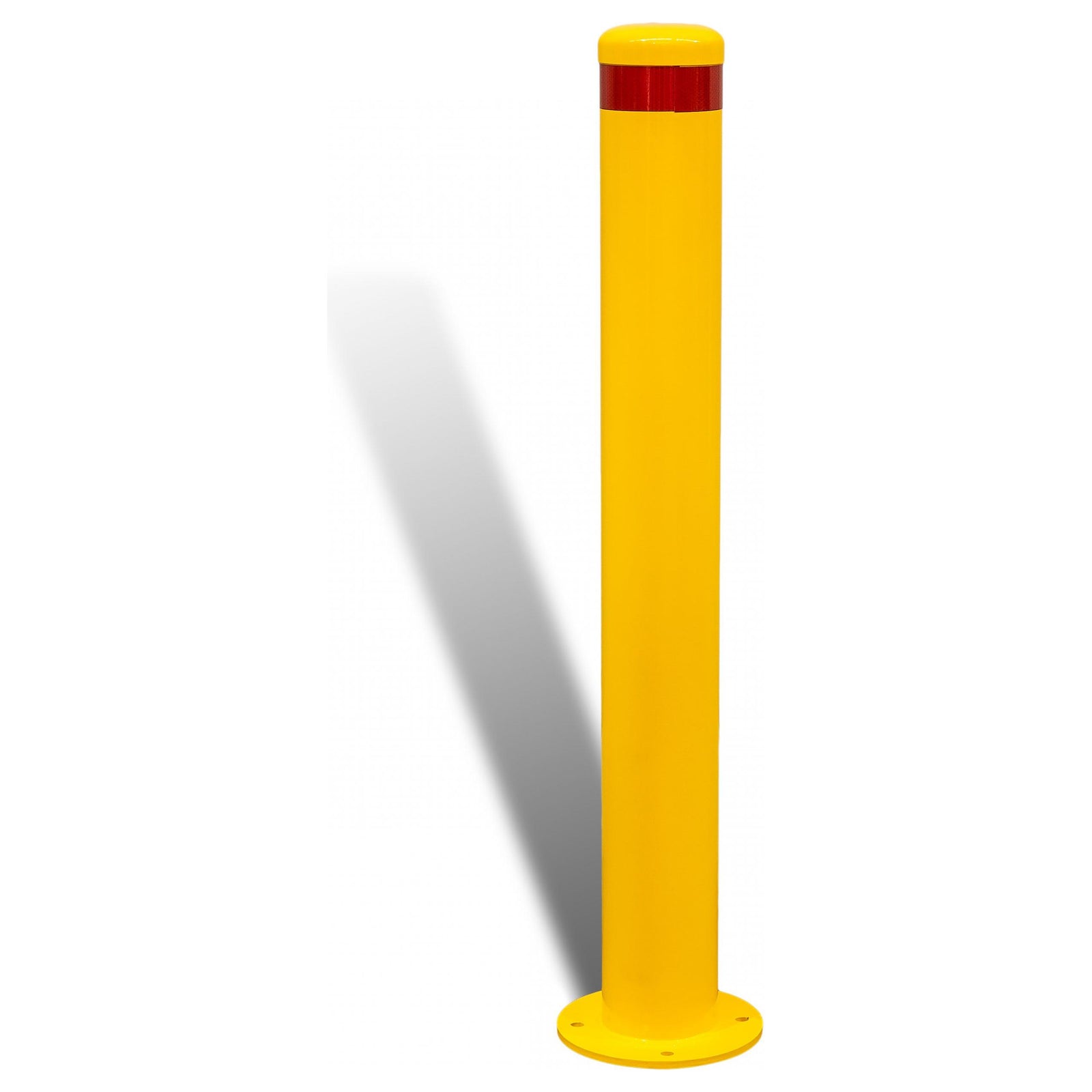

140mm x 1200mm surface mount bollard in powdercoated safety yellow. Bolts straight down onto existing concrete — no excavation, no core drilling, no waiting on a footing to cure. Supplied with a fully welded, pre-drilled base plate, ready to fix. The heaviest of our standard surface mount sizes and the usual choice where a bollard has to take real punishment.

Where it's used

• Loading docks and roller doors — protects door tracks, frames and dock plates from reversing trucks and forklifts.

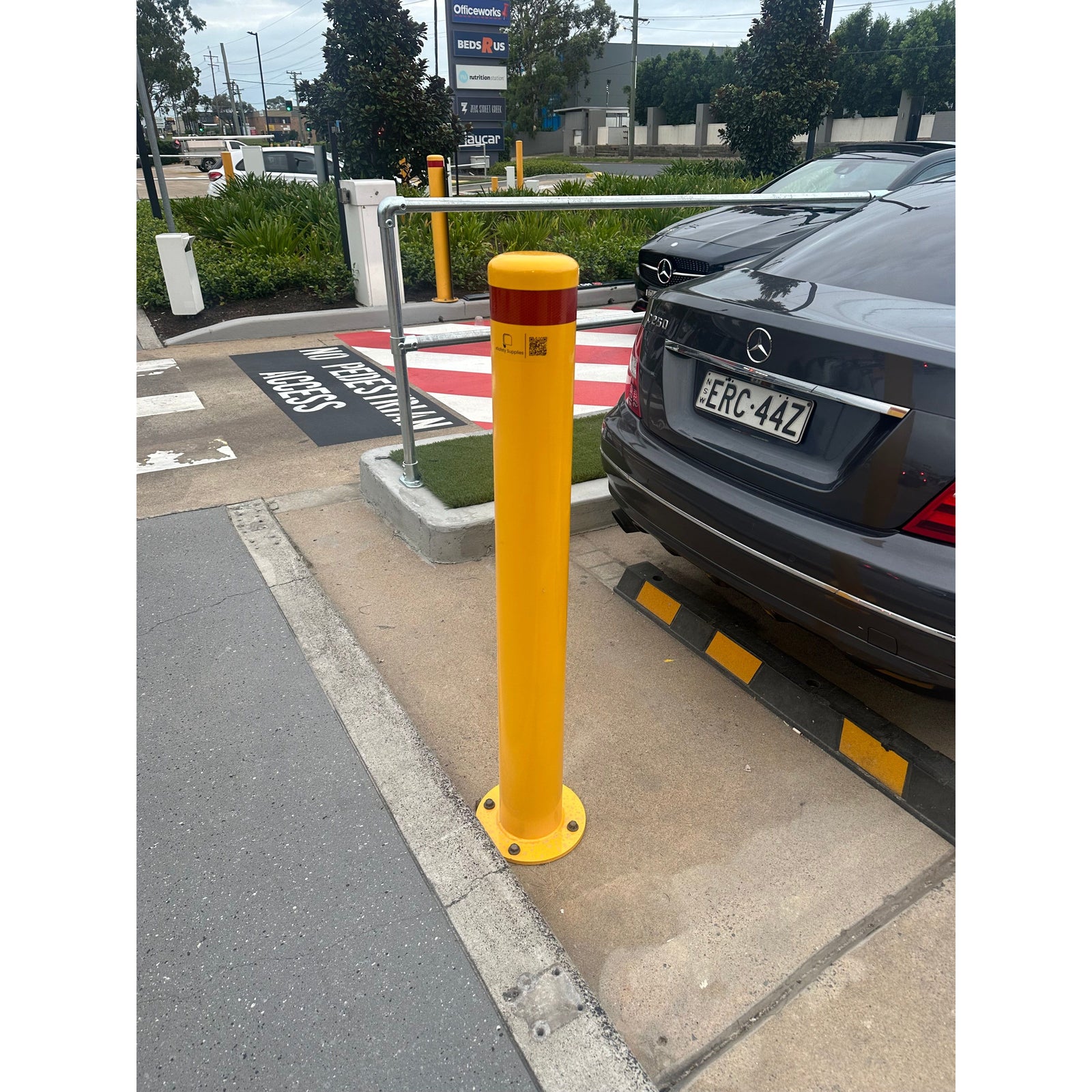

• Carpark and driveway control — stops vehicle access while letting pedestrians walk through.

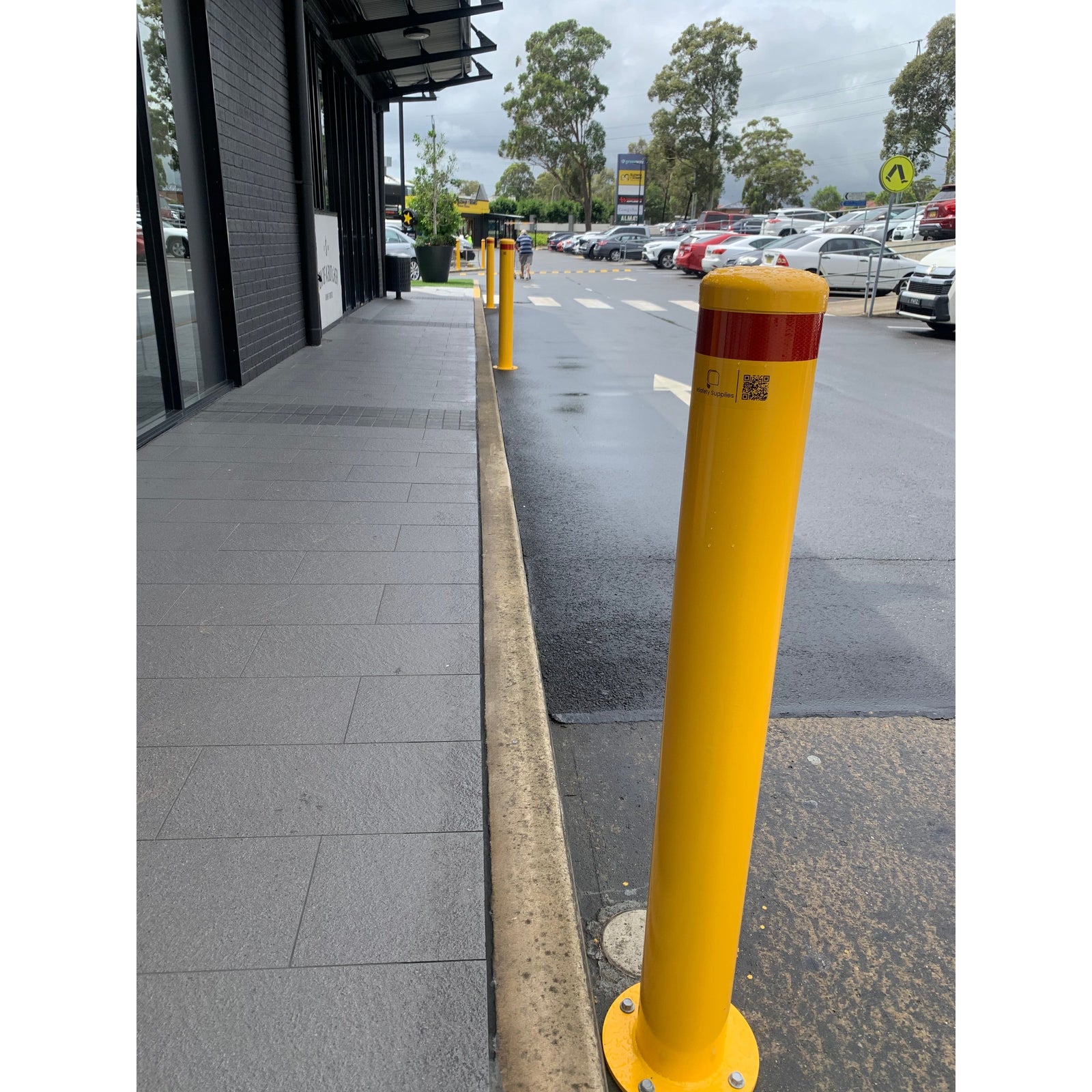

• Shopfronts and glazed entries — a visible deterrent against kerb mounting and ram raids.
• Switchboards, gas meters and exposed plant — keeps vehicles off services that are expensive to repair.

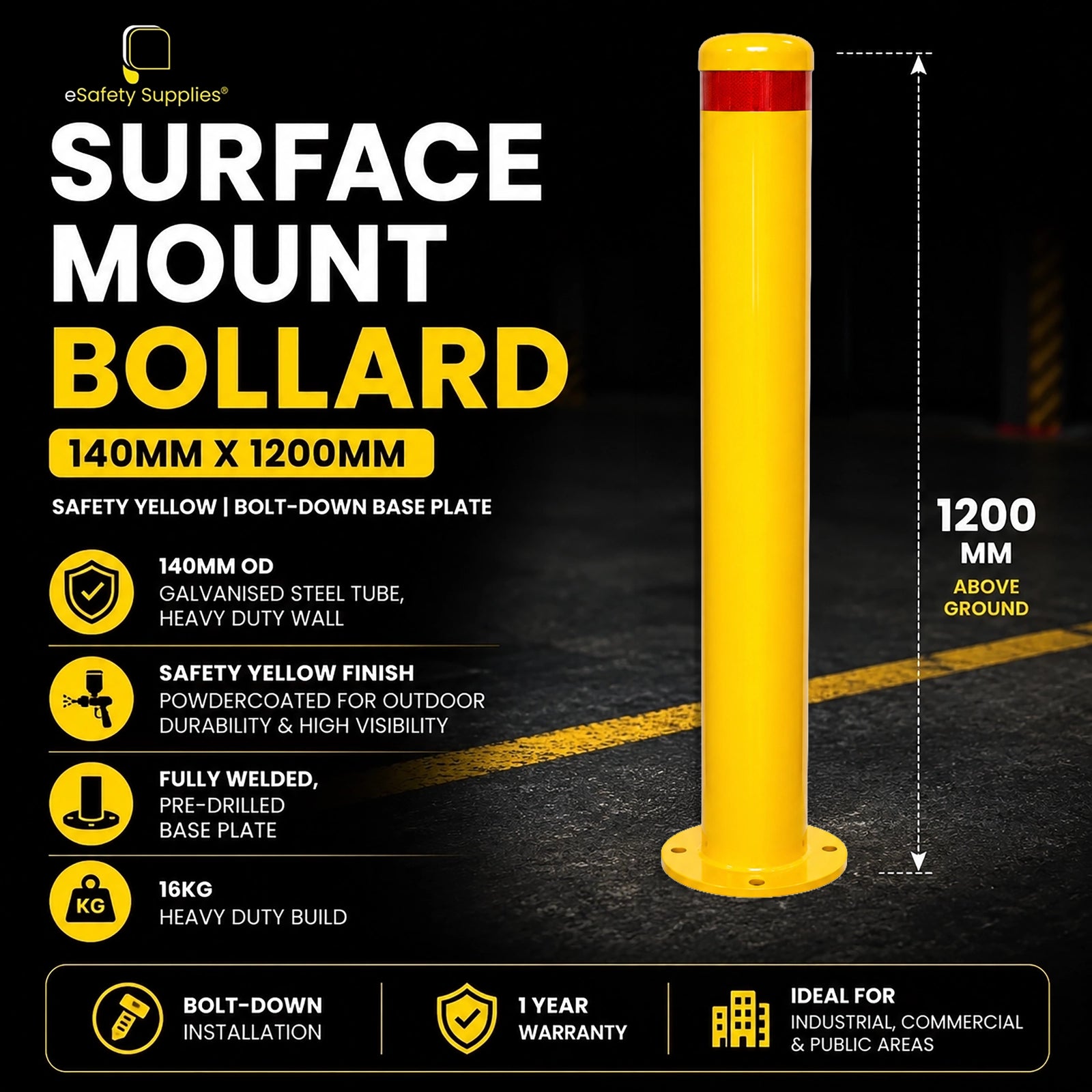

What you get

• 140mm OD galvanised steel tube, heavy duty wall
• Powdercoated safety yellow for outdoor durability and high visibility
• Fully welded, pre-drilled base plate
• 1200mm above ground once installed
• 16kg
• 1 year warranty

Fixings are sold separately. Each bollard needs 4 — add a concrete or asphalt pack on this page.

Installation

1. Stand the bollard in position and mark the four hole positions through the base plate.
2. Drill to the depth specified on your fixing pack.
3. Blow out the dust, reseat the bollard and insert the four fixings.
4. Tighten evenly. Re-check the fixings after the first few weeks of use.

No excavation and no concrete work required. One person can install one in around 15 minutes on sound concrete.

Before you order

• This is an asset protection and access control bollard. It is not crash rated and is not tested to PAS 68 or IWA 14. For hostile vehicle mitigation, call us on 1300 291 700.
• The concrete needs to be sound and thick enough to hold a mechanical anchor. On asphalt use the asphalt fixings; on soft ground you'll need a concrete footing first.
• Check the base plate footprint fits your available surface before ordering, particularly near a slab edge or expansion joint.

Other options in this range

• Surface Mount Bollard 140mm x 1500mm — same diameter, taller for better sightlines
• Surface Mount Bollard 140mm — Shared Zone Disabled — with accessible parking signage
• Surface Mount Bollard 165mm — the largest diameter in the surface mount range
• Surface Mount Bollard 90mm — smaller and lighter for tighter spaces
• Inground bollards — where you can excavate and want maximum resistance
• All surface mount bollards · bollard accessories

In stock in Sydney. Dispatched same or next business day from Wetherill Park, or Click & Collect in under 24 hours.
