What fixings do I need, and are they included?

Four per bollard, sold separately. Add a concrete or asphalt pack on this page. Concrete fixings suit concrete, solid brick and stone; asphalt fixings are made for asphalt surfaces.

Will this stop a vehicle?

It is built to deter and control vehicle access and to protect assets from low-speed impact. It is not crash rated and is not tested to PAS 68 or IWA 14. If you need hostile vehicle mitigation, call us on 1300 291 700.

Can I install it myself?

Yes. Mark the holes through the base plate, drill, bolt down. No excavation and no concrete cure time. One person, around 15 minutes on sound concrete.

Can I install it on asphalt or pavers?

Use the asphalt fixings for asphalt. On soft ground you will need a concrete footing first. On pavers, fix through to the slab beneath rather than into the paver itself.

How tall is it, and is there a taller version?

900mm above ground once installed, which is the low-profile option in our range. A 1300mm high version of the same 90mm diameter is available, and the 140mm range is heavier duty.

How is it finished, and will it rust?

Galvanised steel, powdercoated yellow, suited to outdoor exposure. Touch up any drilling or transport damage so the coating stays sealed. For coastal or high-salt sites, consider the stainless steel version.

Frequently Asked Questions

See full FAQ

Surface Mount Bollard 90mm x 900mm — Powdercoated Yellow | Bolt-Down Base Plate

Name: Surface Mount Bollard 90mm x 900mm — Powdercoated Yellow | Bolt-Down Base Plate
Brand: eSafety Supplies
SKU: B-90-SM
Price: 109.75 AUD
Availability: InStock

SKU: B-90-SM

In Stock

$109.75 inc. GST $99.77 (ex. GST)

Fixings

No Fixings

Concrete Fixings - 4Pcs $7.35

Asphalt Fixings - 4Pcs $7.35

BUY 10 - 29 GET 5% OFF

BUY 30 + GET 10% OFF

Estimated delivery –

Shipping Cost

Calculate now

Get exact cost ›

Surface Mount Bollard 90mm x 900mm — Powdercoated Yellow | Bolt-Down Base Plate

SKU: B-90-SM

$109.75

Shipping details

Clear shipping pricing. No surprises at checkout.

Check shipping cost & ETA

Enter your postcode for an instant delivery estimate before checkout.

Enter your postcode to see your shipping cost, ETA, and whether Click & Collect is available in your area.

Click and Collect

Fast Dispatch

Clear pricing. No surprises

Secure Checkout

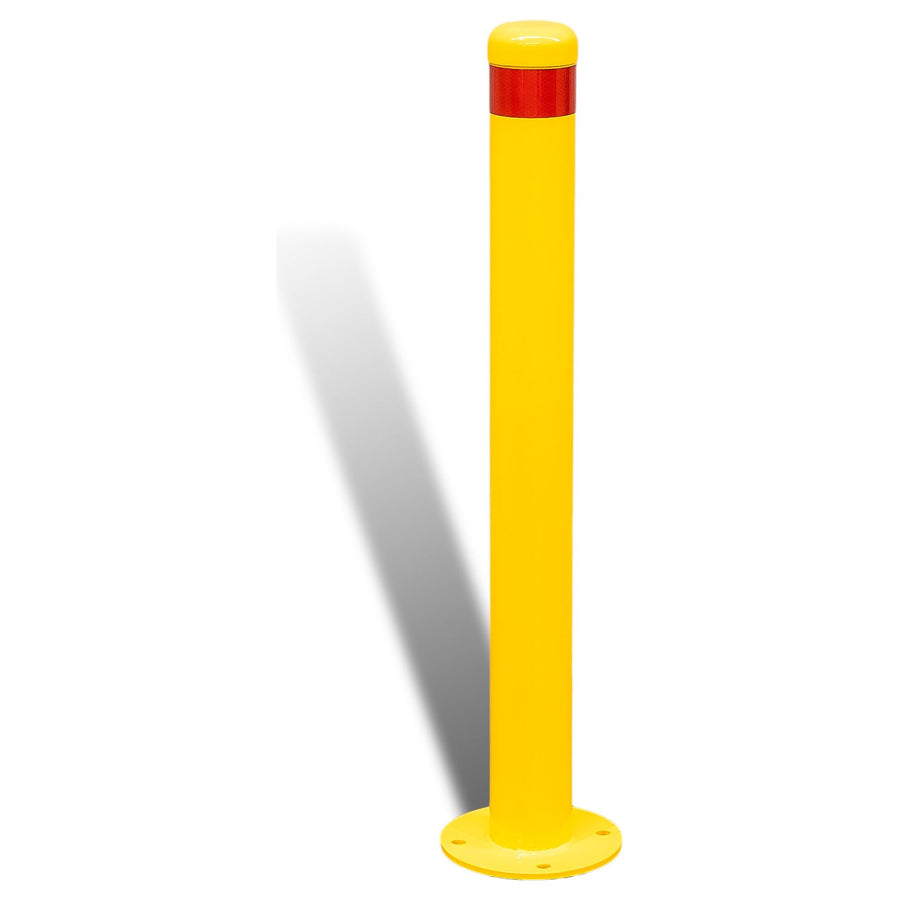

90mm x 900mm surface mount bollard in powdercoated yellow. Bolts straight down onto existing concrete — no excavation, no core drilling, no waiting on a footing to cure. Supplied with a fully welded base plate, ready to fix.

Where it's used

Shopfronts and building entries — a lower, slimmer profile that marks a boundary without dominating the frontage.
Roller doors and garage entries — protects door tracks and frames from being clipped by reversing vehicles.

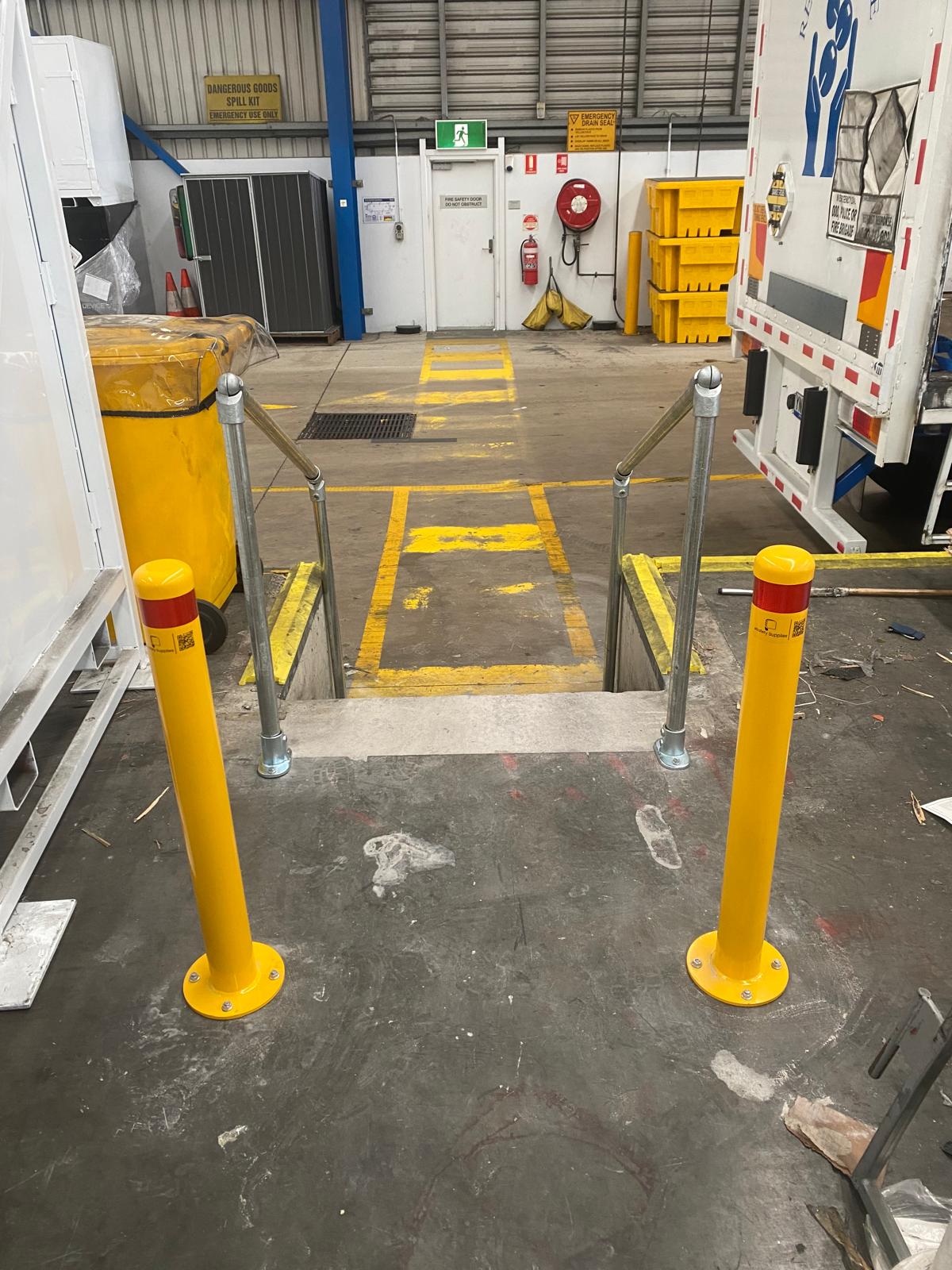

Walkways and pedestrian thresholds — separates foot traffic from vehicle movement in tight spaces.
Switchboards, gas meters and exposed plant — keeps vehicles off services.

What you get

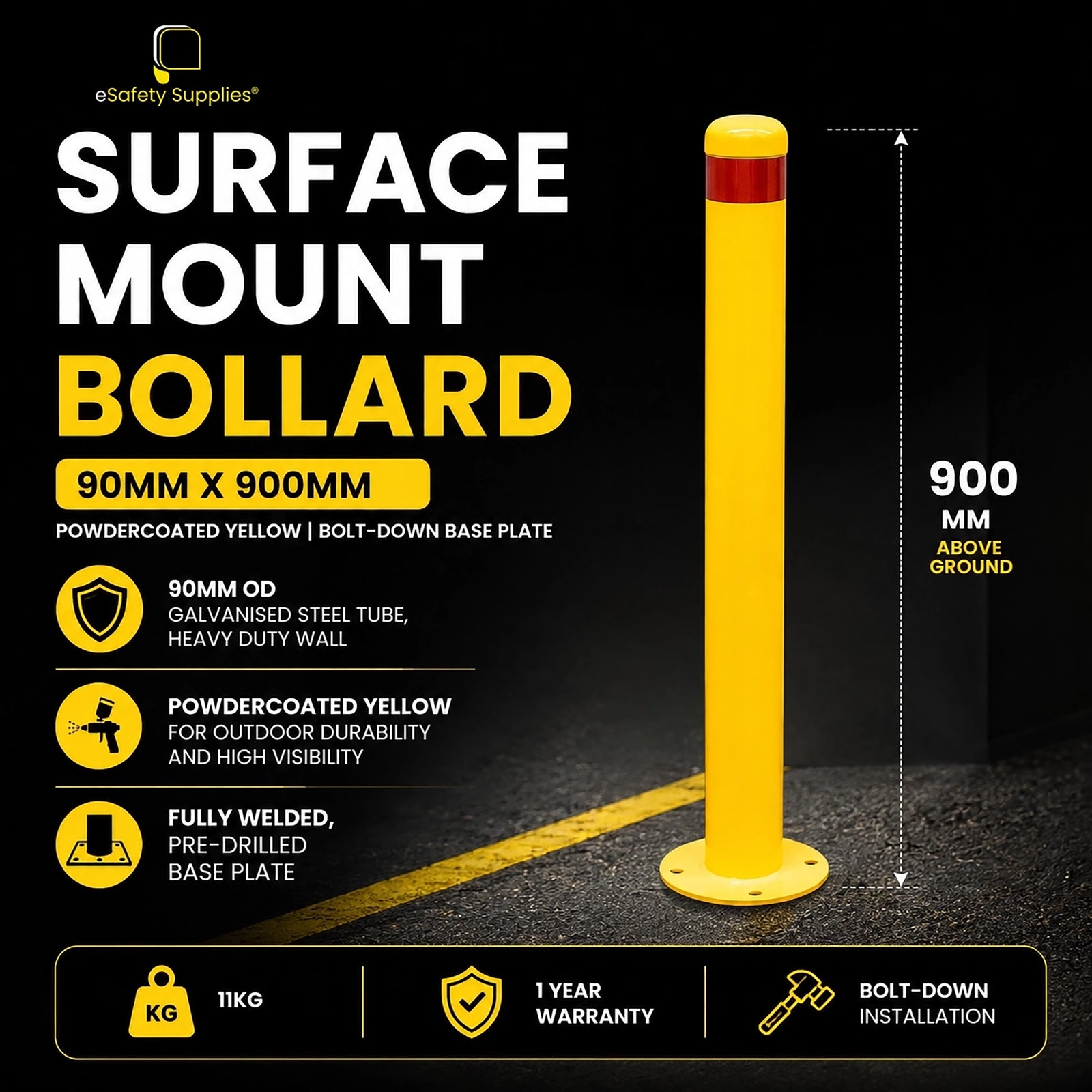

90mm OD galvanised steel tube, heavy duty wall
Powdercoated yellow for outdoor durability and high visibility
Fully welded, pre-drilled base plate
900mm above ground once installed
11kg
1 year warranty

Fixings are sold separately. Each bollard needs 4 — add a concrete or asphalt pack on this page.

Installation

Stand the bollard in position and mark the four hole positions through the base plate.
Drill to the depth specified on your fixing pack.
Blow out the dust, reseat the bollard and insert the four fixings.
Tighten evenly. Re-check the fixings after the first few weeks of use.

No excavation and no concrete work required. One person can install one in around 15 minutes on sound concrete.

Before you order

At 900mm this is the low-profile option in the range. If you need better sightlines or a stronger visual barrier, look at the 1300mm high version or step up to 140mm.
This is an asset protection and access control bollard. It is not crash rated and is not tested to PAS 68 or IWA 14. For hostile vehicle mitigation, call us on 1300 291 700.
The concrete needs to be sound and thick enough to hold a mechanical anchor. On asphalt use the asphalt fixings; on soft ground you'll need a concrete footing first.

Other options in this range

Surface Mount Bollard 90mm (1300mm High) — same diameter, taller
Surface Mount eConomy Bollard 90mm — lighter budget option
Surface Mount Bollard 90mm Stainless Steel — for coastal and architectural jobs
Surface Mount Bollard 140mm — heavier duty, larger diameter
All surface mount bollards
Bollard accessories

In stock in Sydney. Dispatched same or next business day from Wetherill Park, or Click & Collect in under 24 hours.

Specifications

Description	Surface Mount Bollard
SKU	B-90-SM
Material	Galvanised Steel
Finish	Powdercoated Yellow
Wall	Heavy Duty Wall
Diameter	90mm OD
Height Above Ground	900mm
Base Plate	Fully welded · pre-drilled
Fixings Required	4 per bollard · sold separately
Impact Rating	Not crash rated
Weight	11kg
Warranty	1 Year

Shipping

Estimated shipping times on our range of stocked items are as follows:

Location	Expected Delivery	Additional Information
NSW Metro		Usually overnight. Same day delivery can be arranged for an extra charge. Click & Collect: Available from our warehouse at 396 Victoria St, Wetherill Park, 2164.
NSW Regional	2-3 business days
VIC Metro	1-2 business days	Usually overnight.
VIC Regional	2-3 business days
QLD Metro	1-2 business days	Usually overnight.
QLD Regional	2-3 business days
ACT	1-2 business days	Usually overnight.
SA Metro	1-2 business days	Usually overnight.
SA Regional	2-4 business days
NT Metro	4-6 business days
NT Regional	5-7 business days
WA Metro	4-5 business days
WA Regional	6-7 business days
TAS	3-4 business days

Returns

Items may be returned within 30 days from the date of purchase. Returned items must be in original packaging and unused.

Address for returns: 396 Victoria Street, Wetherill Park, NSW 2164

Notes: Customer must pay for return shipping. 100% credit will be provided, less shipping costs.

Product Description +

90mm x 900mm surface mount bollard in powdercoated yellow. Bolts straight down onto existing concrete — no excavation, no core drilling, no waiting on a footing to cure. Supplied with a fully welded base plate, ready to fix.

Where it's used

Shopfronts and building entries — a lower, slimmer profile that marks a boundary without dominating the frontage.
Roller doors and garage entries — protects door tracks and frames from being clipped by reversing vehicles.
Walkways and pedestrian thresholds — separates foot traffic from vehicle movement in tight spaces.
Switchboards, gas meters and exposed plant — keeps vehicles off services.

What you get

90mm OD galvanised steel tube, heavy duty wall
Powdercoated yellow for outdoor durability and high visibility
Fully welded, pre-drilled base plate
900mm above ground once installed
11kg
1 year warranty

Fixings are sold separately. Each bollard needs 4 — add a concrete or asphalt pack on this page.

Installation

Stand the bollard in position and mark the four hole positions through the base plate.
Drill to the depth specified on your fixing pack.
Blow out the dust, reseat the bollard and insert the four fixings.
Tighten evenly. Re-check the fixings after the first few weeks of use.

No excavation and no concrete work required. One person can install one in around 15 minutes on sound concrete.

Before you order

At 900mm this is the low-profile option in the range. If you need better sightlines or a stronger visual barrier, look at the 1300mm high version or step up to 140mm.
This is an asset protection and access control bollard. It is not crash rated and is not tested to PAS 68 or IWA 14. For hostile vehicle mitigation, call us on 1300 291 700.
The concrete needs to be sound and thick enough to hold a mechanical anchor. On asphalt use the asphalt fixings; on soft ground you'll need a concrete footing first.

Other options in this range

Surface Mount Bollard 90mm (1300mm High) — same diameter, taller
Surface Mount eConomy Bollard 90mm — lighter budget option
Surface Mount Bollard 90mm Stainless Steel — for coastal and architectural jobs
Surface Mount Bollard 140mm — heavier duty, larger diameter
All surface mount bollards
Bollard accessories

In stock in Sydney. Dispatched same or next business day from Wetherill Park, or Click & Collect in under 24 hours.

Product Specifications +

Specifications

Description	Surface Mount Bollard
SKU	B-90-SM
Material	Galvanised Steel
Finish	Powdercoated Yellow
Wall	Heavy Duty Wall
Diameter	90mm OD
Height Above Ground	900mm
Base Plate	Fully welded · pre-drilled
Fixings Required	4 per bollard · sold separately
Impact Rating	Not crash rated
Weight	11kg
Warranty	1 Year
