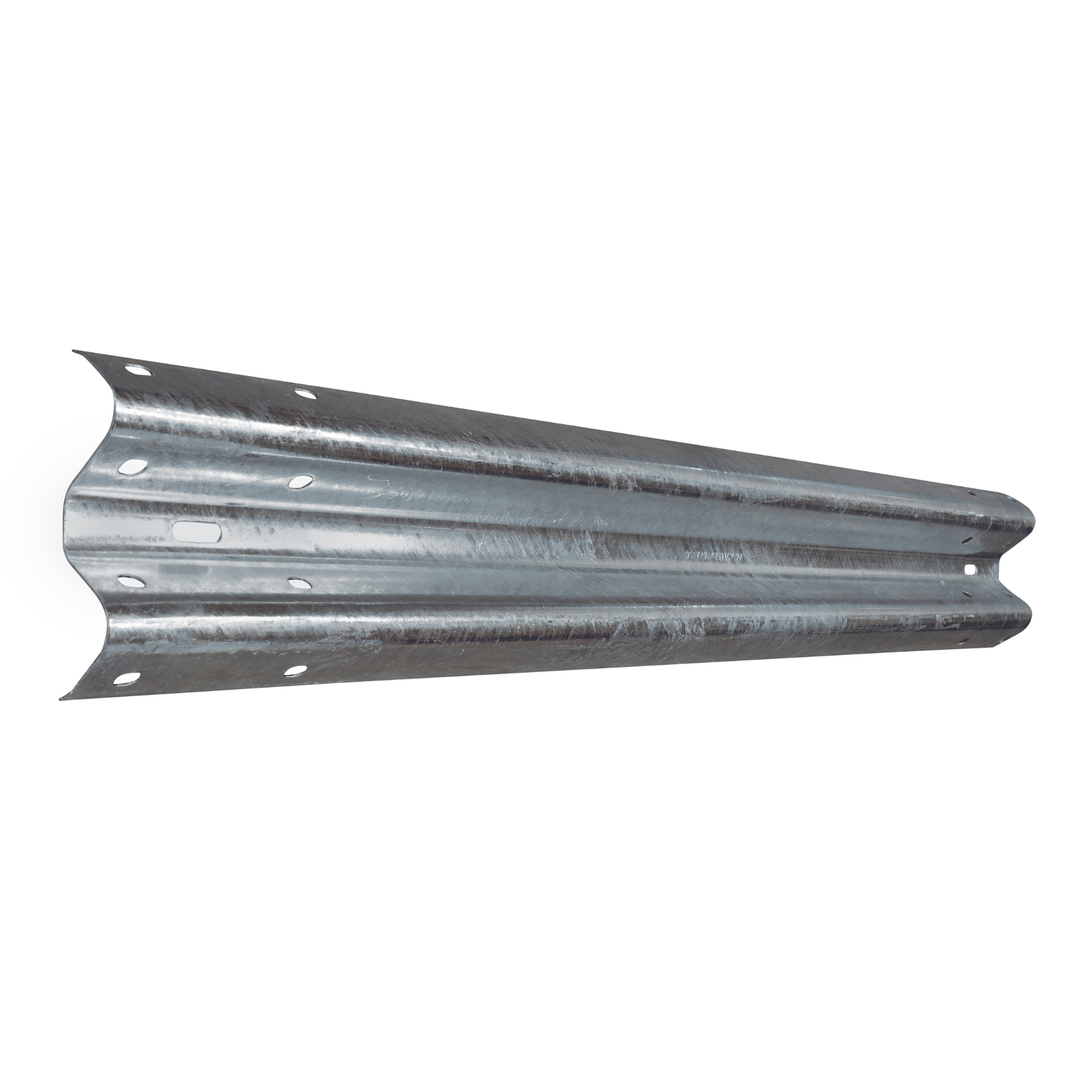

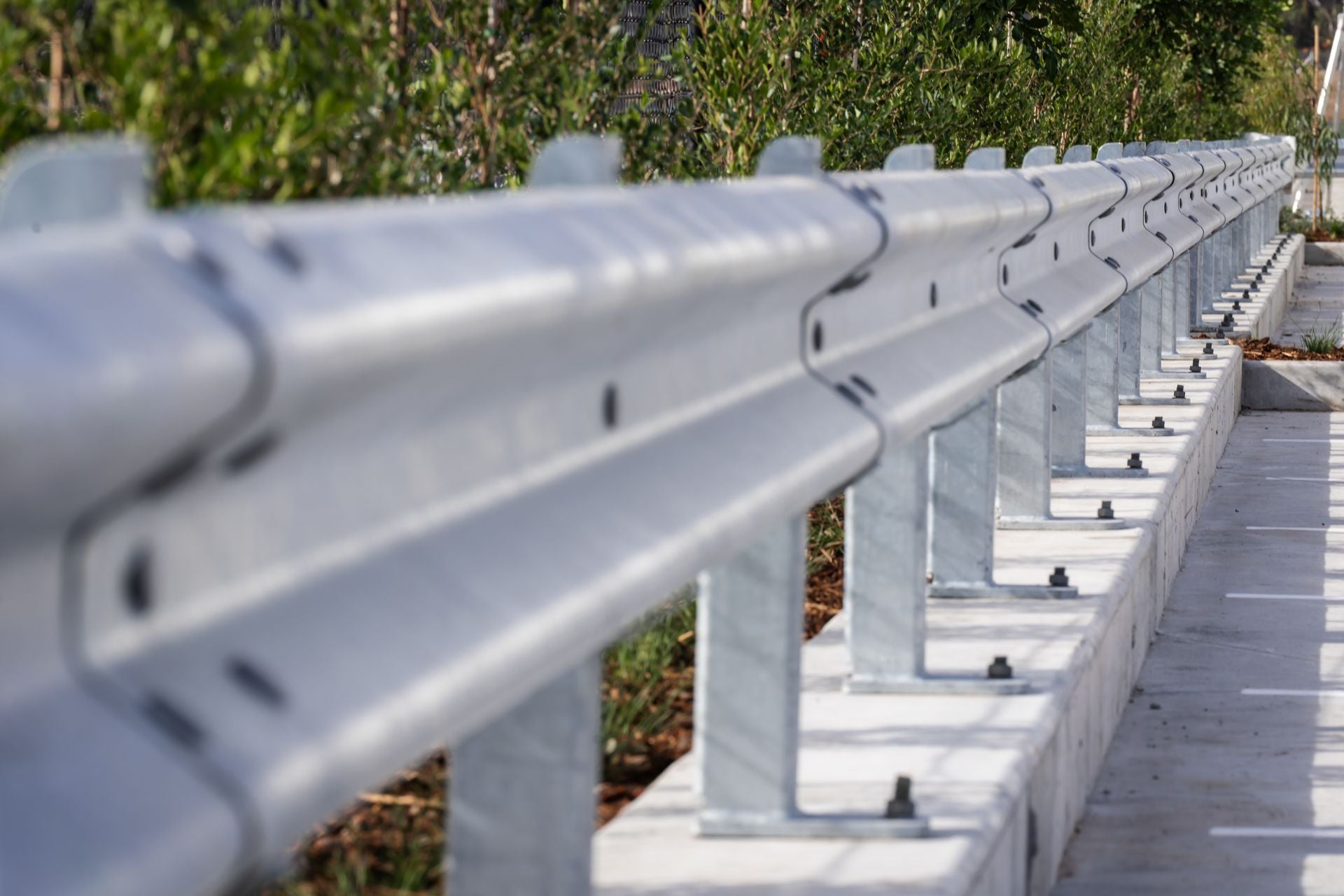

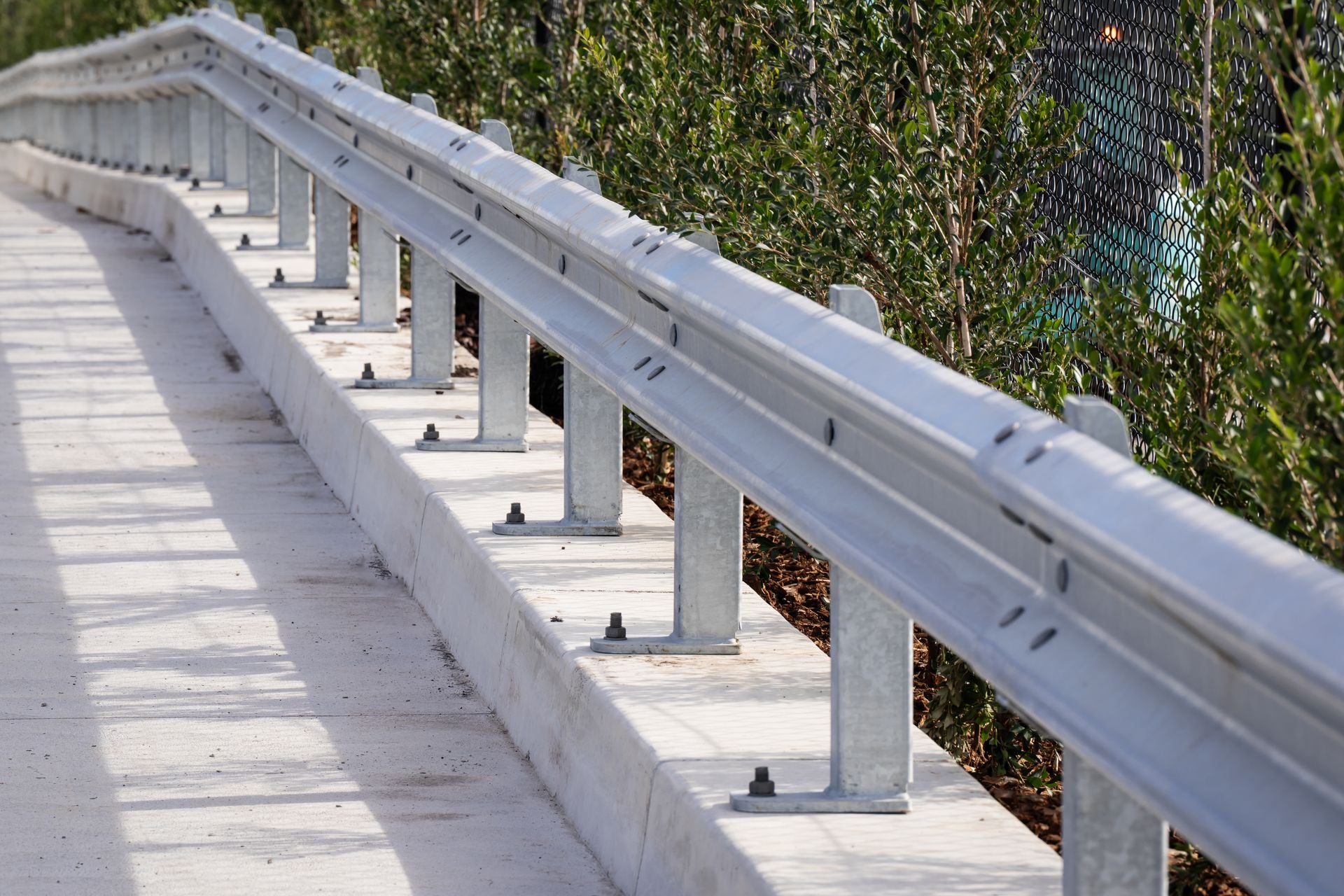

Guard Rail - W Beam - HDG

Hot-dip galvanised W-beam rail for a single height, top mount car park and warehouse guard rail system rated to 30kN (AS/NZS 1170.1 Type F). The galvanised finish suits outdoor car parks and exposed sites with minimal upkeep.

Choose 1m, 2m or 4m. Each rail is 300mm longer than its cover length to allow for the splice overlap, so a 4m rail spans two 2m bays between posts. Designed for car parks, warehouses, loading docks and industrial sites. It is not a roadside (highway) barrier.

Key features

• Hot-dip galvanised (HDG) to AS 4680:2006
• 2mm steel W-beam profile · 315mm high · 80mm deep
• Bolts to the base plate post with 1 post bolt per post
• Joins to the next rail with 8 splice bolts
• Mix colours in one run — also available in safety yellow

System performance

• Rated to 30kN at 500mm above ground (a 1500kg vehicle at 15km/h, 90° impact) — AS/NZS 1170.1 Part 3.8 Type F
• Hot-dip galvanised steel to AS 4680:2006
• 680mm system height · posts at 2000mm centres (max) · minimum 3 posts per run
• One M20 x 155mm through bolt per post — faster install than 4-bolt base plates
• Posts are designed to yield on impact to protect the slab · 101mm deflection

What you need for a complete run

• Base plate posts — 1 per 2m of run, plus 1
• W-beam rails — galvanised or safety yellow in 1m, 2m and 4m
• Splice bolts — 8 per rail joint
• Post bolts — 1 per post
• End treatment — bullnose end or rubber sock, 2 per run
• Corner connector — for internal or external corners
• Anchors — 1 x M20 x 155mm through bolt per post (not included, call us on 1300 291 700)

How many do I need?

• 4m run: 3 posts · 1 x 4m rail · 3 post bolts
• 8m run: 5 posts · 2 x 4m rails · 5 post bolts · 8 splice bolts
• 12m run: 7 posts · 3 x 4m rails · 7 post bolts · 16 splice bolts
• 20m run: 11 posts · 5 x 4m rails · 11 post bolts · 32 splice bolts

Longer run or need it installed? Call 1300 291 700 or use Add to Quote. See the full guard rail range.
