How many posts do I need?

One every 2m, plus one. A 12m run needs 7 posts. Every run needs at least 3.

How is the post fixed down?

With one M20 x 155mm through bolt at 110mm embedment into a minimum 180mm slab of 32MPa concrete, at least 105mm from the slab edge.

Are anchors included?

No. Call 1300 291 700 and we will supply the correct M20 through bolt.

What happens on impact?

The post yields to absorb the impact, protecting the slab. Deflection is 101mm at the 30kN rated load. Replace any post that has yielded.

How does the rail attach?

Each rail bolts to the post with 1 mushroom head post bolt, sold separately.

Can I install it on asphalt or pavers?

No. The rating relies on the concrete slab spec above. Call us to discuss other surfaces.

Frequently Asked Questions

See full FAQ

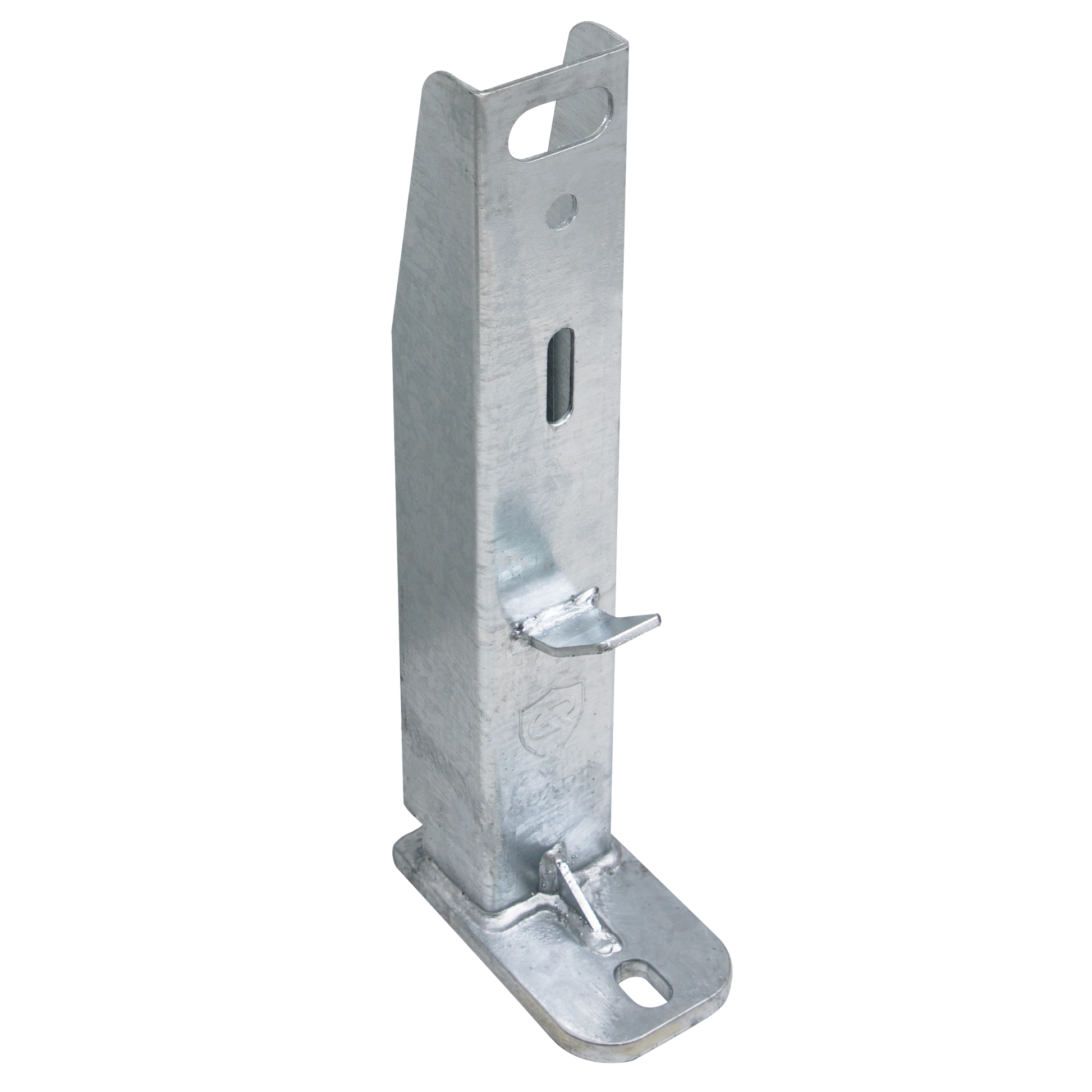

Guard Rail 1-Fix Post Base Plate - Single Height 620H - Top Mount

Name: Guard Rail 1-Fix Post Base Plate - Single Height 620H - Top Mount
Brand: eSafety Supplies
SKU: 300198
Price: 135.45 AUD
Availability: InStock

SKU: 300198

1-2 Days

$135.45 inc. GST $123.14 (ex. GST)

Features:

130 x 230 x 15mm base plate · hot-dip galvanised to as 46802006
one m20 x 155mm through bolt per post
620mm finished system height

Fixings

No Fixings

Guard Rail Mushroom Head Post Bolt/Nut M16 x 40 HDG $2.55

Estimated delivery –

Shipping Cost

Calculate now

Get exact cost ›

Guard Rail 1-Fix Post Base Plate - Single Height 620H - Top Mount

SKU: 300198

$135.45

Shipping details

Clear shipping pricing. No surprises at checkout.

Check shipping cost & ETA

Enter your postcode for an instant delivery estimate before checkout.

Enter your postcode to see your shipping cost, ETA, and whether Click & Collect is available in your area.

Click and Collect

Fast Dispatch

Clear pricing. No surprises

Secure Checkout

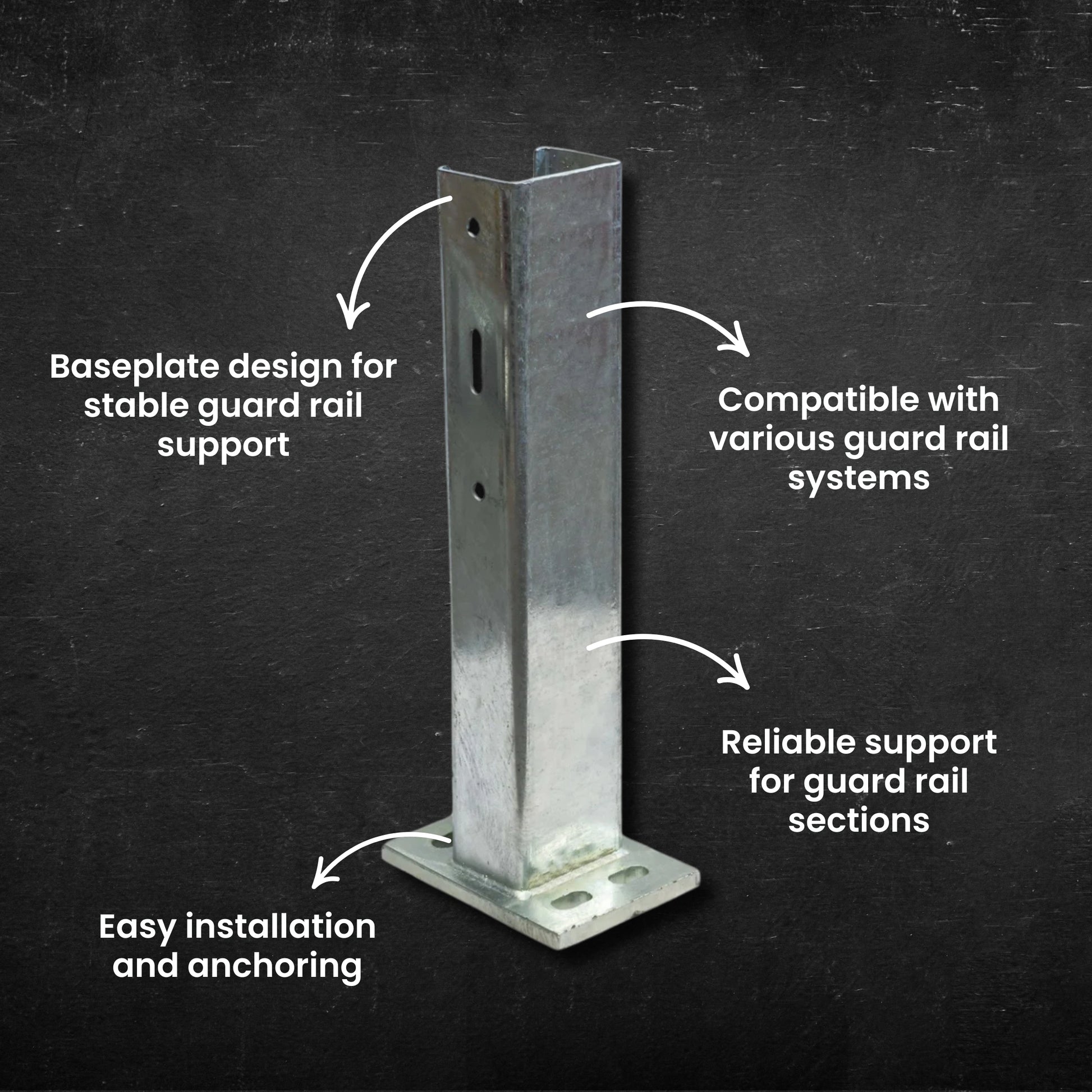

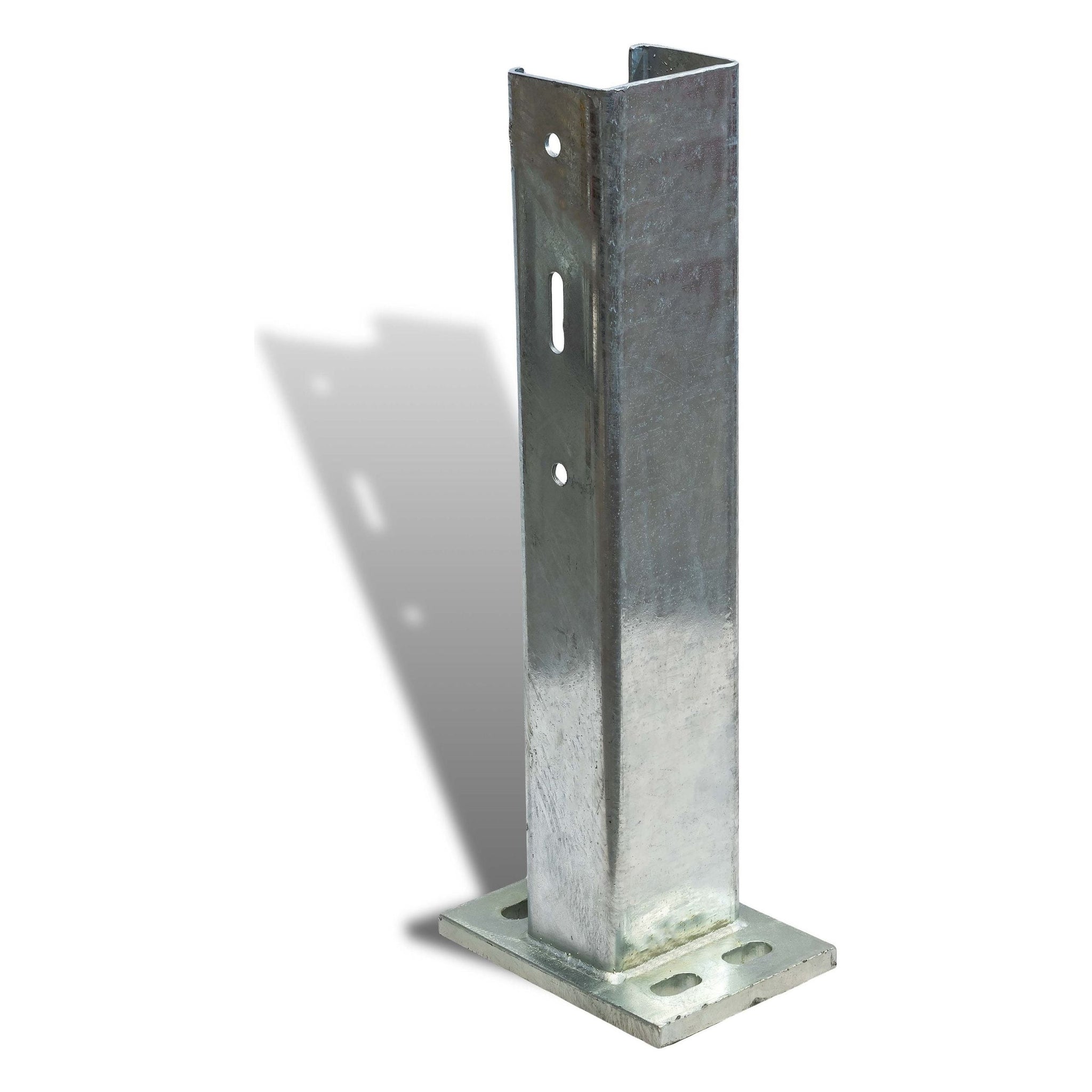

Single height top mount base plate post for a 30kN car park and warehouse guard rail system (AS/NZS 1170.1 Part 3.8 Type F). It fixes down with just one M20 x 155mm through bolt, so it installs faster than traditional 4-bolt base plates.

The post is designed to yield on impact, absorbing energy and protecting the concrete slab from damage. Space posts at 2000mm centres maximum, with at least 3 posts per run. Designed for car parks, warehouses, loading docks and industrial sites. It is not a roadside (highway) barrier.

Key features

130 x 230 x 15mm base plate · hot-dip galvanised to AS 4680:2006
One M20 x 155mm through bolt per post
620mm finished system height
Energy-absorbing yielding post · 101mm deflection
Takes galvanised or safety yellow W-beam with 1 post bolt

Before you install

Needs a minimum 180mm slab of 32MPa concrete, 110mm anchor embedment and 105mm minimum edge distance. The base plate must not overhang the slab edge. Anchor bolts are not included use 1 x [M20 x 160mm Wedge Anchor 8.8CL HDG] per post.— call 1300 291 700 for supply.

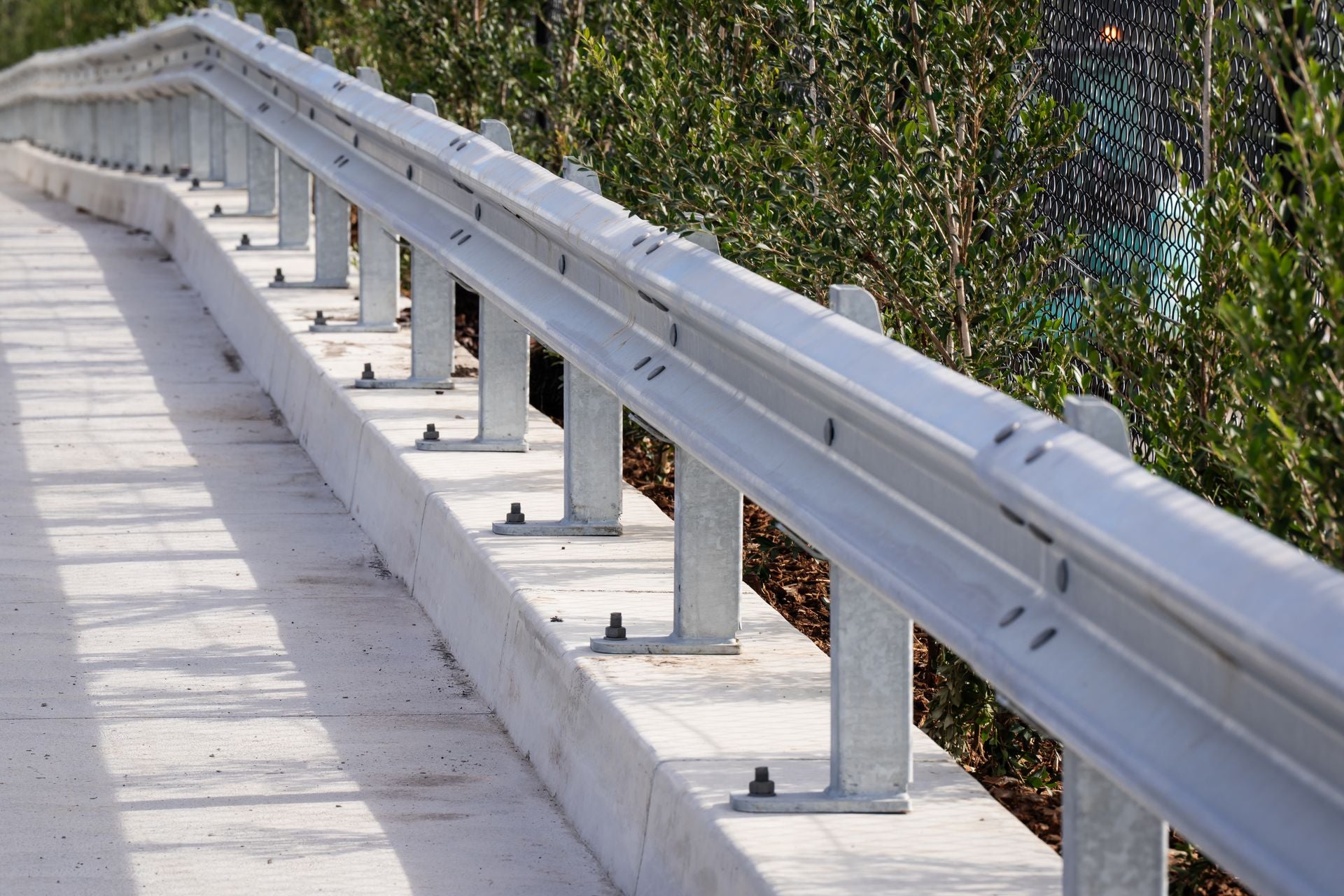

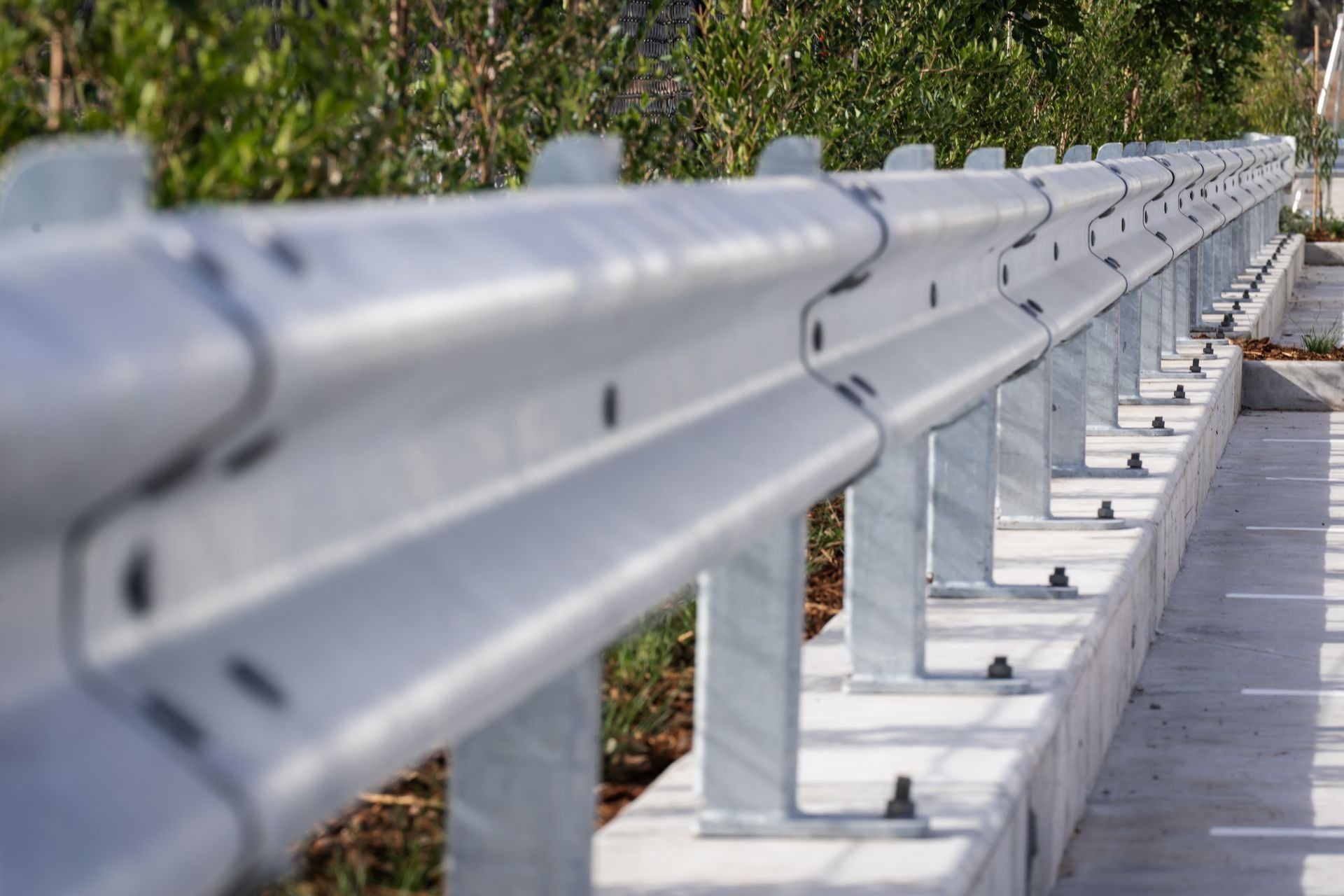

What you need for a complete run

Base plate posts — 1 per 2m of run, plus 1
W-beam rails — galvanised or safety yellow in 1m, 2m and 4m
Splice bolts — 8 per rail joint
Post bolts — 1 per post
End treatment — bullnose end or rubber sock, 2 per run
Corner connector — for internal or external corners
Anchors — 1 x M20 x 160mm through bolt per post (not included, call us on 1300 291 700)

How many do I need?

4m run: 3 posts · 1 x 4m rail · 3 post bolts
8m run: 5 posts · 2 x 4m rails · 5 post bolts · 8 splice bolts
12m run: 7 posts · 3 x 4m rails · 7 post bolts · 16 splice bolts
20m run: 11 posts · 5 x 4m rails · 11 post bolts · 32 splice bolts

Need it installed or quoted for a large site? Call 1300 291 700 or use Add to Quote.

Specifications

SKU	300198
Type	Single height · top mount · base plated
System height	620mm
Base plate	130 x 230 x 15mm
Anchor	1 x M20 x 155mm through bolt (not included)
Embedment	110mm
Minimum slab	180mm · 32MPa concrete
Edge distance	105mm minimum
Post centres	2000mm maximum · minimum 3 posts per run
Impact rating	30kN at 500mm · AS/NZS 1170.1 Part 3.8 Type F · AS/NZS 2890.1
Deflection	101mm
Finish	Hot-dip galvanised to AS 4680:2006
Weight	13kg
