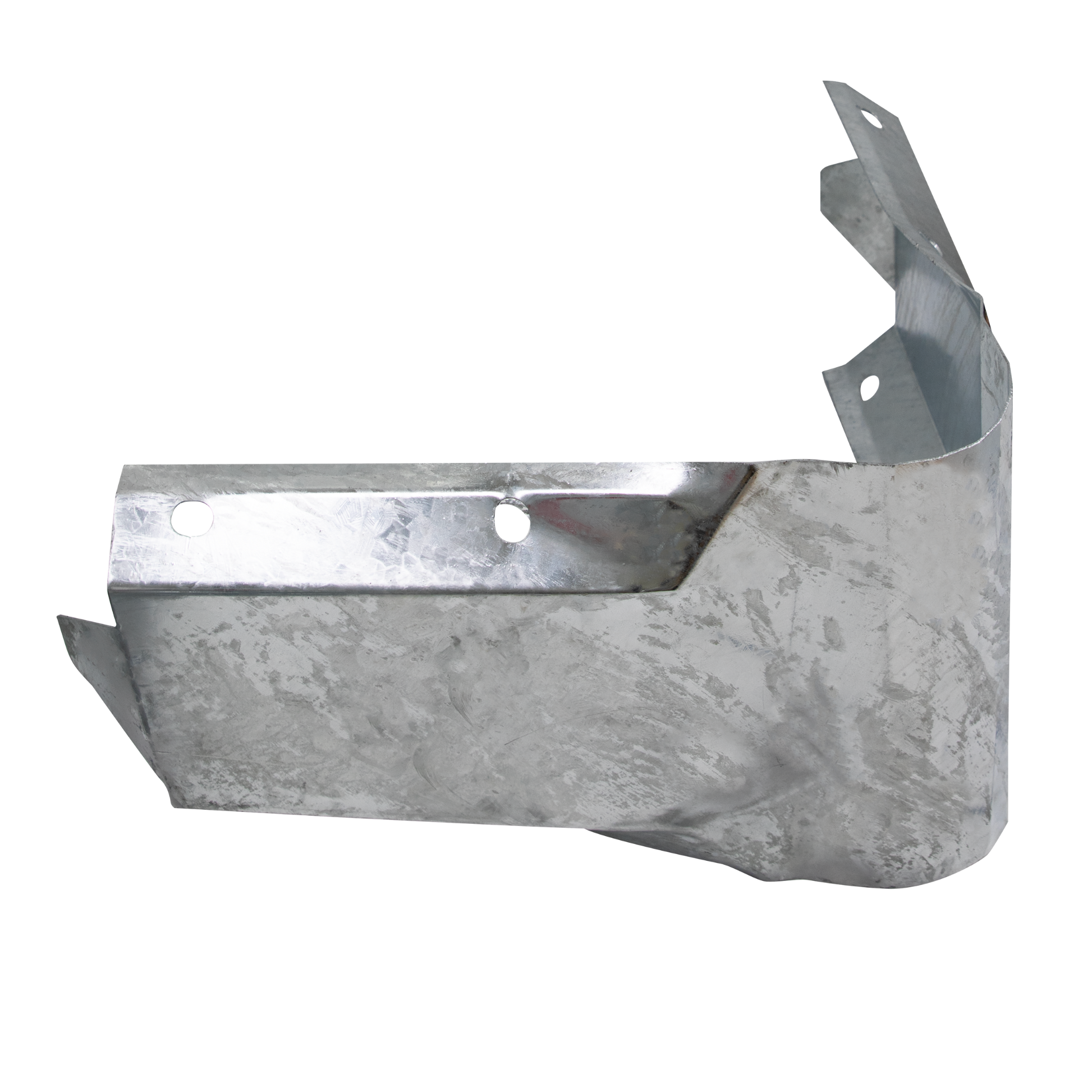

Guard Rail Variable Corner W Beam Connector

Corner connector for W-beam guard rail, in internal or external versions and a galvanised or safety yellow finish. It lets the rail turn a corner without breaking the run, so you can wrap a loading bay, plant area or car park corner in one continuous barrier.

Choose internal for a corner that turns in towards the protected area, or external for one that wraps around the outside of it.

Key features

• Internal and external versions
• Galvanised or safety yellow to match your rail
• 670 x 670 x 400mm · 2mm steel
• Part of a 30kN rated single height system (AS/NZS 1170.1 Type F)

What you need for a complete run

• Base plate posts — 1 per 2m of run, plus 1
• W-beam rails — galvanised or safety yellow in 1m, 2m and 4m
• Splice bolts — 8 per rail joint
• Post bolts — 1 per post
• End treatment — bullnose end or rubber sock, 2 per run
• Corner connector — for internal or external corners
• Anchors — 1 x M20 x 155mm through bolt per post (not included, call us on 1300 291 700)

Not sure which corner you need? Send us your layout on 1300 291 700 or use Add to Quote.
