Tactile Indicator Stud - 316 Stainless Steel | Drill-In | AS/NZS 1428.4.1

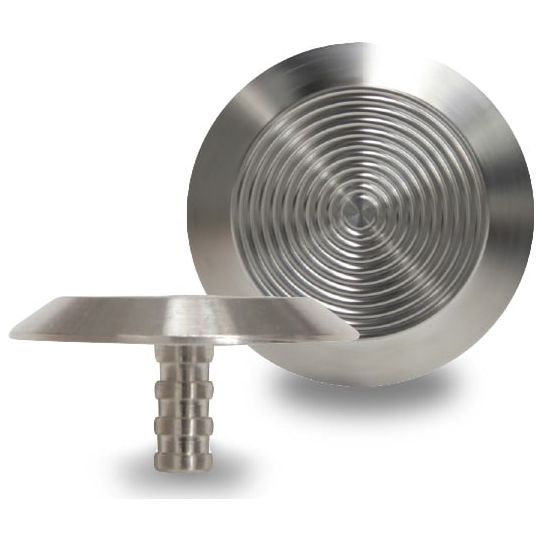

The standard drill-in tactile ground surface indicator, machined from 316 marine grade stainless steel. This is the workhorse of the range — specified where the installation is permanent, external, and expected to outlast the surface it's set into.

Fixing: drill-in. The 6mm ribbed stem sets into an 8mm hole with adhesive. The 1mm annulus is deliberate — it gives the adhesive somewhere to key, and the ribbing on the stem locks into the cured bed. Drilling to 6mm and forcing the stem is the most common cause of studs lifting under traffic.

Contrast: bright metallic. The polished stainless head reads strongly against dark substrates — asphalt, charcoal concrete, dark pavers and bluestone. On pale concrete or light sandstone the contrast is weaker, and Black Stainless or the Black Carborundum insert will meet luminance contrast requirements more comfortably.

316 grade is the marine specification — it holds up in coastal, chlorinated and wash-down environments where 304 will eventually tea-stain. Backed by a 5 year warranty.

Typical applications:

• Kerb ramps and pedestrian crossings
• Rail and light rail platform edges
• Stair top and bottom landings
• Carpark and loading dock thresholds
• Council footpath upgrades
• School and campus pathways

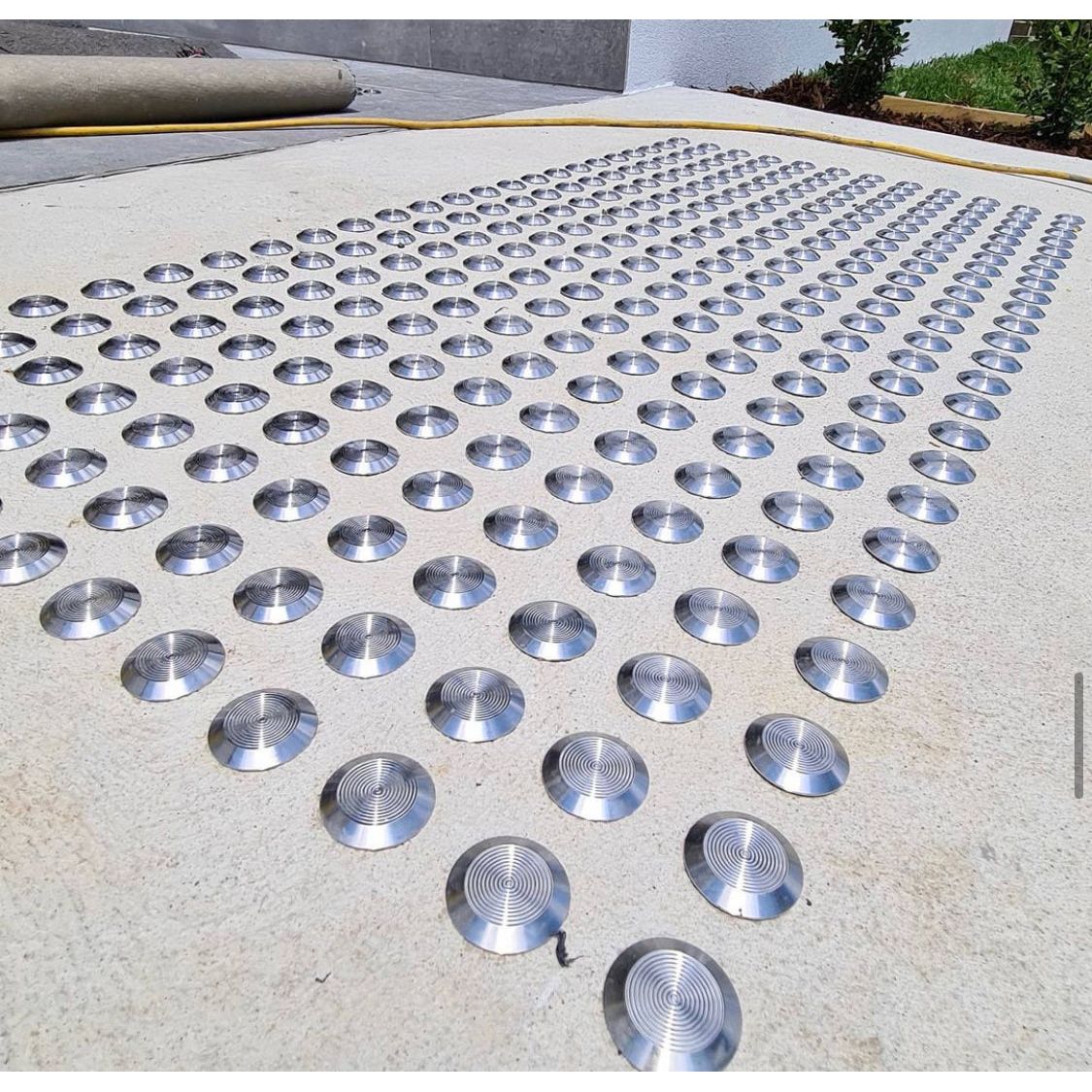

How many do you need? Tactile indicator studs are installed at 400 units per square metre. A 12.5m² hazard field needs 5,000 studs. Measure the area to be treated, multiply by 400, and add 2–3% for wastage and breakage on site.

Choosing a different fixing? 3M adhesive flat back for surfaces you can't drill, or screw fix where a mechanical fixing is required.

Stocked in depth at our Wetherill Park warehouse in Western Sydney. Orders placed before cut-off dispatch same day, with NSW metro delivery usually overnight. Click & Collect available in under 24 hours. If you're pricing a large field, talk to us before you order — we hold thousands of units across the range and can confirm availability against your program.
