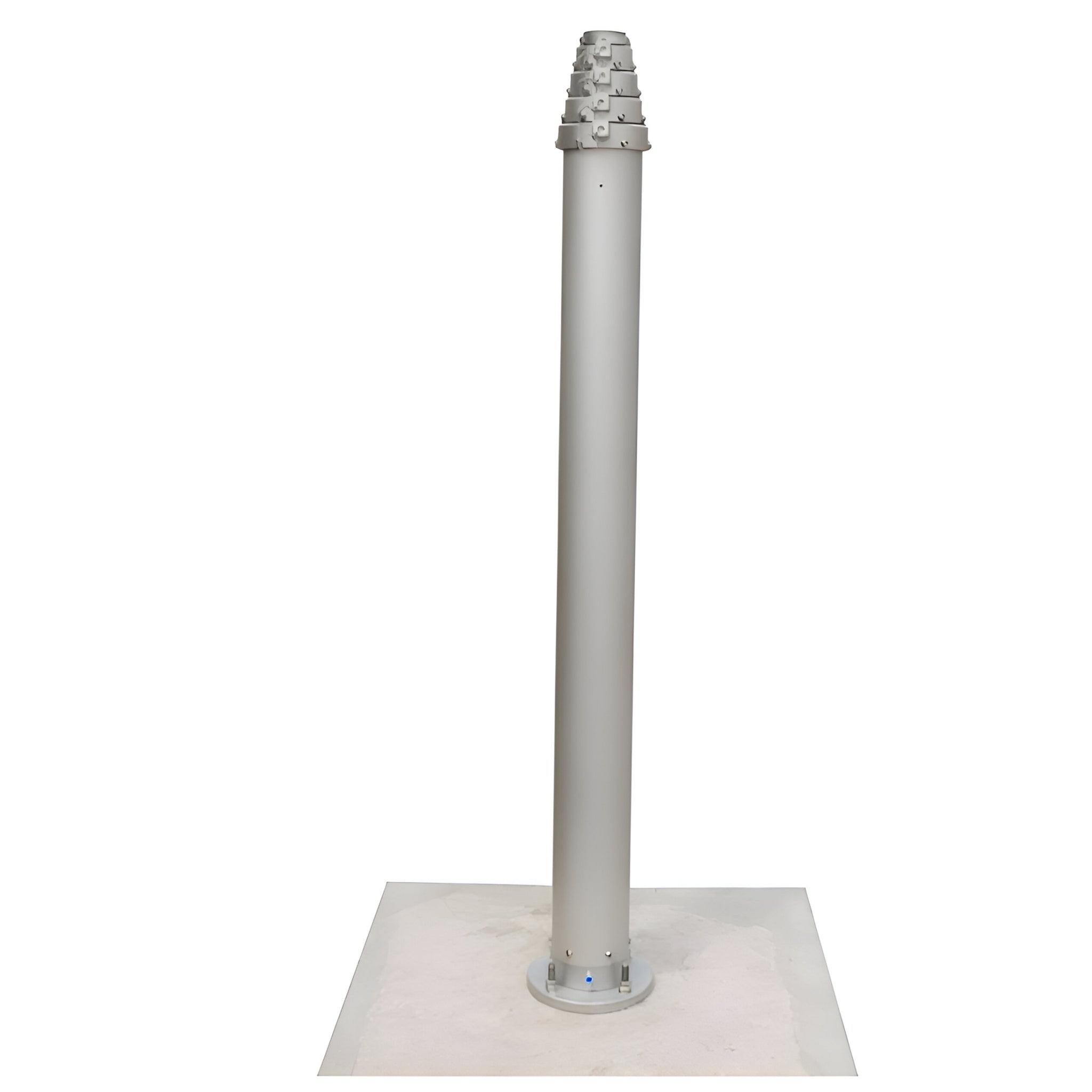

7m Pneumatic Telescopic Pole

  • SKU:
    ES-TELESCOPIC-7M
 Add the item to a quote and our sales team will send you an official quote with costings including shipping charges.
Ask a question

Ask a Question

* Required fields

Size guide Share
7m Pneumatic Telescopic Pole

7m Pneumatic Telescopic Pole

Regular price Request for Quote (inc. GST)
Sale price $0.00 (inc. GST) Regular price (inc. GST)
Unit price
Product description
Product Specification
Data Sheets
Frequently Asked Questions

eSafety Supplies Telescopic Pole offers easy installation for both urban and mining applications, eliminating the need for cranes. Installed vertically and raised with an air compressor, these poles simplify maintenance by providing easy access for cleaning. Optional reinforced concrete base blocks make the system fully relocatable, with forklift sleeves and lifting lugs for convenient movement.

Features:

  • Easy vertical installation with air compressor
  • No cranes or heavy lifting required
  • Simplified solar panel maintenance access
  • Relocatable with reinforced concrete base block
  • Forklift sleeves and lifting lugs for mobility

Use Cases:

  • Urban Street Lighting: Ideal for installing solar-powered street lights in urban areas, Eco Solar’s Telescopic Poles provide quick and efficient setup without the need for heavy machinery, ensuring minimal disruption to traffic and pedestrians.
  • Mining Site Illumination: The telescopic design allows for easy setup and relocation of lighting systems at mining sites, ensuring that lighting can be moved as work areas shift while maintaining safety and efficiency.
  • Public Parks & Outdoor Spaces: Perfect for parks and recreational areas, these poles can be easily installed and relocated to different spots as needed, offering sustainable and cost-effective solar lighting solutions for large outdoor spaces.
Specifications:
Lowered Height2000mm
Raised Height 7000mm
Number of Joints5
Material6063 Aluminium Alloy
Baseplate195mm x 195mm
PCD148.5mm
Weight55kg
Verticle Load40kg
Working ModePneumatic
Working Pressure<0.8Mpa
ColourSilver
Compressor150PSI (included)
RagboltsWe Manufacture
Concrete BlockWe Manufacture
Your Page Title

Download the Data Sheet using the link below:

Data Sheet coming soon!

Your Page Title
What are the main benefits of Telescopic Poles?:
Telescopic Poles are easy to install, require minimal manpower, and eliminate the need for cranes or high-rig lifting.

How are Telescopic Poles installed?:
They are installed vertically and raised using an air compressor, making maintenance and adjustments more convenient.

Is the Telescopic Pole system relocatable?:
Yes, with the optional concrete base block, the system becomes fully portable and can be easily moved using forklift sleeves and lifting lugs.
