Stair Nosing - ESN12ECO

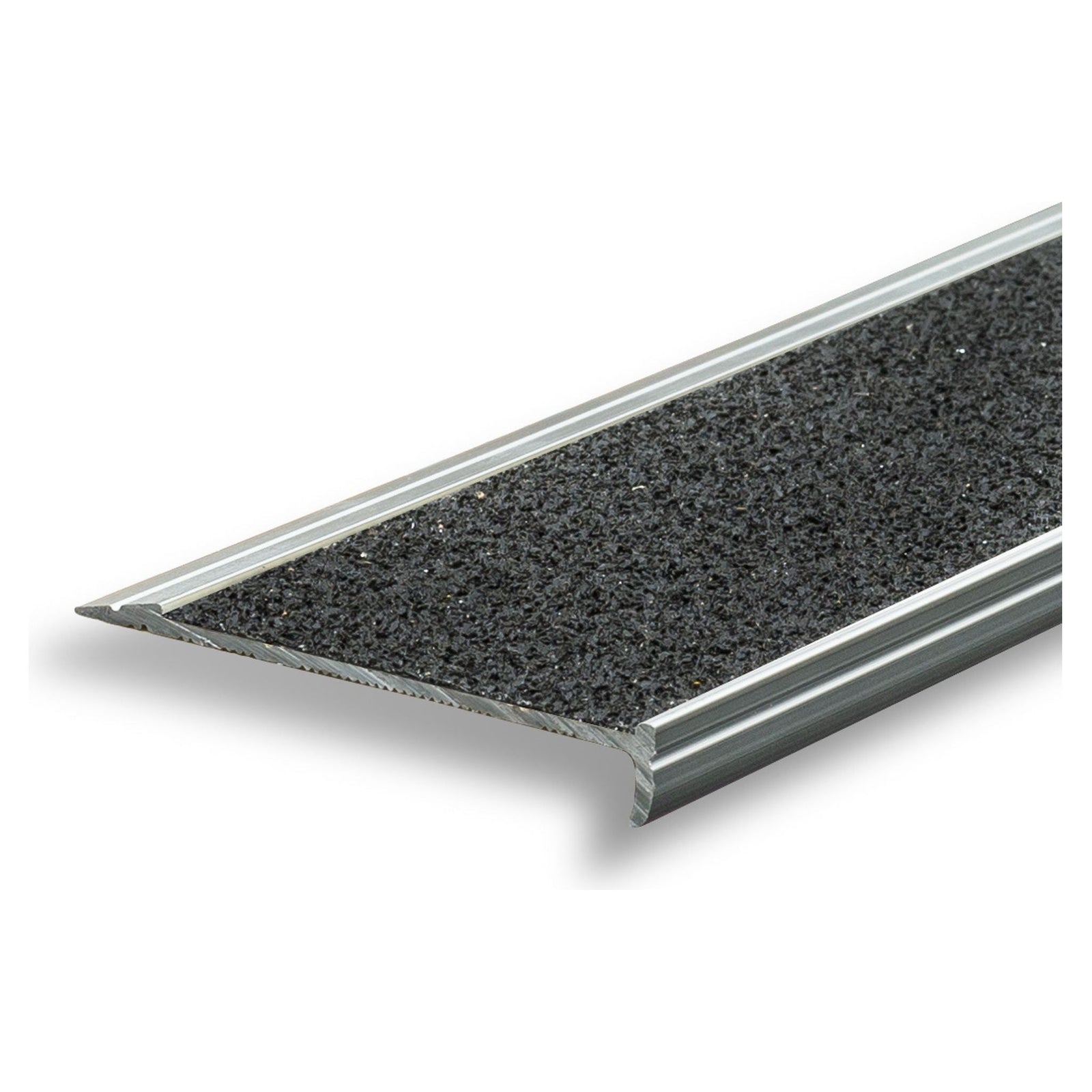

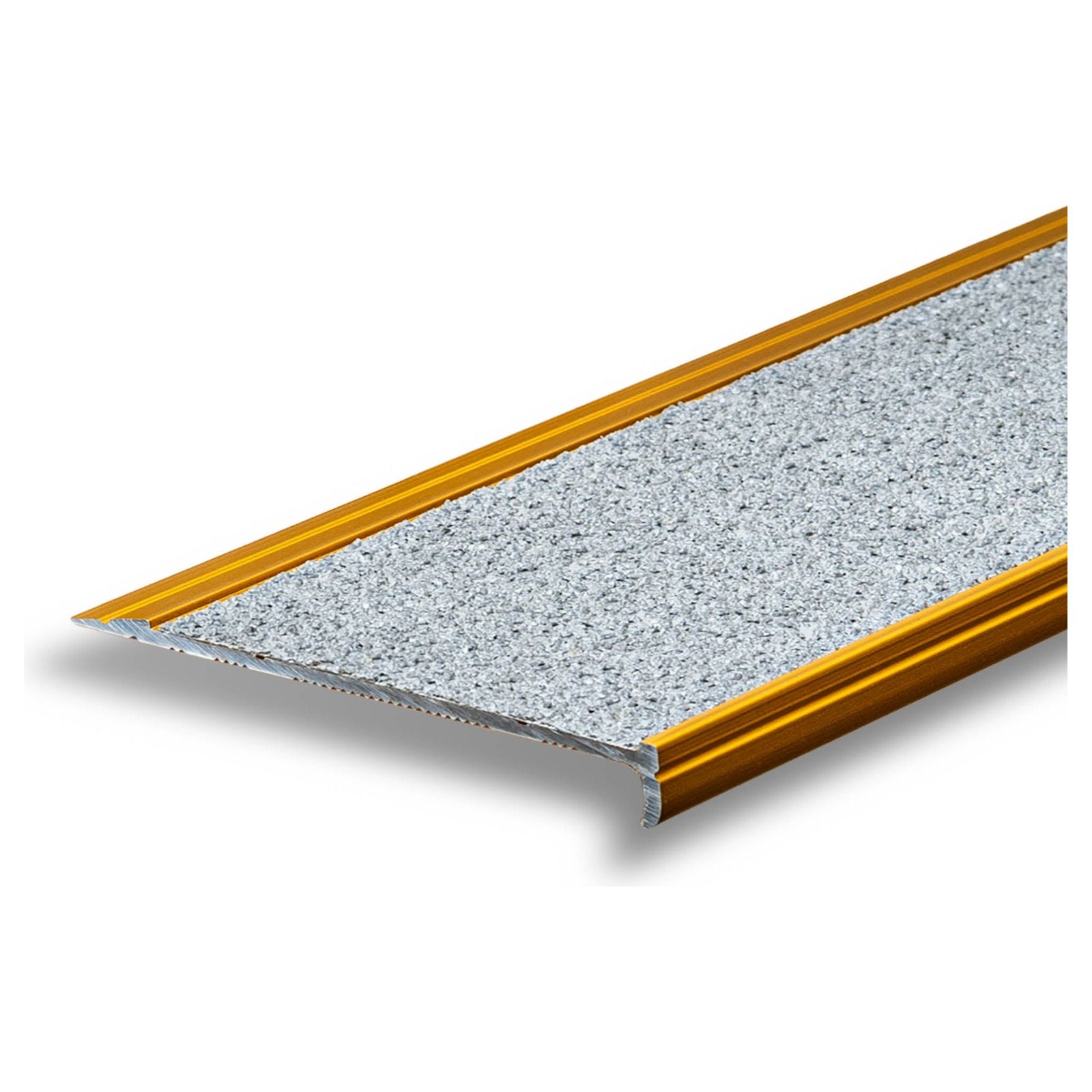

The ESN12ECO is a 63mm-wide aluminium stair nosing from eSafety's Series 10 range — the value-engineered, single-piece version of the ESN12. It ships pre-cut with the carborundum grip already applied, so it goes straight down in one step while still delivering a P5 slip rating and AS 1428.1 / NCC compliance.

Cut to size free of charge and sold per metre, so you order exactly the lengths your treads need.

Features:

• Priced Per Metre & Cut to Size Free – Enter your total metres required and we'll cut each piece to your requested lengths at no extra cost.
• P5 Slip Rating (AS 4586) – Maximum pedestrian slip resistance for commercial and public access areas.
• AS 1428.1 & NCC Compliant – Suitable for Australian accessibility requirements.

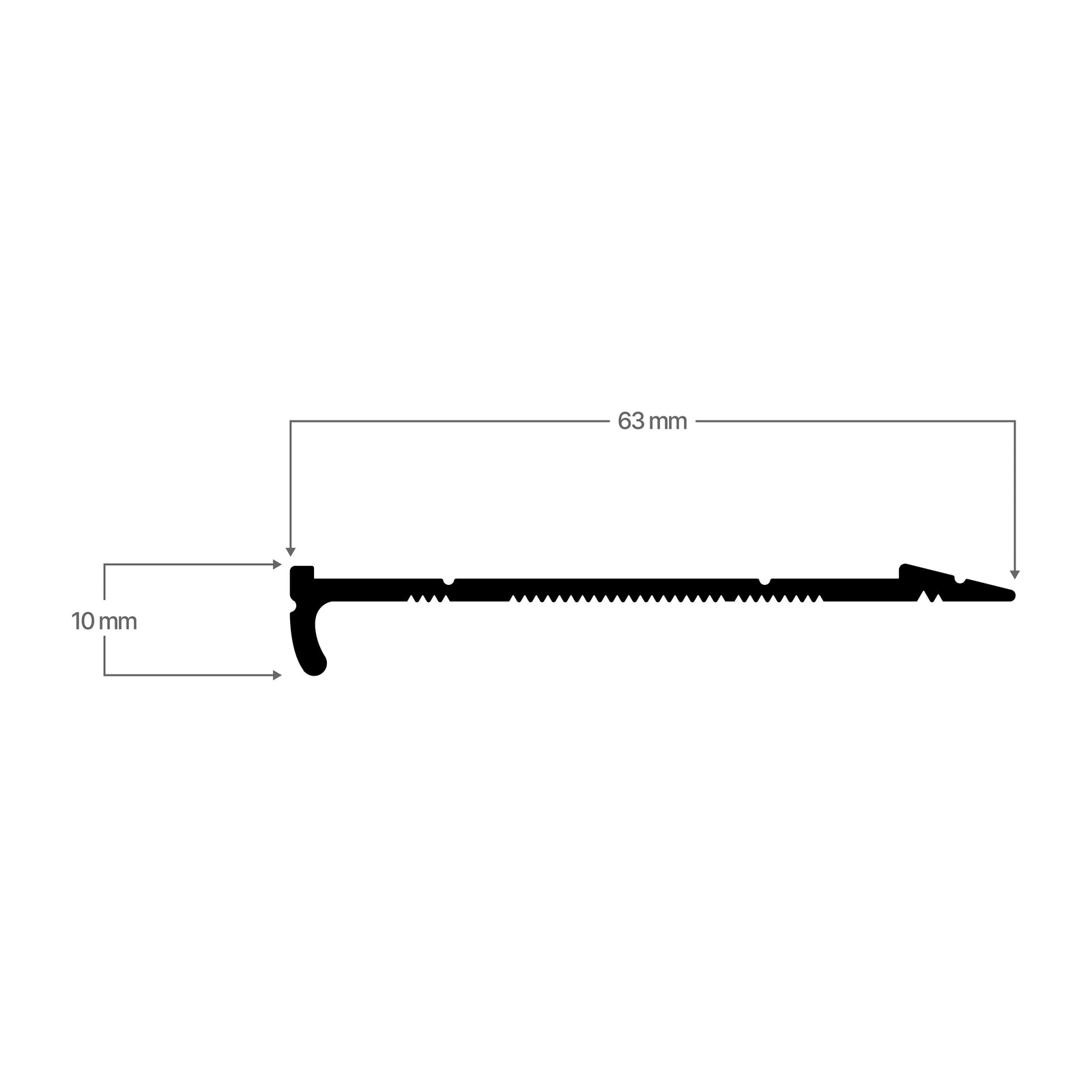

• 63mm tread width × 10mm front depth — low-profile edge coverage
• Single-piece design — carborundum pre-applied for fast, one-step installation
• 6060-T5 aluminium with 25µm anodised finish — corrosion-resistant and hard-wearing
• 2-year warranty

Finishes

• Anodised base: Clear or Black

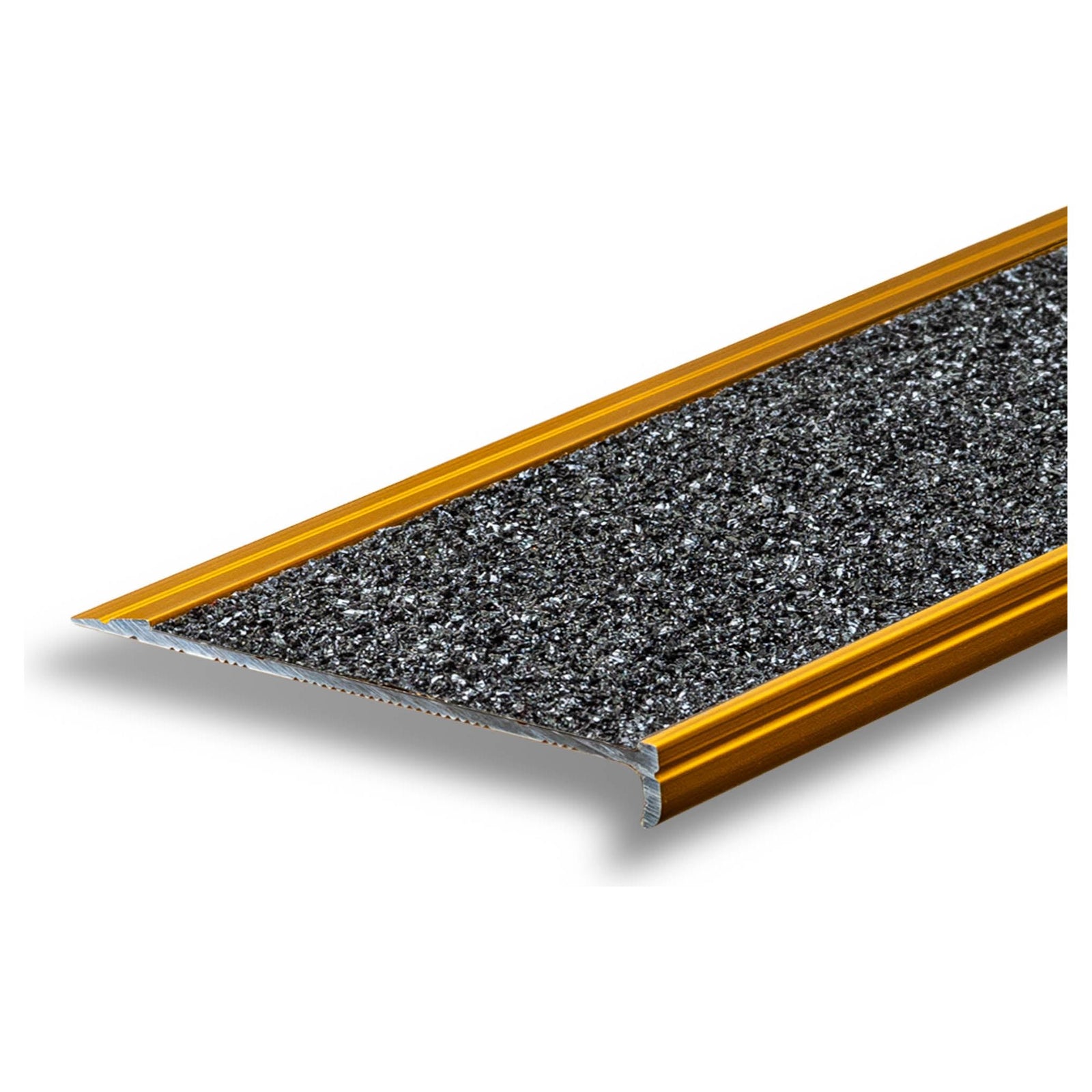

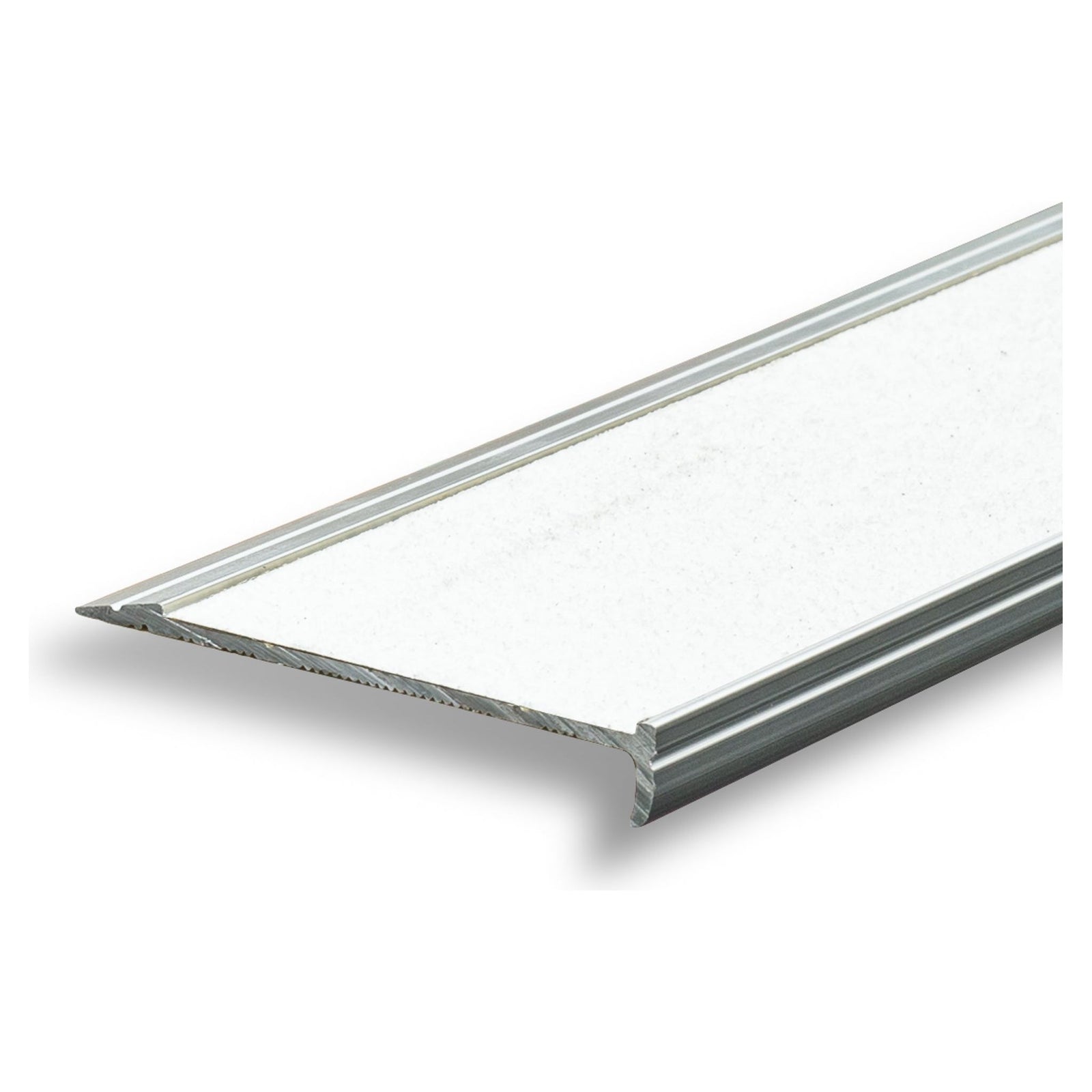

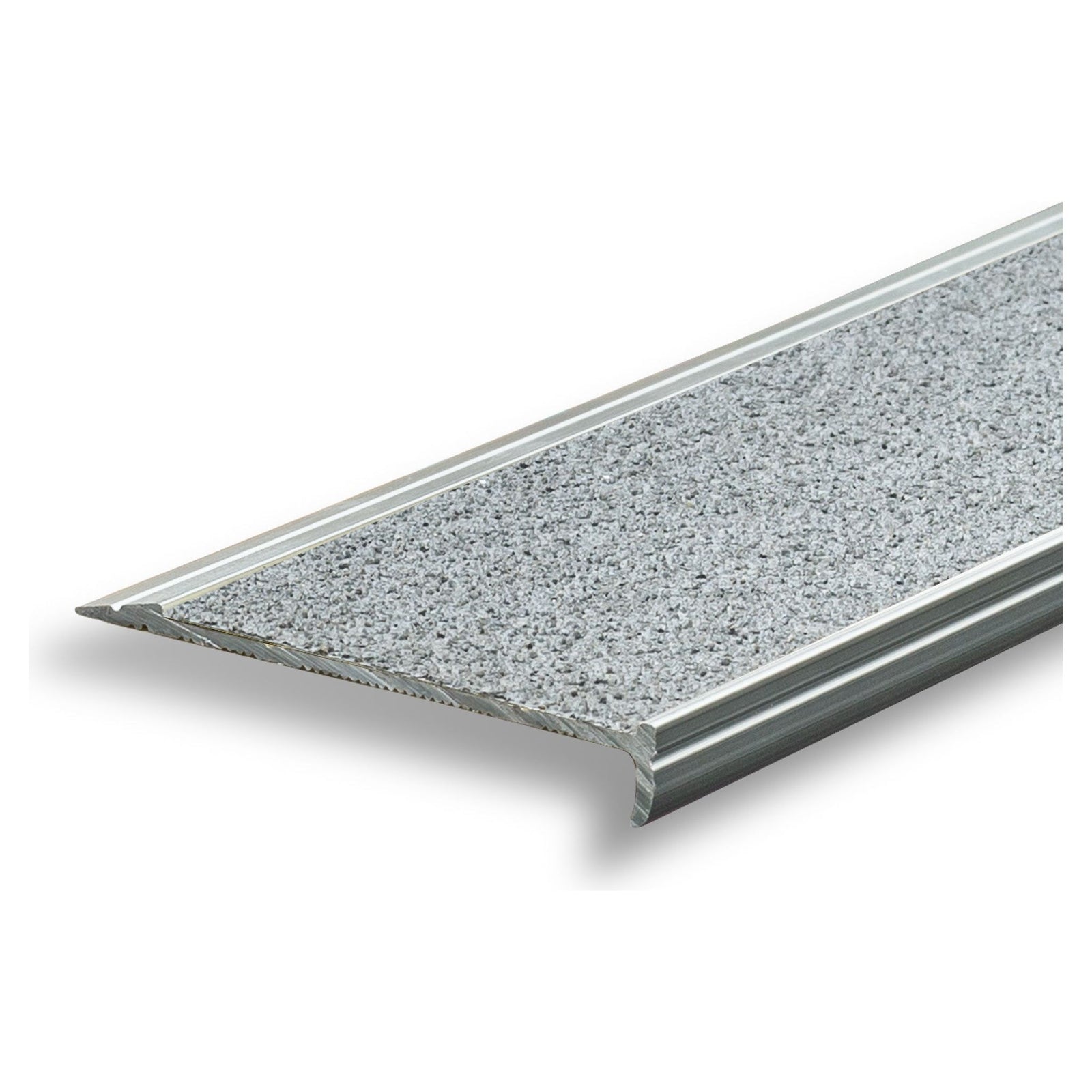

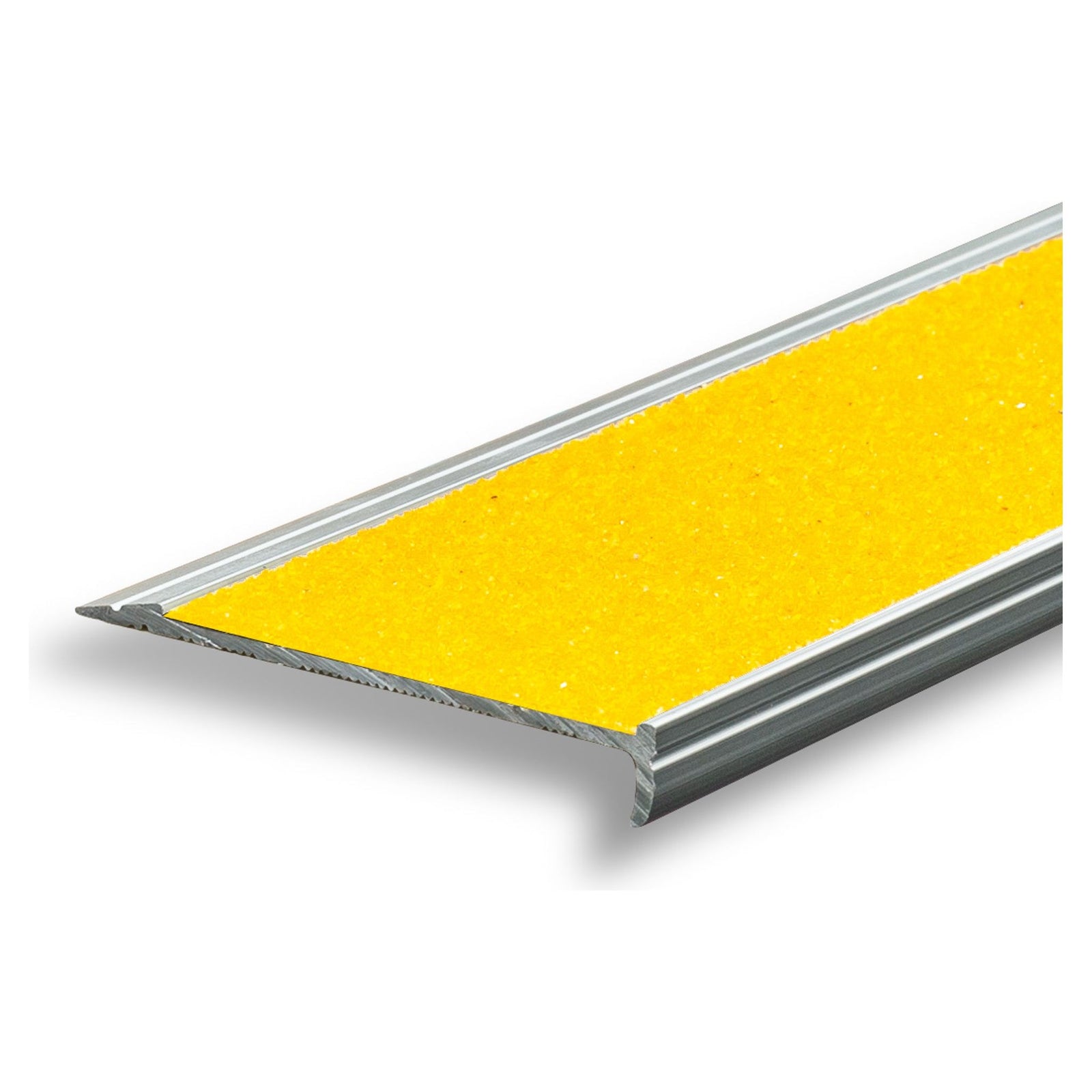

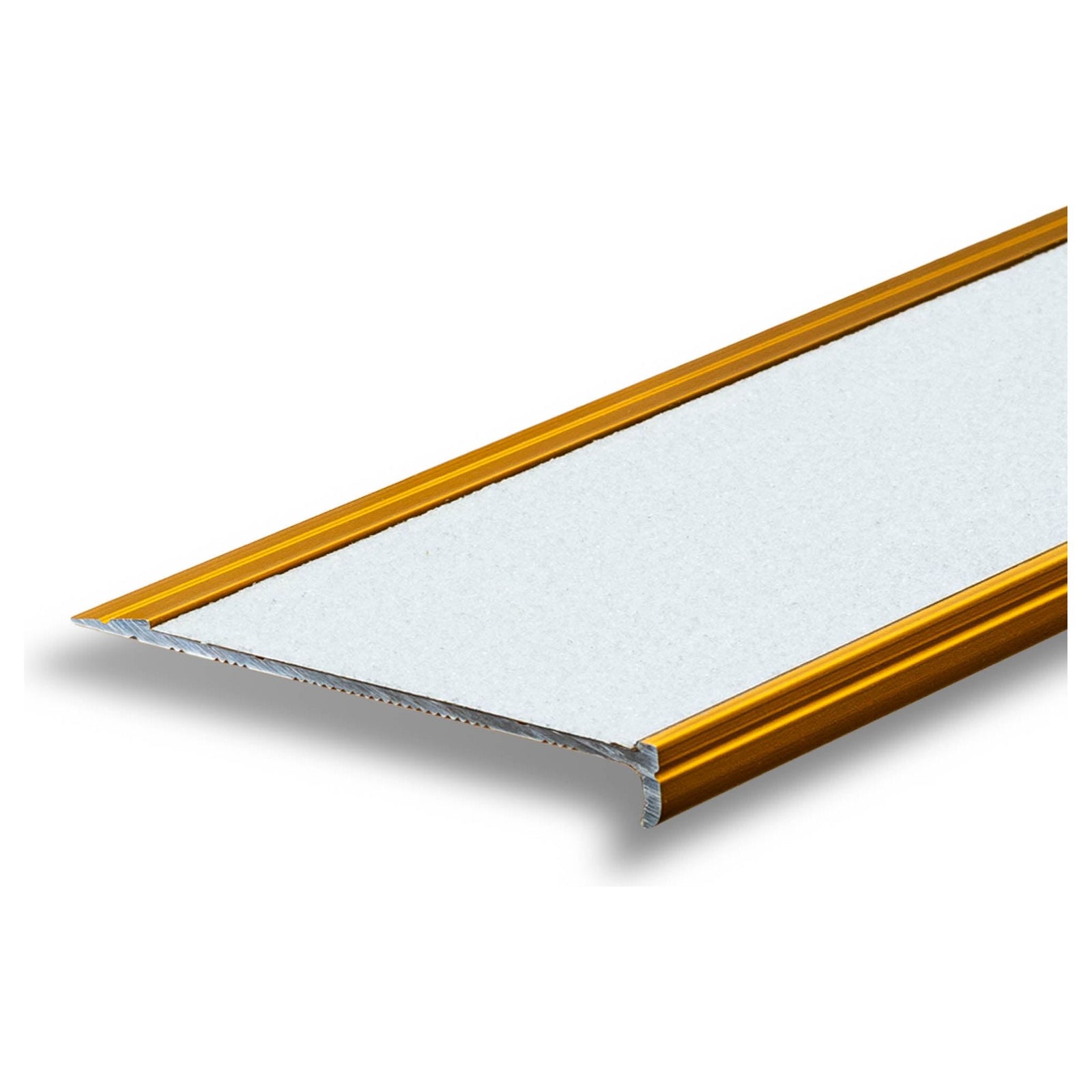

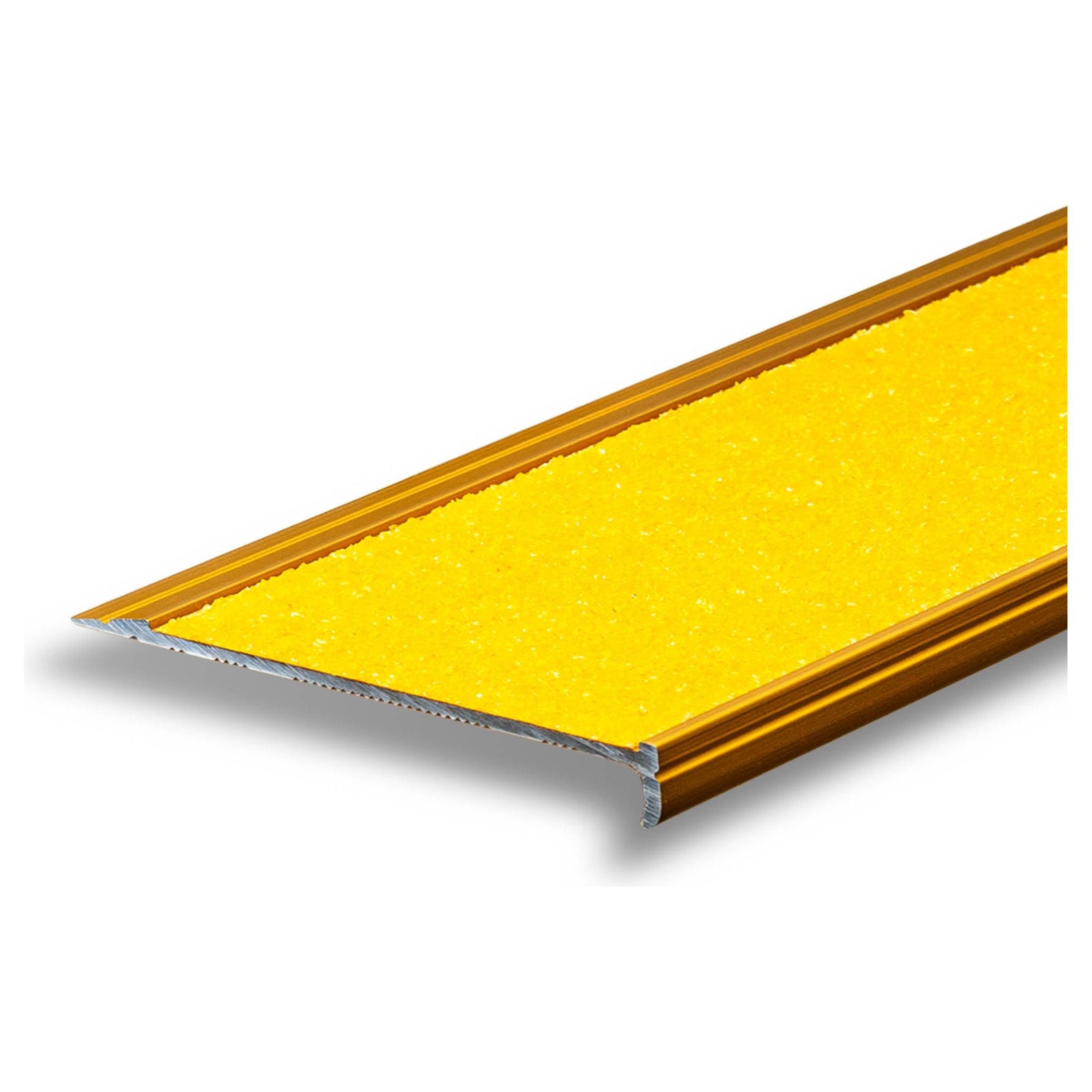

• Insert colours: Black, Safety Yellow, Grey, White or Luminescent

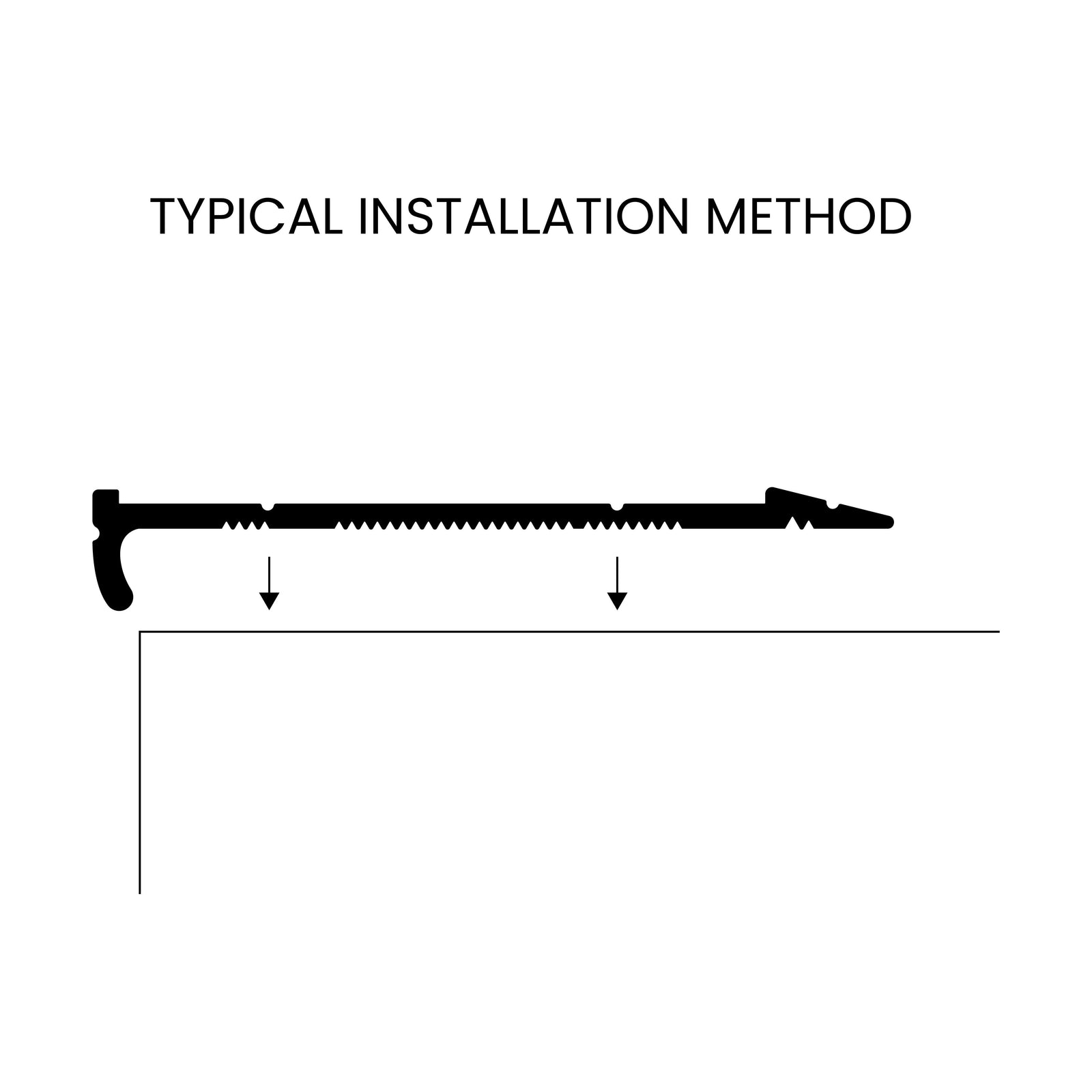

Installation

Surface-mounted, glue-down. A 1-part profile installed in a single step:

1. Place the pre-cut nosing on a clean stair edge and glue down with adhesive — carborundum is already applied, so there's nothing further to fit

Specifications

Not sure the ESN12ECO is right for your project? Send your stair dimensions for a profile recommendation, or order the free sample box to compare profiles in person.
