Nero Drainage Cell - 500x600mm - 30mm

Best Seller

SKU: NDC-30

In Stock

$7.15 inc. GST $6.50 (ex. GST)

Features:

& benefits
efficient water drainage - high internal void structure allows fast water flow, reducing waterlogging and hydrostatic pressure.
high load-bearing capacity - engineered to withstand heavy loads with a compressive load capacity of over 135 tons/m2.

Click & Collect

Find out more

Calculate Shipping

Delivery Times

Get my ETA

Want it installed?

Find out more

Nero Drainage Cell - 500x600mm - 30mm

SKU: NDC-30

$7.15

Shipping details

Calculate your rate

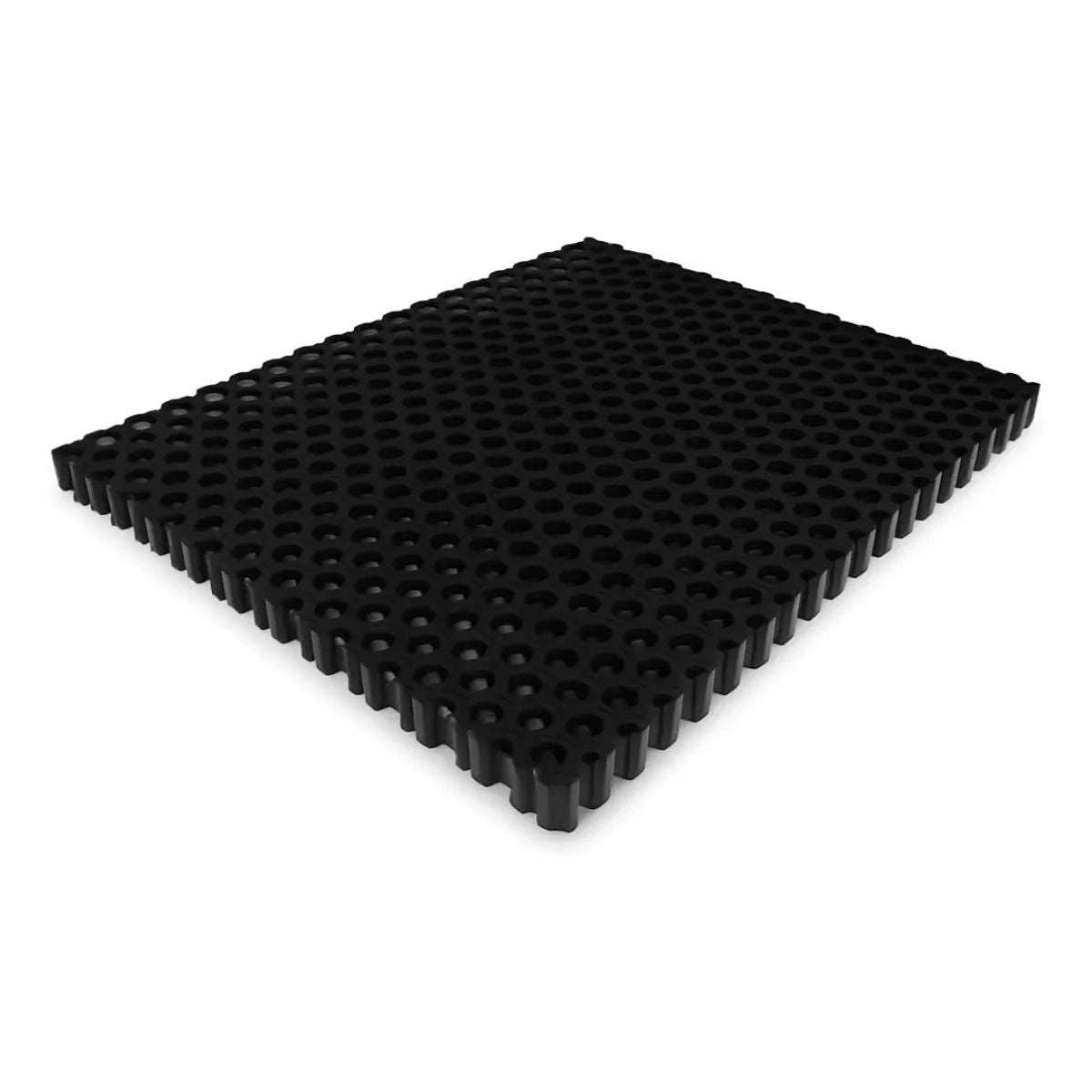

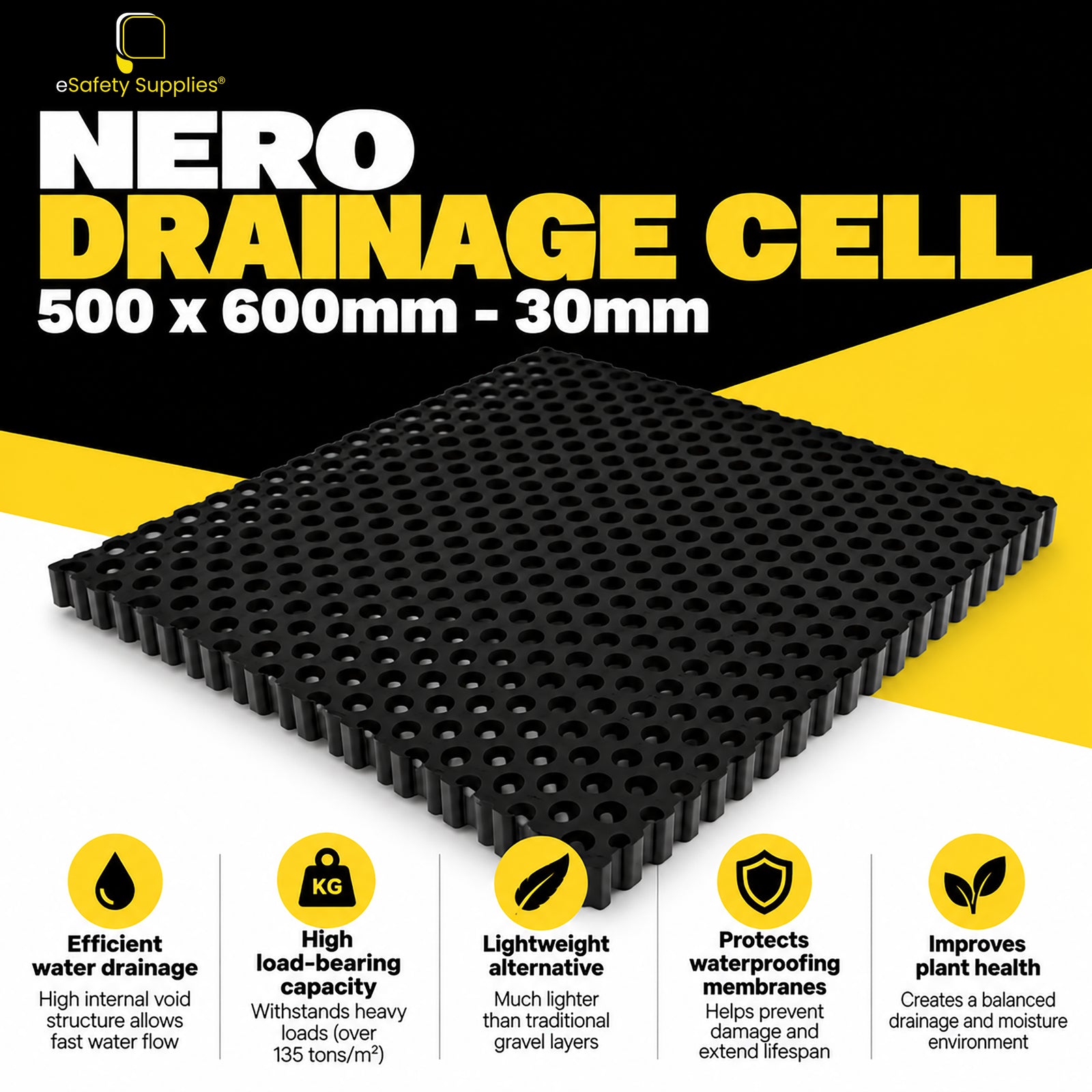

Nero Drainage Cell – 500 × 600 mm × 30 mm

The Nero 30 mm Drainage Cell is a high-strength, lightweight drainage solution designed for efficient water management in landscaping, construction, and waterproofing applications. Manufactured from durable recycled polypropylene, it provides rapid drainage, protects waterproof membranes, and improves plant health in both residential and commercial projects.

Ideal for use under slabs, podium decks, green roofs, planter boxes, and landscaped areas, the Nero Drainage Cell delivers excellent load-bearing performance while significantly reducing installation weight compared to traditional gravel systems.

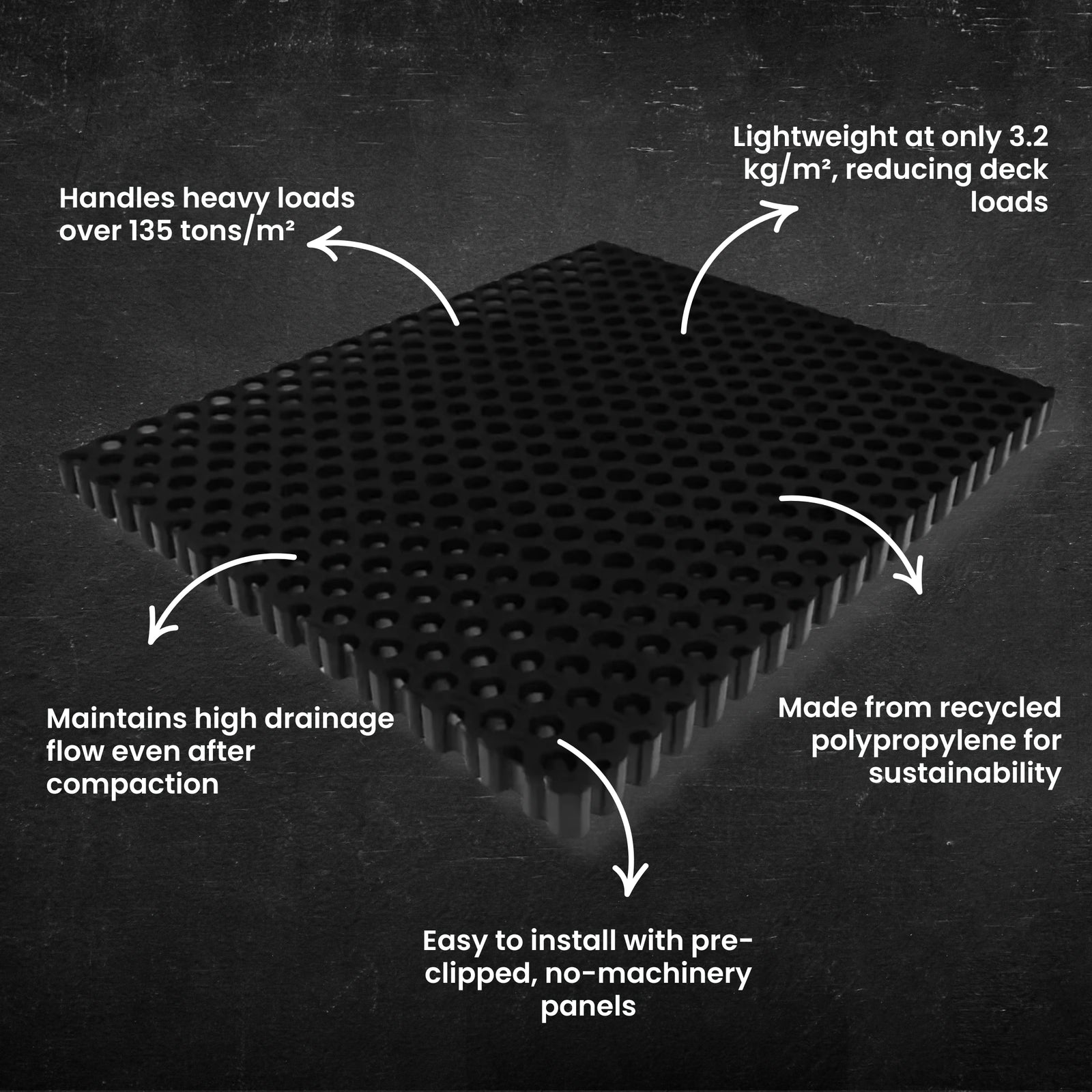

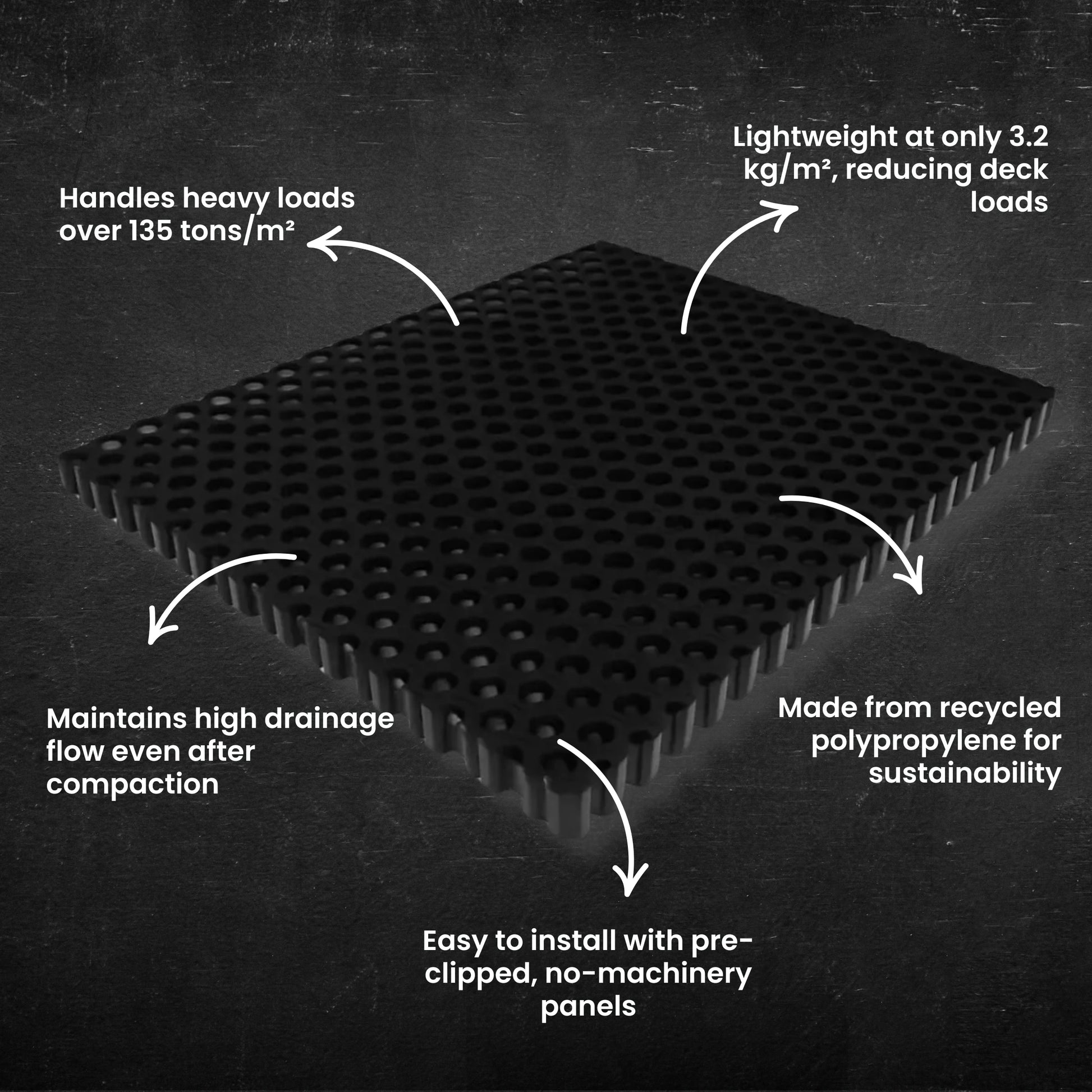

Key Features & Benefits

Efficient Water Drainage - High internal void structure allows fast water flow, reducing waterlogging and hydrostatic pressure.
High Load-Bearing Capacity - Engineered to withstand heavy loads with a compressive load capacity of over 135 tons/m2.
Lightweight Alternative to Gravel - Significantly lighter than traditional aggregate drainage layers, reducing structural load and installation time.
Protects Waterproofing Membranes - Acts as a protective drainage layer over membranes, helping prevent damage and extending system lifespan.
Improves Plant Health - Creates a balanced drainage and moisture retention environment for green roofs, planters, and landscaped areas.
Durable & Long-Lasting - Resistant to soil chemicals, rot, mould, and biological degradation.

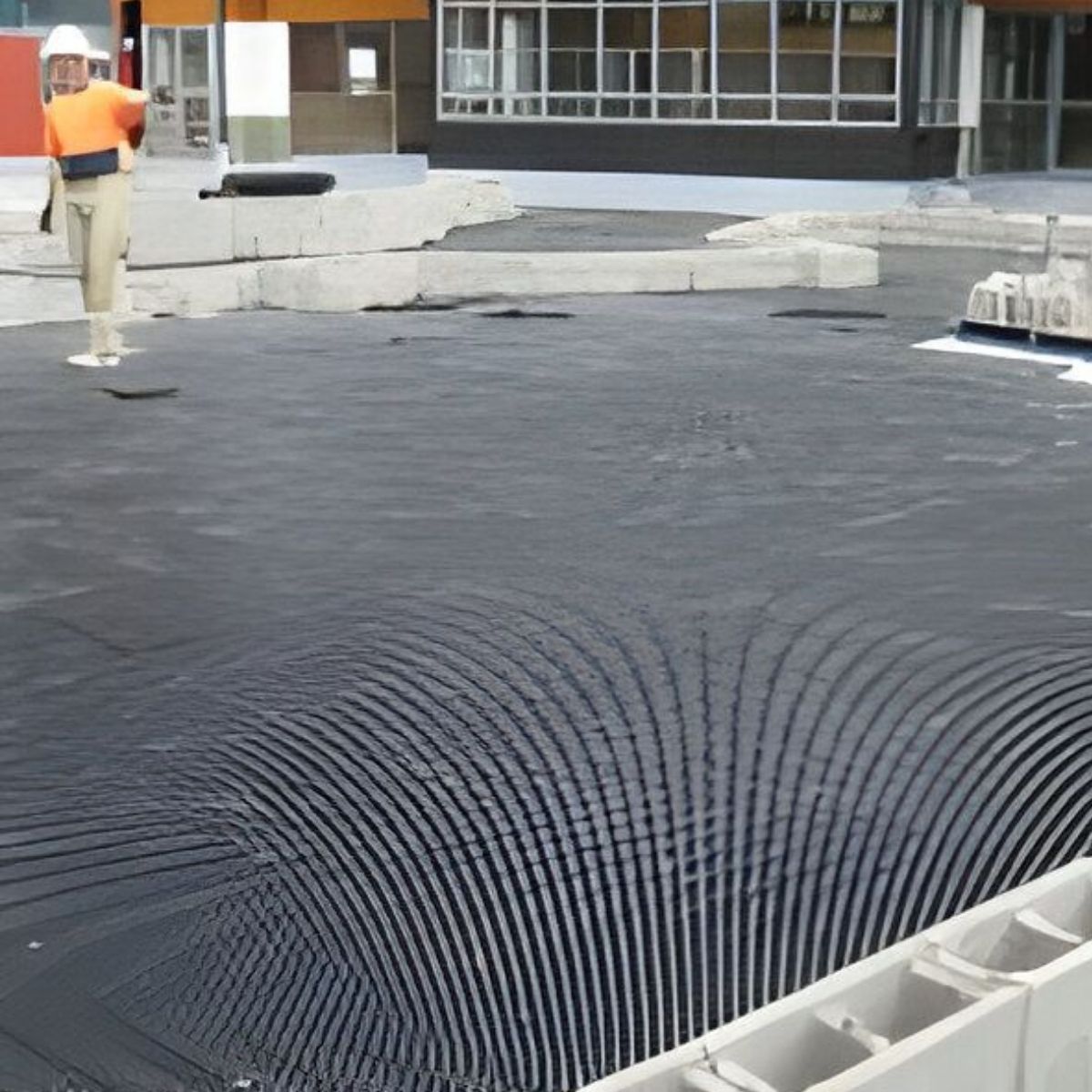

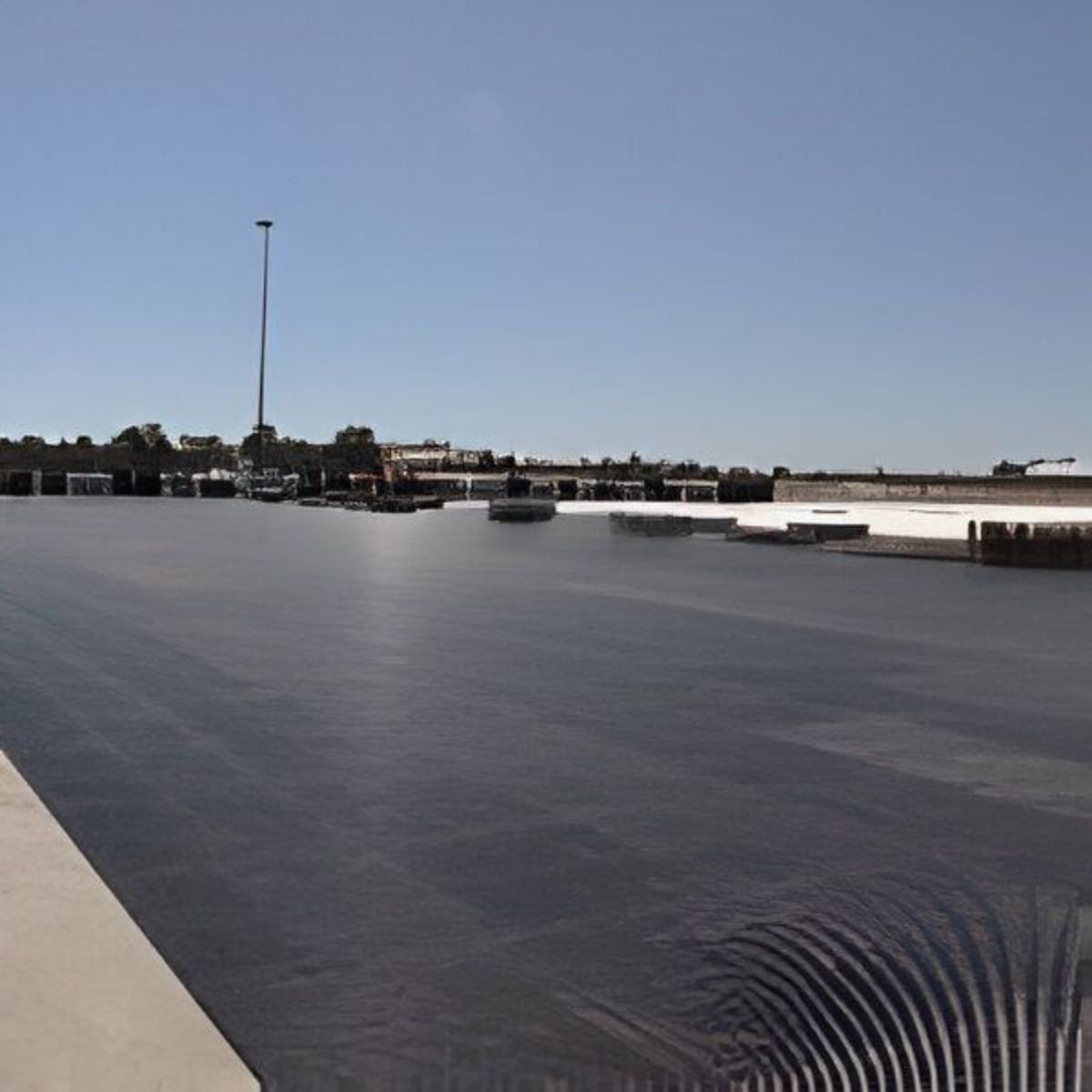

Typical Applications

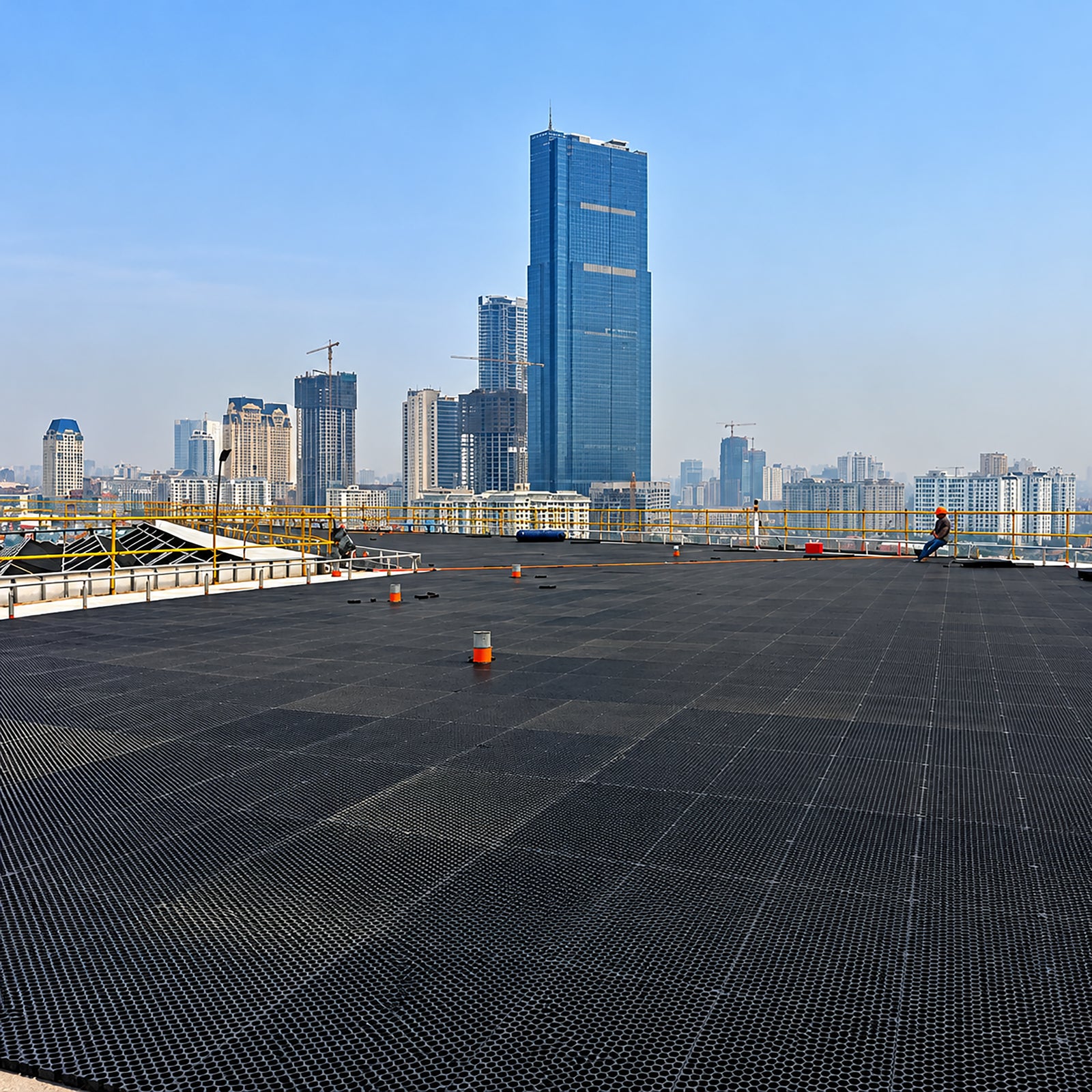

Green roofs and rooftop gardens
Planter boxes and landscaped areas

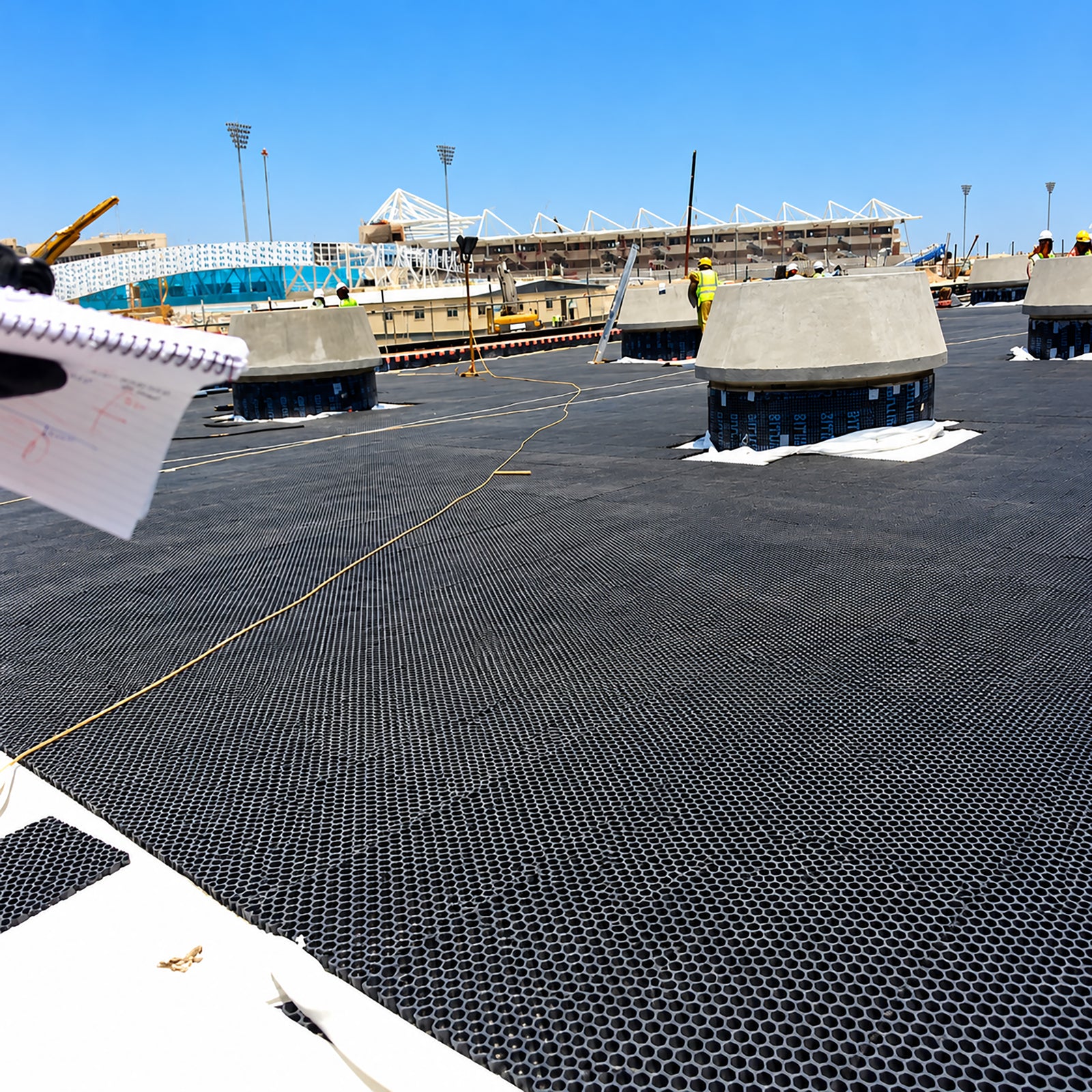

Podium decks and balconies
Sub-soil drainage under slabs and pavements
Stormwater management systems
Car parks, roads, and trafficable surfaces
Sports fields and turf drainage systems

(For detailed load ratings and flow performance, contact us for the technical data sheet.)

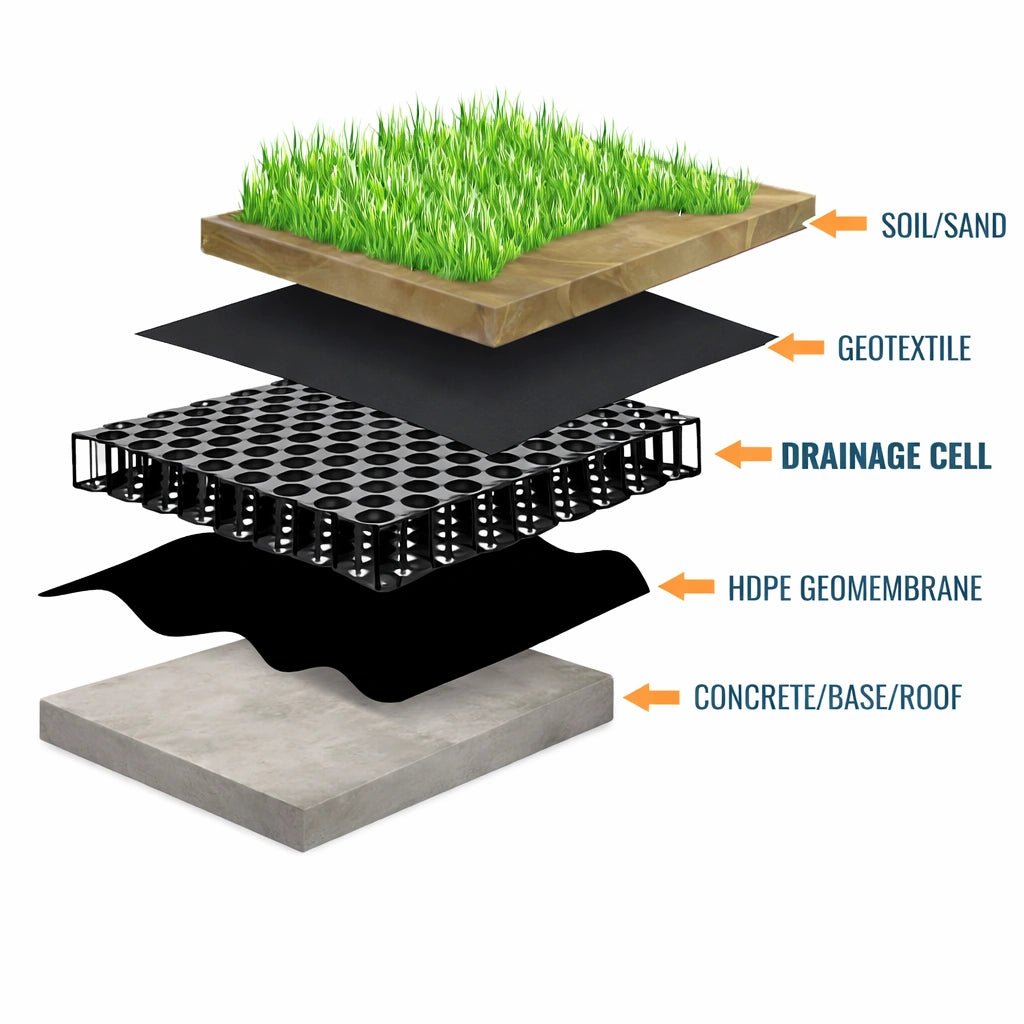

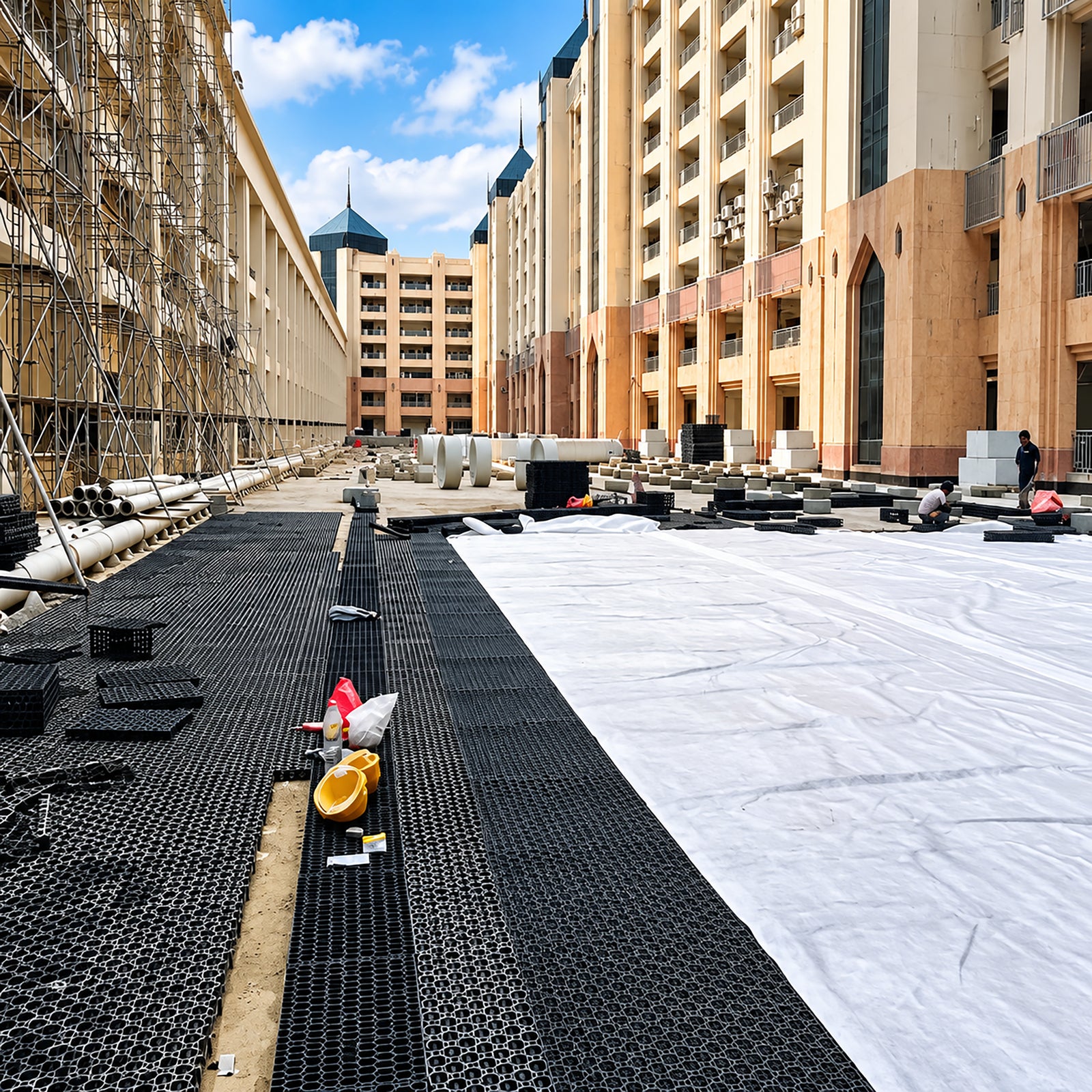

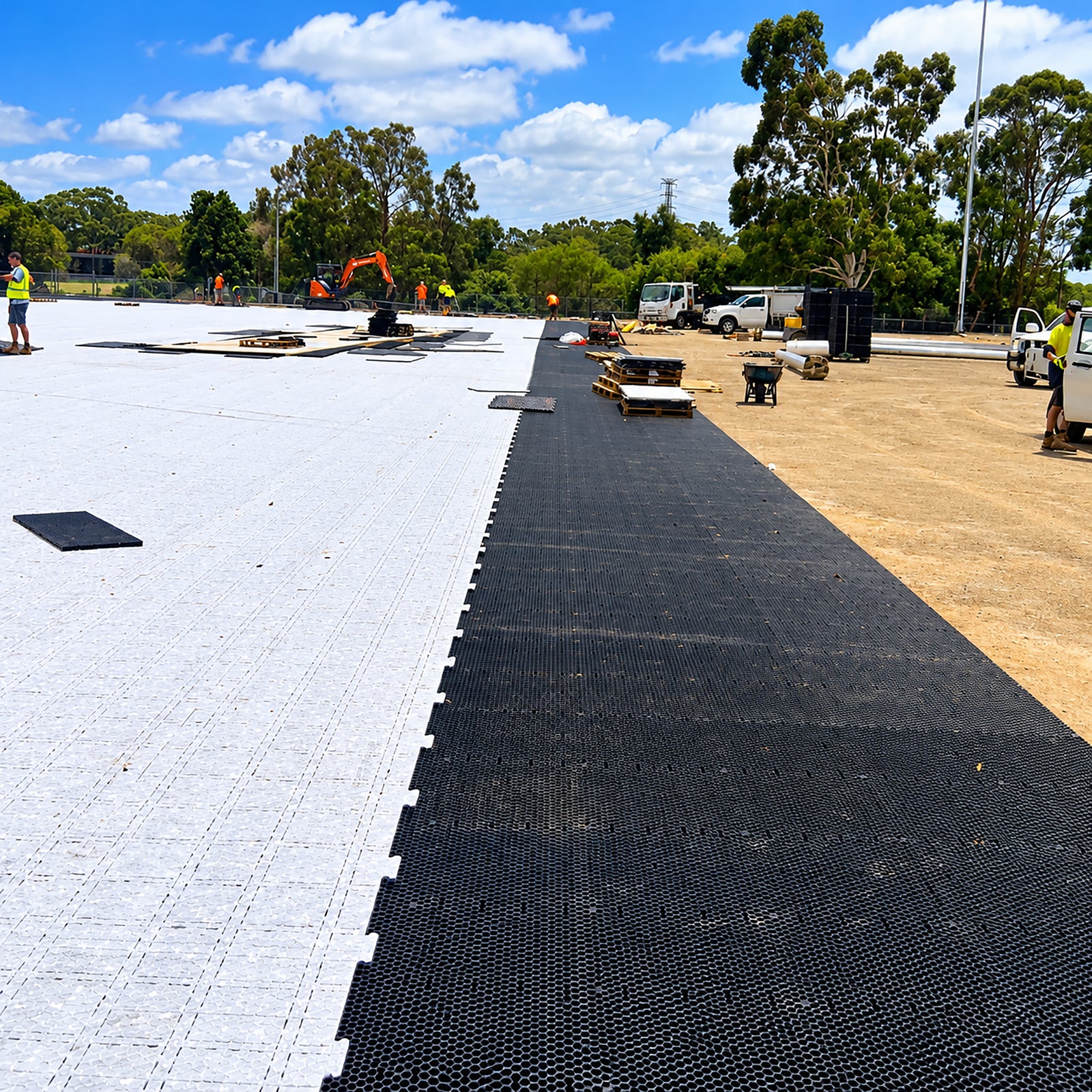

Installation Notes

Install directly over the waterproofing membrane or prepared substrate
Use geotextile fabric where required to prevent soil ingress
Panels can be easily cut to size for complex layouts
Suitable for use with irrigation and drainage pipe systems

Area to Cover (m²)	Panels Required	Coverage Provided (m²)
1 m²	4 panels	1.20 m²
2 m²	7 panels	2.10 m²
5 m²	17 panels	5.10 m²
10 m²	34 panels	10.20 m²
15 m²	50 panels	15.00 m²
20 m²	67 panels	20.10 m²
25 m²	84 panels	25.20 m²
30 m²	100 panels	30.00 m²
40 m²	134 panels	40.20 m²
50 m²	167 panels	50.10 m²

Area to cover (m²) ÷ 0.30 = Number of panels required

Why Choose Nero Drainage Cells?

Nero Drainage Cells are trusted by landscapers, builders, and waterproofing professionals for their strength, reliability, and ease of installation. They offer a smarter, lighter, and more efficient drainage solution than traditional gravel while meeting the demands of modern construction and landscaping projects.

Specifications

Drainage Cell	Metric
Width	500mm
Length	600mm
Height	30mm
Surface Void Area	68% void
Internal Void Area	95%
Pallet Specs	93.6 sqm = 312 pcs per pallet
Material	90% recycled polypropylene +10% propriety mix
Biological & Chemical Resistance	Unaffected by moulds and algae, soil-borne chemicals, bacteria and bitumen, Oils & light Acid, Alkaline Solutions.
