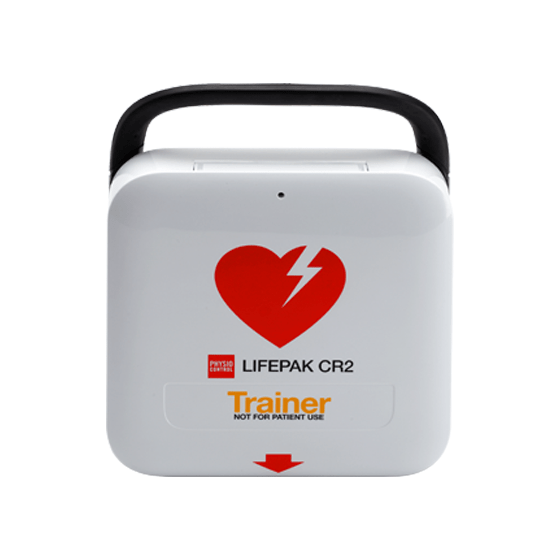

LIFEPAK CR2 Trainer Defibrillator

The LifePak CR2 Training System realistically simulates the operations of a LifePak CR Plus AED with voice prompts, audible alerts, and readiness display features. The AED Trainer guides the user through simulated heart rhythm analysis, simulated shock prompts and therapy delivery, and CPR instruction. For use in temperature-controlled areas protected from precipitation. Capable of withstanding heavy usage and prolonged periods of operation.

Physical Characteristics:

• Height: 27.2 cm (10.7 in), with handle
• Width: 21.8 cm (8.6 in)
• Depth: 8.6 cm (3.4 in)
• Weight: 1.8 kg (3.9 lbs), with batteries

Batteries: 6 volts/4 cells, range 3.3–6.6 Vdc. Four nonchargeable D-cell alkaline batteries. New batteries will provide no less than 100 hours of continuous operation at volume 4.

Buttons: Language, Power, Child Mode, Shock

Display: Power Indicator: Off when the device is off; On when the device is in use or setup mode; flashes when the device is in standby mode (lid is closed).

Scenario Options:

• Device Type: Semi, Fully Auto
• Number of Events: 1, 2, 3, 4, Repeat
• Shock Advised: Yes, No
• CPR Metronome: Hands-only, 30:2
• CPR Time: Short, 60s, 120s, 180s
• No CPR Detected: On, Off
• Motion Detected: On, Off
• Bilingual: On, Off
• Second Language: All
• Check Breathing: On, Off

This product is not a substitute for direct medical attention from a healthcare practitioner.
