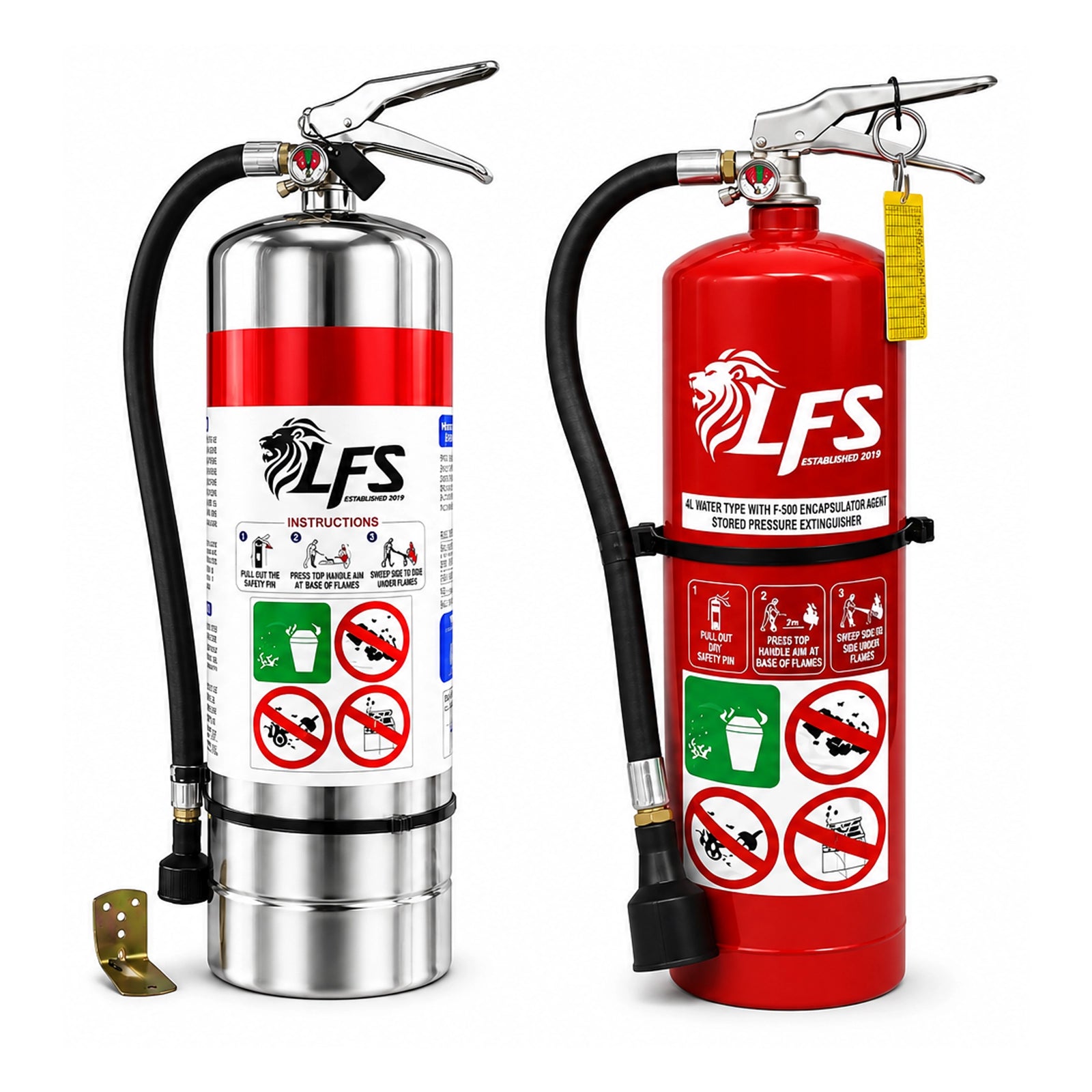

LFS Fire Extinguisher – F-500 EA Lithium-Ion Fire Solution (4L & 9L)
The LFS Fire Extinguisher – F-500 EA Lithium-Ion Fire Solution is a specialised water-type fire extinguisher available in 4 Litre and 9 Litre capacities. Designed for first-response fire protection, it is suitable for Class A fires and has demonstrated strong performance in controlling and extinguishing lithium-ion battery fires during independent testing.
Containing F-500 EA extinguishing agent, these extinguishers are suitable for environments where lithium-ion batteries are commonly used, including EV charging stations, electric vehicle workshops, car dealerships, warehouses, battery storage areas, renewable energy facilities, and industrial workplaces.
The F-500 EA agent is fluorine-free, non-corrosive, non-toxic, non-hazardous, and fully biodegradable, providing an environmentally responsible fire suppression solution. Both models comply with AS/NZS 1841.2:2007 as water-type fire extinguishers.
Important: There is currently no Australian Standard specifically for portable fire extinguishers designed for lithium-ion battery fires. Independent testing has demonstrated the effectiveness of the F-500 EA extinguishers on lithium-ion battery fires; however, this testing is separate from the scope of the AS/NZS 1841.2 certification.
Portable fire extinguishers are intended for use by trained individuals as first-attack fire protection on small, contained fires only. If a fire spreads rapidly or produces heavy smoke, evacuate immediately and call 000.
Available Sizes

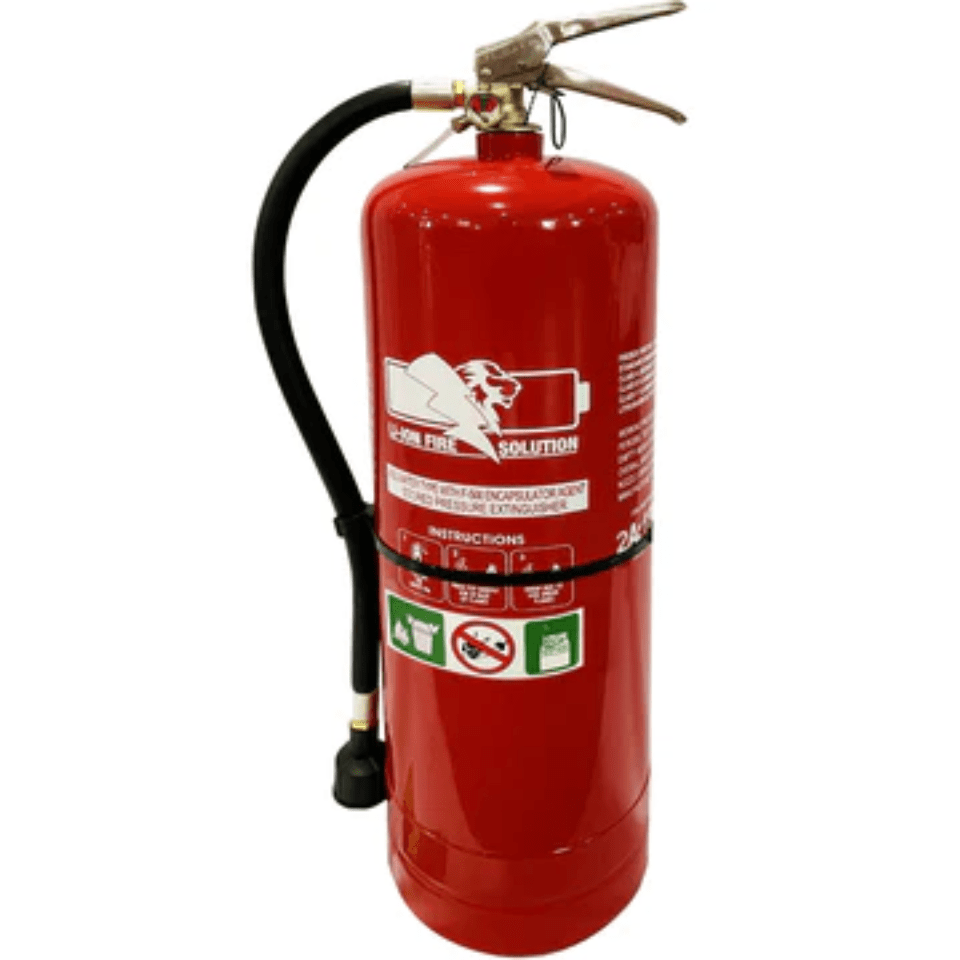

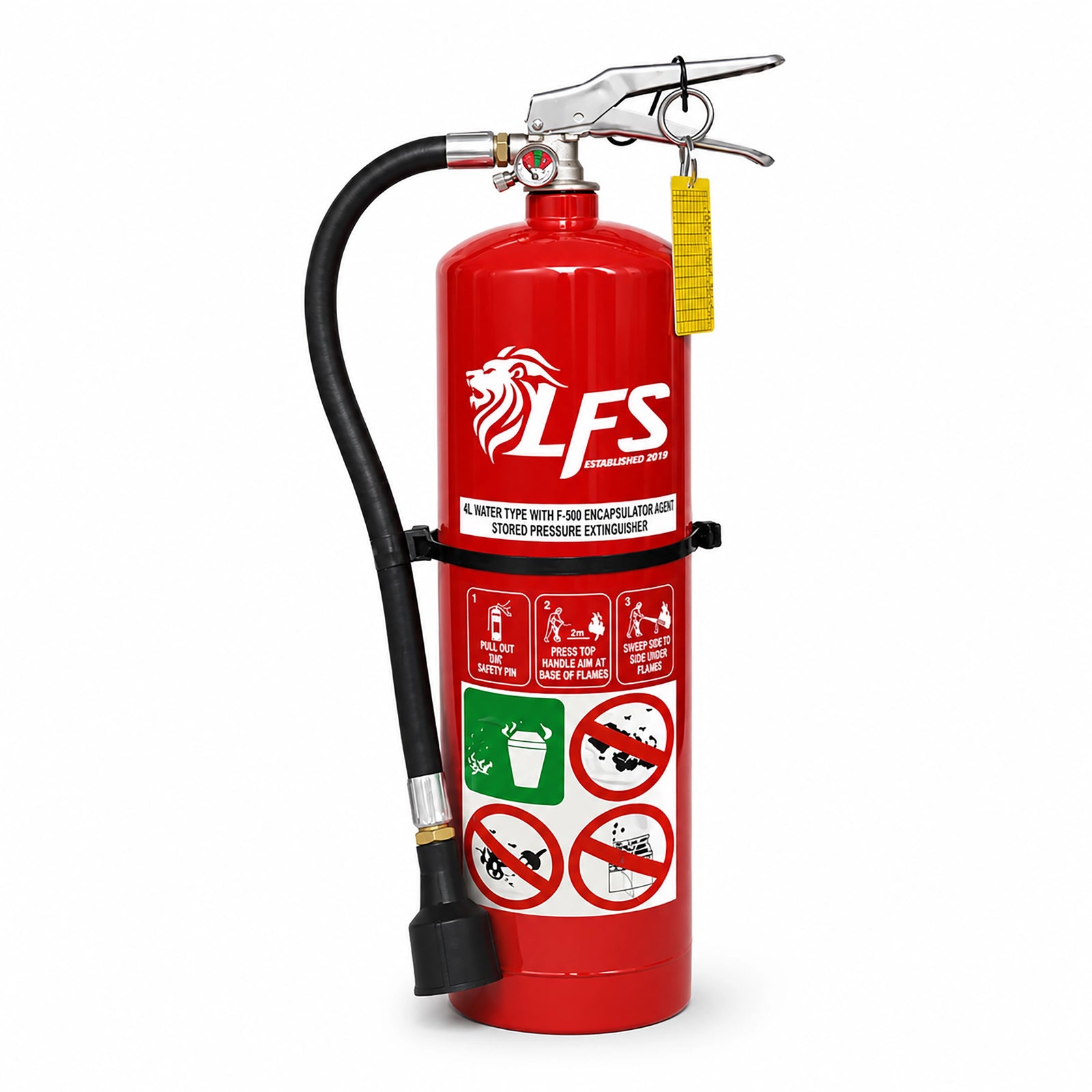

- 4 Litre LFS Fire Extinguisher
- 9 Litre LFS Fire Extinguisher

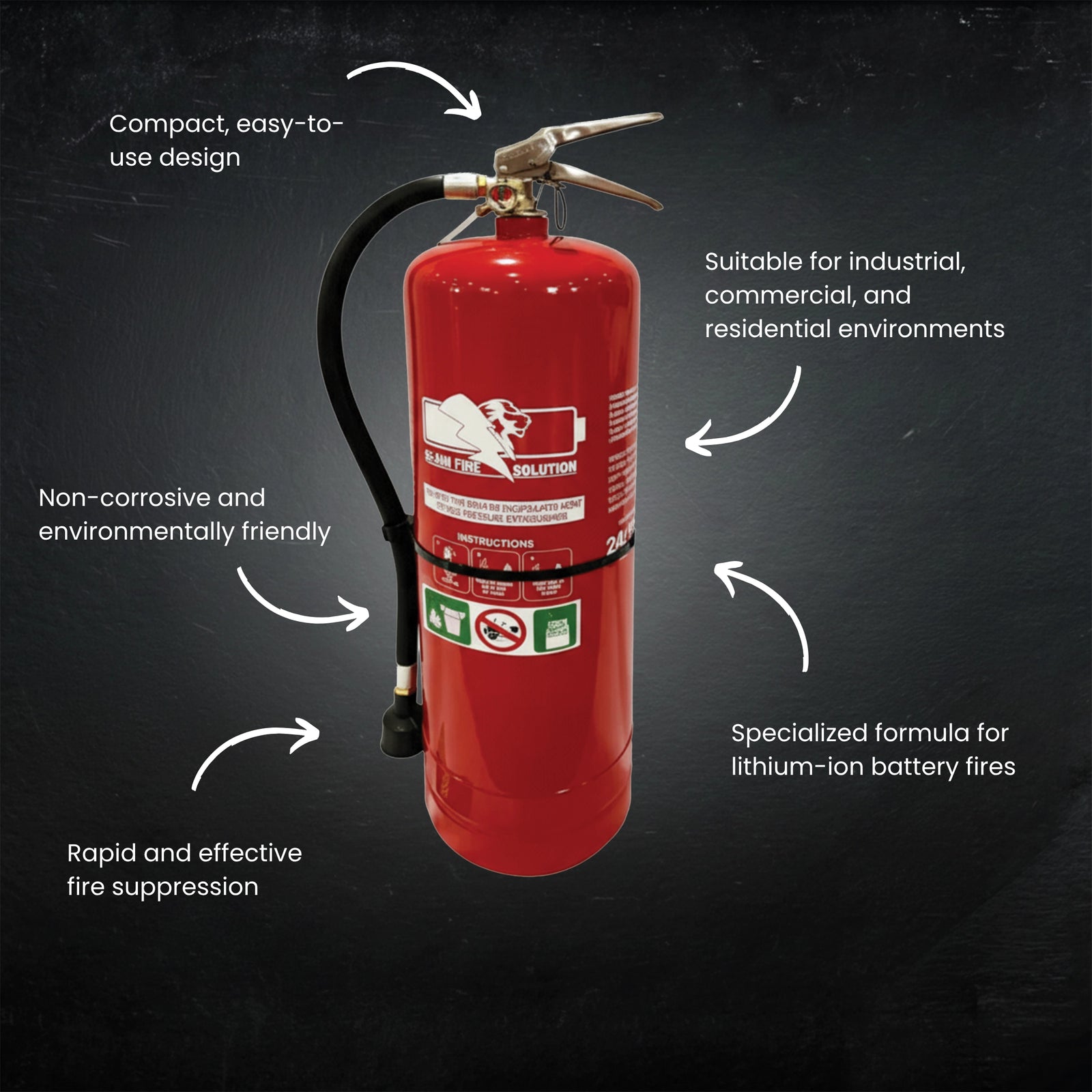

Features
- Available in 4L and 9L capacities
- Water-type extinguisher containing F-500 EA extinguishing agent
- Suitable for Class A combustible fires
- Demonstrated performance in controlling lithium-ion battery fires during independent testing
- Fluorine-free formulation containing no PFOA, PFOS, or other fluorinated compounds
- Non-corrosive, non-toxic, non-hazardous, and fully biodegradable
- Durable stainless steel cylinder construction
- Nickel-plated brass valve components
- Supplied with hose assembly and wall mounting bracket
- Suitable for commercial, industrial, and workplace environments
- Complies with AS/NZS 1841.2:2007 as a water-type fire extinguisher
Specifications

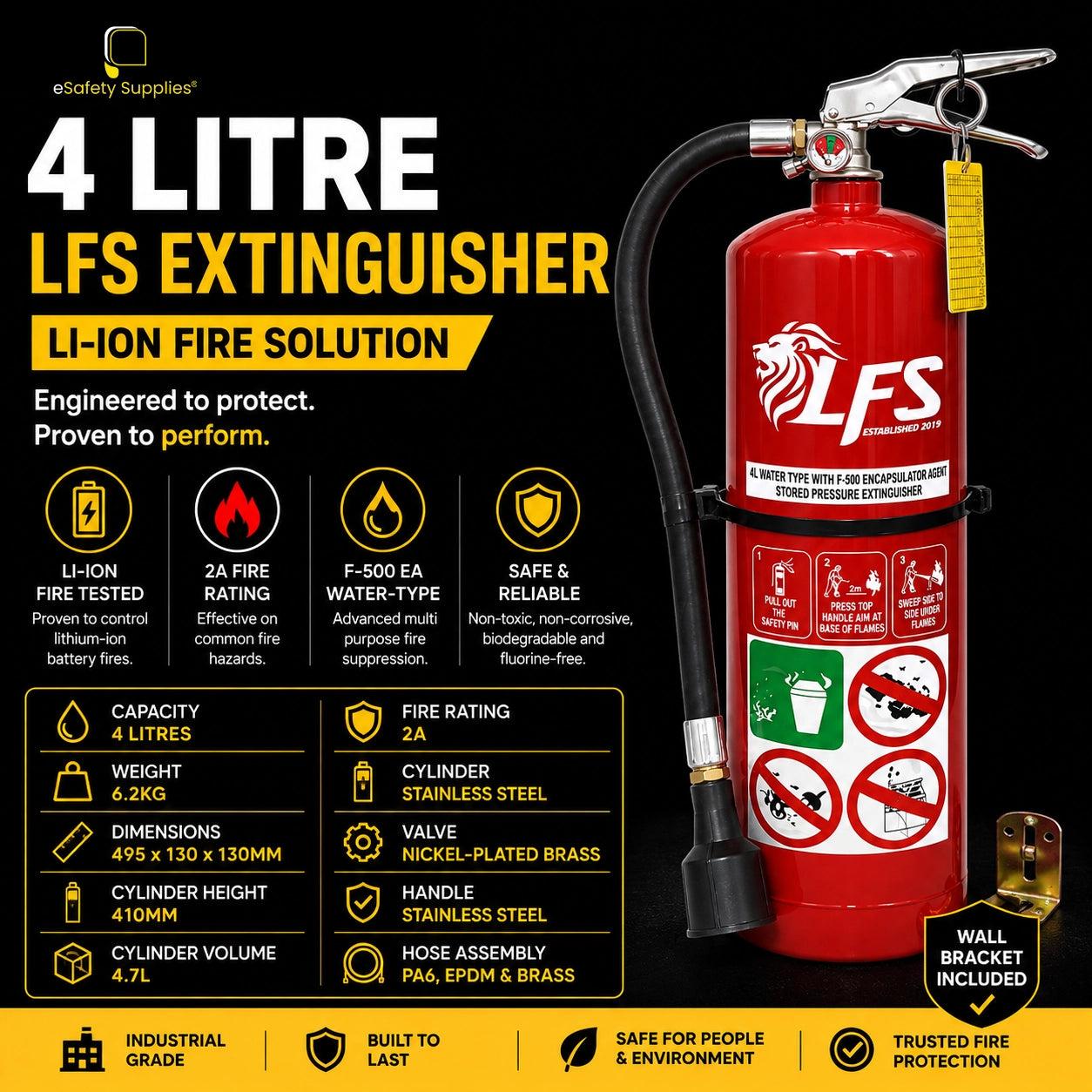

4 Litre Model
- Capacity: 4 Litres
- Agent: F-500 EA Water-Type
- Fire Rating: 2A
- Weight: 6.2kg

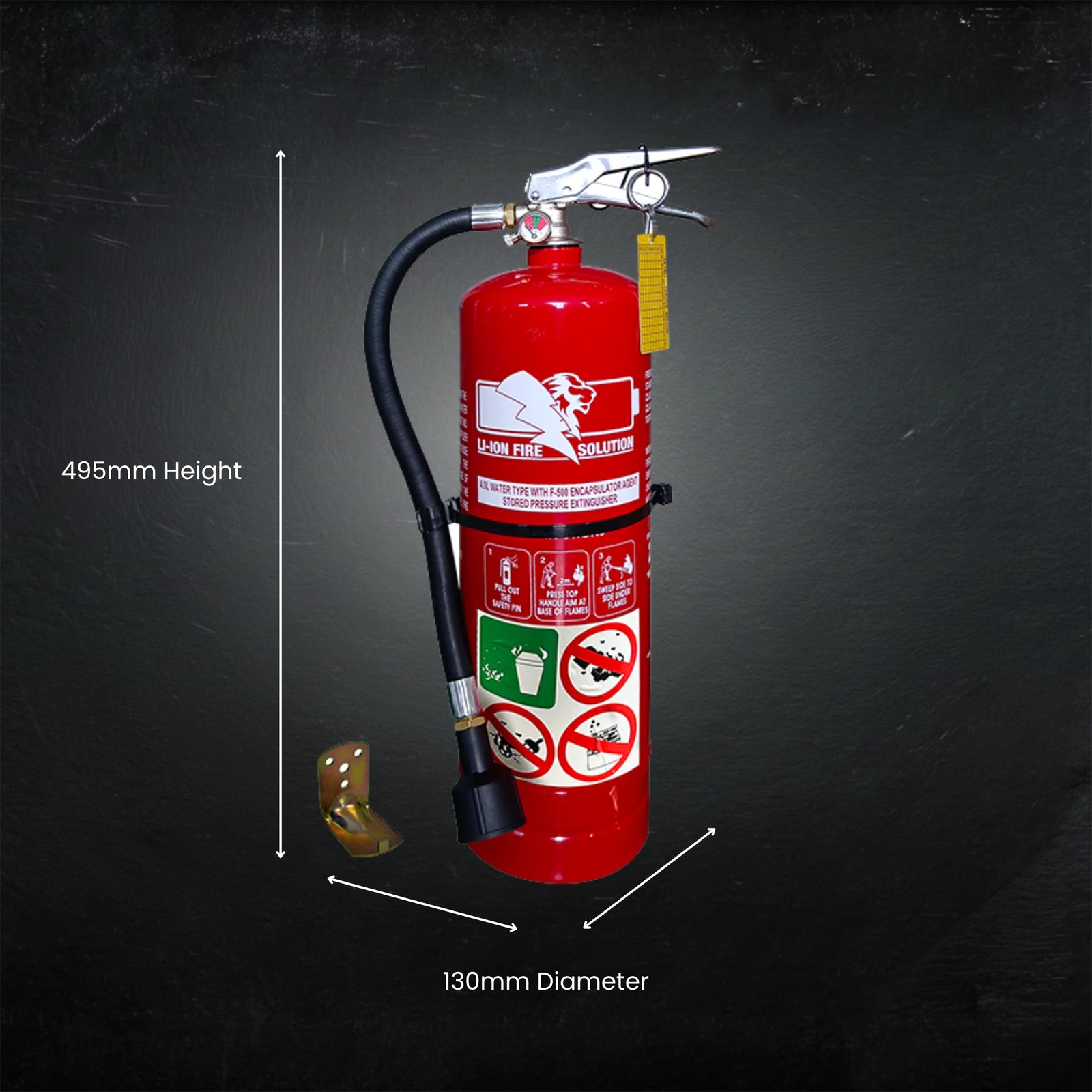

- Extinguisher Dimensions: 495 × 130 × 130mm
- Cylinder Height: 410mm
- Cylinder Volume: 4.7L
- Cylinder Construction: Stainless Steel
- Handle: Stainless Steel
- Valve Material: Nickel-Plated Brass
- Valve Stem: Stainless Steel
- Hose Assembly: PA6, EPDM & Brass
- Hose Included: Yes
- Wall Bracket Included: Yes

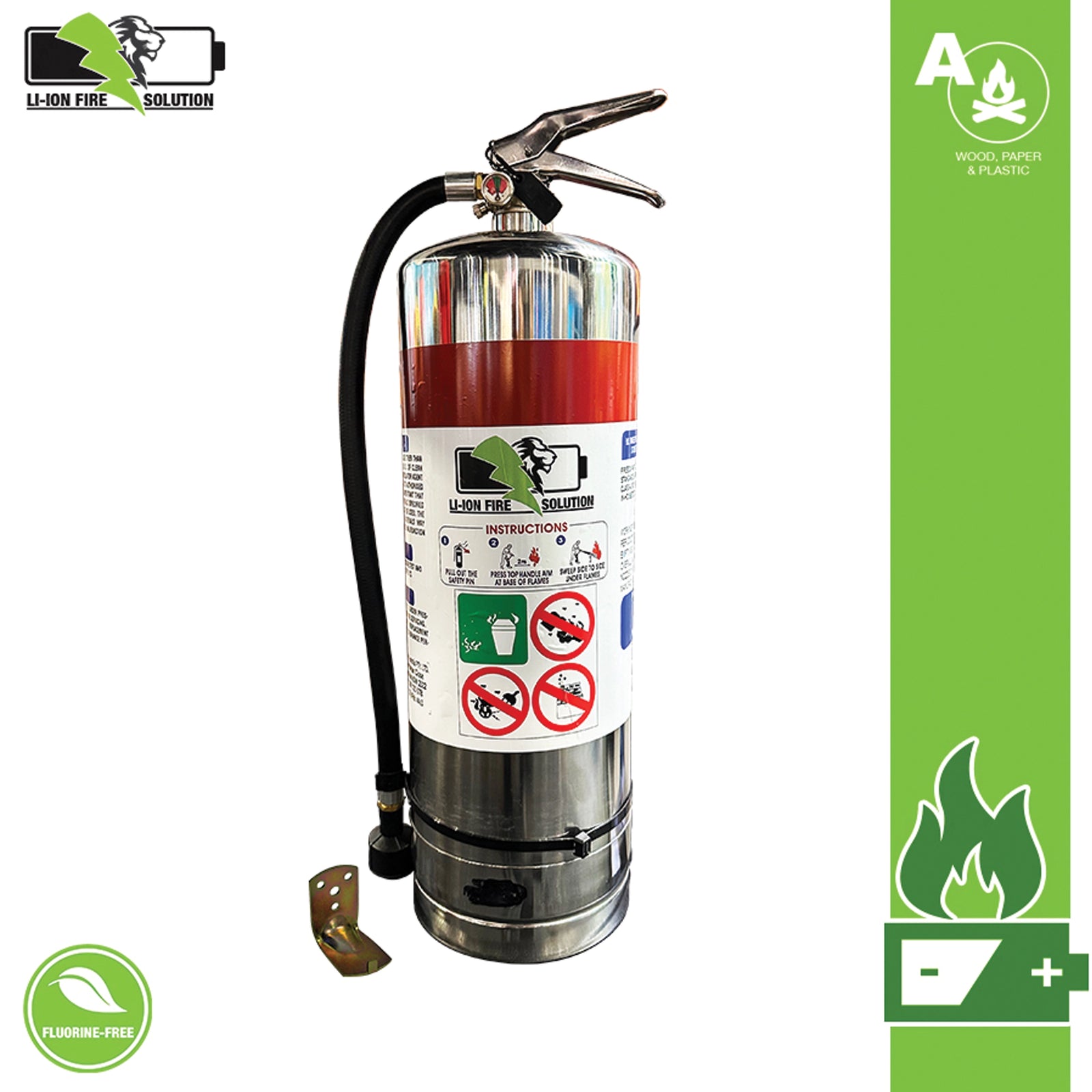

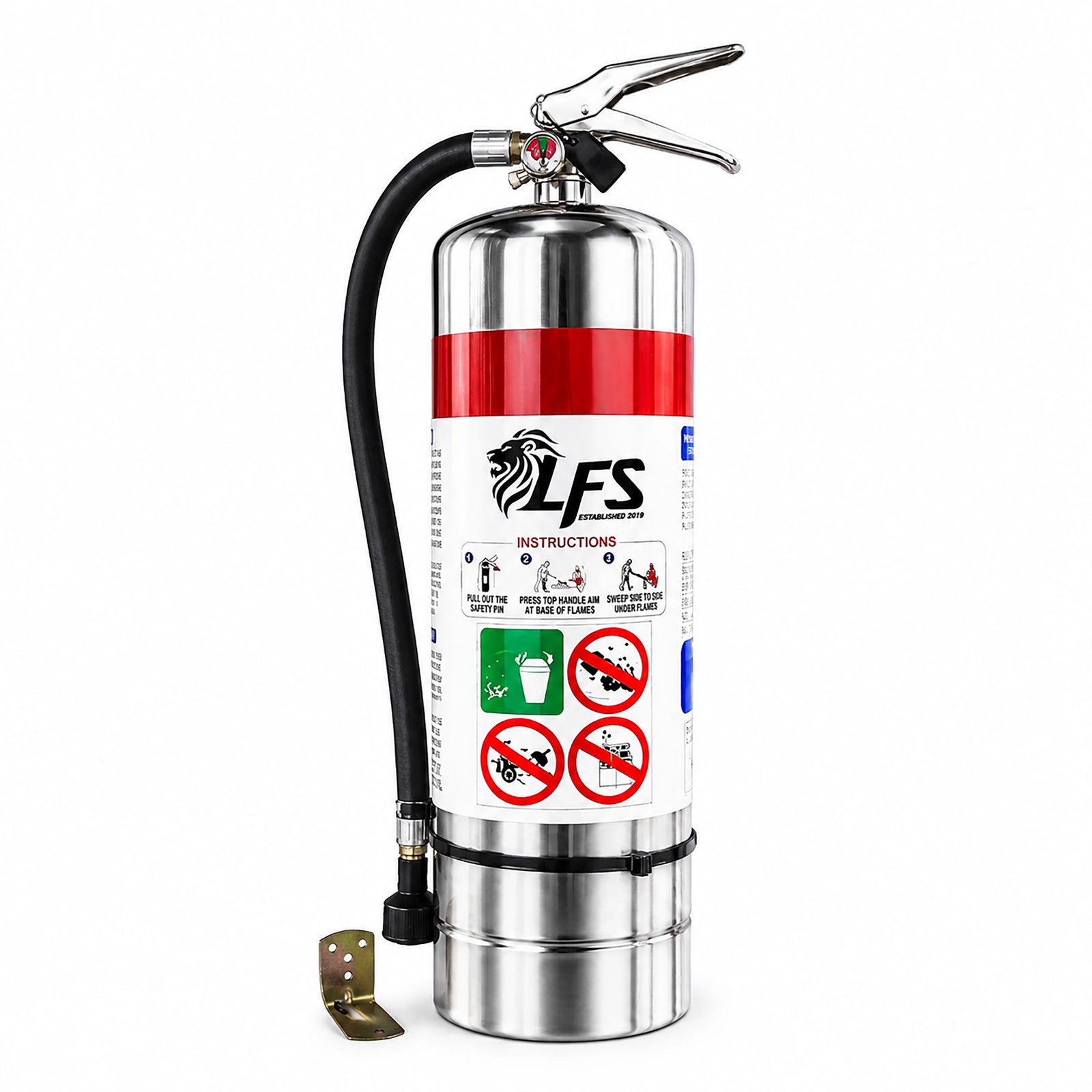

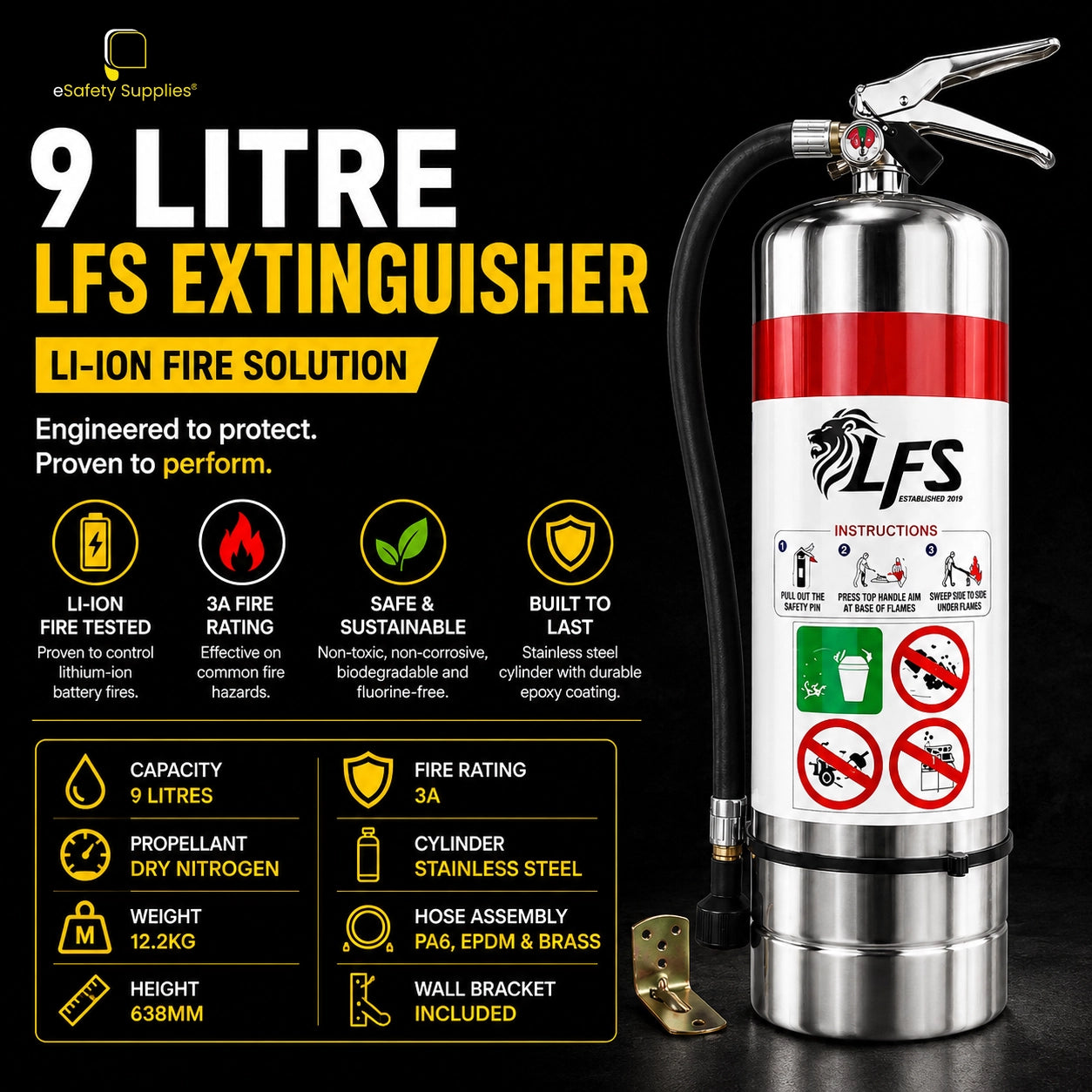

9 Litre Model
- Capacity: 9 Litres
- Agent: F-500 Multi Purpose EA
- Fire Rating: 3A
- Propellant: Dry Nitrogen
- Weight: 12.2kg

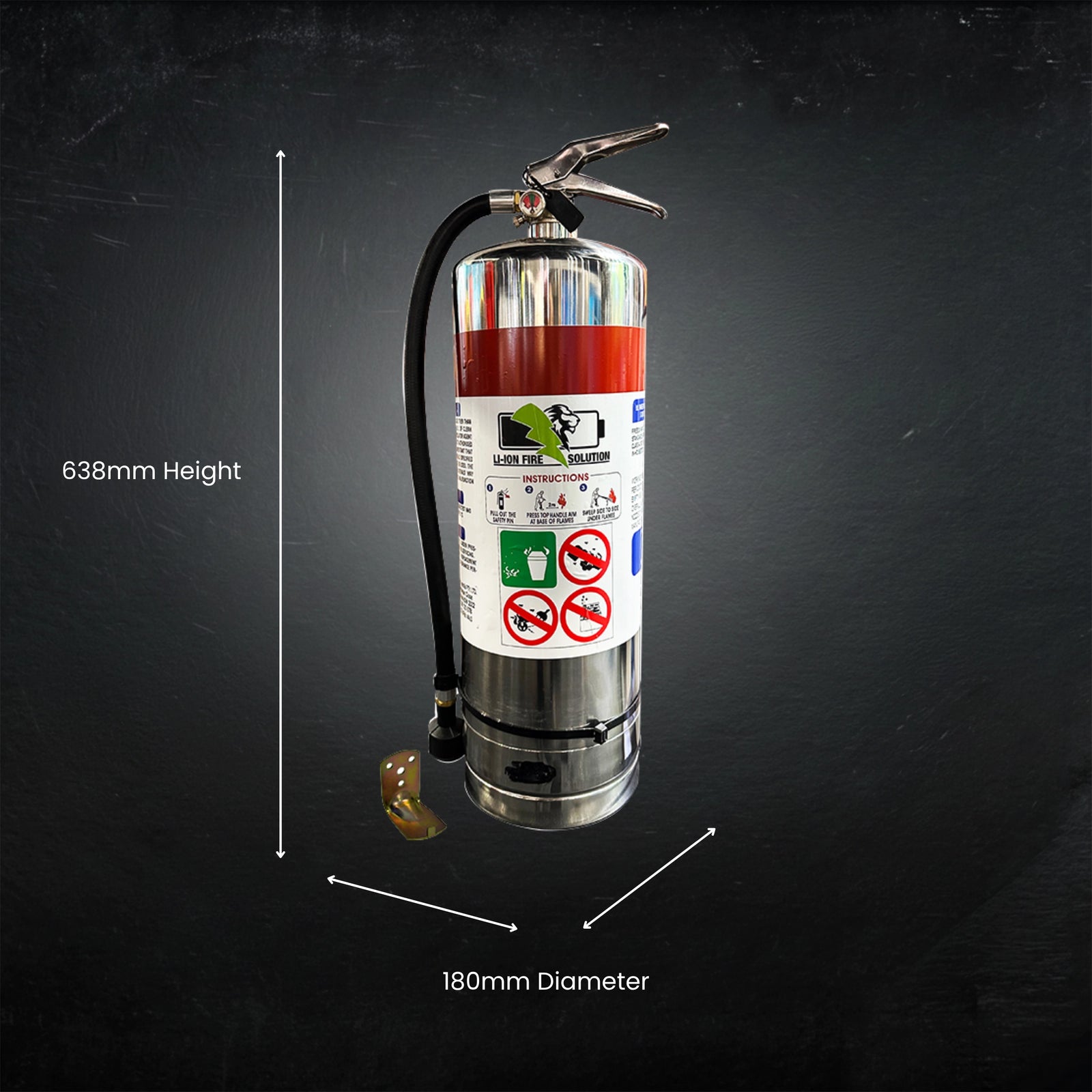

- Product Height: 638mm
- Cylinder Dimensions: 541 × 180 × 180mm
- Cylinder Volume: 12.5L
- Cylinder Construction: Stainless Steel
- Cylinder Finish: Epoxy Polyester Coating
- Handle: Stainless Steel
- Valve Material: Nickel-Plated Brass
- Hose Assembly: PA6, EPDM & Brass
- Hose Included: Yes
- Wall Bracket Included: Yes
Standards & Certification
- Global-Mark Certification ID: 109076
- AS/NZS 1841.2:2007 – Water-Type Fire Extinguishers
Independent Testing

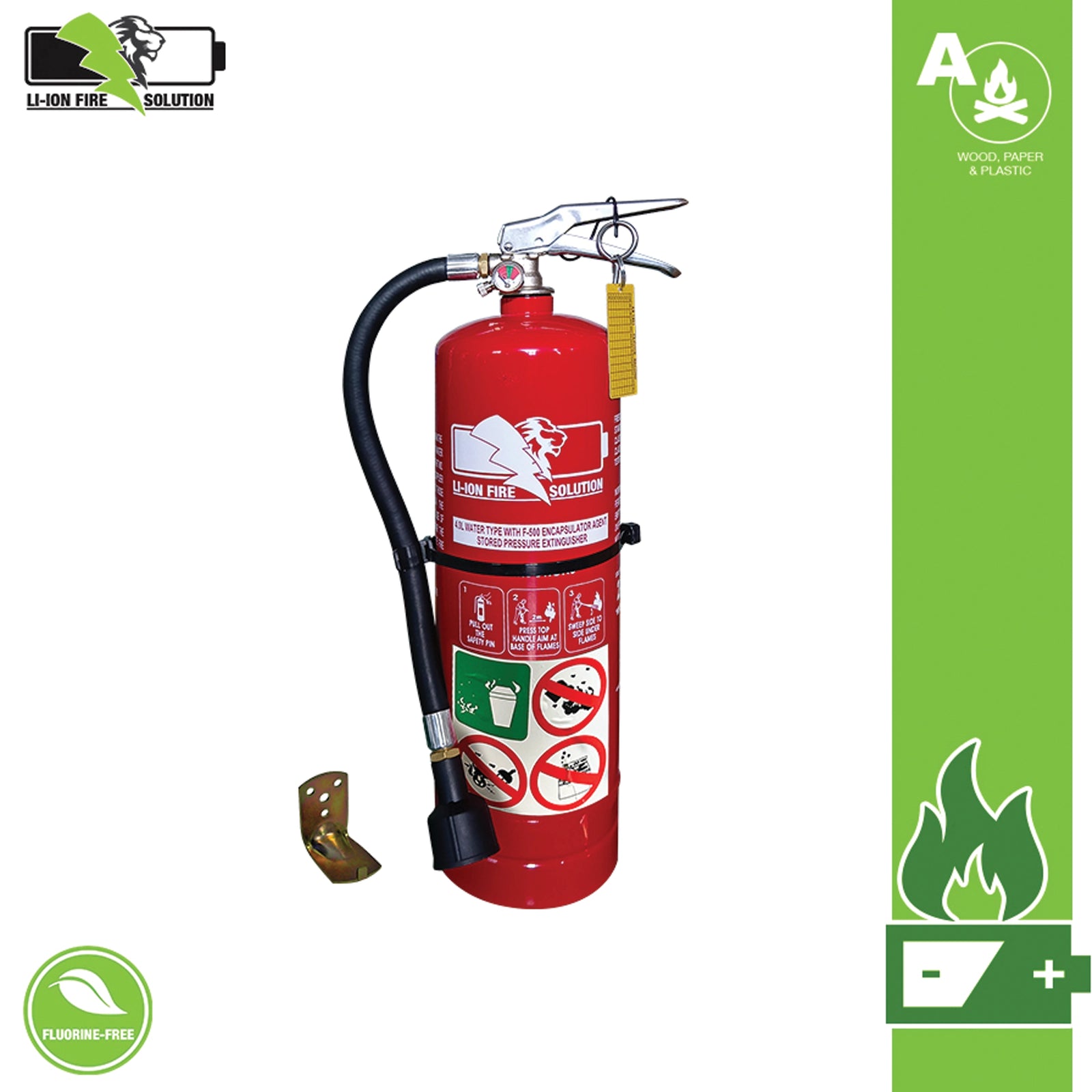

- 4L Model: Successfully controlled and extinguished a 2.4kWh lithium-ion battery fire without re-ignition during independent testing.
- 9L Model: Successfully controlled and extinguished a 4.8kWh lithium-ion battery fire without re-ignition during independent testing.
These test results are independent performance demonstrations and are not part of the AS/NZS 1841.2 certification.
Ideal Applications
- EV charging stations
- Electric and hybrid vehicle workshops
- Vehicle dealerships and showrooms
- Battery storage facilities
- Warehouses and distribution centres
- Renewable energy installations
- Manufacturing plants
- Commercial and industrial workplaces
Why Choose the LFS Fire Extinguisher?
As lithium-ion battery technology becomes more common across commercial and industrial environments, appropriate fire protection is increasingly important. The F-500 EA extinguishers provide a water-based solution that has demonstrated effective performance during independent lithium-ion battery fire testing while also offering reliable protection for Class A combustible materials.
Benefits include:
- Choice of 4L or 9L capacity to suit different applications
- Environmentally responsible fluorine-free extinguishing agent
- Suitable for workplaces where lithium-ion batteries are present
- Durable stainless steel construction
- Easy wall-mounted installation
- Complies with Australian Standards for water-type fire extinguishers
Works Best With
The LFS Fire Extinguisher – F-500 EA Lithium-Ion Fire Solution works best with fire extinguisher cabinets, extinguisher stands, fire blankets, emergency response signage, EV charging safety equipment, lithium-ion battery storage cabinets, and workplace fire safety stations to help create a comprehensive fire protection system.
Safety Notice: This extinguisher is intended for first-attack fire response on small, contained fires only. Do not use on energised AC electrical equipment or lithium-ion batteries that are actively charging. Always follow workplace emergency procedures, ensure operators are appropriately trained, and contact emergency services immediately if the fire cannot be safely controlled.
