Downpipe Protectors

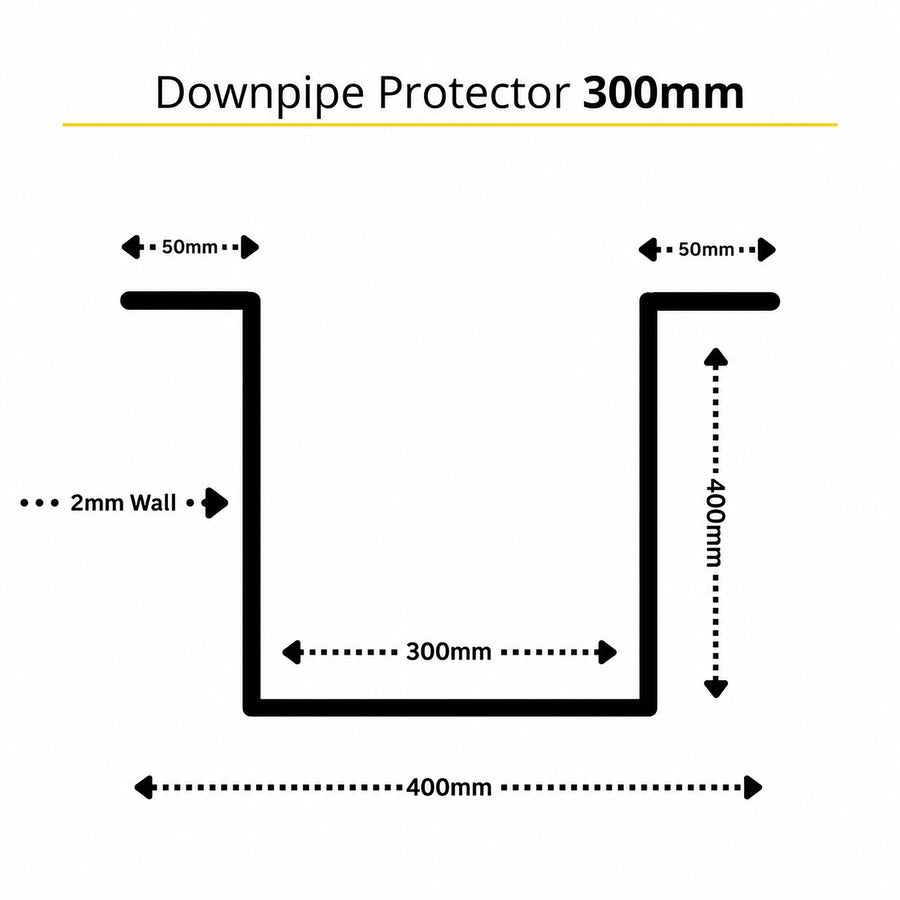

A 1200mm-high, 2mm galvanised steel guard for larger downpipes — 300mm wide and 400mm deep, designed to accommodate larger downpipes and associated brackets, subject to the required installation clearance. In stock at Wetherill Park in galvanised finish, 2-year warranty.

Where it's used

Large-format commercial downpipes on distribution centres and industrial sheds, twin pipes off a box gutter, or a downpipe with a fire-service or conduit run beside it — on loading docks, yard walls and car park columns where trucks and forklifts work close to the building.

What you get

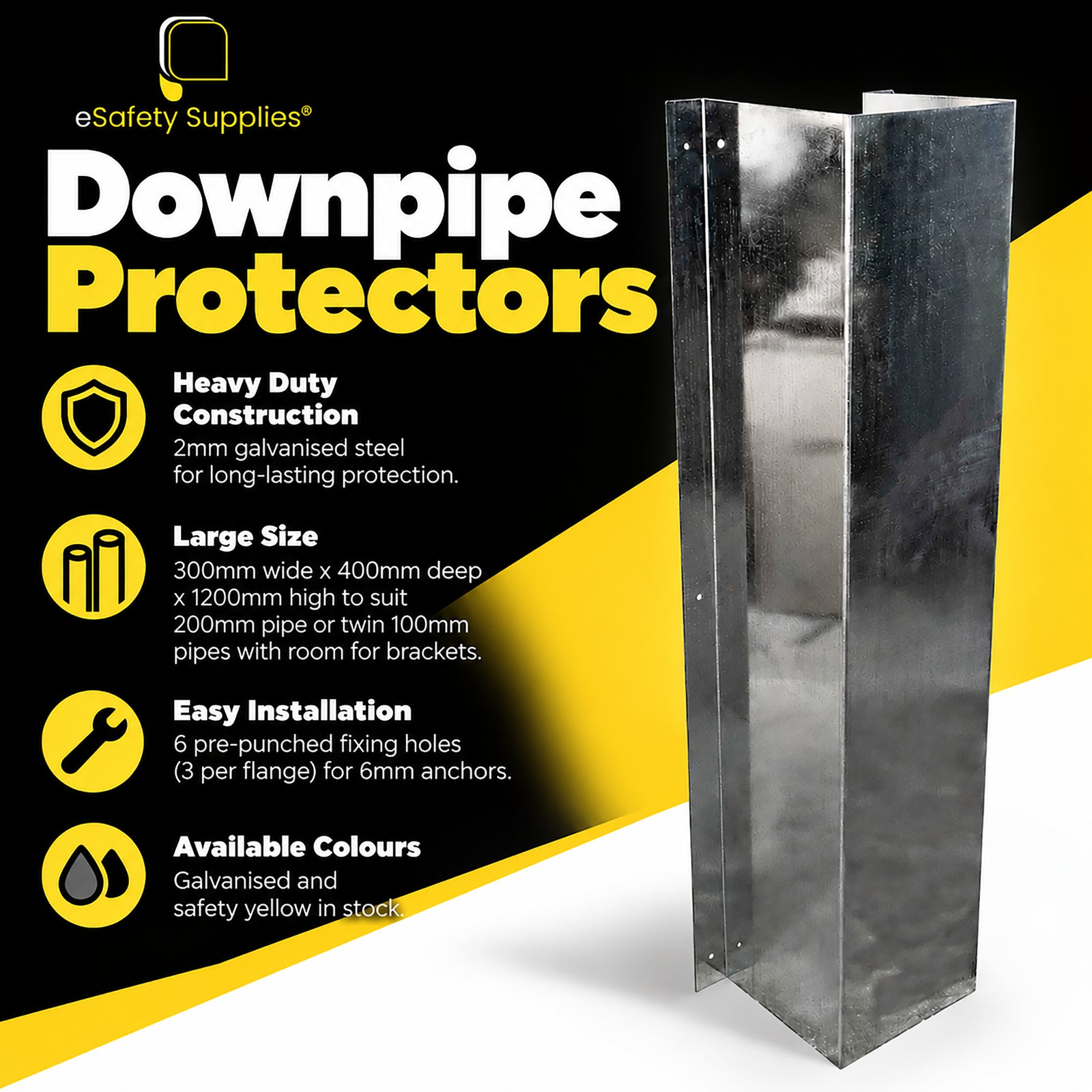

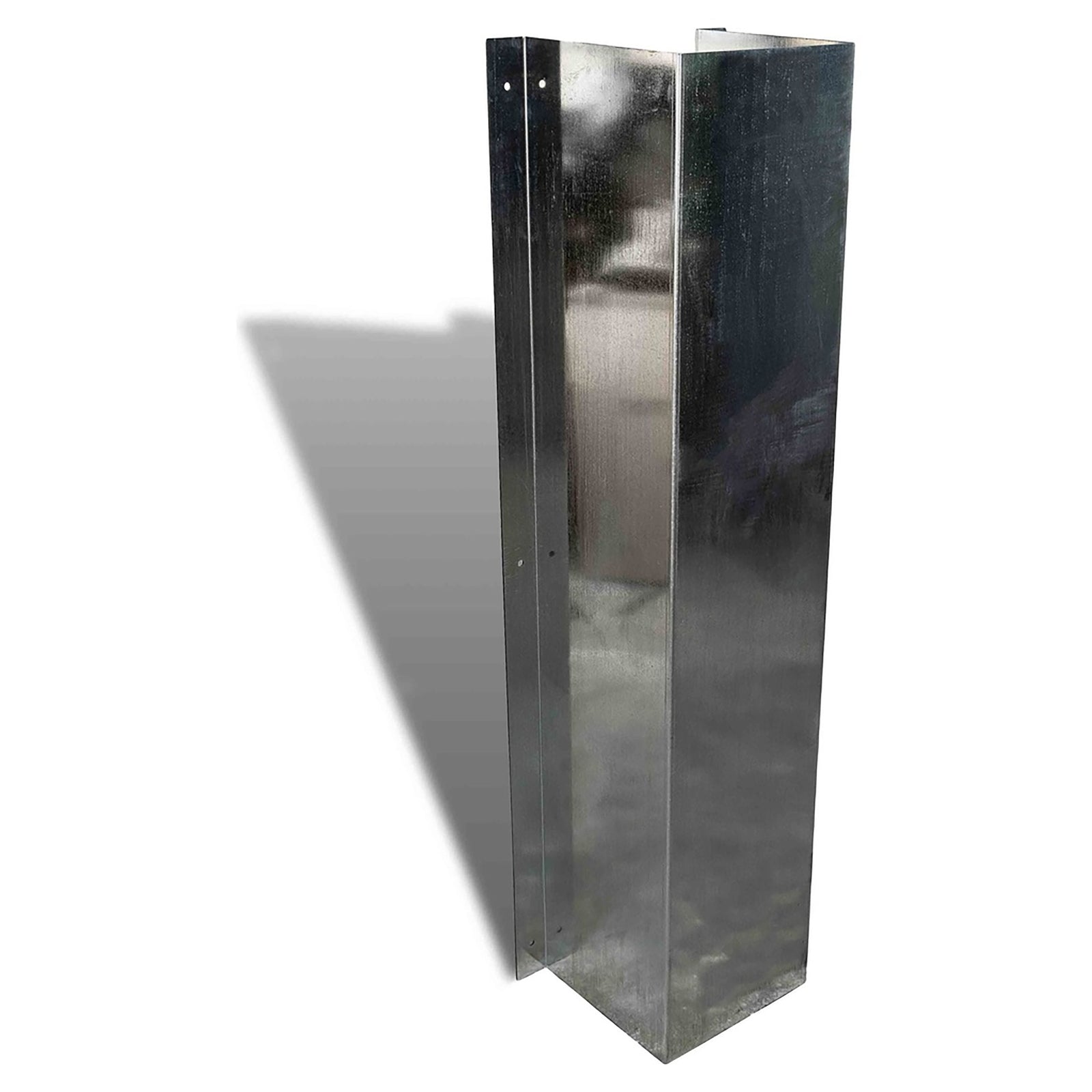

One folded protector, 300mm wide x 400mm deep x 1200mm high, 2mm galvanised steel, with 6 pre-punched fixing holes (3 per flange) for 6mm anchors. Safety yellow available upon request — please contact us for enquiries. Fixings available as an add-on above.

Installation

Stand the protector over the pipe, mark the 6 holes, drill, and fix with 6mm knock-in anchors or screw bolts into concrete or masonry. One person, a hammer drill and 20 minutes. No welding, no cutting.

Choosing the size

Measure the pipe or pipe group at its widest point including brackets and allow 25mm clearance each side. Up to 100mm — the 150mm. Up to 150mm — the 200mm. Up to 200mm or twin 100mm pipes — this 300mm unit. Bigger again — the 300mm column. Custom sizes available to order — call 1300 291 700.

Stocked in Wetherill Park, Sydney — same-day Click & Collect, dispatch Australia-wide.
