DDA Termination Closure Bend - 1080mm

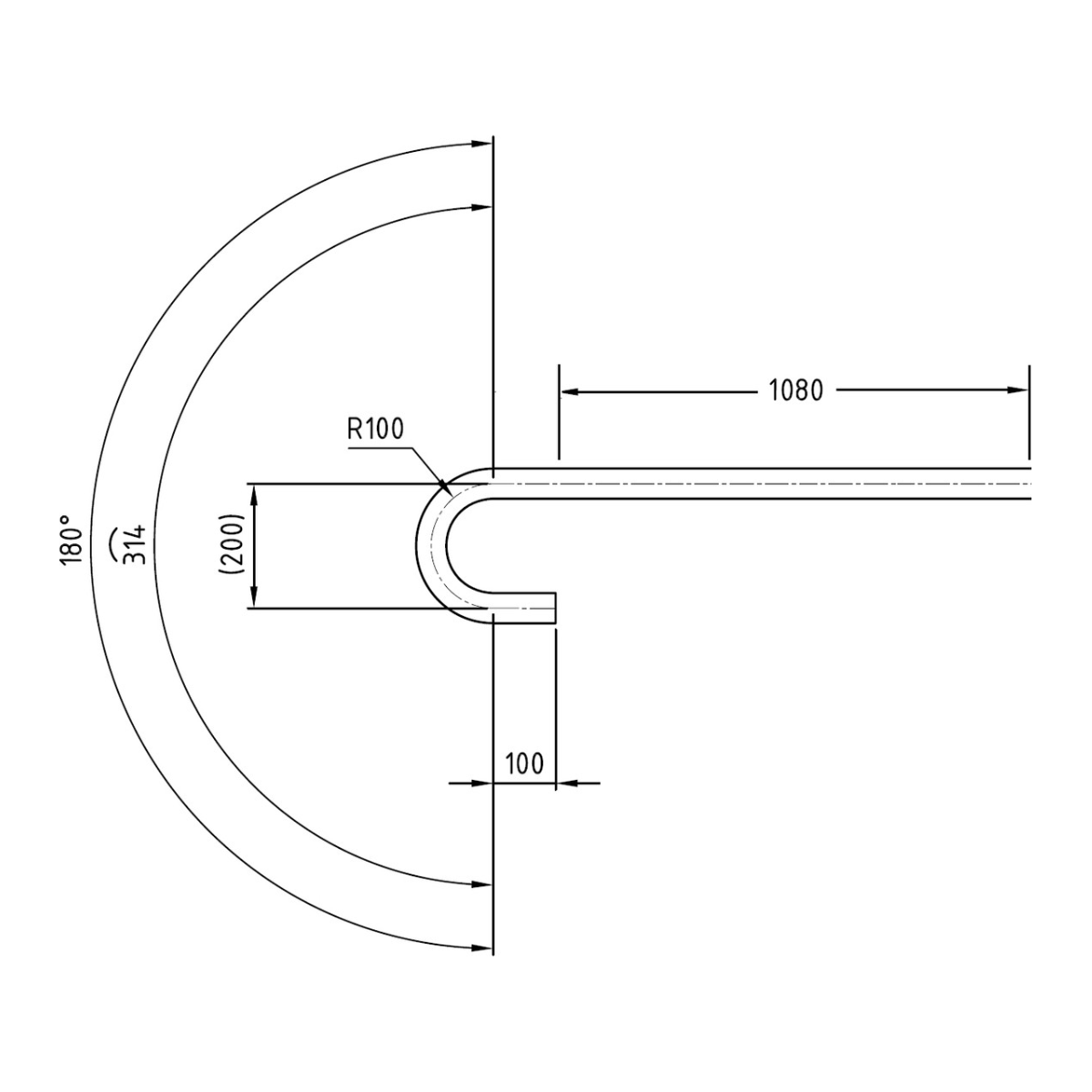

DDA Termination Closure Bend 1080mm — the extended accessible rail return

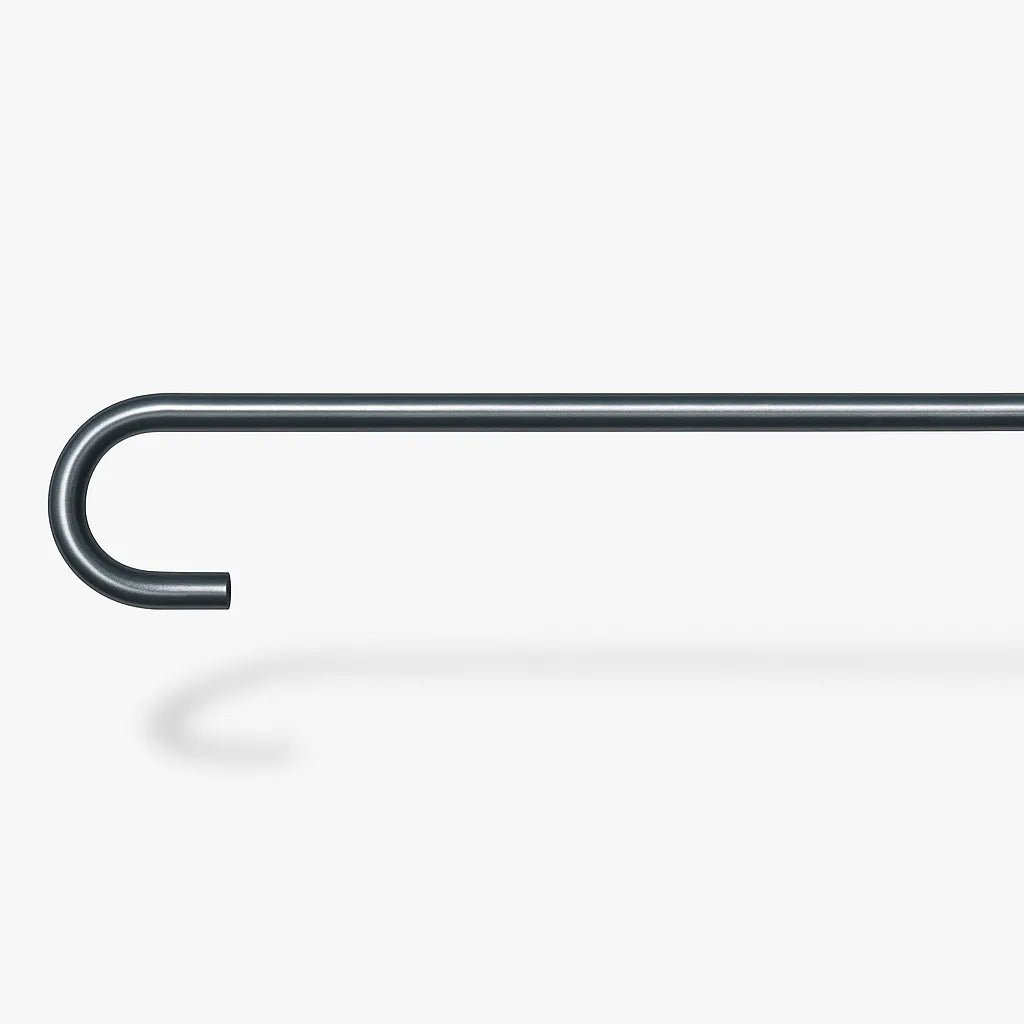

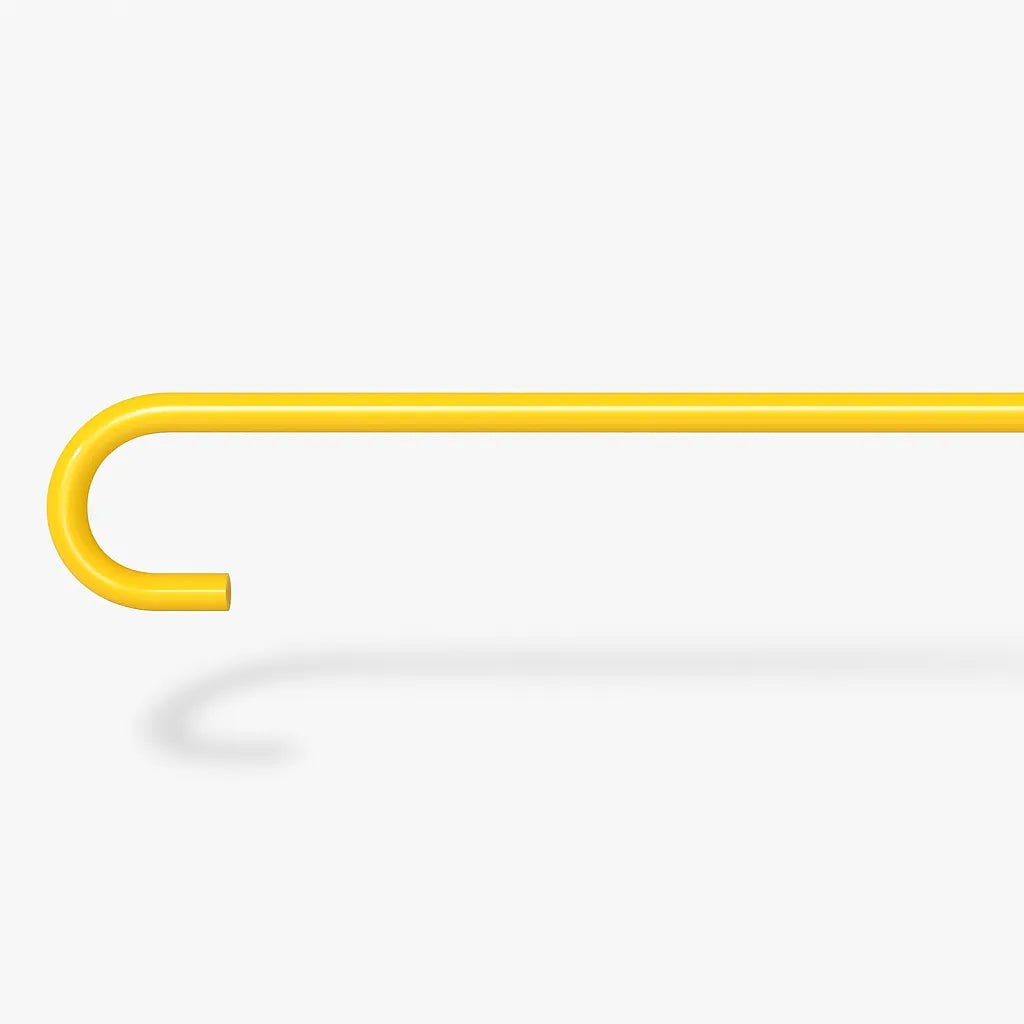

The DDA Termination Closure Bend is a 1080mm return that turns a graspable assist rail back down and into the post or wall — the extended termination used where accessible handrails need a controlled, snag-free end. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For a compact return use the standard Closure Bend; for a capped end use the 133 Plastic End Cap.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

• 1080mm extended termination return
• No welding required — slips over the tube and tightens with a grub screw
• Australian made
• Hot-dip galvanised cast iron
• Suits 48mm O/D (40 NB) Cope Rail tube
• Individually replaceable if damaged — no need to rebuild the run

Common uses

• DDA assist handrail terminations
• Accessible ramps and stairs
• Public & commercial access ways
