CopeRail 256 - Slope Cross (11-29)

CopeRail 256 Slope Cross — the sloped four-way junction for 11–29° grades

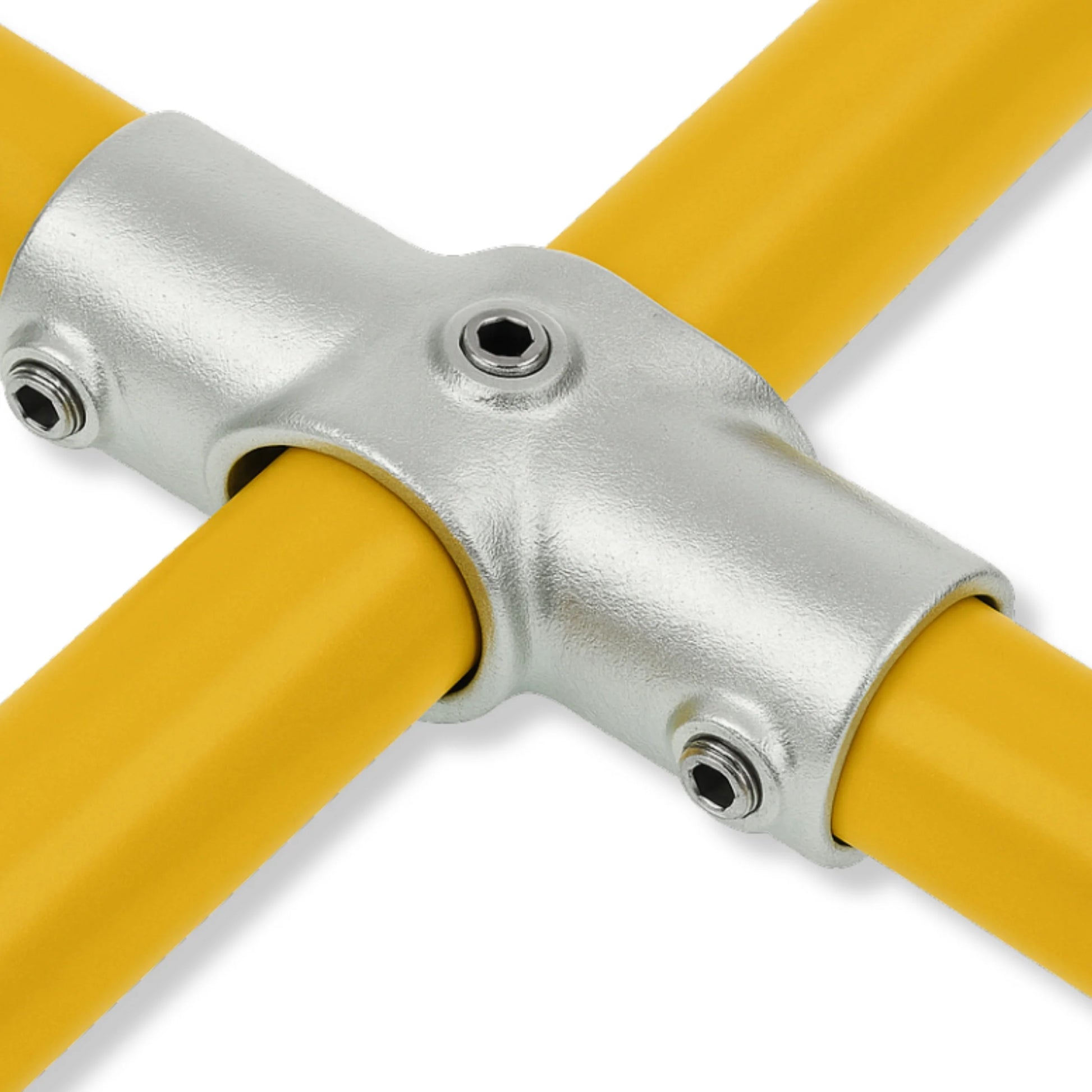

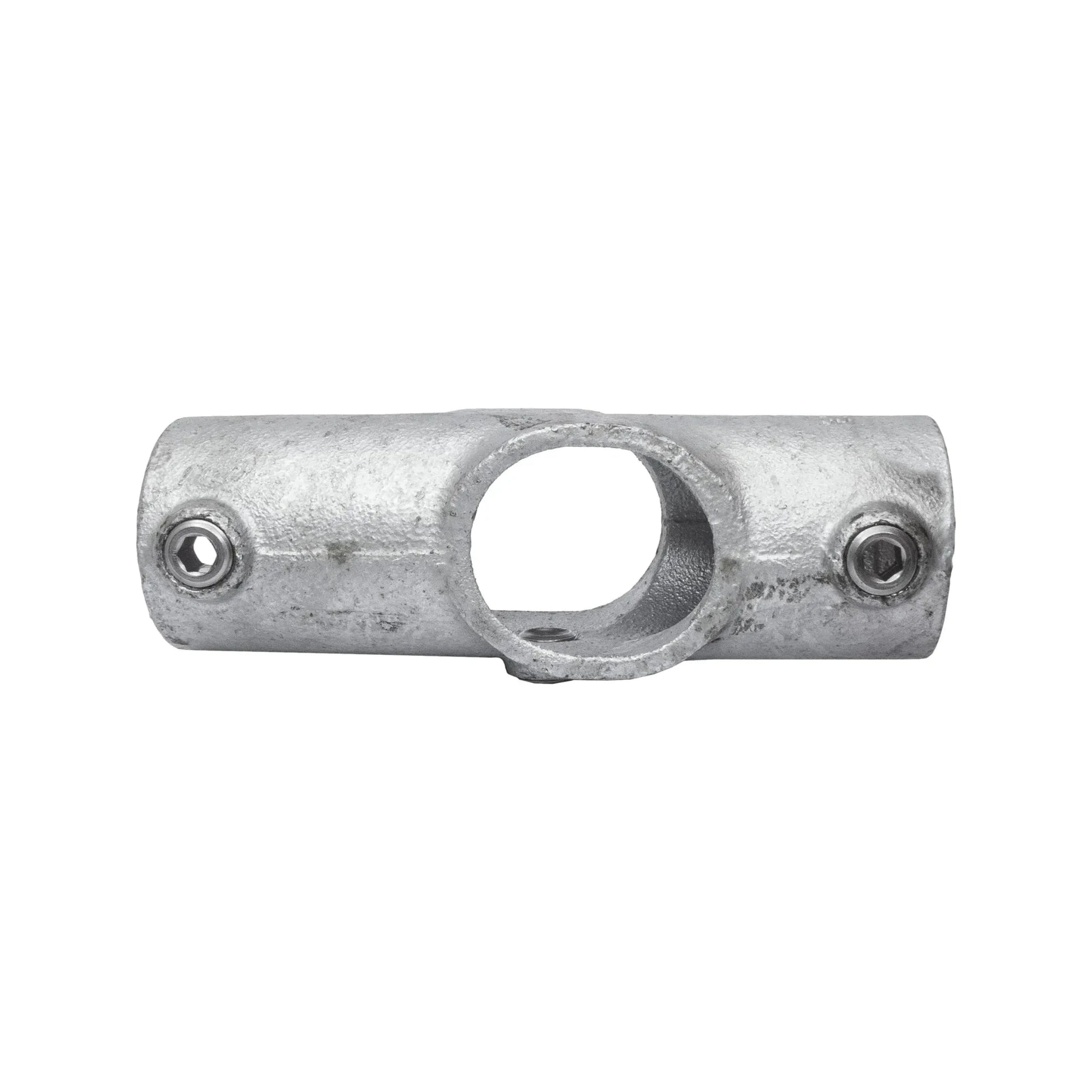

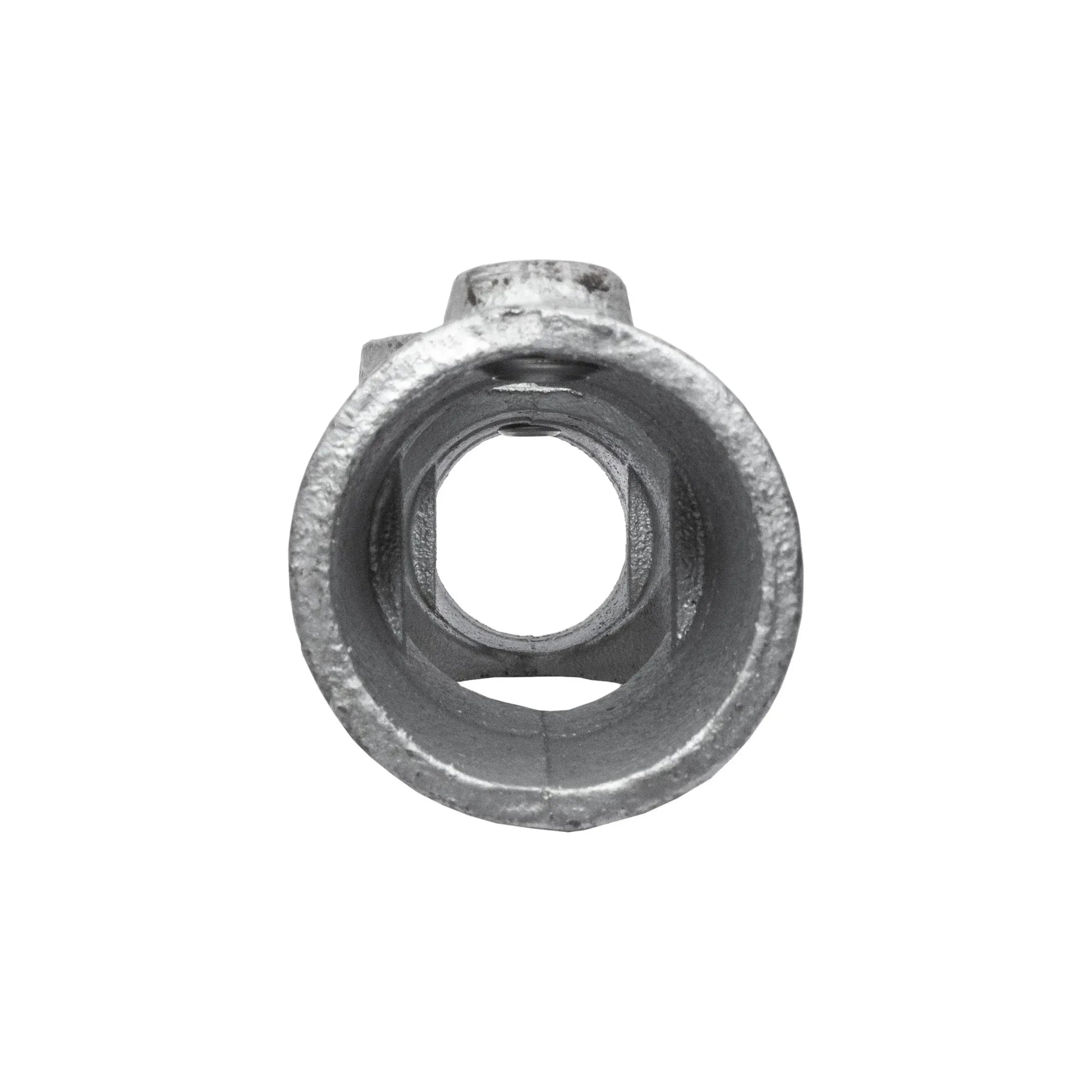

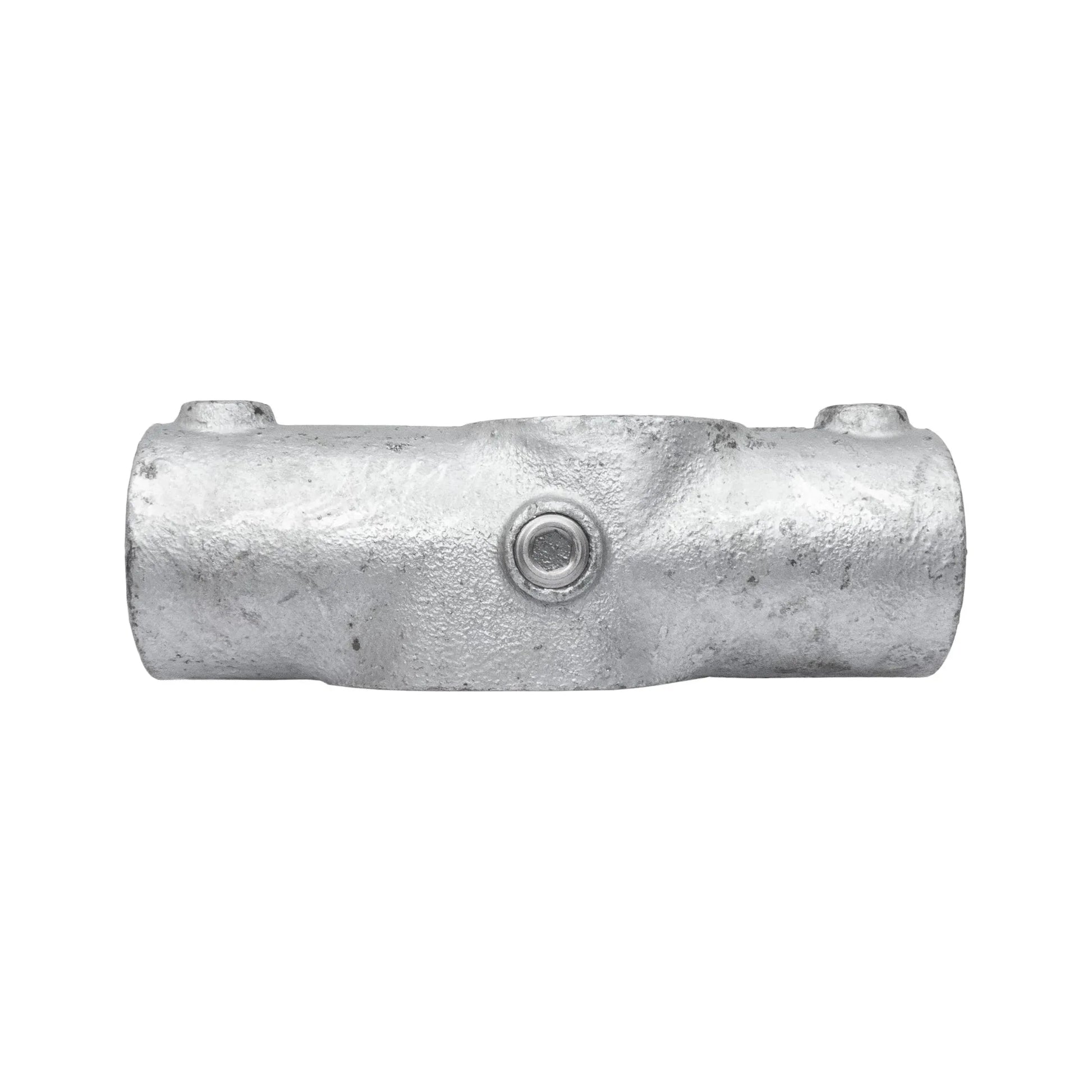

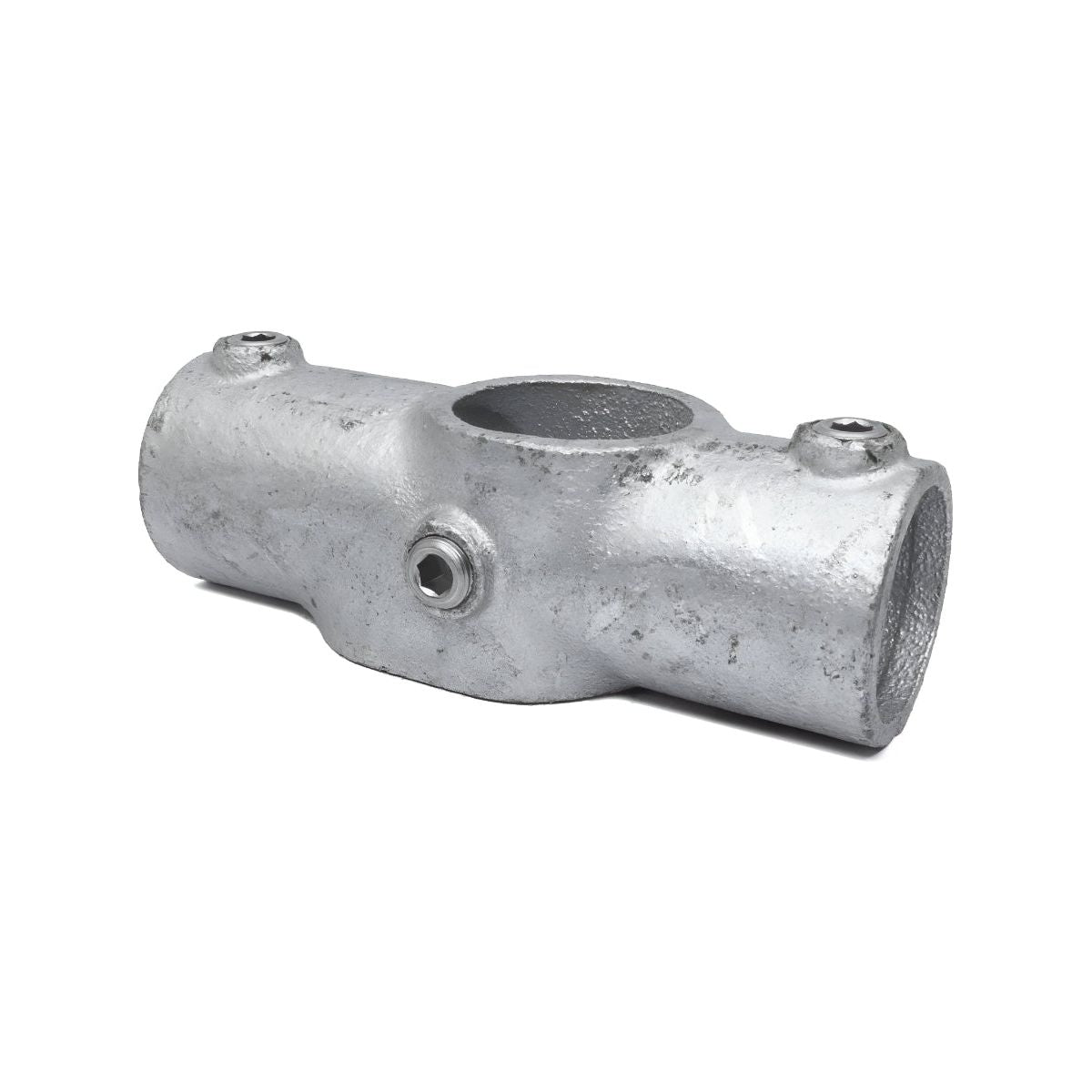

The 256 Slope Cross joins rails at a four-way junction on a slope of 11–29° — for mid-rails crossing steeper ramp and stair handrails. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For gentler 0–11° grades use the 156 Ramp Slope Cross.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

• Four-way cross for slopes of 11–29°
• No welding required — slips over the tube and tightens with a grub screw
• Australian made
• Hot-dip galvanised cast iron
• Suits 48mm O/D (40 NB) Cope Rail tube
• Individually replaceable if damaged — no need to rebuild the run

Common uses

• Steeper ramp & stair grids (11–29°)
• Sloped walkways
• Site access railing
