CopeRail - 253 - Slope Short Tee (11-29 degree)

CopeRail 253 Slope Short Tee — the sloped short tee for 11–29° grades

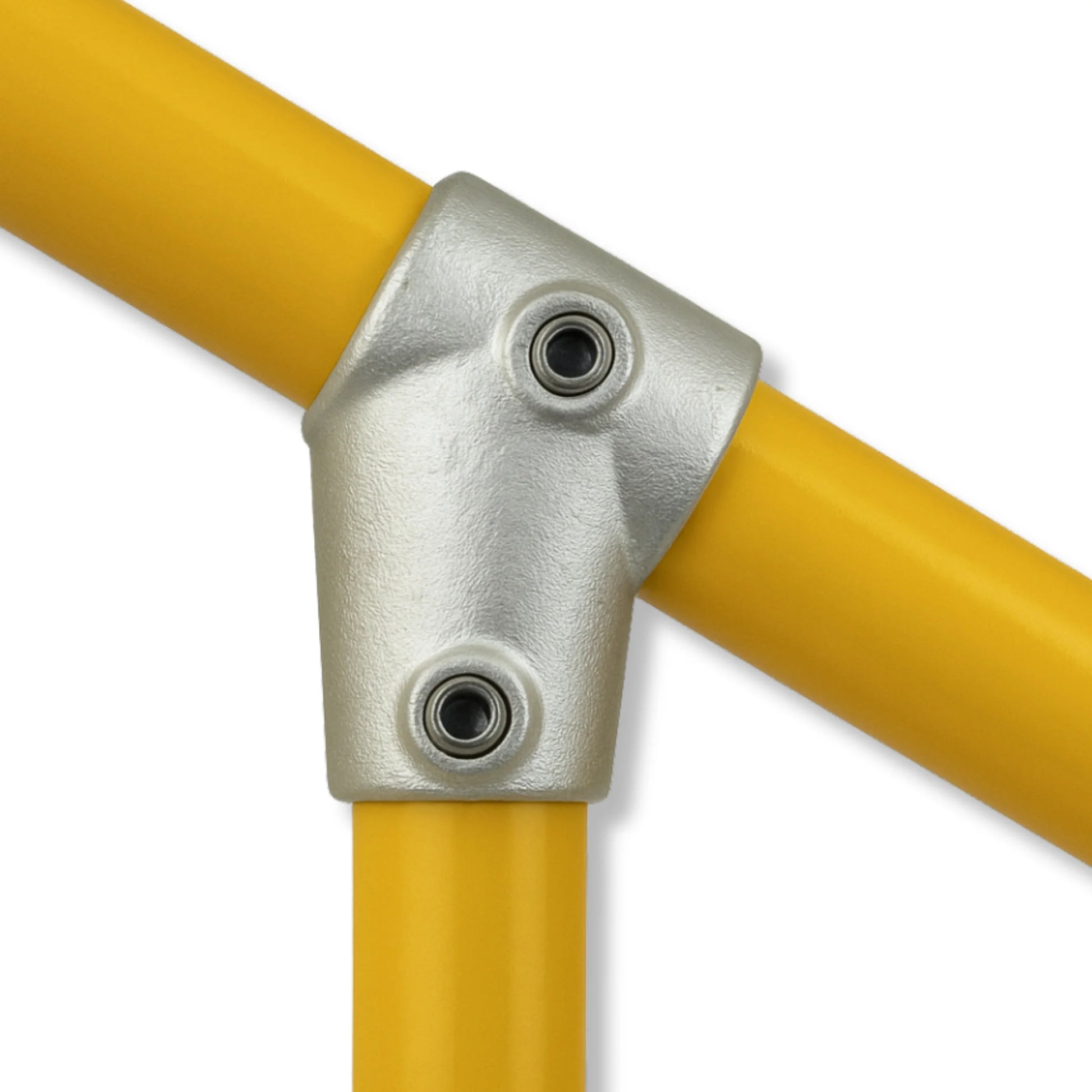

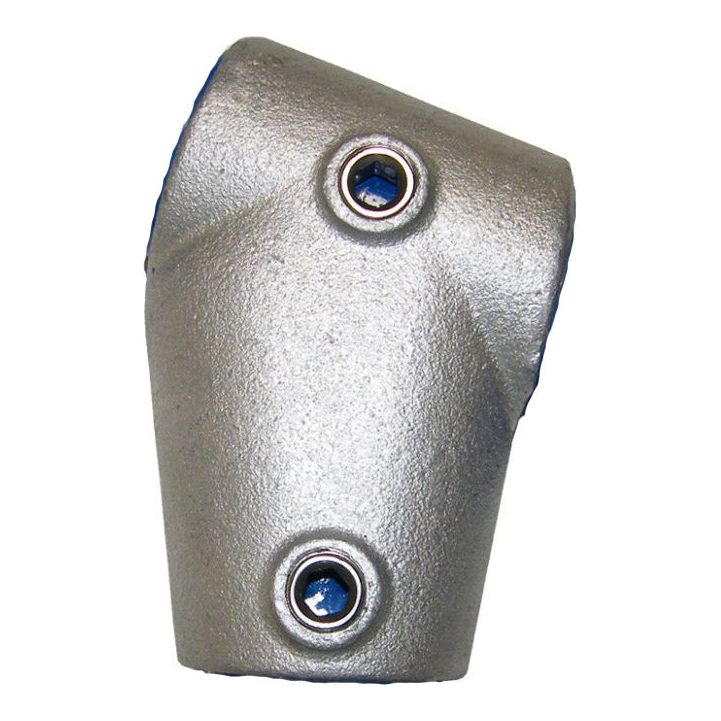

The 253 Slope Short Tee forms a terminating tee on a slope of 11–29° — for uprights and branches on steeper ramp and stair handrails. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For gentler 0–11° grades use the 153 Ramp Slope Short Tee.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

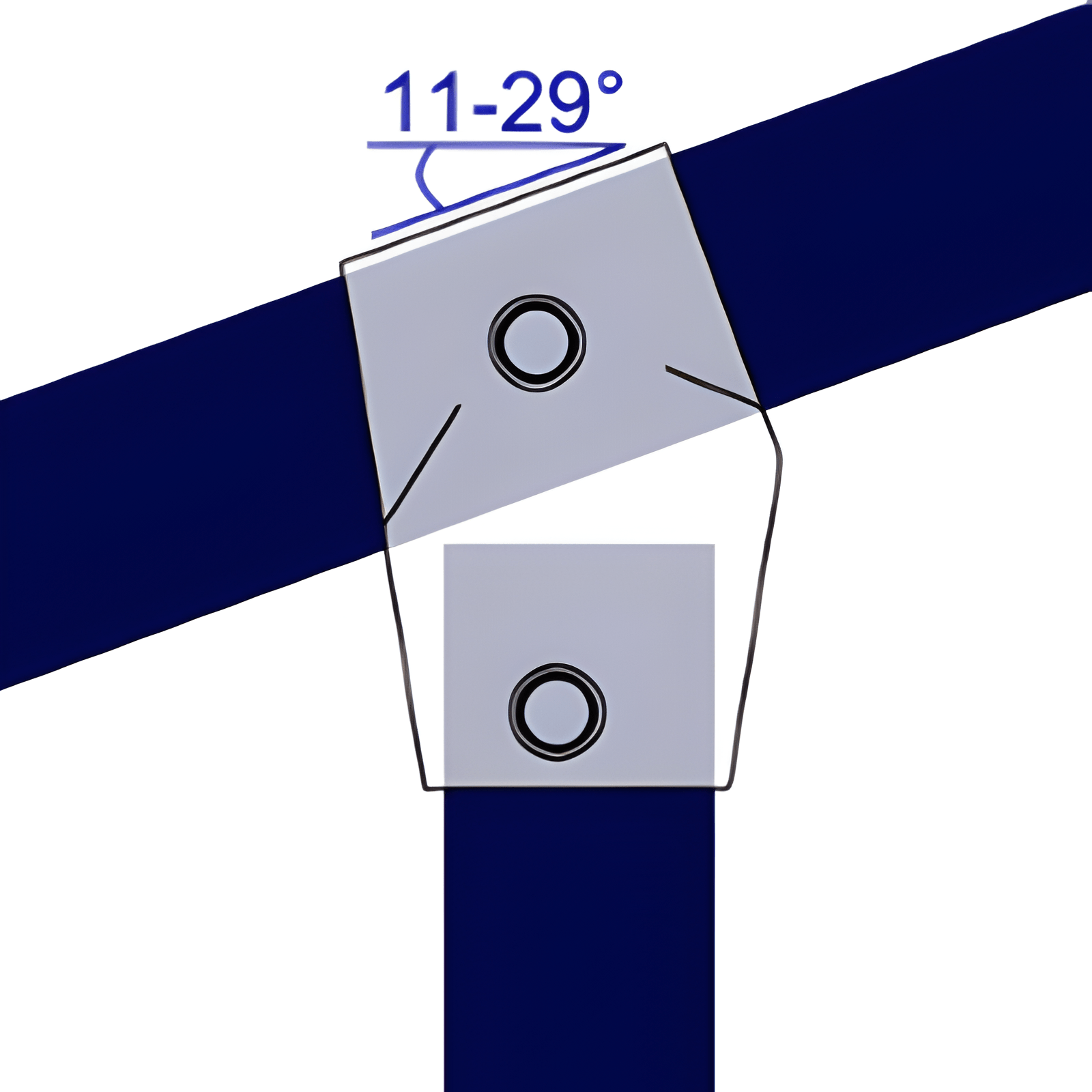

• Tee for slopes of 11–29°
• No welding required — slips over the tube and tightens with a grub screw
• Australian made
• Hot-dip galvanised cast iron
• Suits 48mm O/D (40 NB) Cope Rail tube
• Individually replaceable if damaged — no need to rebuild the run

Common uses

• Steeper ramp & stair handrails (11–29°)
• Sloped walkways
• Site access railing
