What is it made from?

Hot-dip galvanised cast iron, in a galvanised finish, and it's Australian made.

What size tube does it suit?

Standard 48mm O/D (40 NB) from the Cope Modular handrail system.

Do I need to weld it?

No. It slips over the tube and locks with a grub screw — no welding, cutting or threading.

Cope Rail (sold by the metre) plus any other fittings for your layout. This listing is the fitting only.

Can it be replaced if damaged?

Yes — individual fittings swap out without dismantling the whole run.

Frequently Asked Questions

See full FAQ

CopeRail - 252 - Angle Base Flange (11-22 degree)

Name: CopeRail - 252 - Angle Base Flange (11-22 degree)
Brand: eSafety Supplies
SKU: COPE-252D
Price: 70.9 AUD
Availability: InStock

SKU: COPE-252D

In Stock

$70.90 inc. GST $64.45 (ex. GST)

Features:

suits slopes of 11–22°
no welding required — slips over the tube and tightens with a grub screw
australian made

Estimated delivery –

Shipping Cost

Calculate now

Get exact cost ›

CopeRail - 252 - Angle Base Flange (11-22 degree)

SKU: COPE-252D

$70.90

Shipping details

Clear shipping pricing. No surprises at checkout.

Check shipping cost & ETA

Enter your postcode for an instant delivery estimate before checkout.

Enter your postcode to see your shipping cost, ETA, and whether Click & Collect is available in your area.

Click and Collect

Fast Dispatch

Clear pricing. No surprises

Secure Checkout

CopeRail 252 Angle Base Flange — the sloped post base for 11–22° grades

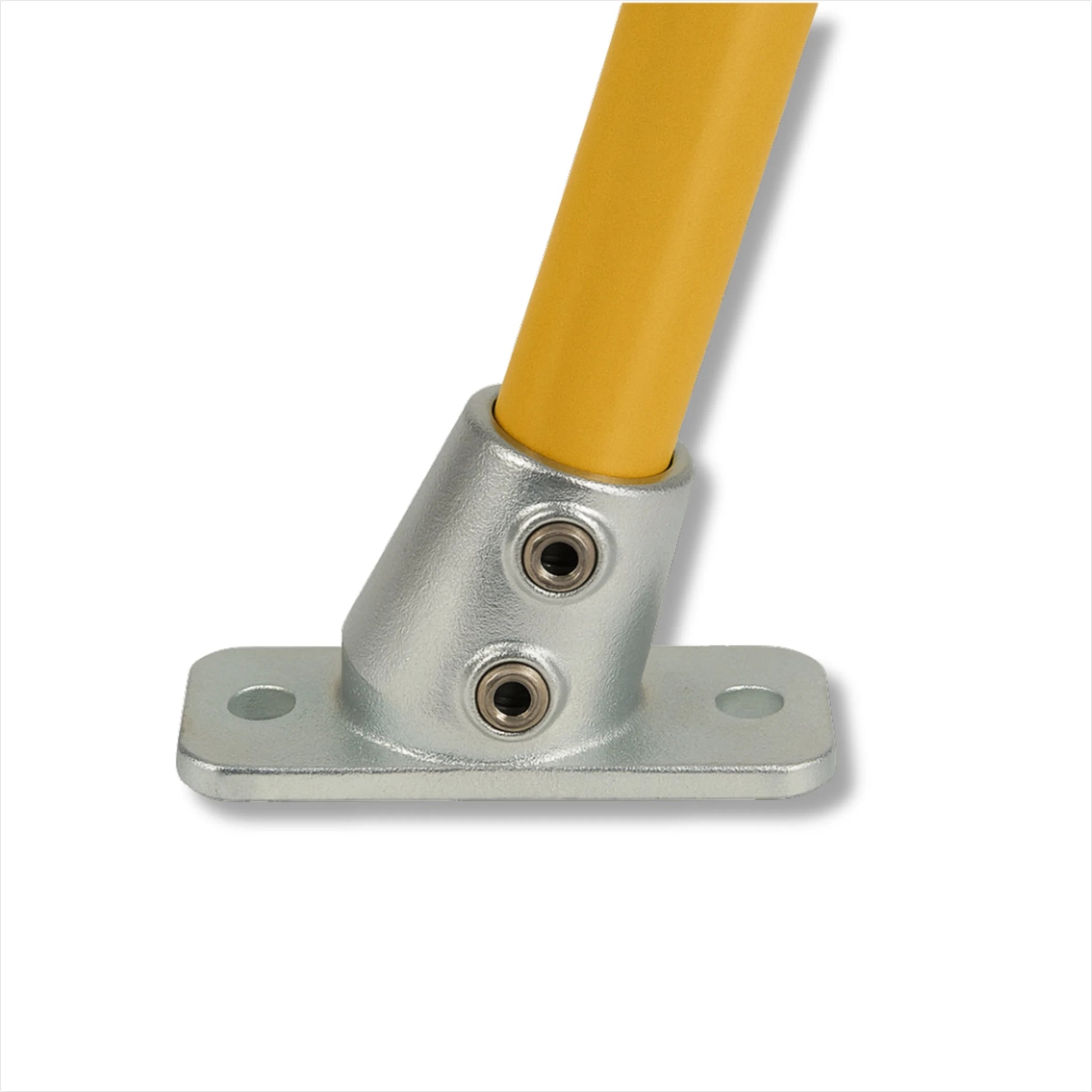

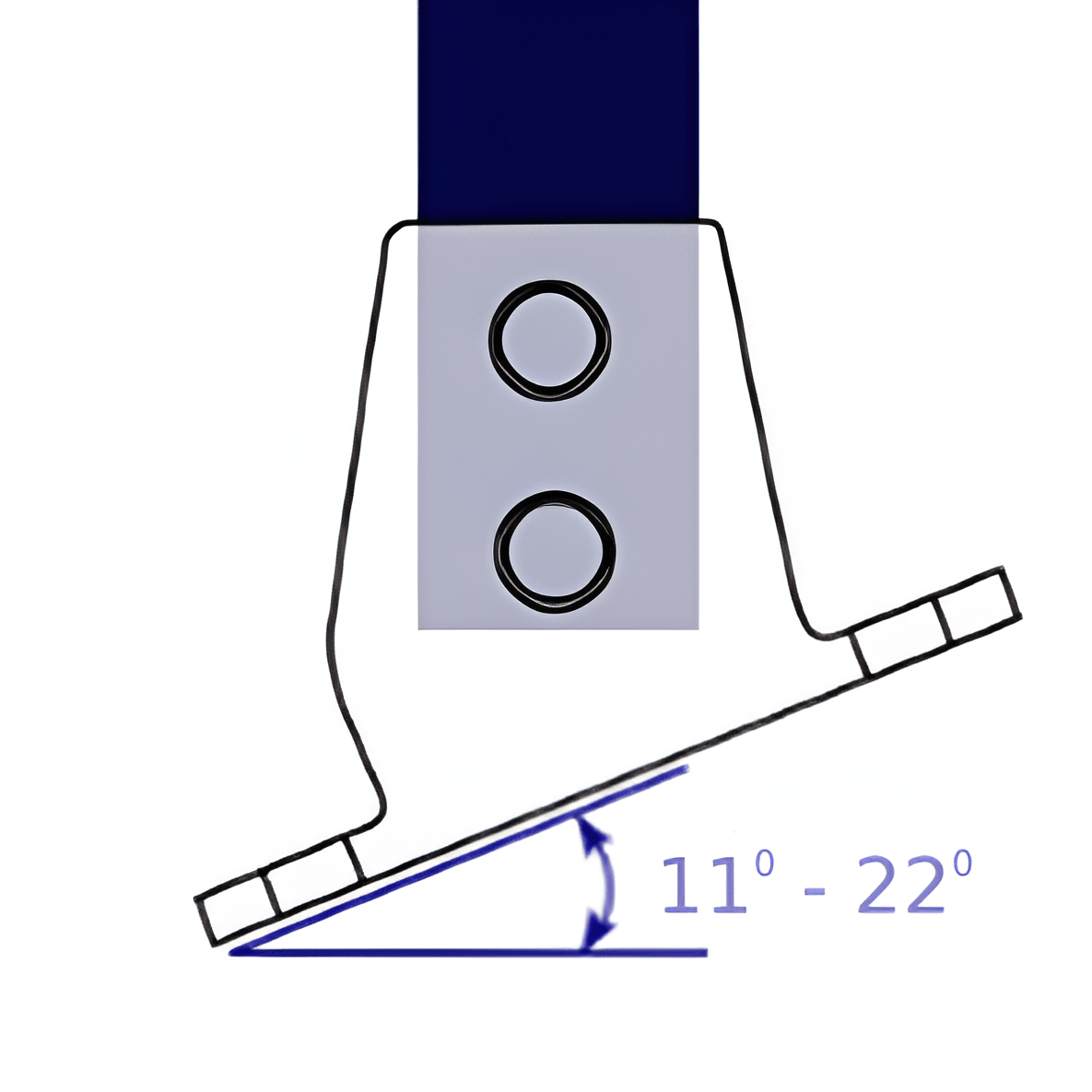

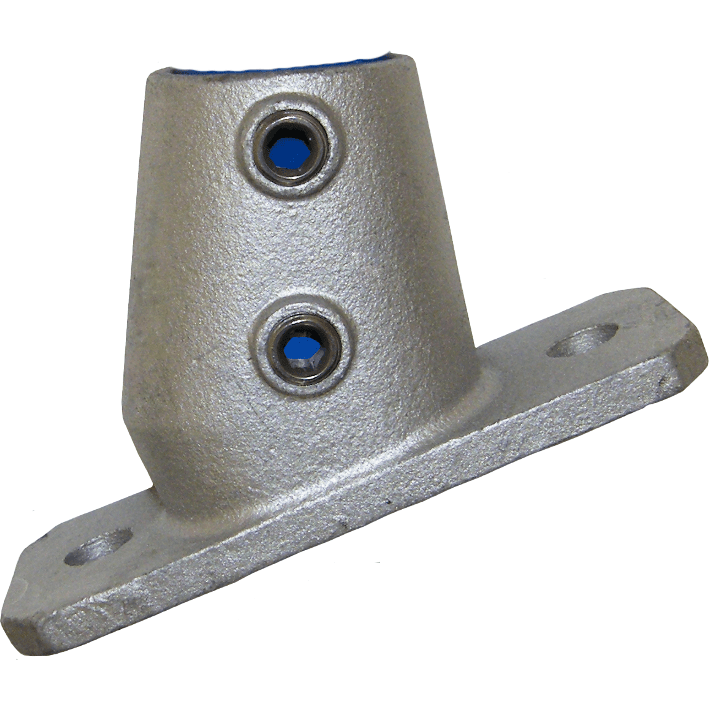

The 252 Angle Base Flange mounts a post on a steeper slope of 11–22° and bolts to the surface — for handrails on steeper ramps and embankments. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For gentler 0–11° grades use the 151 or 152 Ramp Slope Base Flange.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

Suits slopes of 11–22°
No welding required — slips over the tube and tightens with a grub screw
Australian made
Hot-dip galvanised cast iron
Suits 48mm O/D (40 NB) Cope Rail tube
Individually replaceable if damaged — no need to rebuild the run

Common uses

Handrails on steeper ramps (11–22°)
Embankments and batters
Sloped site access

Specifications

Type	Angle base flange (11–22°)
System	Cope Modular Handrail
Material	Hot-dip galvanised cast iron
Finish	Galvanised
Angle range	11–22°
Suits tube	48mm O/D (40 NB)
Assembly	No welding — grub-screw fixing
Rail	Suits Cope Rail (sold separately	by the metre)
SKU	COPE-252D
Origin	Australian made
