CopeRail 175 - Elbow w/ single swivel combination

CopeRail 175 Elbow with Single Swivel Combination — the elbow with an adjustable swivel

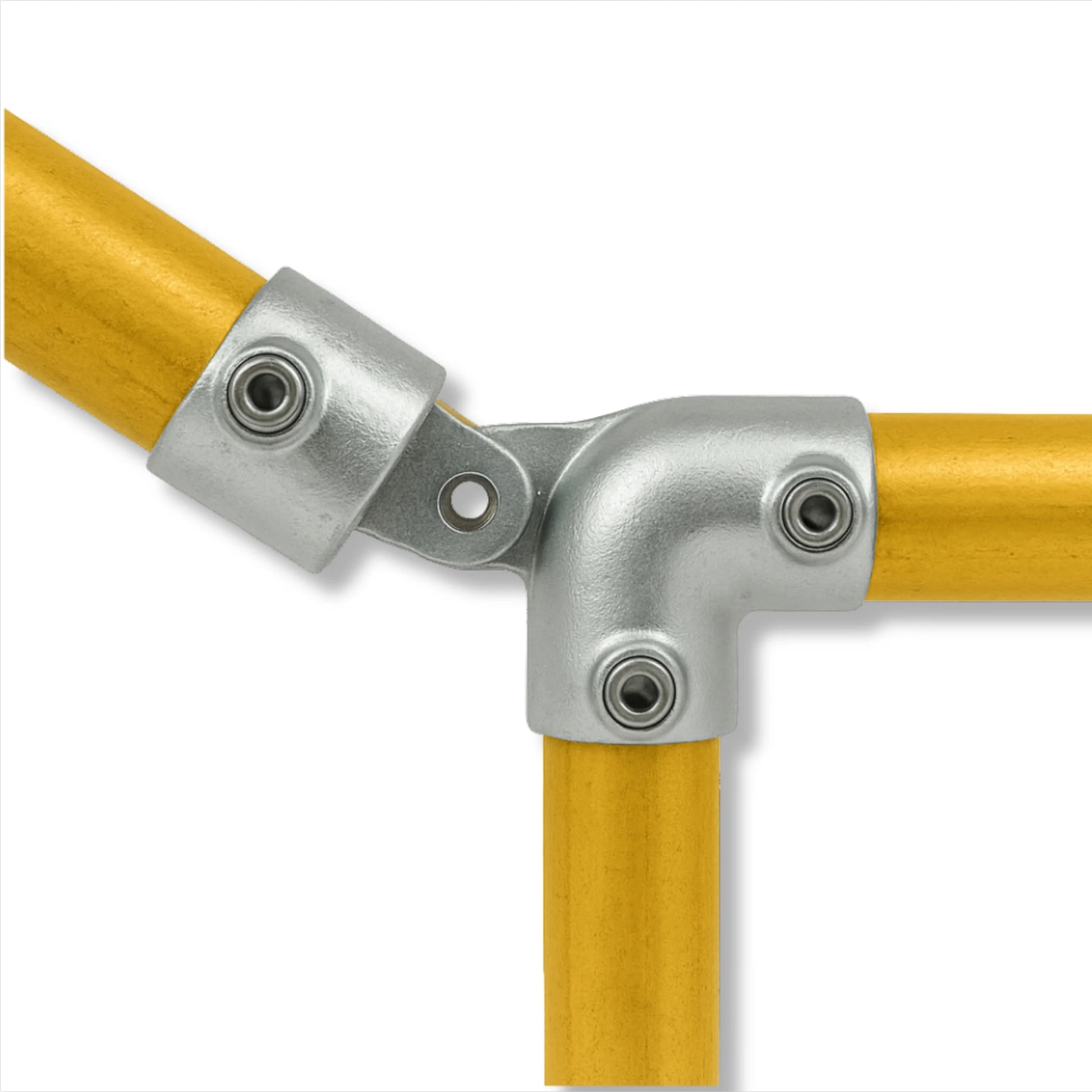

The 175 combines an elbow with a single swivel joint — turns a corner while letting one leg set to an adjustable angle. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For the male-socket version use the 175M; for a swivelling elbow use the 125H Variable Swivel Elbow.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

• Elbow with an adjustable swivel leg
• No welding required — slips over the tube and tightens with a grub screw
• Australian made
• Hot-dip galvanised cast iron
• Suits 48mm O/D (40 NB) Cope Rail tube
• Individually replaceable if damaged — no need to rebuild the run

Common uses

• Adjustable corners
• Ramps and raking runs
• Custom barrier structures
