What is it made from?

Hot-dip galvanised cast iron, in a galvanised finish, and it's Australian made.

What size tube does it suit?

Standard 48mm O/D (40 NB) from the Cope Modular handrail system.

Do I need to weld it?

No. It slips over the tube and locks with a grub screw — no welding, cutting or threading.

Cope Rail (sold by the metre) plus any other fittings for your layout. This listing is the fitting only.

Can it be replaced if damaged?

Yes — individual fittings swap out without dismantling the whole run.

Frequently Asked Questions

See full FAQ

CopeRail 173 - Single Swivel Combination

Name: CopeRail 173 - Single Swivel Combination
Brand: eSafety Supplies
SKU: COPE-173D
Price: 32.0 AUD
Availability: InStock

SKU: COPE-173D

In Stock

$32.00 inc. GST $29.09 (ex. GST)

Features:

single adjustable swivel joint
no welding required — slips over the tube and tightens with a grub screw
australian made

Click & Collect

Find out more

Calculate Shipping

Delivery Times

Get my ETA

CopeRail 173 - Single Swivel Combination

SKU: COPE-173D

$32.00

Shipping details

Calculate your rate

Enter your postcode to see your exact shipping cost

Click & collect available

Secure checkout

Easy returns

Fast Dispatch

🚚

Estimated delivery –

Shipping from just $29

CopeRail 173 Single Swivel Combination — the single-swivel combination fitting

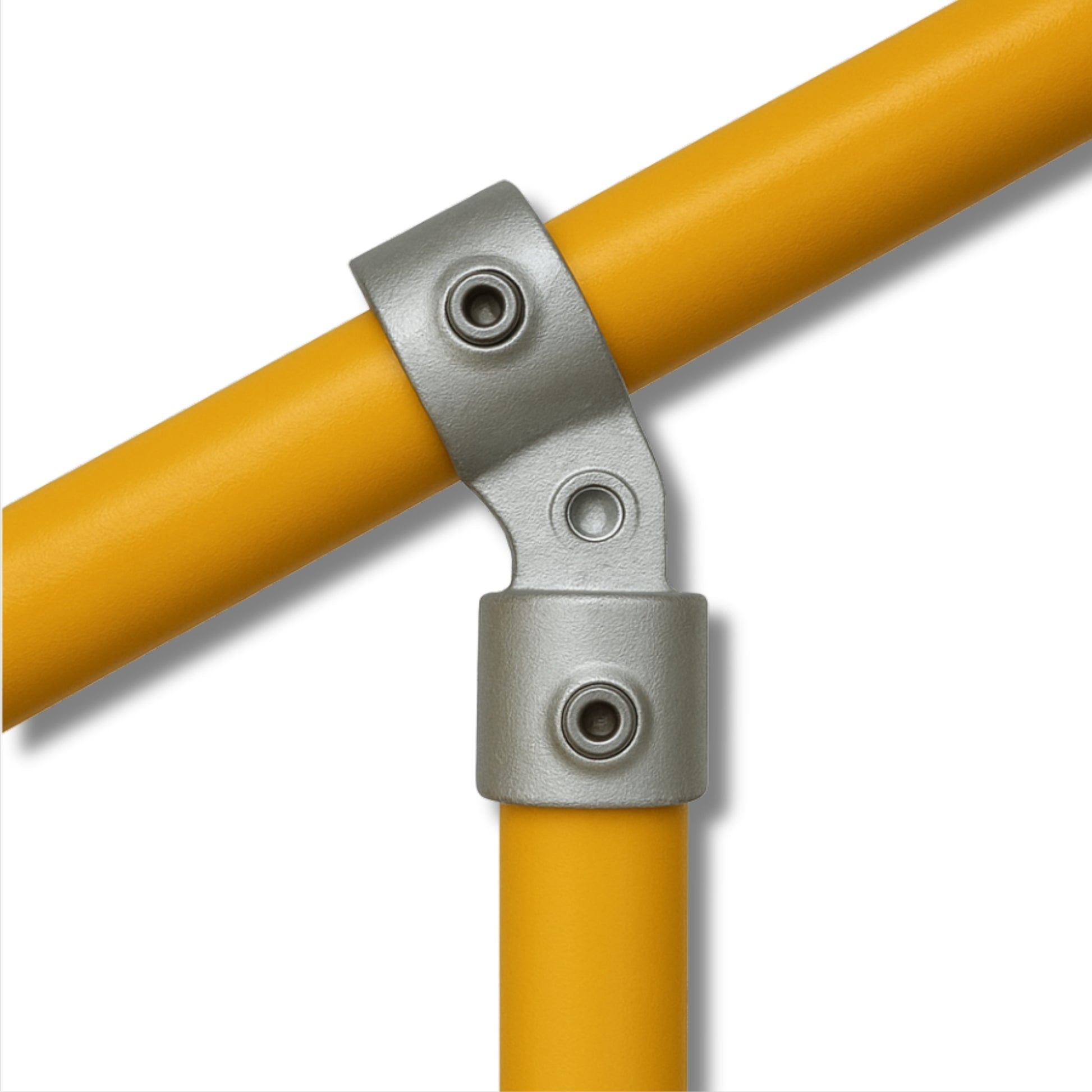

The 173 Single Swivel Combination joins rails through a single swivel joint in a combined fitting — for setting one adjustable angle in a junction. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For a tee with a swivel use the 174; for an elbow with a swivel use the 175.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

Single adjustable swivel joint
No welding required — slips over the tube and tightens with a grub screw
Australian made
Hot-dip galvanised cast iron
Suits 48mm O/D (40 NB) Cope Rail tube
Individually replaceable if damaged — no need to rebuild the run

Common uses

Adjustable handrail junctions
Ramps and raking runs
Custom barrier structures

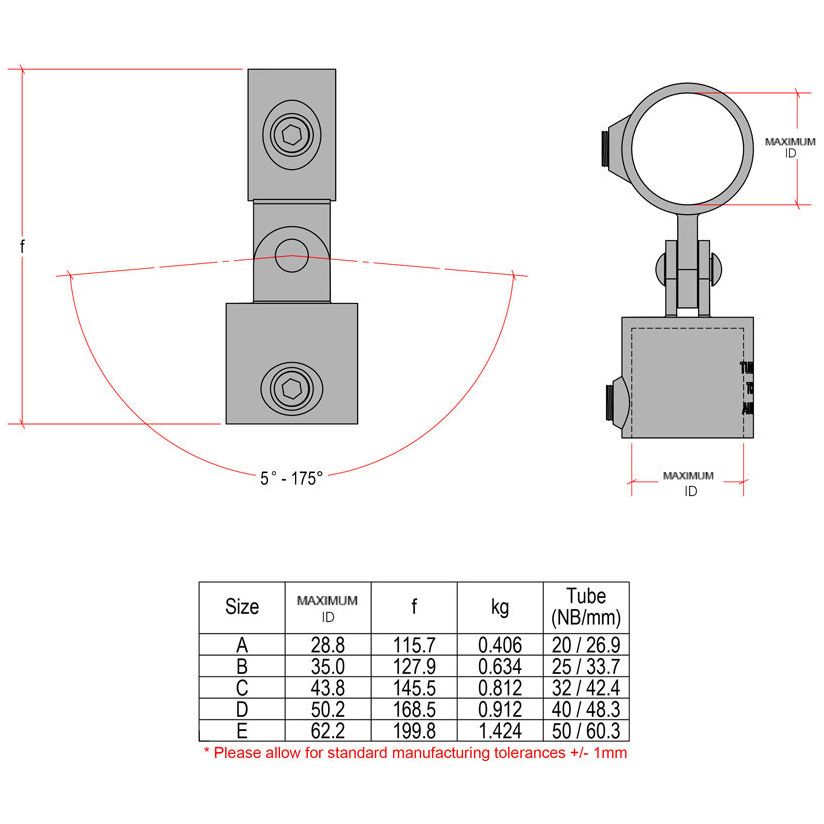

Specifications

Type	Single swivel combination
System	Cope Modular Handrail
Material	Hot-dip galvanised cast iron
Finish	Galvanised
Suits tube	48mm O/D (40 NB)
Assembly	No welding — grub-screw fixing
Rail	Suits Cope Rail (sold separately	by the metre)
SKU	COPE-173D
Origin	Australian made
