What is it made from?

Galvanised steel, in a galvanised finish, and it's Australian made.

What size tube does it suit?

Standard 48mm O/D (40 NB) from the Cope Modular handrail system.

Do I need to weld it?

No. It slips over the tube and locks with a grub screw — no welding, cutting or threading.

Cope Rail (sold by the metre) plus any other fittings for your layout. This listing is the fitting only.

Can it be replaced if damaged?

Yes — individual fittings swap out without dismantling the whole run.

Frequently Asked Questions

See full FAQ

CopeRail 171 - Double Panel Mesh Clip

Name: CopeRail 171 - Double Panel Mesh Clip
Brand: eSafety Supplies
SKU: COPE-171D
Price: 8.4 AUD
Availability: InStock

SKU: COPE-171D

In Stock

$8.40 inc. GST $7.64 (ex. GST)

Features:

holds two mesh panels at one point
no welding required — slips over the tube and tightens with a grub screw
australian made

Estimated delivery –

Shipping Cost

Calculate now

Get exact cost ›

CopeRail 171 - Double Panel Mesh Clip

SKU: COPE-171D

$8.40

Shipping details

Clear shipping pricing. No surprises at checkout.

Check shipping cost & ETA

Enter your postcode for an instant delivery estimate before checkout.

Enter your postcode to see your shipping cost, ETA, and whether Click & Collect is available in your area.

Click and Collect

Fast Dispatch

Clear pricing. No surprises

Secure Checkout

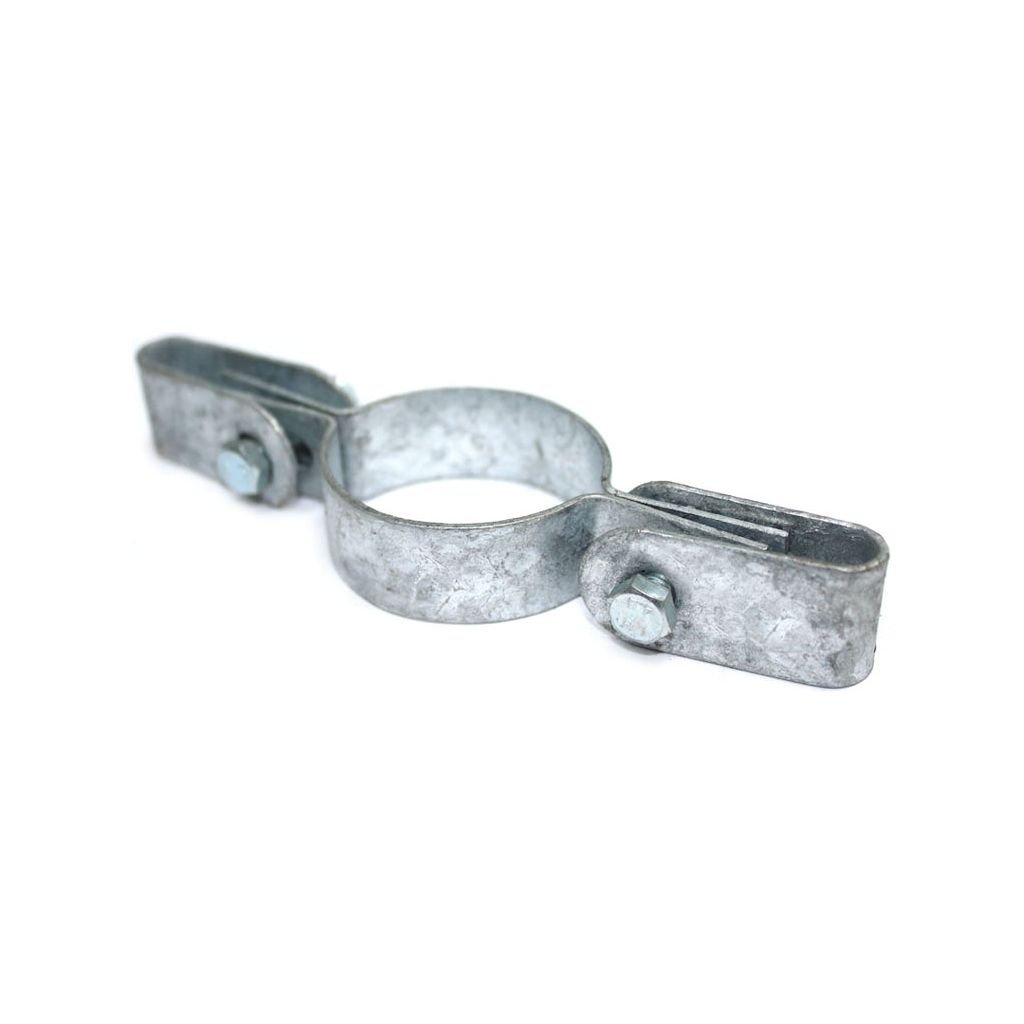

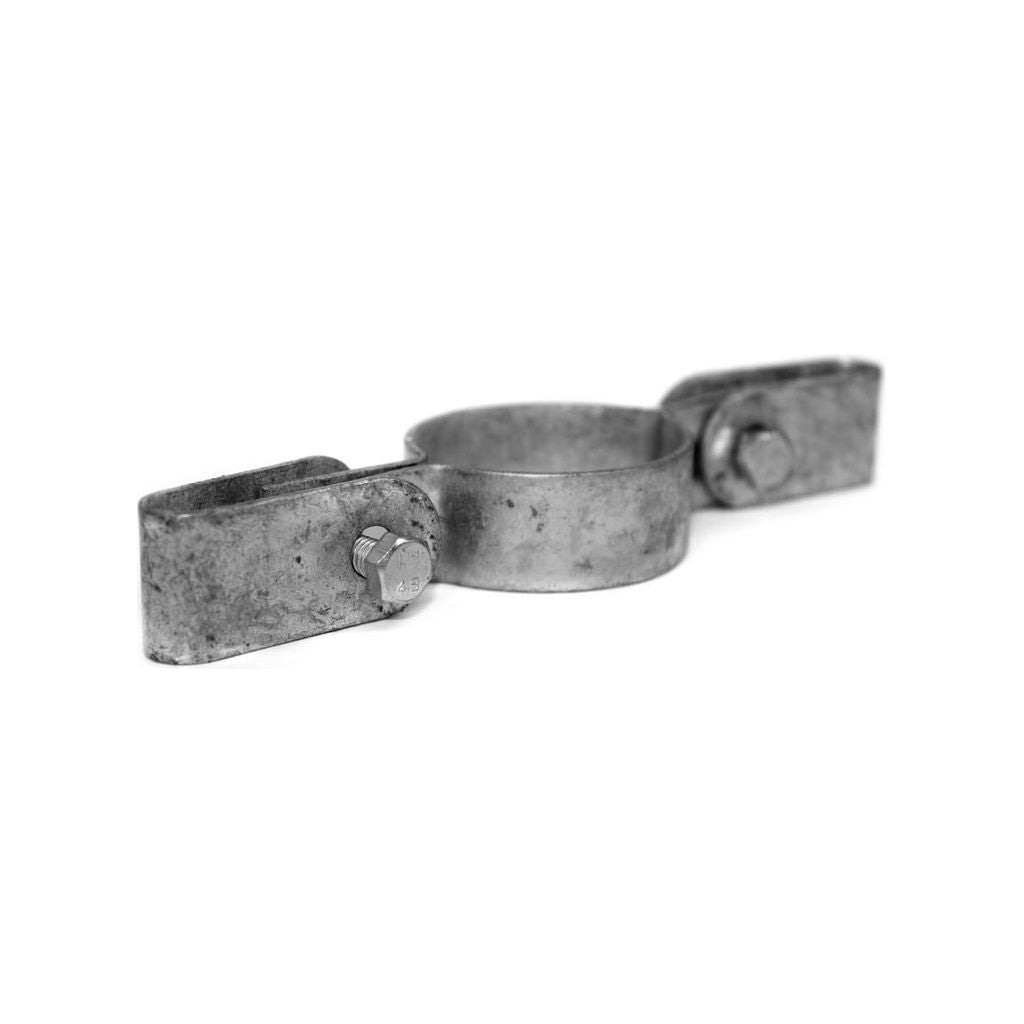

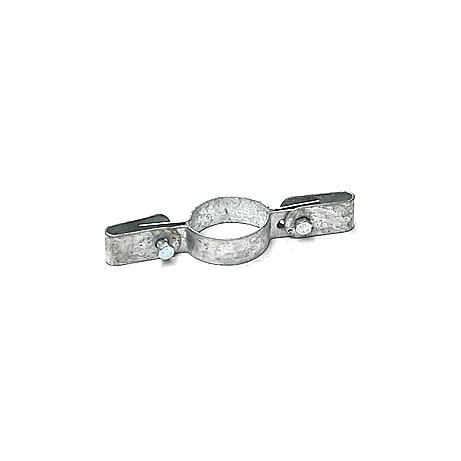

CopeRail 171 Double Panel Mesh Clip — the twin-mesh infill clip

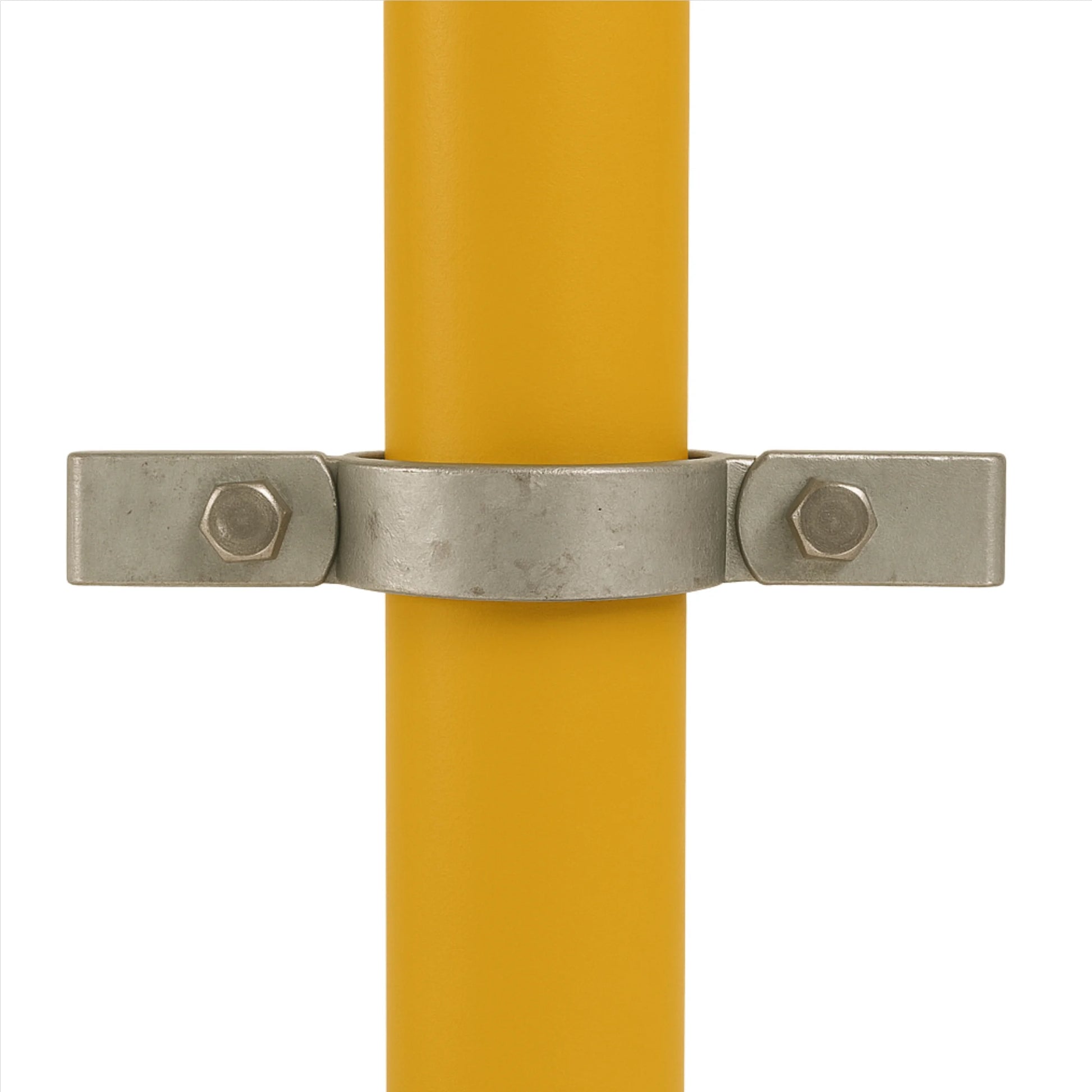

The 171 Double Panel Mesh Clip secures two mesh or infill panels at a single point on a Cope rail — for continuous mesh runs where panels meet. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from galvanised steel in a galvanised finish, and proudly Australian made.

When to use it: For a single panel use the 170 Single Panel Mesh Clip.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

Holds two mesh panels at one point
No welding required — slips over the tube and tightens with a grub screw
Australian made
Galvanised steel
Suits 48mm O/D (40 NB) Cope Rail tube
Individually replaceable if damaged — no need to rebuild the run

Common uses

Continuous mesh infill runs
Pedestrian segregation panels
Machine-guarding mesh

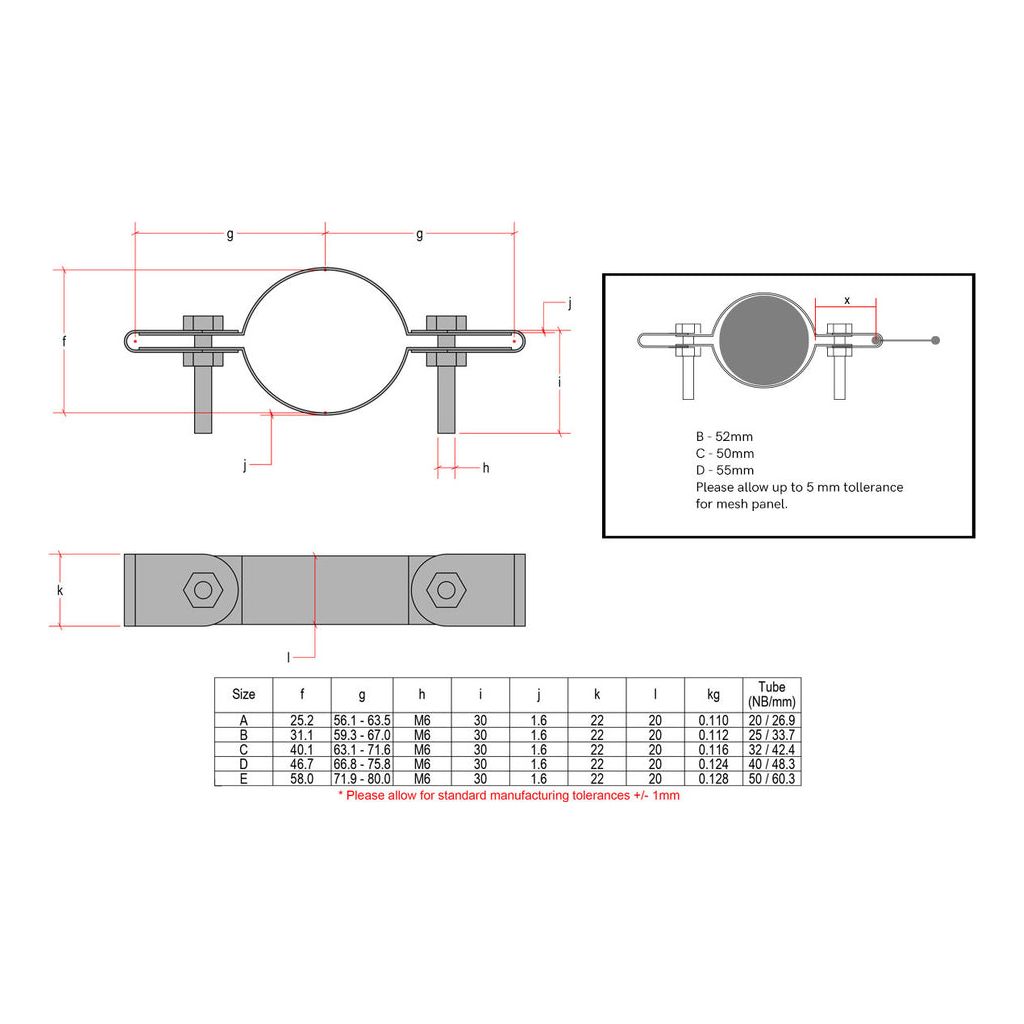

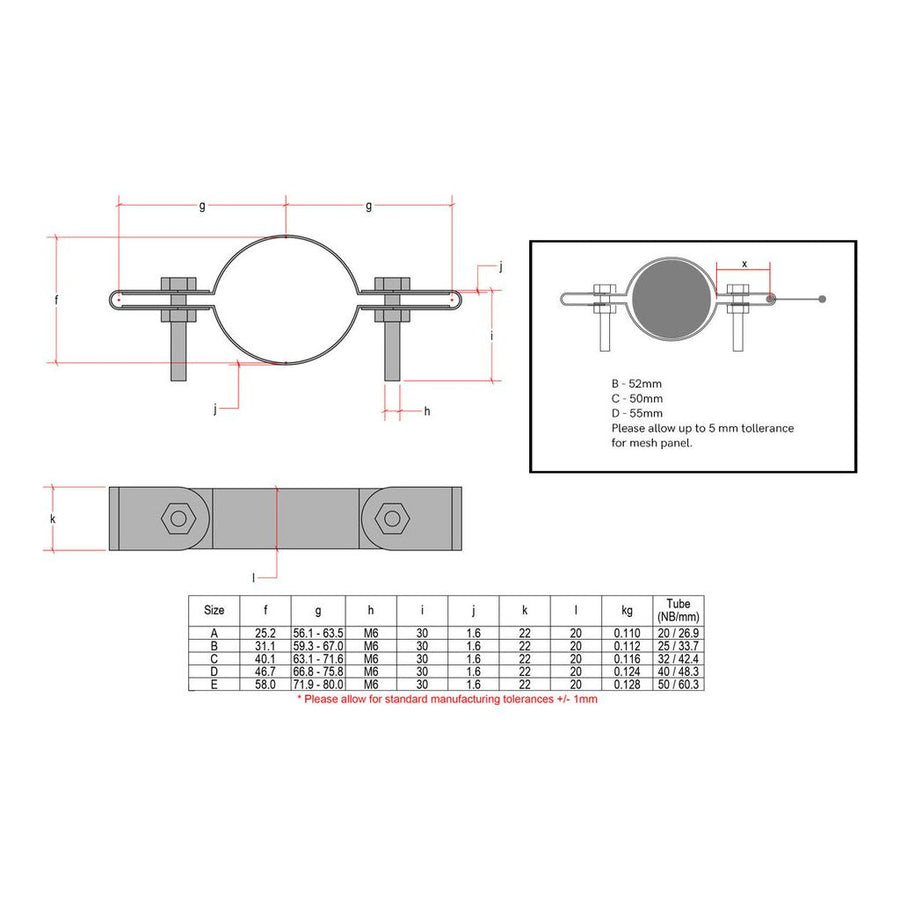

Specifications

Type	Double panel mesh clip
System	Cope Modular Handrail
Material	Galvanised steel
Finish	Galvanised
Suits tube	48mm O/D (40 NB)
Assembly	Bolt-on clip
Rail	Suits Cope Rail (sold separately	by the metre)
SKU	COPE-171D
Origin	Australian made
