CopeRail 161 - Standard Crossover

CopeRail 161 Standard Crossover — the pass-over for crossing tubes

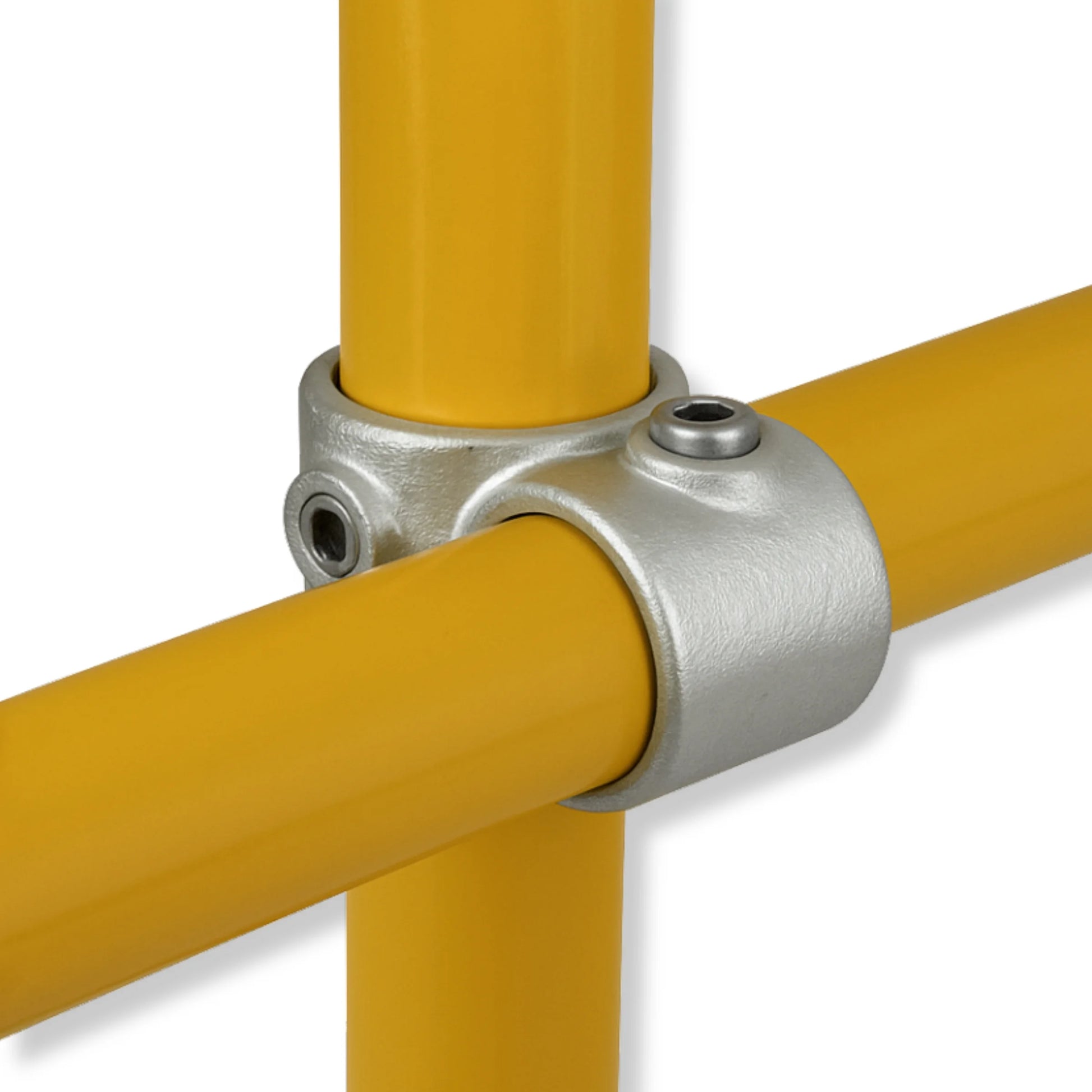

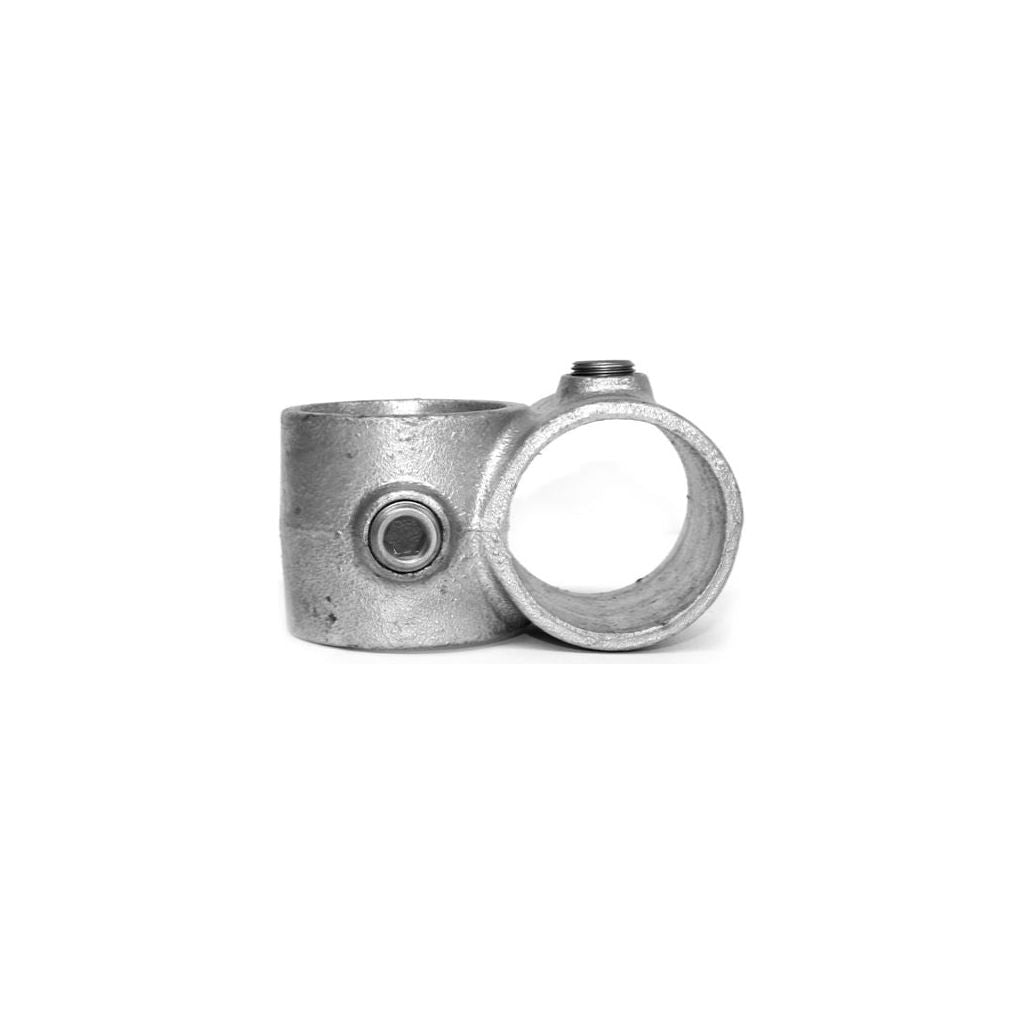

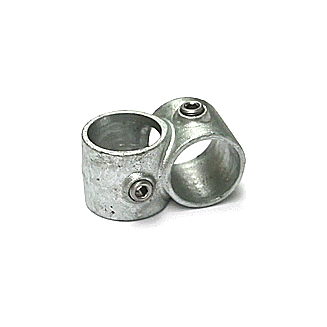

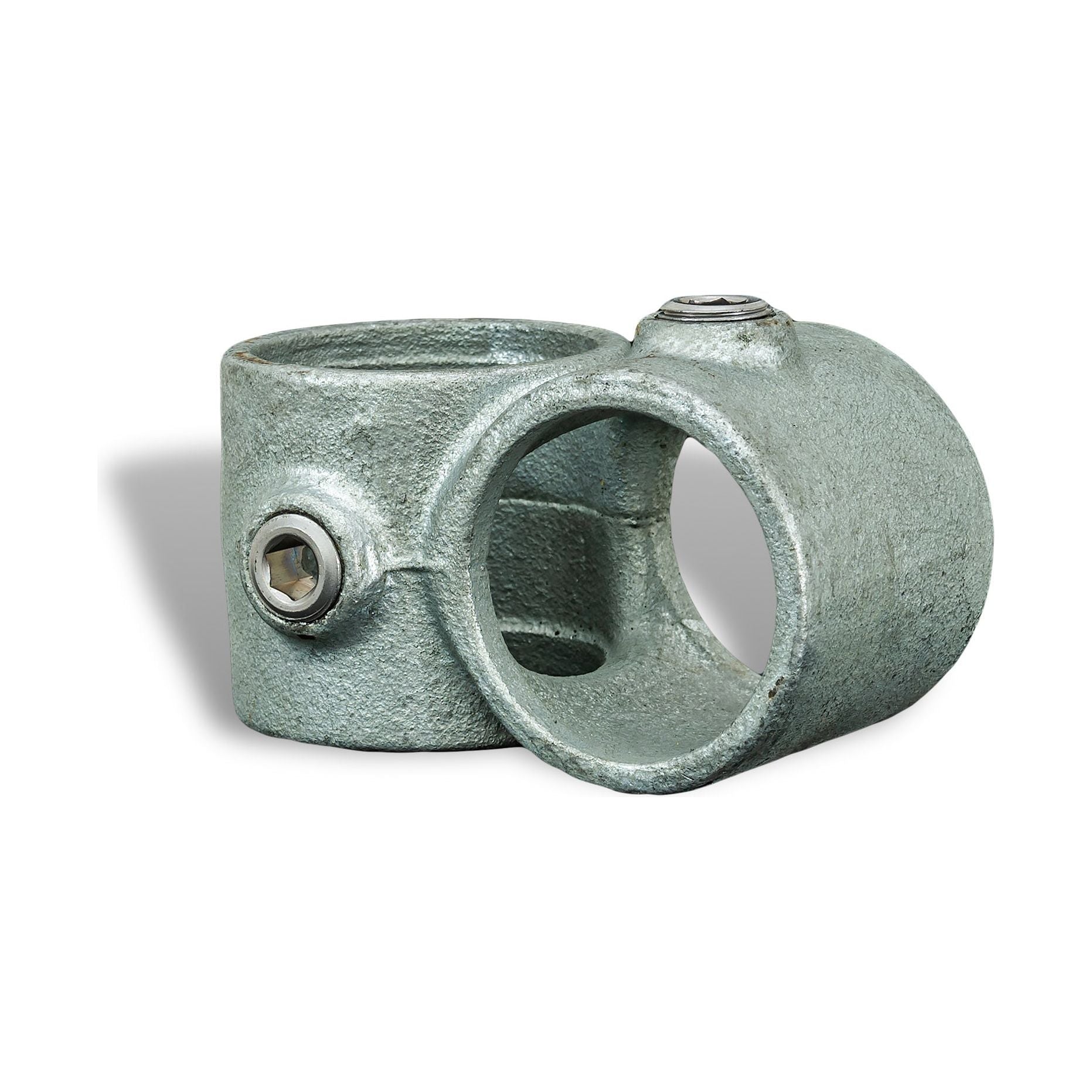

The 161 Standard Crossover carries one tube over another where they cross at 90° without joining them — keeping both rails continuous where they intersect. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For a clamp-on version that fits onto existing tube use the 160 Clamp-On Crossover.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

• Passes one tube over another at 90°
• No welding required — slips over the tube and tightens with a grub screw
• Australian made
• Hot-dip galvanised cast iron
• Suits 48mm O/D (40 NB) Cope Rail tube
• Individually replaceable if damaged — no need to rebuild the run

Common uses

• Crossing rails without a junction
• Bracing and grid frames
• Asset-protection railing
