What is it made from?

Hot-dip galvanised cast iron, in a galvanised finish, and it's Australian made.

What size tube does it suit?

Standard 48mm O/D (40 NB) from the Cope Modular handrail system.

Do I need to weld it?

No. It slips over the tube and locks with a grub screw — no welding, cutting or threading.

Cope Rail (sold by the metre) plus any other fittings for your layout. This listing is the fitting only.

Can it be replaced if damaged?

Yes — individual fittings swap out without dismantling the whole run.

Frequently Asked Questions

See full FAQ

CopeRail 160 - Clamp On Crossover

Name: CopeRail 160 - Clamp On Crossover
Brand: eSafety Supplies
SKU: COPE-160D
Price: 21.0 AUD
Availability: InStock

SKU: COPE-160D

In Stock

$21.00 inc. GST $19.09 (ex. GST)

Features:

clamps on mid-rail — no cut required
no welding required — slips over the tube and tightens with a grub screw
australian made

Estimated delivery –

Shipping Cost

Calculate now

Get exact cost ›

CopeRail 160 - Clamp On Crossover

SKU: COPE-160D

$21.00

Shipping details

Clear shipping pricing. No surprises at checkout.

Check shipping cost & ETA

Enter your postcode for an instant delivery estimate before checkout.

Enter your postcode to see your shipping cost, ETA, and whether Click & Collect is available in your area.

Click and Collect

Fast Dispatch

Clear pricing. No surprises

Secure Checkout

CopeRail 160 Clamp-On Crossover — the clamp-on pass-over

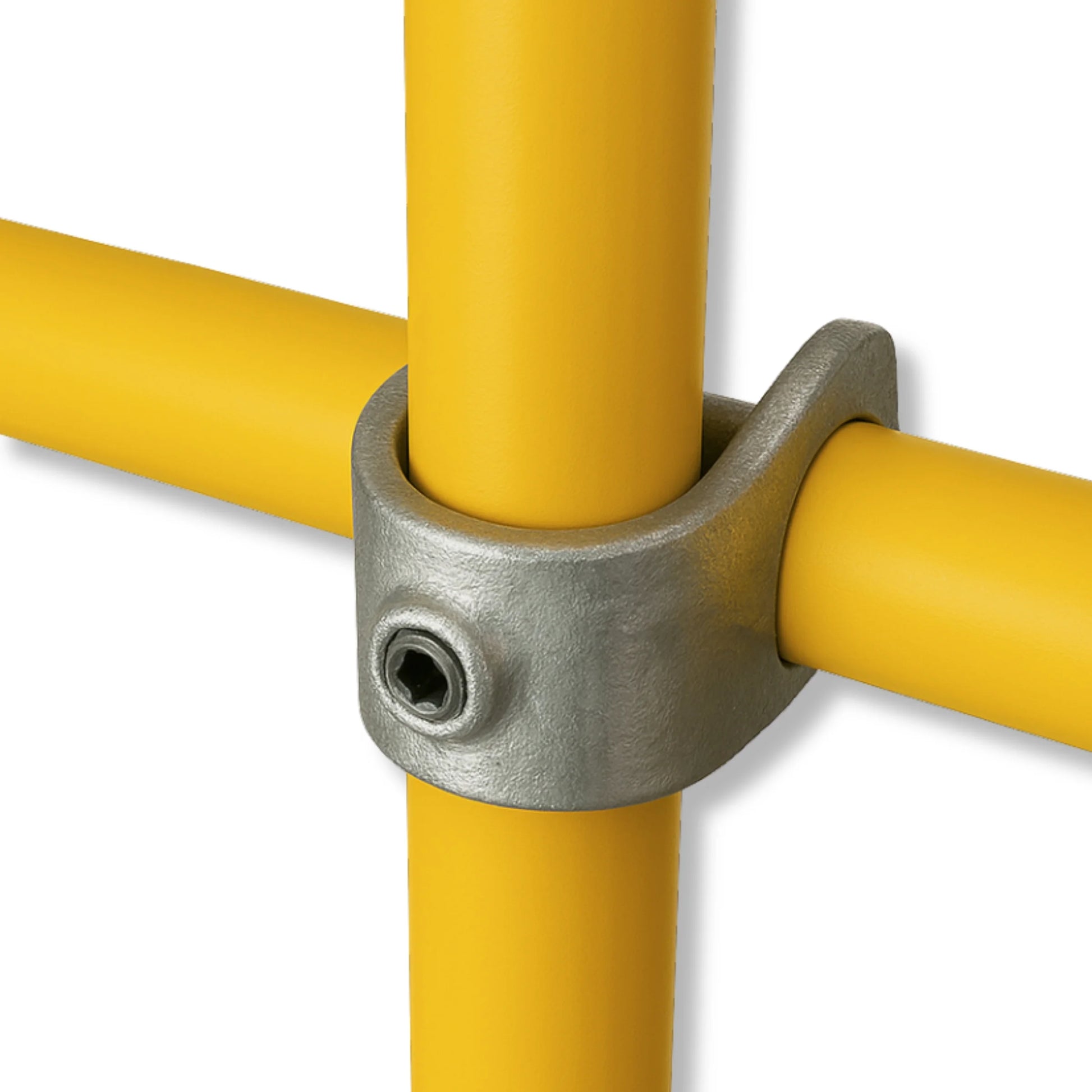

The 160 Clamp-On Crossover clamps onto a continuous tube to carry a second tube over it at 90° — added anywhere along an existing rail with no cut required. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For a socketed crossover at tube ends use the 161 Standard Crossover.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

Clamps on mid-rail — no cut required
No welding required — slips over the tube and tightens with a grub screw
Australian made
Hot-dip galvanised cast iron
Suits 48mm O/D (40 NB) Cope Rail tube
Individually replaceable if damaged — no need to rebuild the run

Common uses

Adding a cross brace to existing rail
Retrofitting grids and frames
Asset-protection railing

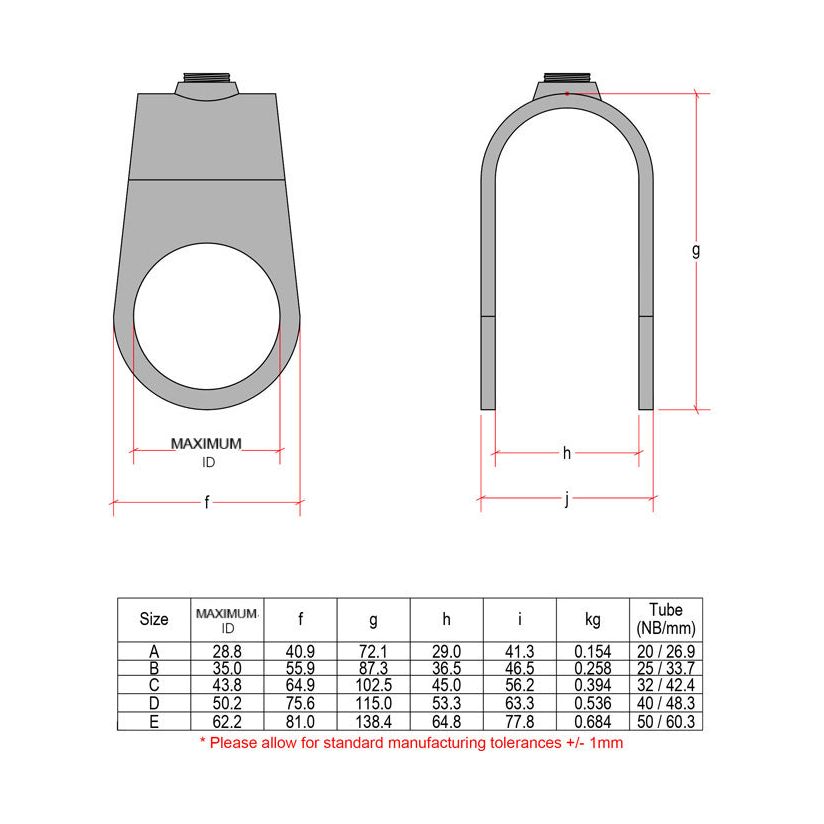

Specifications

Type	Clamp-on crossover
System	Cope Modular Handrail
Material	Hot-dip galvanised cast iron
Finish	Galvanised
Suits tube	48mm O/D (40 NB)
Assembly	No welding — grub-screw fixing
Rail	Suits Cope Rail (sold separately	by the metre)
SKU	COPE-160D
Origin	Australian made

Shipping

Estimated shipping times on our range of stocked items are as follows:

Location	Expected Delivery	Additional Information
NSW Metro		Usually overnight. Same day delivery can be arranged for an extra charge. Click & Collect: Available from our warehouse at 396 Victoria St, Wetherill Park, 2164.
NSW Regional	2-3 business days
VIC Metro	1-2 business days	Usually overnight.
VIC Regional	2-3 business days
QLD Metro	1-2 business days	Usually overnight.
QLD Regional	2-3 business days
ACT	1-2 business days	Usually overnight.
SA Metro	1-2 business days	Usually overnight.
SA Regional	2-4 business days
NT Metro	4-6 business days
NT Regional	5-7 business days
WA Metro	4-5 business days
WA Regional	6-7 business days
TAS	3-4 business days

Returns

Items may be returned within 30 days from the date of purchase. Returned items must be in original packaging and unused.

Address for returns: 396 Victoria Street, Wetherill Park, NSW 2164

Notes: Customer must pay for return shipping. 100% credit will be provided, less shipping costs.

Product Description +

Product Specifications +

Specifications

Type	Clamp-on crossover
System	Cope Modular Handrail
Material	Hot-dip galvanised cast iron
Finish	Galvanised
Suits tube	48mm O/D (40 NB)
Assembly	No welding — grub-screw fixing
Rail	Suits Cope Rail (sold separately	by the metre)
SKU	COPE-160D
Origin	Australian made
