CopeRail 156 - Ramp Slope Cross (0-11 degree)

CopeRail 156 Ramp Slope Cross — the sloped four-way junction for ramps

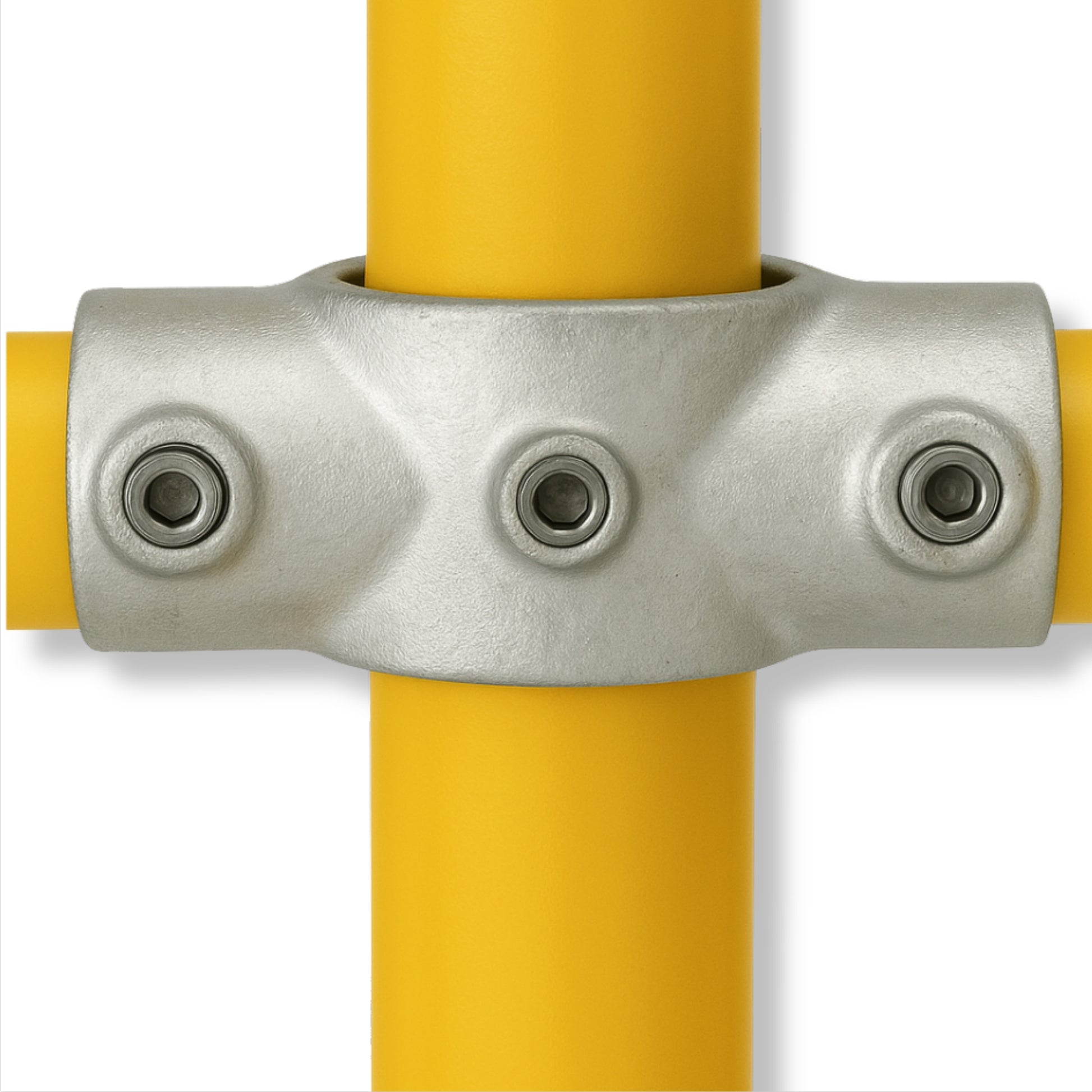

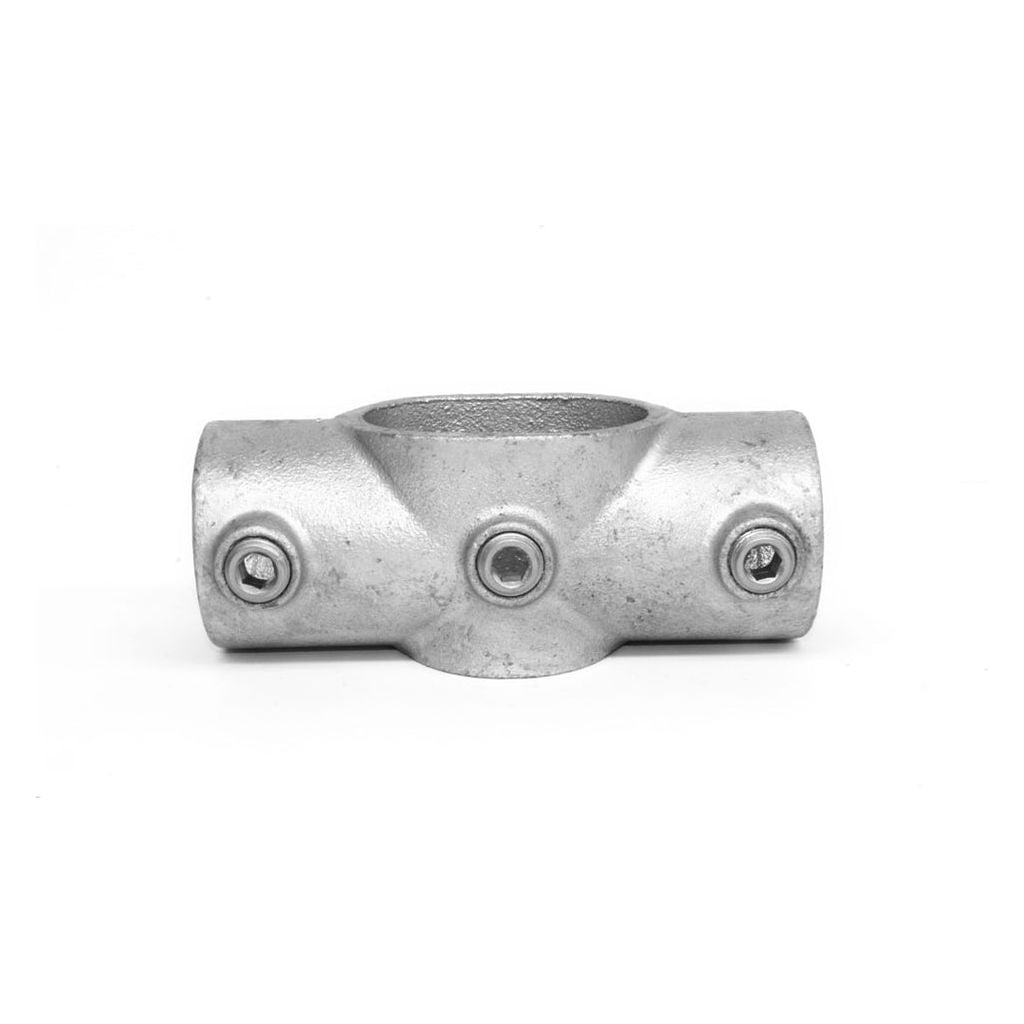

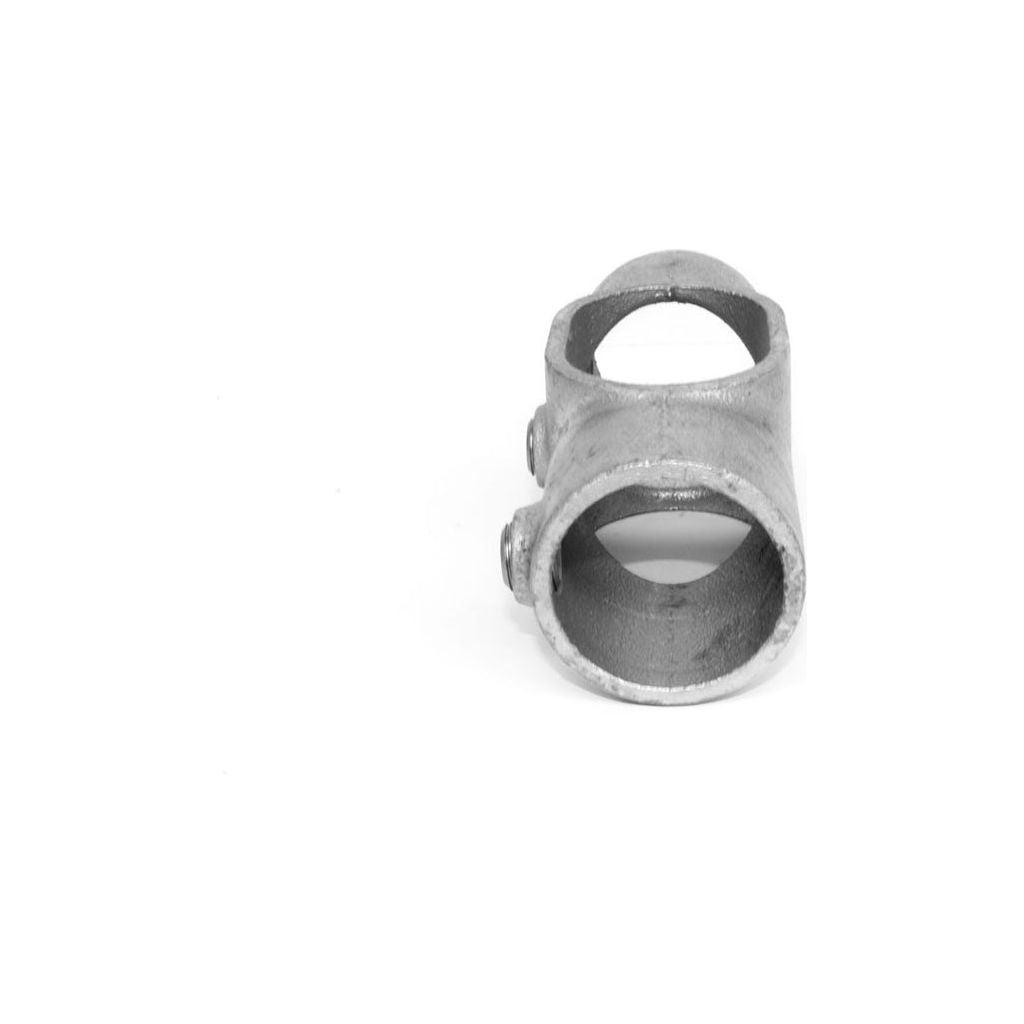

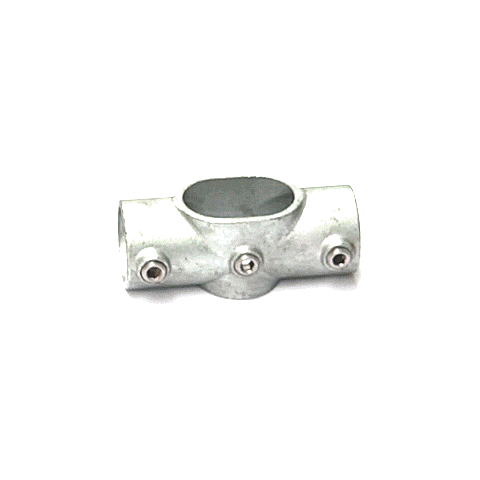

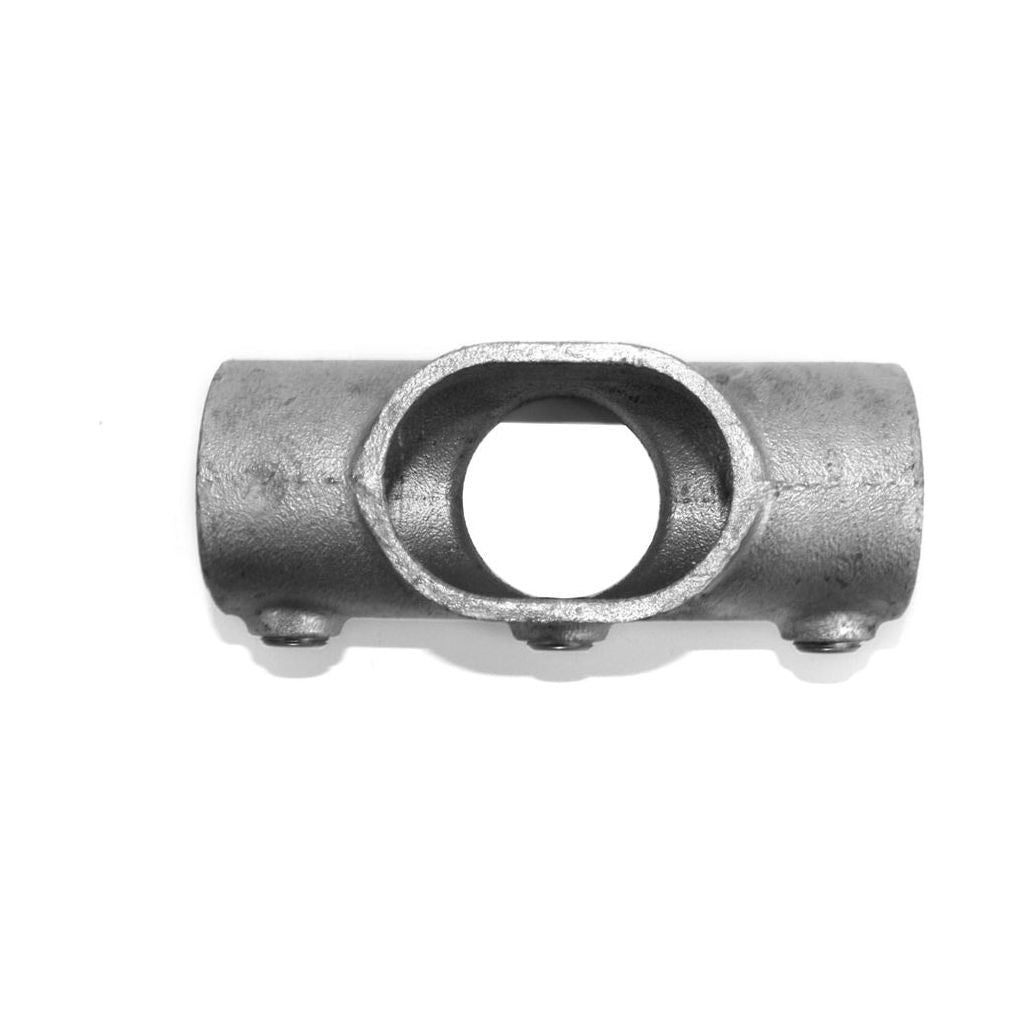

The 156 Ramp Slope Cross joins rails at a four-way junction on a 0–11° slope — for mid-rails crossing a ramp handrail. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For a level four-way junction use the 119 Standard Cross.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

• Four-way cross for slopes of 0–11°
• No welding required — slips over the tube and tightens with a grub screw
• Australian made
• Hot-dip galvanised cast iron

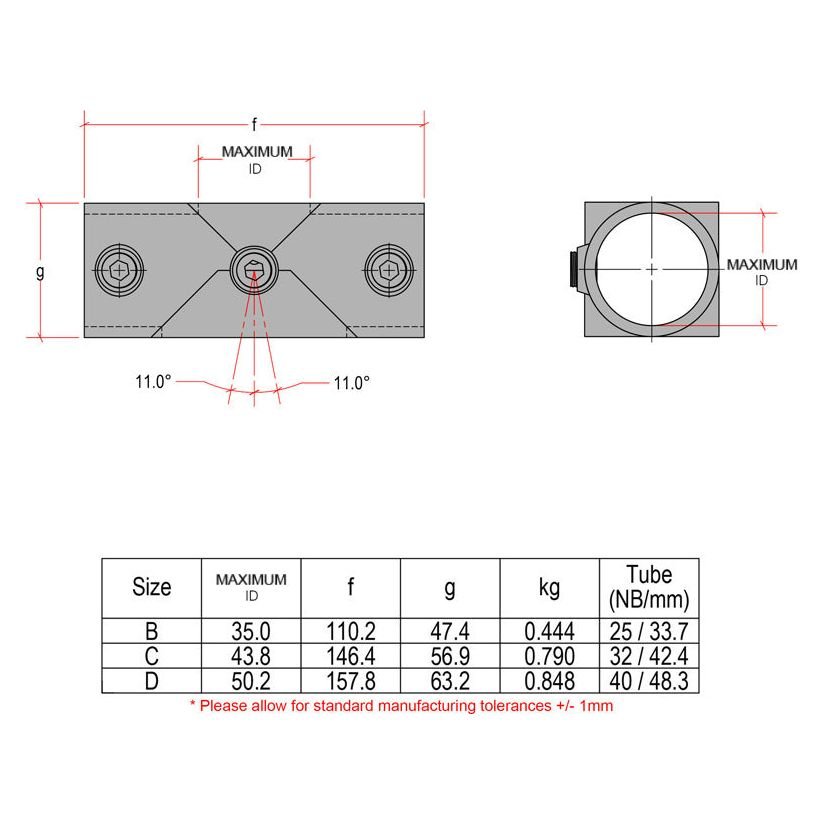

• Suits 48mm O/D (40 NB) Cope Rail tube
• Individually replaceable if damaged — no need to rebuild the run

Common uses

• Ramp handrail grids (0–11°)
• Sloped walkways
• Accessible access ramps
