What is it made from?

Hot-dip galvanised cast iron, in a galvanised finish, and it's Australian made.

What size tube does it suit?

Standard 48mm O/D (40 NB) from the Cope Modular handrail system.

Do I need to weld it?

No. It slips over the tube and locks with a grub screw — no welding, cutting or threading.

Cope Rail (sold by the metre) plus any other fittings for your layout. This listing is the fitting only.

Can it be replaced if damaged?

Yes — individual fittings swap out without dismantling the whole run.

Frequently Asked Questions

See full FAQ

CopeRail 152 - Ramp Slope Base Flange (0-11 degree)

SKU: COPE-152D

In Stock

$47.50 inc. GST $43.18 (ex. GST)

Features:

suits slopes of 0–11°
no welding required — slips over the tube and tightens with a grub screw
australian made

Click & Collect

Find out more

Calculate Shipping

Delivery Times

Get my ETA

CopeRail 152 - Ramp Slope Base Flange (0-11 degree)

SKU: COPE-152D

$47.50

Shipping details

Calculate your rate

Enter your postcode to see your exact shipping cost

Click & collect available

Secure checkout

Easy returns

Fast Dispatch

🚚

Estimated delivery –

Shipping from just $29

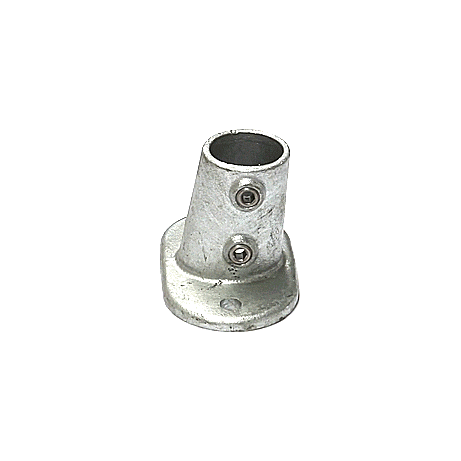

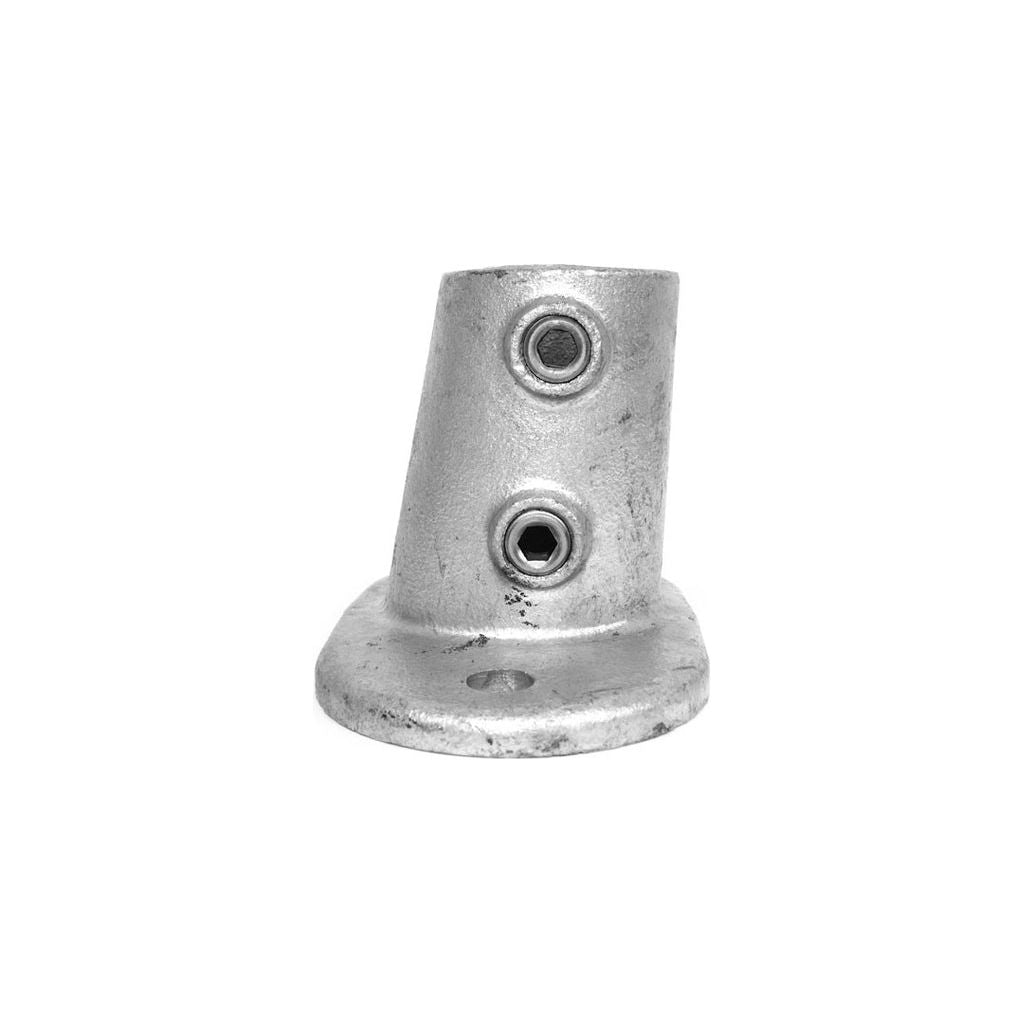

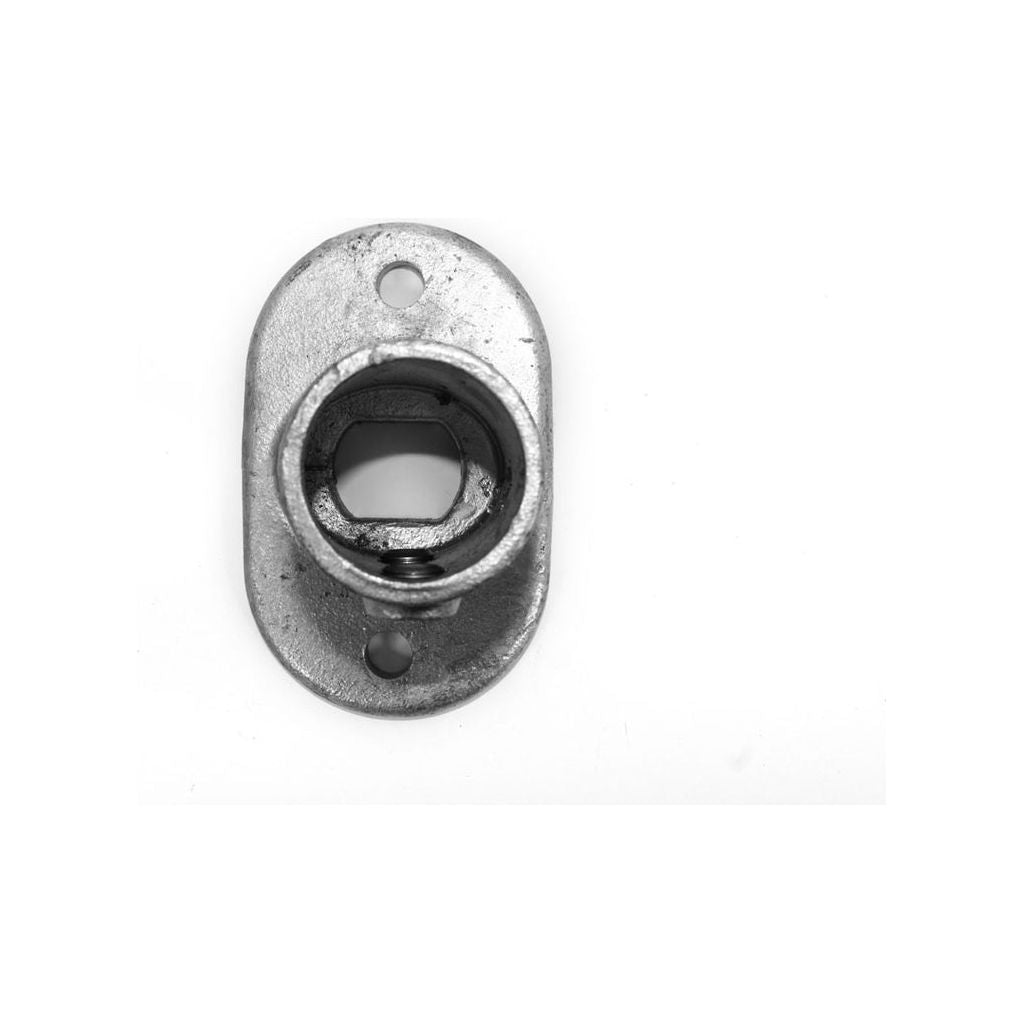

CopeRail 152 Ramp Slope Base Flange — the sloped post base for 0–11° ramps

The 152 Ramp Slope Base Flange mounts a post on a slope of 0–11° and bolts to the ramp surface — the standard base for gentle ramp handrails. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For a parallel-set flange use the 151; for 11–22° grades use the 252 Angle Base Flange.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

Suits slopes of 0–11°
No welding required — slips over the tube and tightens with a grub screw
Australian made
Hot-dip galvanised cast iron
Suits 48mm O/D (40 NB) Cope Rail tube
Individually replaceable if damaged — no need to rebuild the run

Common uses

Handrails on ramps (0–11°)
Sloped walkways
Accessible access ramps

Specifications

Type	Ramp slope base flange (0–11°)
System	Cope Modular Handrail
Material	Hot-dip galvanised cast iron
Finish	Galvanised
Angle range	0–11°
Suits tube	48mm O/D (40 NB)
Assembly	No welding — grub-screw fixing
Rail	Suits Cope Rail (sold separately	by the metre)
SKU	COPE-152D
Origin	Australian made
