What is it made from?

Hot-dip galvanised cast iron, in a galvanised finish, and it's Australian made.

What size tube does it suit?

Standard 48mm O/D (40 NB) from the Cope Modular handrail system.

Do I need to weld it?

No. It slips over the tube and locks with a grub screw — no welding, cutting or threading.

Cope Rail (sold by the metre) plus any other fittings for your layout. This listing is the fitting only.

Can it be replaced if damaged?

Yes — individual fittings swap out without dismantling the whole run.

Frequently Asked Questions

See full FAQ

CopeRail 151 - Ramp Slope Parallel Base Flange (0 - 11 degree)

Name: CopeRail 151 - Ramp Slope Parallel Base Flange (0 - 11 degree)
Brand: eSafety Supplies
SKU: COPE-151D
Price: 38.85 AUD
Availability: InStock

SKU: COPE-151D

In Stock

$38.85 inc. GST $35.32 (ex. GST)

Features:

suits slopes of 0–11°
no welding required — slips over the tube and tightens with a grub screw
australian made

Estimated delivery –

Shipping Cost

Calculate now

Get exact cost ›

CopeRail 151 - Ramp Slope Parallel Base Flange (0 - 11 degree)

SKU: COPE-151D

$38.85

Shipping details

Clear shipping pricing. No surprises at checkout.

Check shipping cost & ETA

Enter your postcode for an instant delivery estimate before checkout.

Enter your postcode to see your shipping cost, ETA, and whether Click & Collect is available in your area.

Click and Collect

Fast Dispatch

Clear pricing. No surprises

Secure Checkout

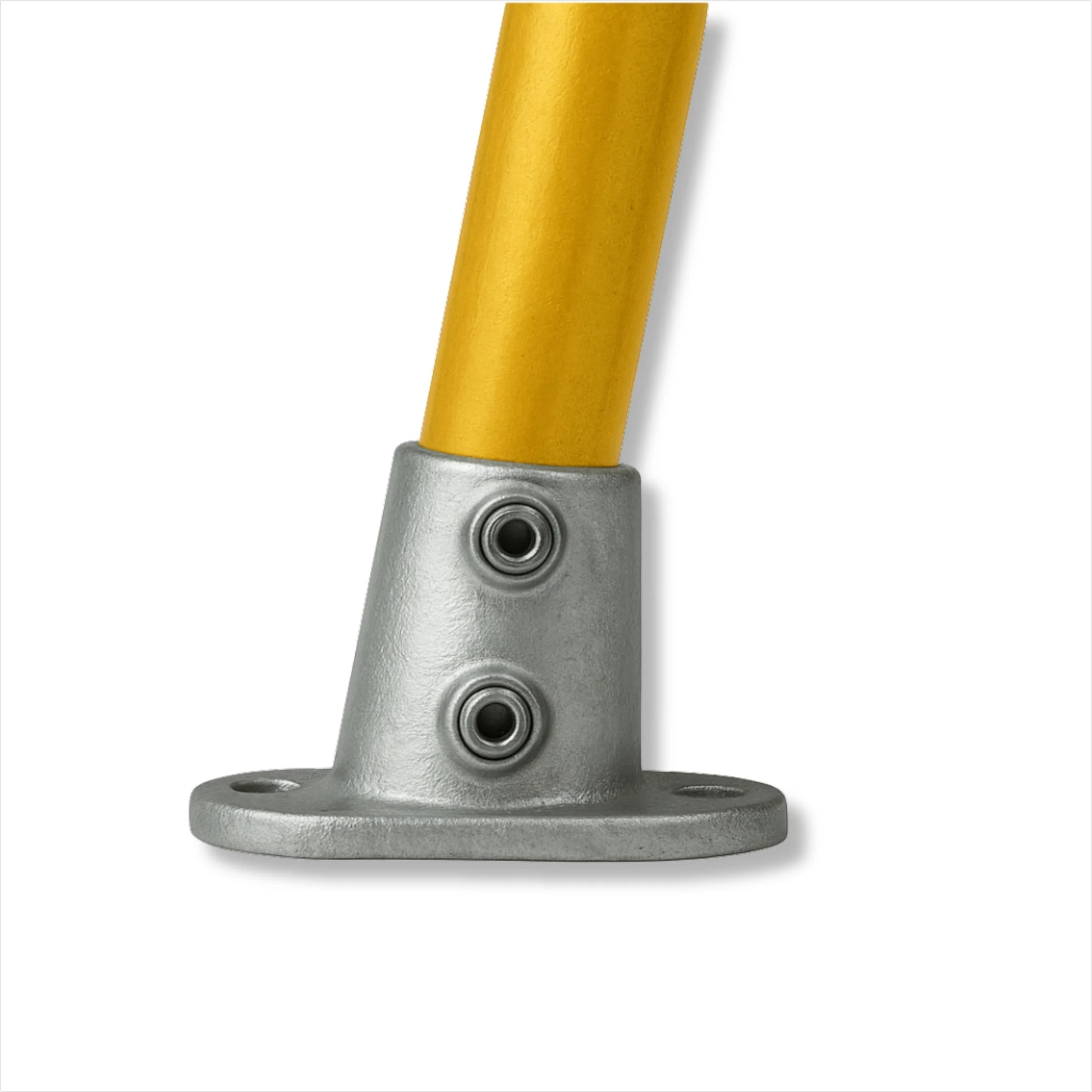

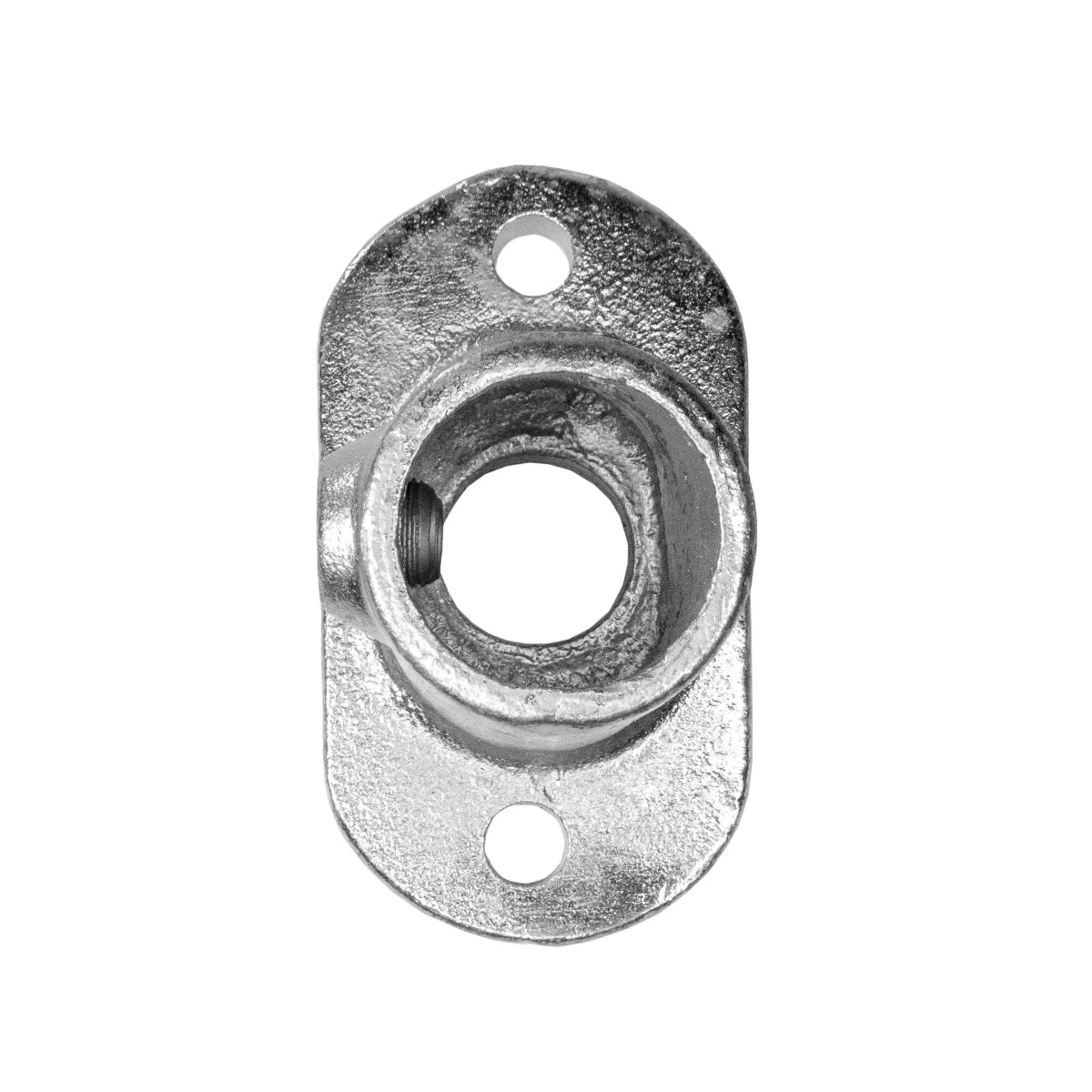

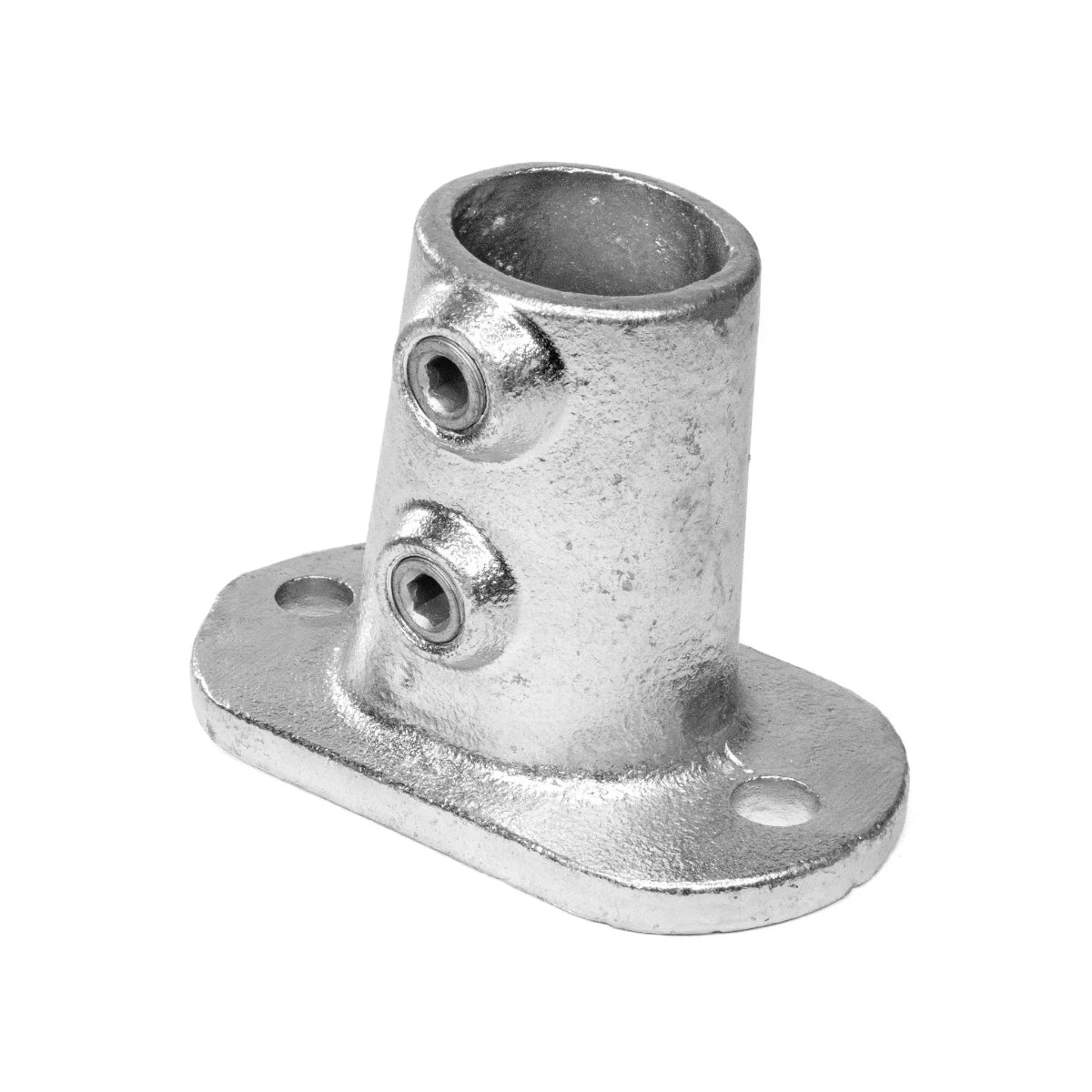

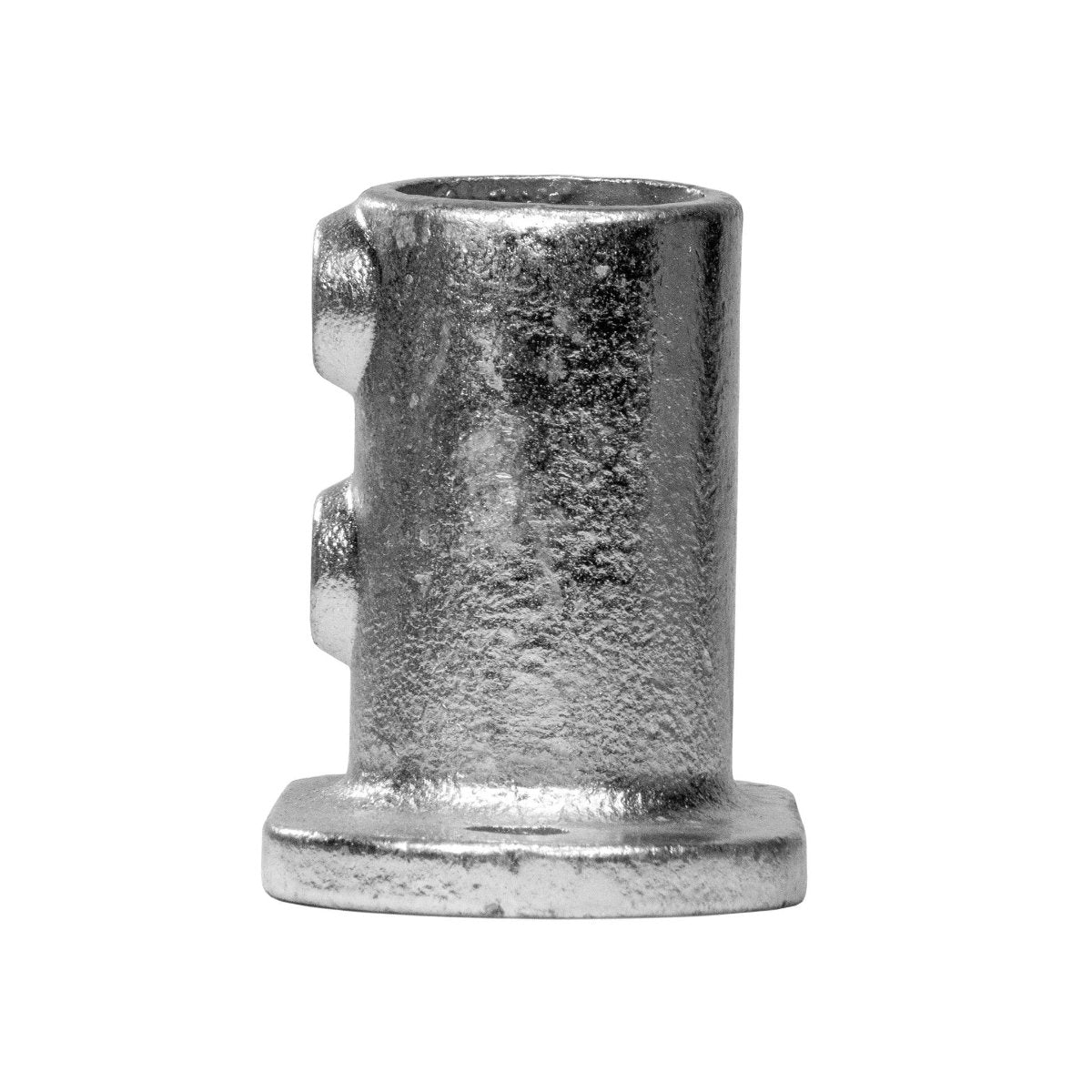

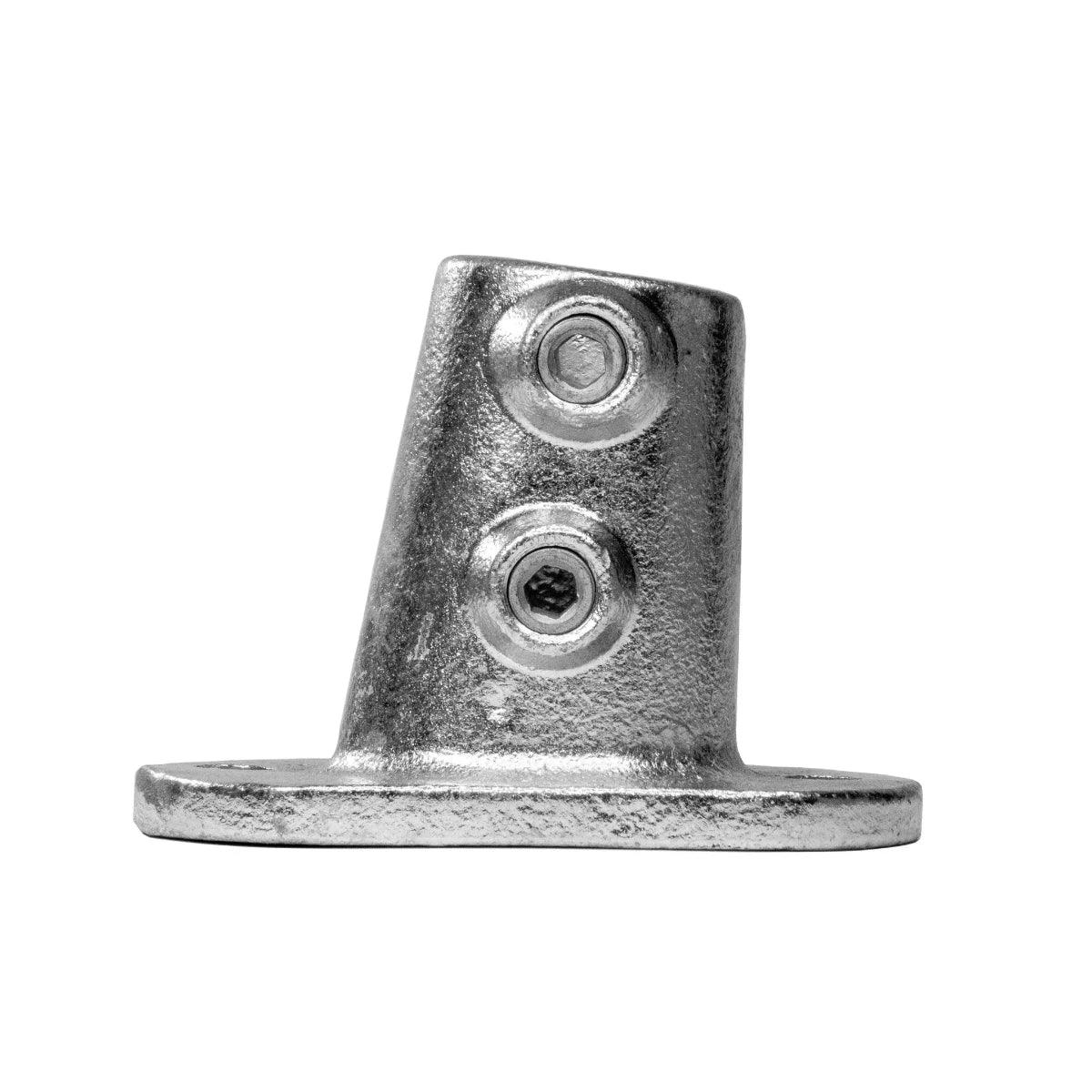

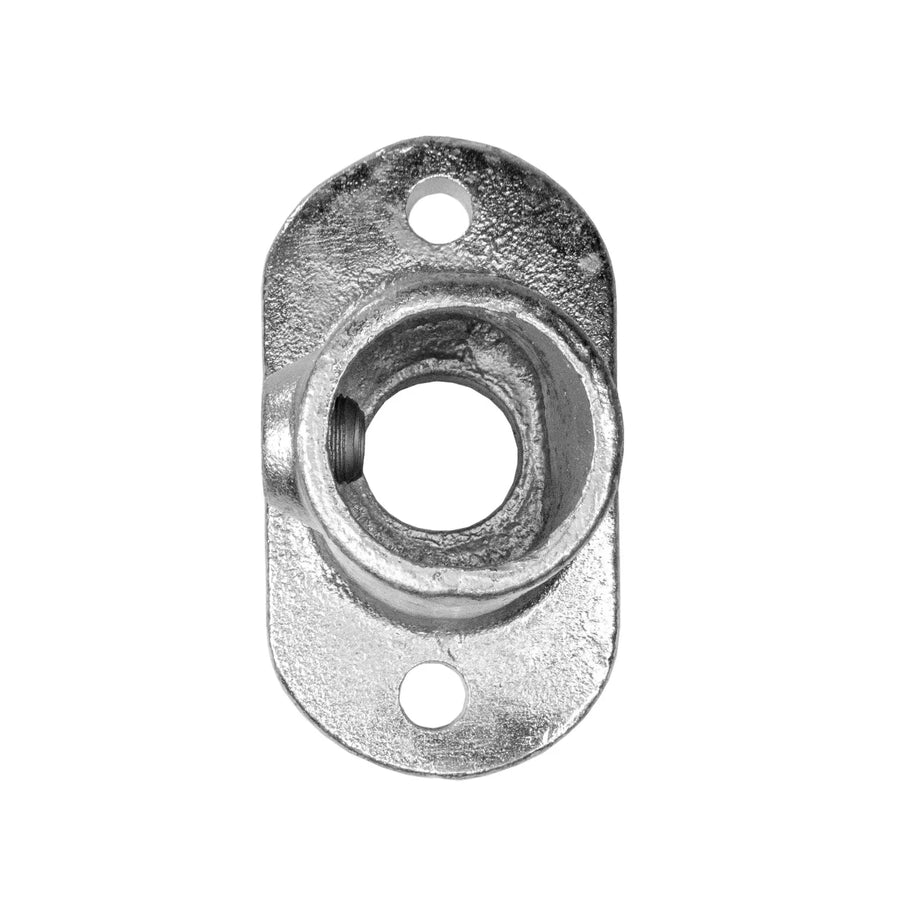

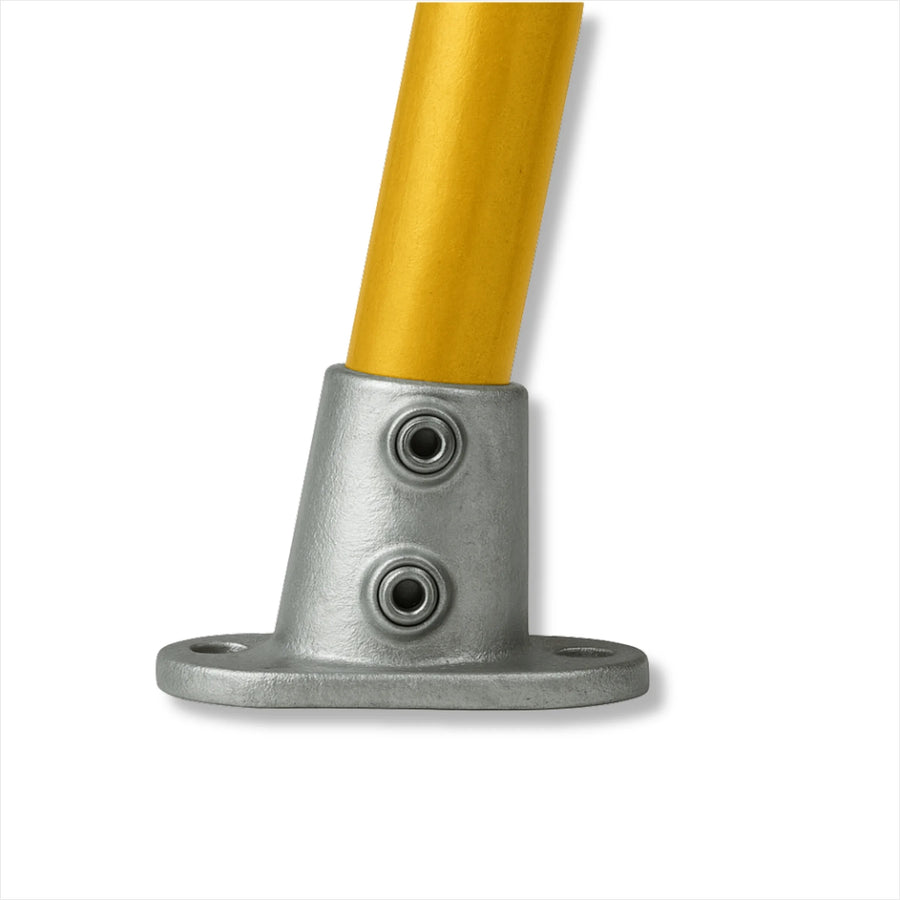

CopeRail 151 Ramp Slope Parallel Base Flange — the parallel base flange for 0–11° slopes

The 151 sets a post base on a slope of 0–11° with the flange kept parallel to the run — for handrails along gentle ramps. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For a standard sloped base use the 152 Ramp Slope Base Flange; for steeper grades see the 252 Angle Base Flange (11–22°).

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

Suits slopes of 0–11°
No welding required — slips over the tube and tightens with a grub screw
Australian made
Hot-dip galvanised cast iron
Suits 48mm O/D (40 NB) Cope Rail tube
Individually replaceable if damaged — no need to rebuild the run

Common uses

Handrails on ramps (0–11°)
Sloped walkways
Accessible access ramps

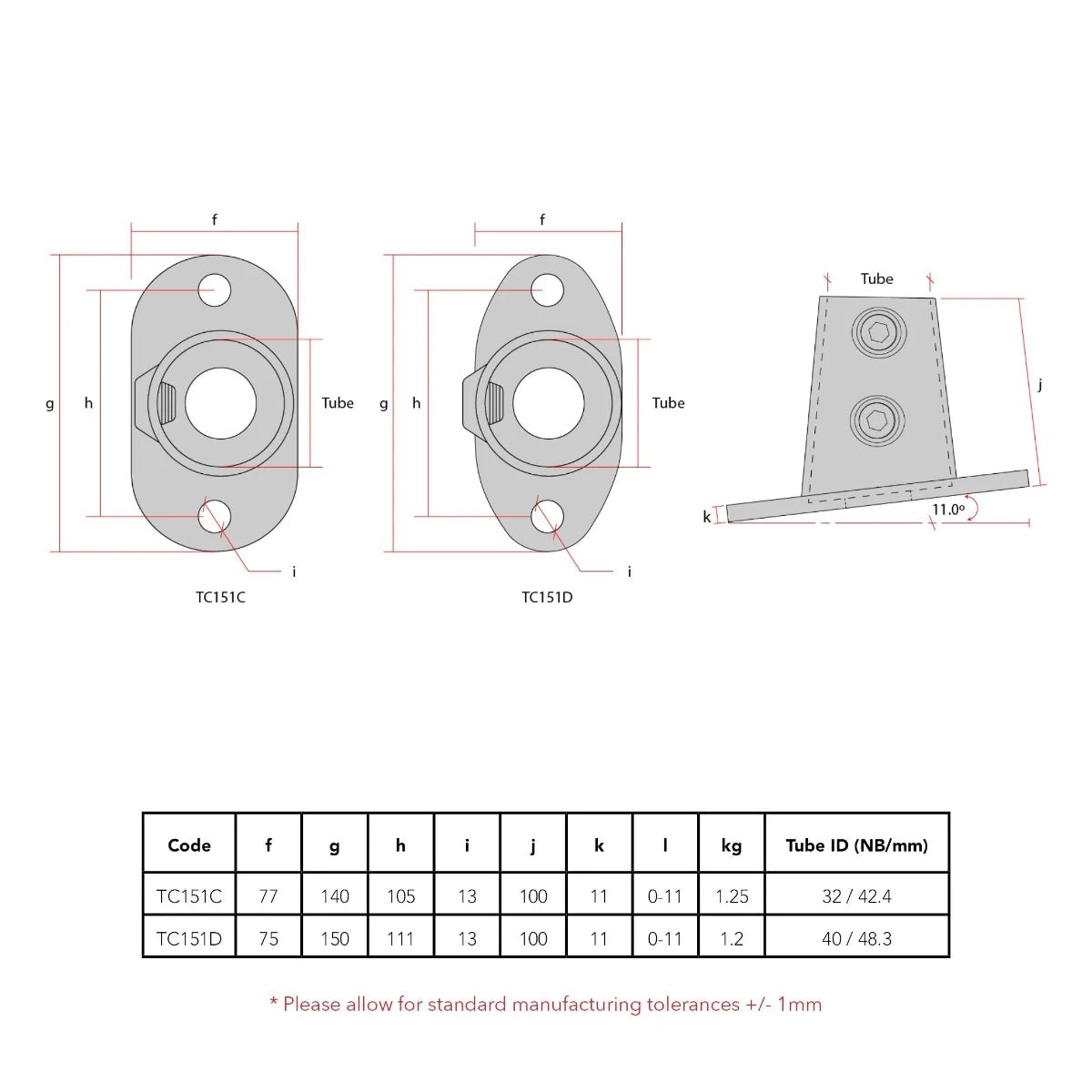

Specifications

Type	Ramp slope parallel base flange (0–11°)
System	Cope Modular Handrail
Material	Hot-dip galvanised cast iron
Finish	Galvanised
Angle range	0–11°
Suits tube	48mm O/D (40 NB)
Assembly	No welding — grub-screw fixing
Rail	Suits Cope Rail (sold separately	by the metre)
SKU	COPE-151D
Origin	Australian made
