What is it made from?

Hot-dip galvanised cast iron, in a galvanised finish, and it's Australian made.

What size tube does it suit?

Standard 48mm O/D (40 NB) from the Cope Modular handrail system.

Do I need to weld it?

No. It slips over the tube and locks with a grub screw — no welding, cutting or threading.

Cope Rail (sold by the metre) plus any other fittings for your layout. This listing is the fitting only.

Can it be replaced if damaged?

Yes — individual fittings swap out without dismantling the whole run.

Frequently Asked Questions

See full FAQ

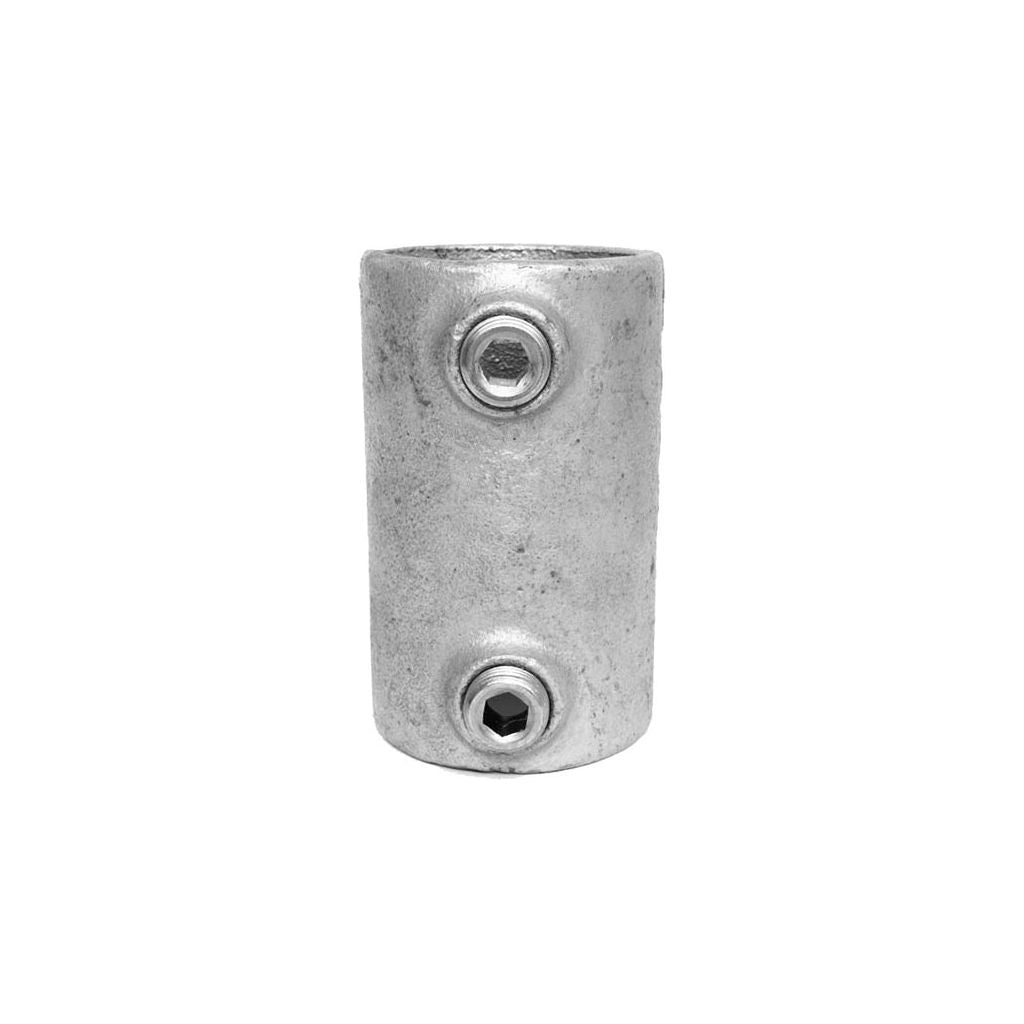

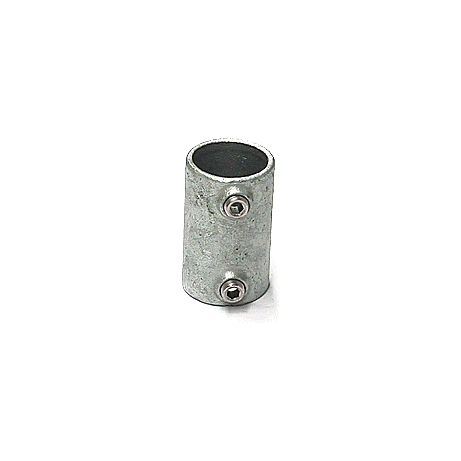

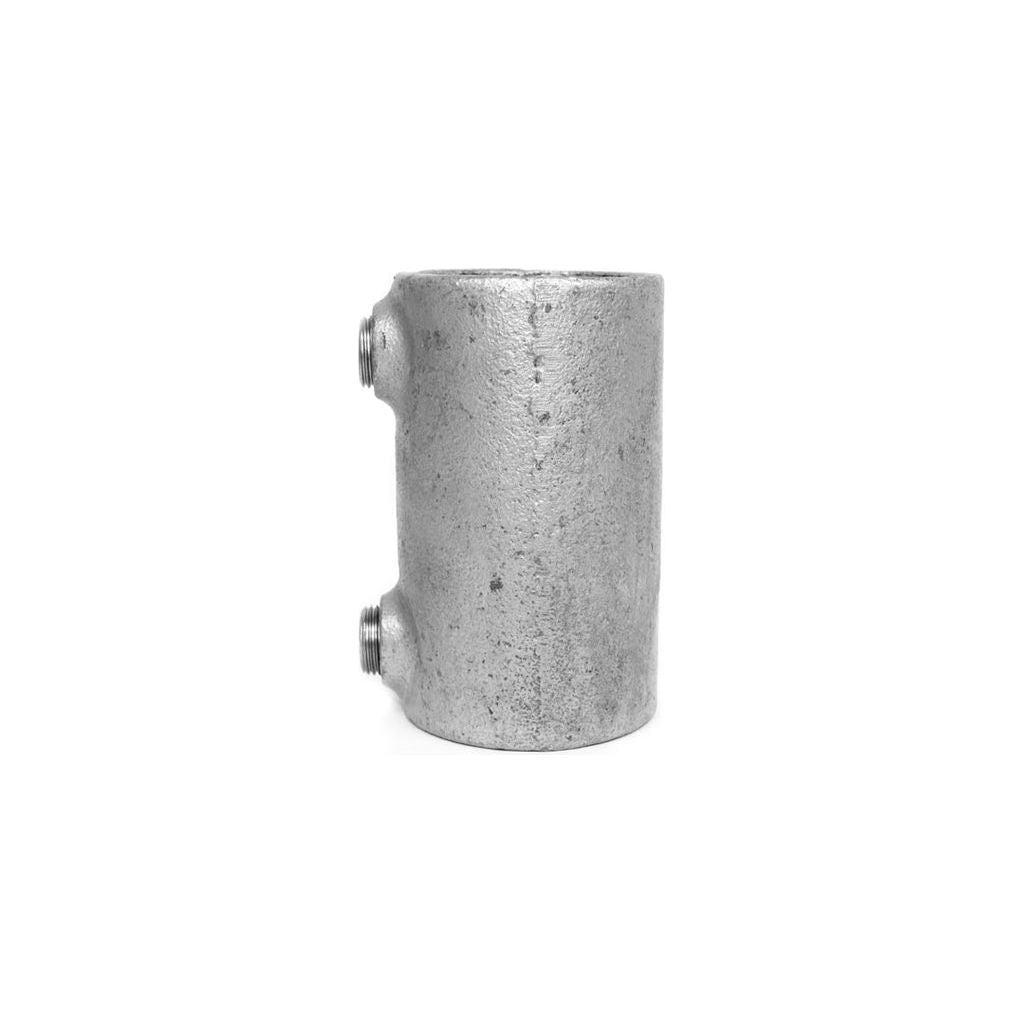

CopeRail 149 - External Tube Joiner

Name: CopeRail 149 - External Tube Joiner
Brand: eSafety Supplies
SKU: COPE-149D
Price: 23.65 AUD
Availability: InStock

SKU: COPE-149D

In Stock

$23.65 inc. GST $21.50 (ex. GST)

Features:

sleeves over both tube ends
no welding required — slips over the tube and tightens with a grub screw
australian made

Estimated delivery –

Shipping Cost

Calculate now

Get exact cost ›

CopeRail 149 - External Tube Joiner

SKU: COPE-149D

$23.65

Shipping details

Clear shipping pricing. No surprises at checkout.

Check shipping cost & ETA

Enter your postcode for an instant delivery estimate before checkout.

Enter your postcode to see your shipping cost, ETA, and whether Click & Collect is available in your area.

Click and Collect

Fast Dispatch

Clear pricing. No surprises

Secure Checkout

CopeRail 149 External Tube Joiner — the sleeve-over tube joiner

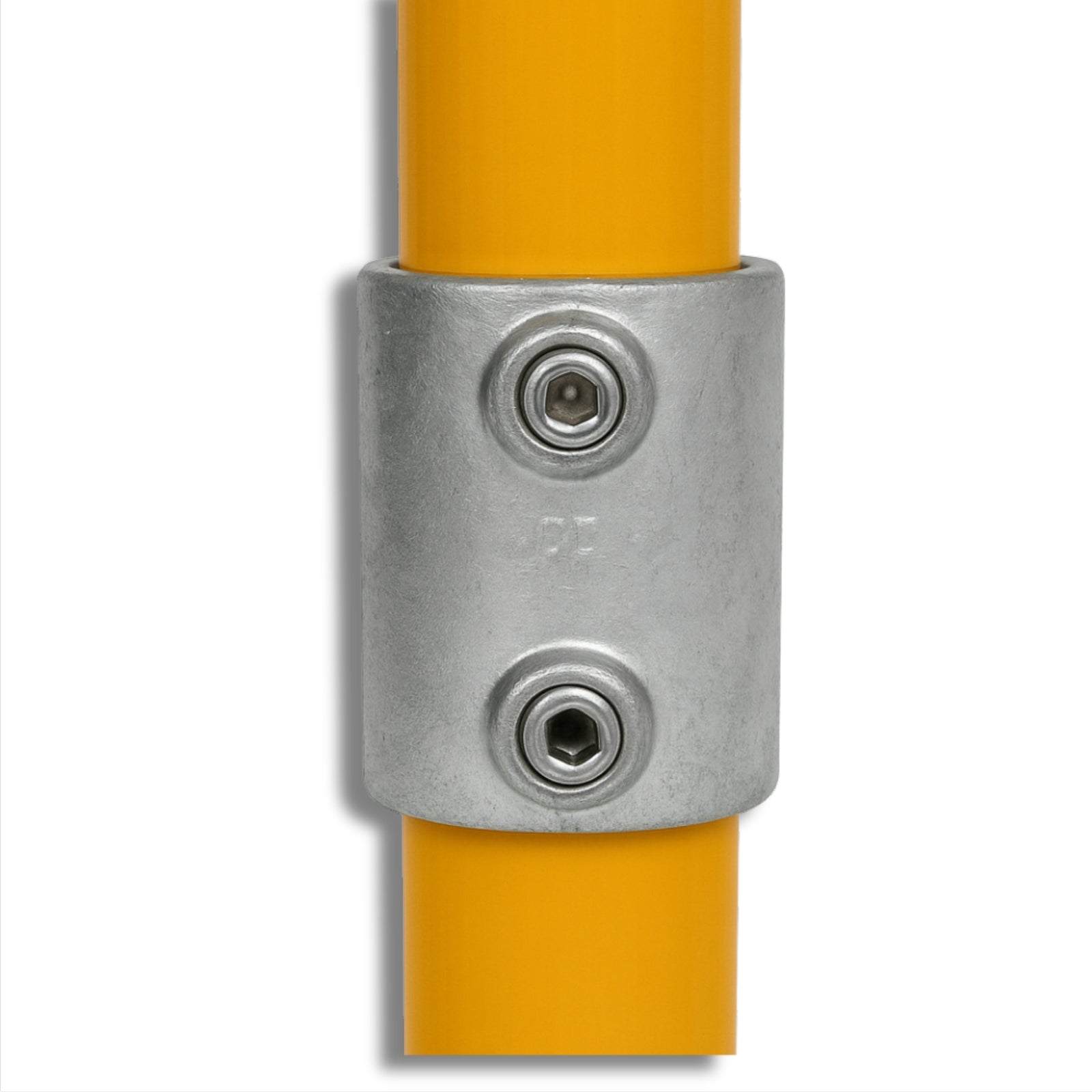

The 149 External Tube Joiner sleeves over the ends of two tubes to join them end-to-end in a straight line — for extending a rail without welding. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For a join that sits inside the tube ends use the 150 Internal Tube Joiner.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

Sleeves over both tube ends
No welding required — slips over the tube and tightens with a grub screw
Australian made
Hot-dip galvanised cast iron
Suits 48mm O/D (40 NB) Cope Rail tube
Individually replaceable if damaged — no need to rebuild the run

Common uses

Extending straight rail runs
Repairing or lengthening rails
Long handrail spans

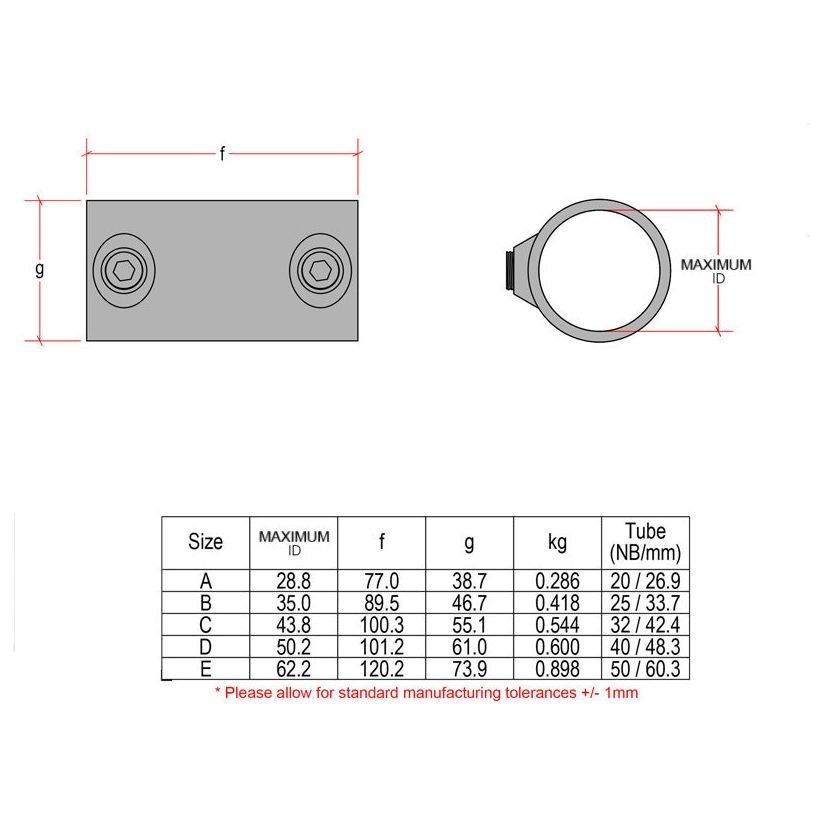

Specifications

Type	External tube joiner
System	Cope Modular Handrail
Material	Hot-dip galvanised cast iron
Finish	Galvanised
Suits tube	48mm O/D (40 NB)
Assembly	No welding — grub-screw fixing
Rail	Suits Cope Rail (sold separately	by the metre)
SKU	COPE-149D
Origin	Australian made

Shipping

Estimated shipping times on our range of stocked items are as follows:

Location	Expected Delivery	Additional Information
NSW Metro		Usually overnight. Same day delivery can be arranged for an extra charge. Click & Collect: Available from our warehouse at 396 Victoria St, Wetherill Park, 2164.
NSW Regional	2-3 business days
VIC Metro	1-2 business days	Usually overnight.
VIC Regional	2-3 business days
QLD Metro	1-2 business days	Usually overnight.
QLD Regional	2-3 business days
ACT	1-2 business days	Usually overnight.
SA Metro	1-2 business days	Usually overnight.
SA Regional	2-4 business days
NT Metro	4-6 business days
NT Regional	5-7 business days
WA Metro	4-5 business days
WA Regional	6-7 business days
TAS	3-4 business days

Returns

Items may be returned within 30 days from the date of purchase. Returned items must be in original packaging and unused.

Address for returns: 396 Victoria Street, Wetherill Park, NSW 2164

Notes: Customer must pay for return shipping. 100% credit will be provided, less shipping costs.

Product Description +

Product Specifications +

Specifications

Type	External tube joiner
System	Cope Modular Handrail
Material	Hot-dip galvanised cast iron
Finish	Galvanised
Suits tube	48mm O/D (40 NB)
Assembly	No welding — grub-screw fixing
Rail	Suits Cope Rail (sold separately	by the metre)
SKU	COPE-149D
Origin	Australian made
