CopeRail 148 - Short Swivel Tee

CopeRail 148 Short Swivel Tee — the compact swivel tee

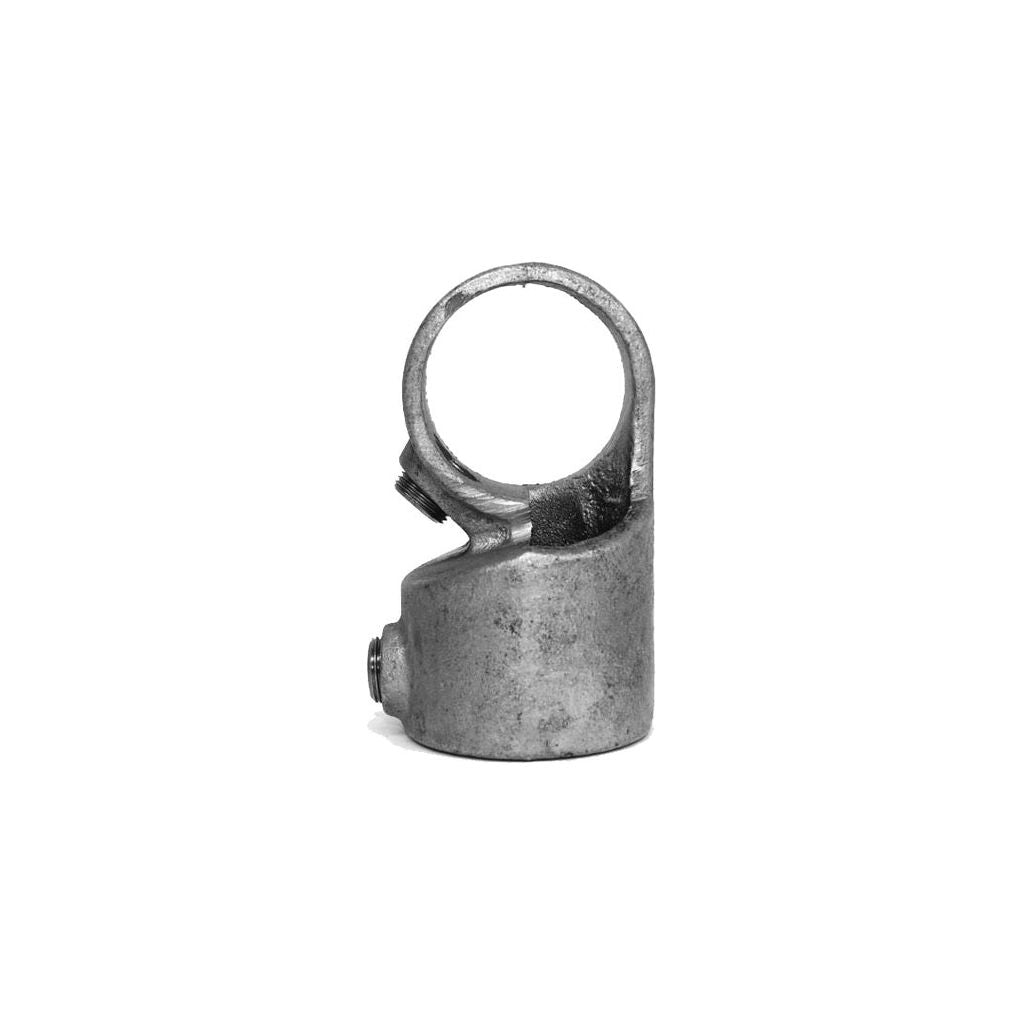

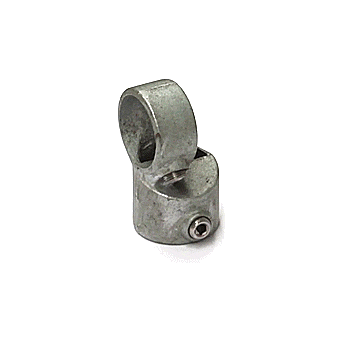

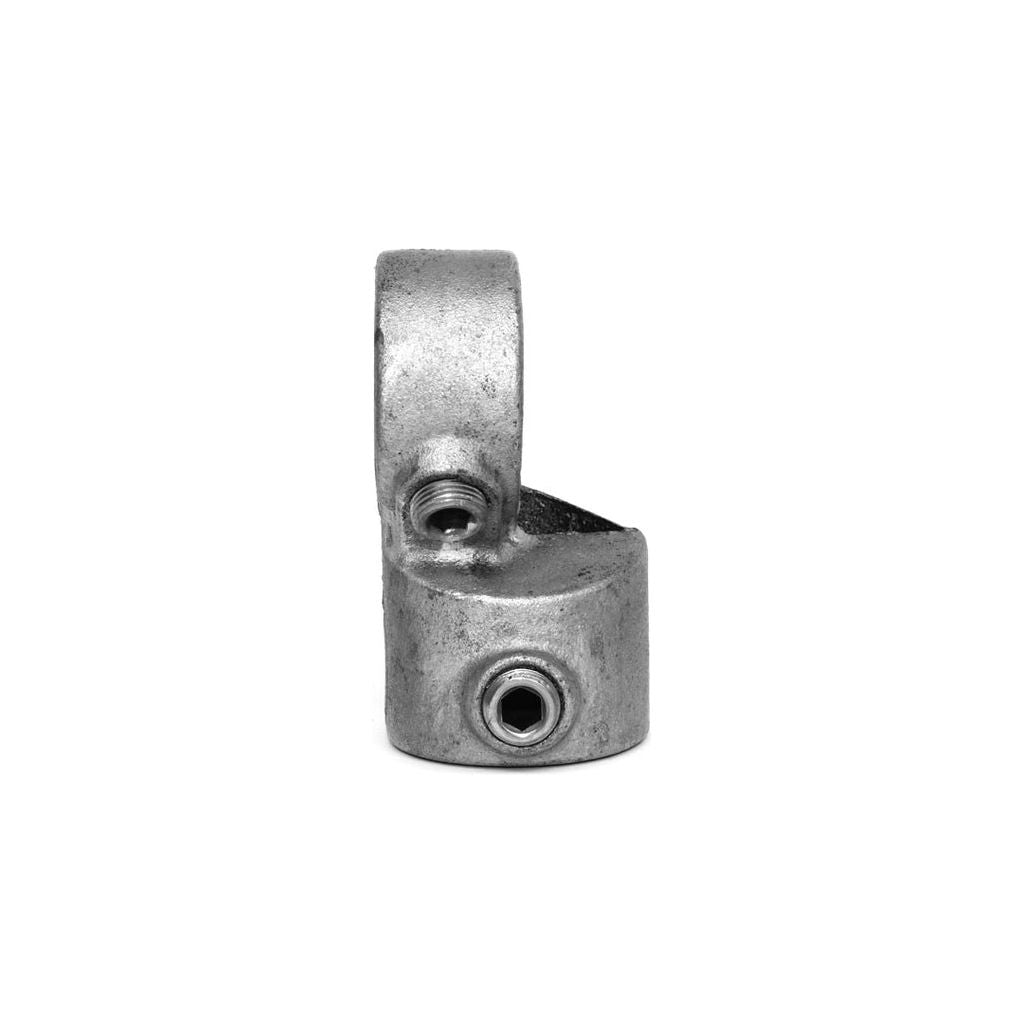

The 148 Short Swivel Tee forms a compact tee with a swivelling branch — for angled junctions where space is tight. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For a concealed pivot use the 147 Internal Swivel Tee; for a fixed tee use the 101 Short Tee.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

• Swivelling branch in a compact body
• No welding required — slips over the tube and tightens with a grub screw
• Australian made
• Hot-dip galvanised cast iron
• Suits 48mm O/D (40 NB) Cope Rail tube
• Individually replaceable if damaged — no need to rebuild the run

Common uses

• Angled handrail branches
• Ramps and raking rails
• Custom barrier runs
