CopeRail 136 - Split Clamp-on Tee

CopeRail 136 Split Clamp-On Tee — the wrap-around clamp-on tee

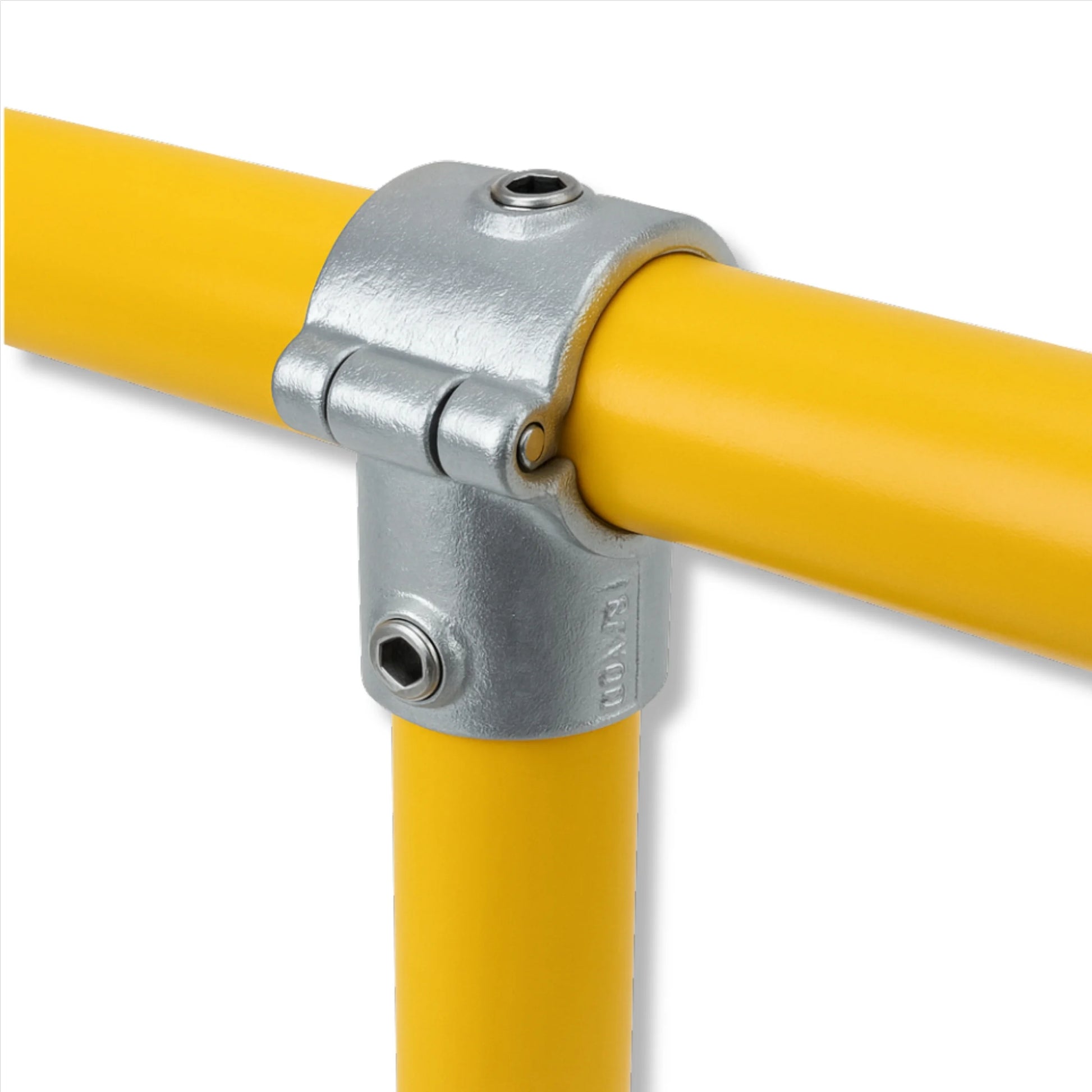

The 136 Split Clamp-On Tee splits open to wrap around a continuous tube, then bolts up to add a 90° branch — fitted mid-run without sliding it on from a tube end. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For a non-split clamp-on tee use the 135 Clamp-On Tee.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

• Splits to wrap around an in-place tube
• No welding required — slips over the tube and tightens with a grub screw
• Australian made
• Hot-dip galvanised cast iron
• Suits 48mm O/D (40 NB) Cope Rail tube
• Individually replaceable if damaged — no need to rebuild the run

Common uses

• Retrofitting branches mid-run
• Repairs and additions to existing rail
• Asset-protection railing
