What is it made from?

Hot-dip galvanised cast iron, in a galvanised finish, and it's Australian made.

What size tube does it suit?

Standard 48mm O/D (40 NB) from the Cope Modular handrail system.

Do I need to weld it?

No. It slips over the tube and locks with a grub screw — no welding, cutting or threading.

Cope Rail (sold by the metre) plus any other fittings for your layout. This listing is the fitting only.

Can it be replaced if damaged?

Yes — individual fittings swap out without dismantling the whole run.

Frequently Asked Questions

See full FAQ

CopeRail 136 - Split Clamp-on Crossover

Name: CopeRail 136 - Split Clamp-on Crossover
Brand: eSafety Supplies
SKU: COPE-137D
Price: 61.45 AUD
Availability: InStock

SKU: COPE-137D

In Stock

$61.45 inc. GST $55.86 (ex. GST)

Features:

splits to wrap around an in-place tube
no welding required — slips over the tube and tightens with a grub screw
australian made

Estimated delivery –

Shipping Cost

Calculate now

Get exact cost ›

CopeRail 136 - Split Clamp-on Crossover

SKU: COPE-137D

$61.45

Shipping details

Clear shipping pricing. No surprises at checkout.

Check shipping cost & ETA

Enter your postcode for an instant delivery estimate before checkout.

Enter your postcode to see your shipping cost, ETA, and whether Click & Collect is available in your area.

Click and Collect

Fast Dispatch

Clear pricing. No surprises

Secure Checkout

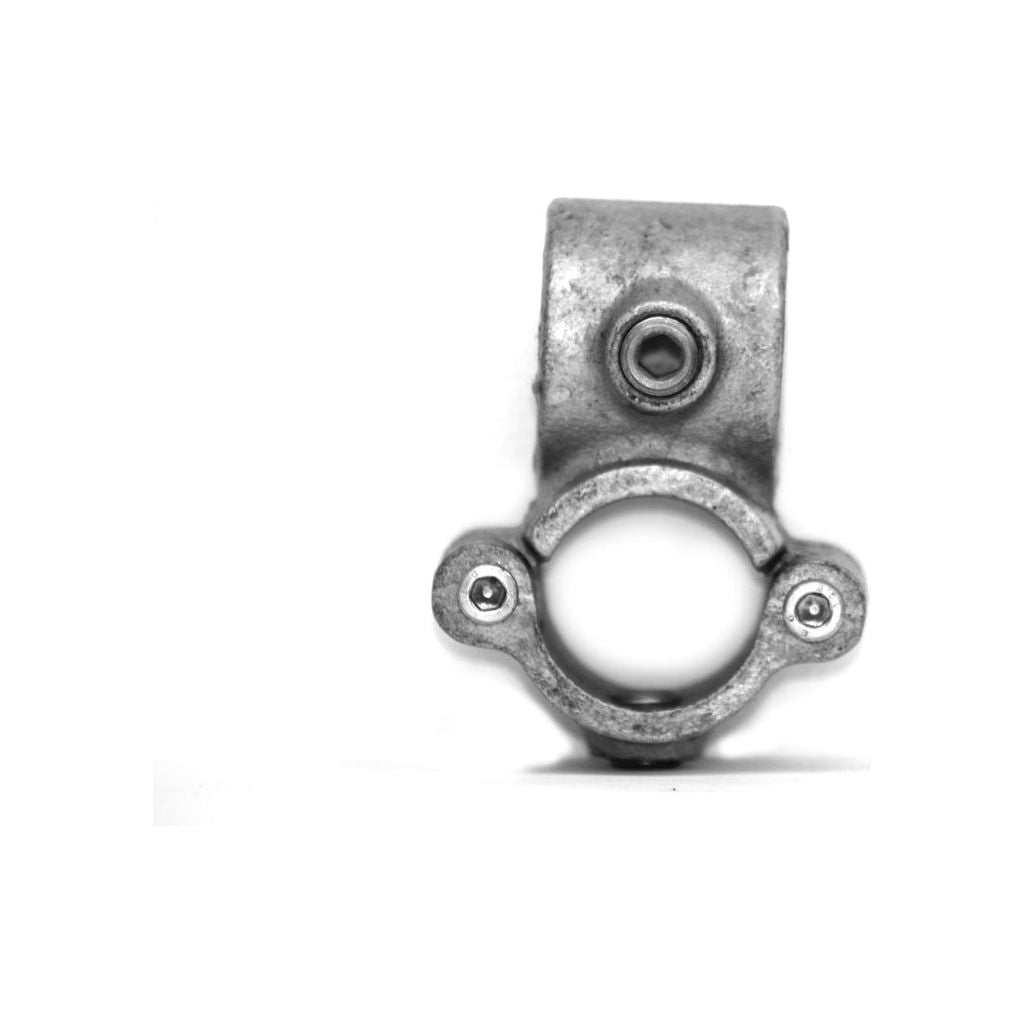

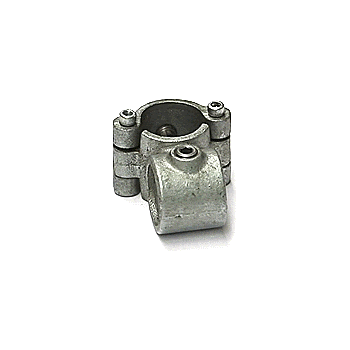

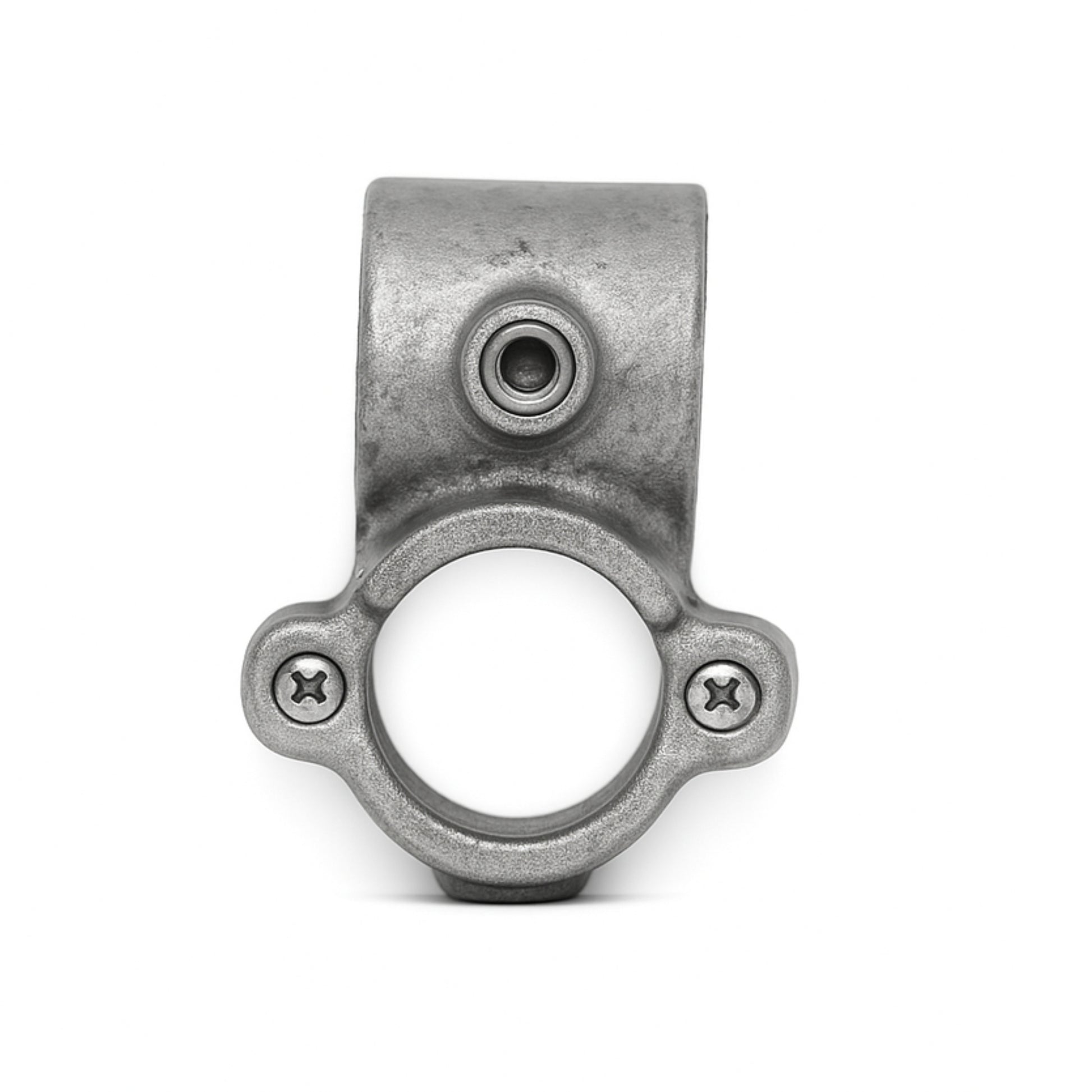

CopeRail 136 Split Clamp-On Crossover — the wrap-around pass-over

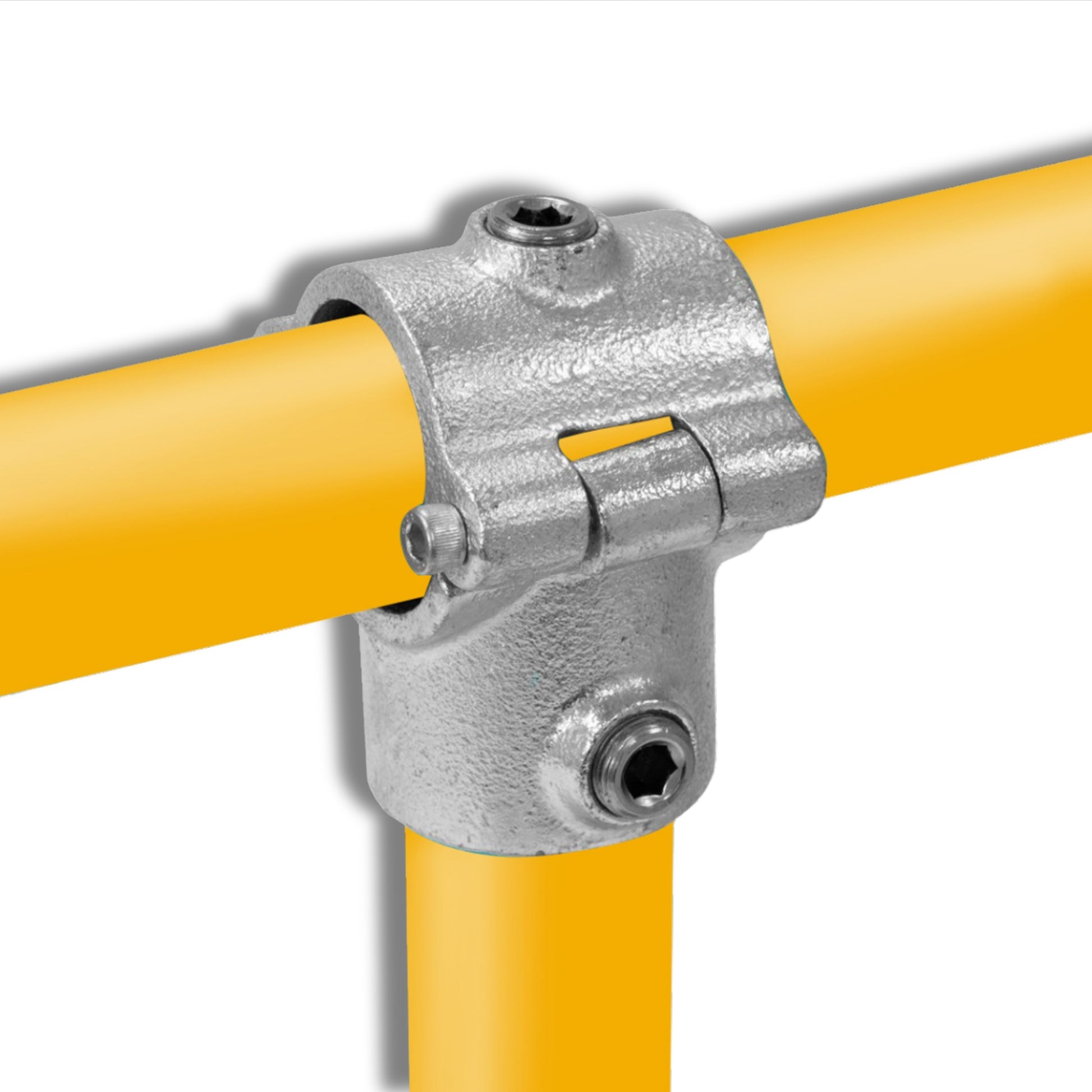

The Split Clamp-On Crossover splits open to wrap around a continuous tube and carry a second tube over it — added mid-run without dismantling the rail. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For a tee branch instead of a crossover use the 136 Split Clamp-On Tee.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

Splits to wrap around an in-place tube
No welding required — slips over the tube and tightens with a grub screw
Australian made
Hot-dip galvanised cast iron
Suits 48mm O/D (40 NB) Cope Rail tube
Individually replaceable if damaged — no need to rebuild the run

Common uses

Adding cross braces mid-run
Retrofitting grids and frames
Asset-protection railing

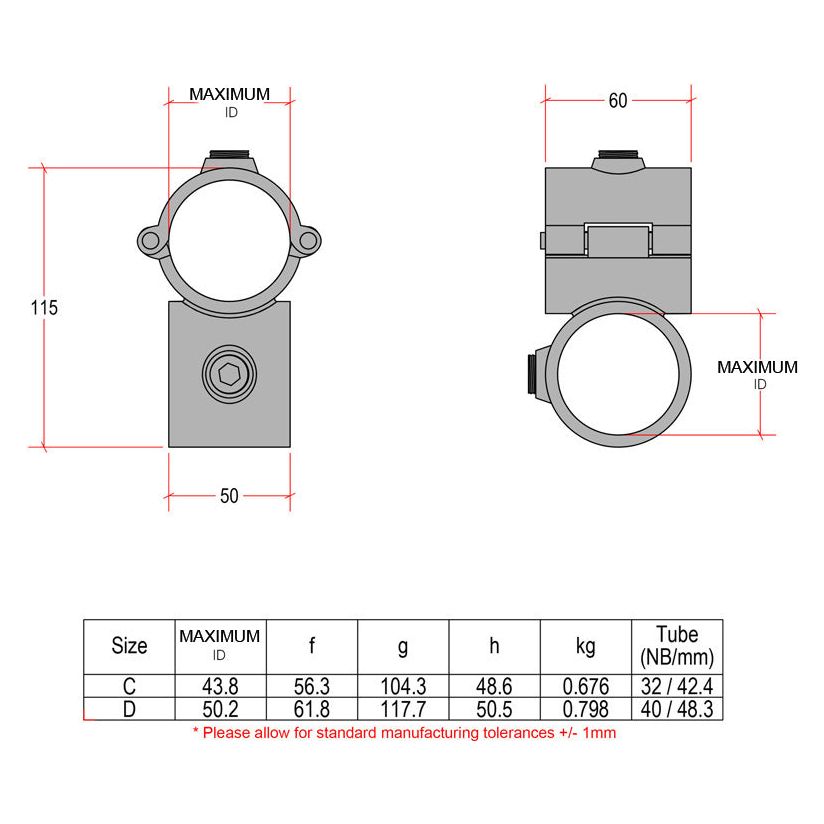

Specifications

Type	Split clamp-on crossover
System	Cope Modular Handrail
Material	Hot-dip galvanised cast iron
Finish	Galvanised
Suits tube	48mm O/D (40 NB)
Assembly	No welding — grub-screw fixing
Rail	Suits Cope Rail (sold separately	by the metre)
SKU	COPE-137D
Origin	Australian made
