What is it made from?

Hot-dip galvanised cast iron, in a galvanised finish, and it's Australian made.

What size tube does it suit?

Standard 48mm O/D (40 NB) from the Cope Modular handrail system.

Do I need to weld it?

No. It slips over the tube and locks with a grub screw — no welding, cutting or threading.

Cope Rail (sold by the metre) plus any other fittings for your layout. This listing is the fitting only.

Can it be replaced if damaged?

Yes — individual fittings swap out without dismantling the whole run.

Frequently Asked Questions

See full FAQ

CopeRail 132 - Base Flange

Name: CopeRail 132 - Base Flange
Brand: eSafety Supplies
SKU: COPE-132D
Price: 34.65 AUD
Availability: InStock

SKU: COPE-132D

In Stock

$34.65 inc. GST $31.50 (ex. GST)

Features:

bolts straight to concrete
no welding required — slips over the tube and tightens with a grub screw
australian made

Click & Collect

Find out more

Calculate Shipping

Delivery Times

Get my ETA

CopeRail 132 - Base Flange

SKU: COPE-132D

$34.65

Shipping details

Calculate your rate

Enter your postcode to see your exact shipping cost

Click & collect available

Secure checkout

Easy returns

Fast Dispatch

🚚

Estimated delivery –

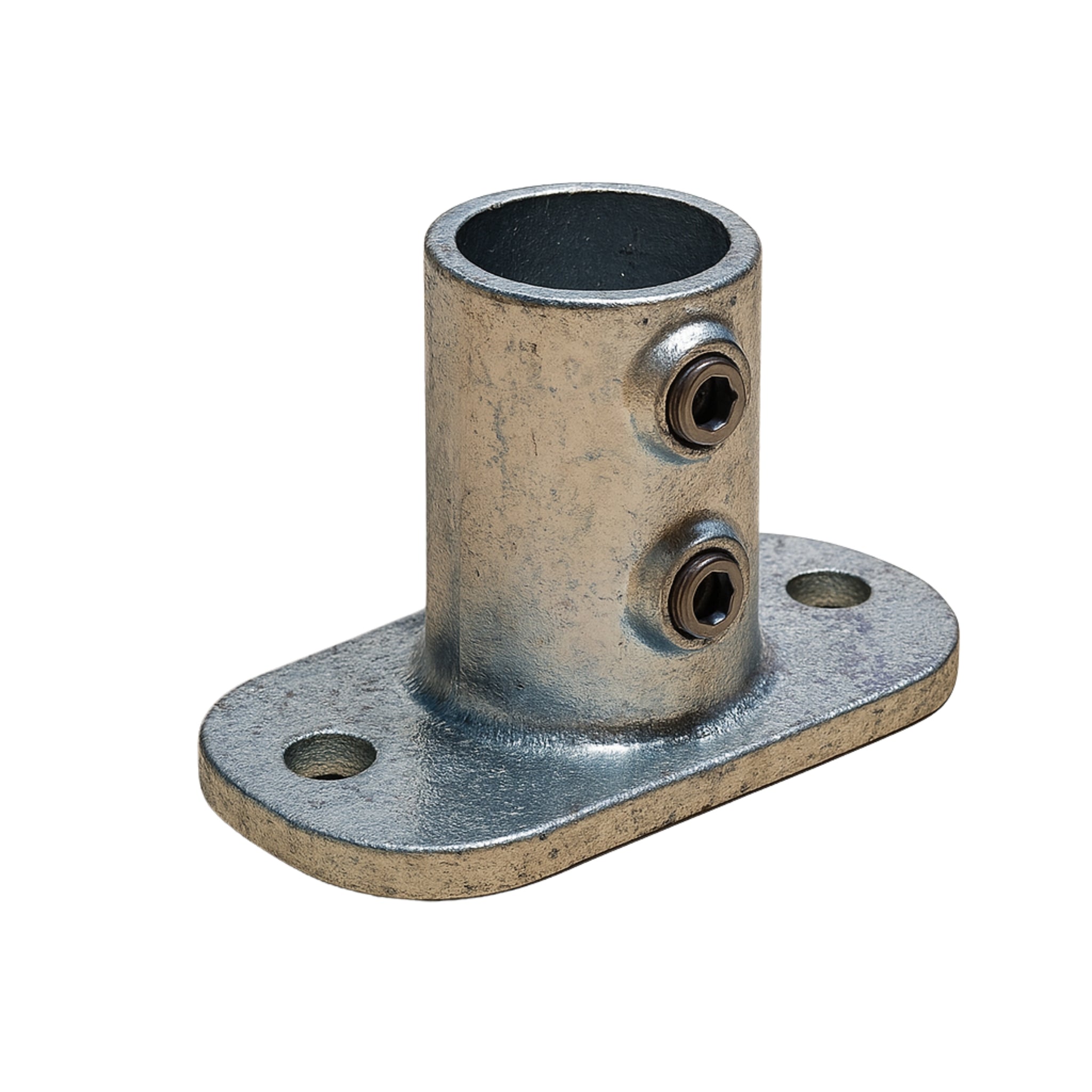

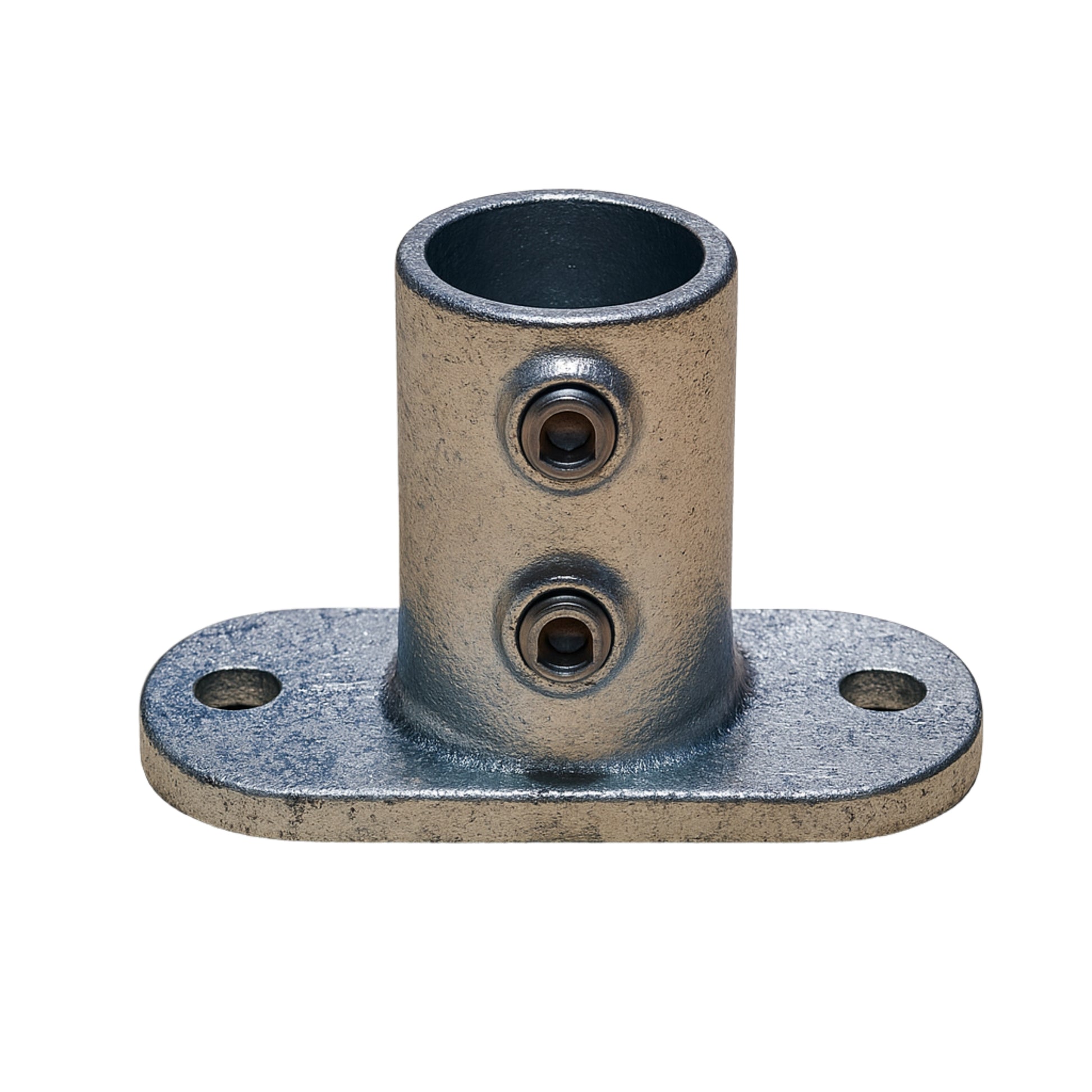

CopeRail 132 Base Flange — the floor-mount post base

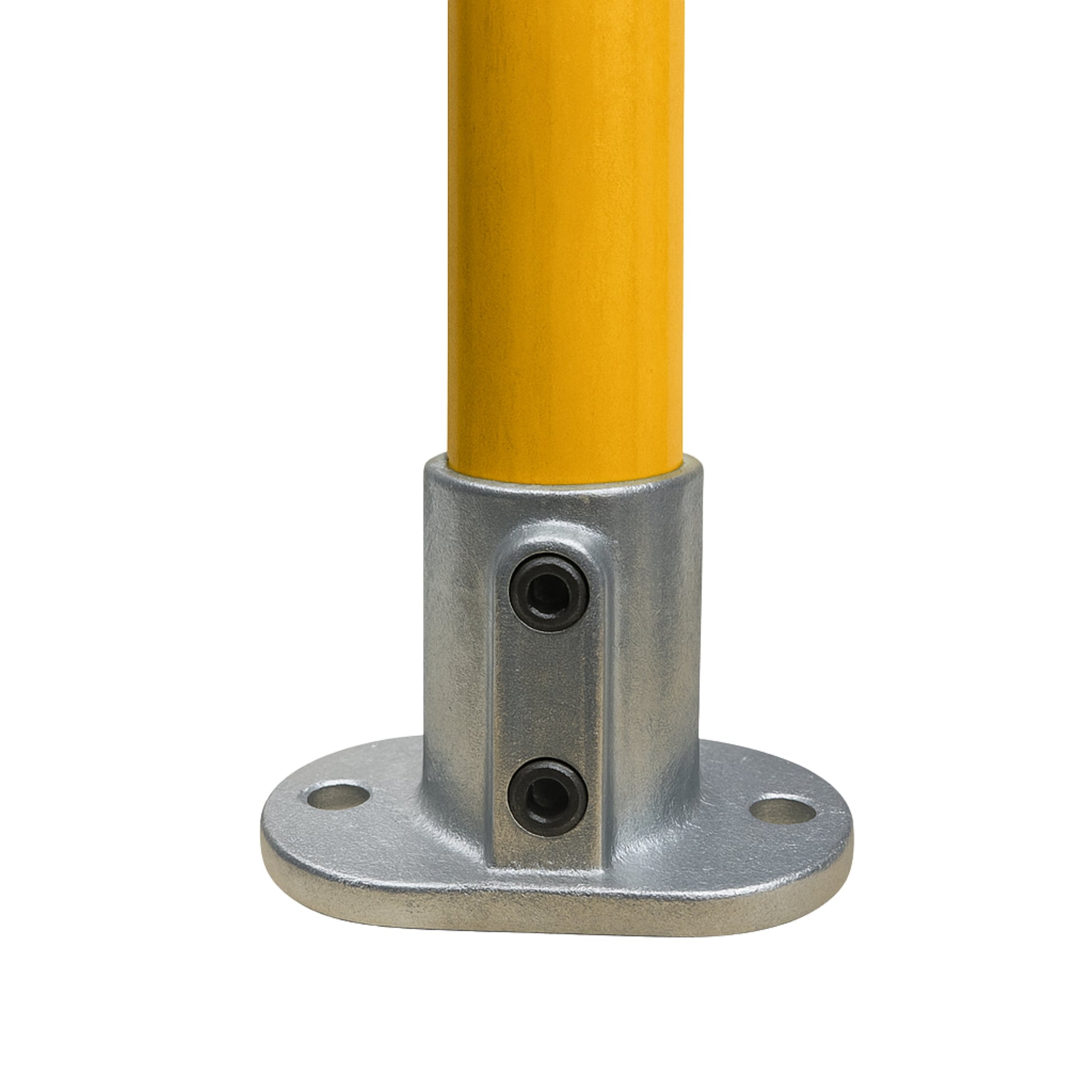

The 132 Base Flange is the standard floor-mounting base for a Cope post — it bolts straight to concrete and the post drops into the socket. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For a flange that also retains a toeboard use the 247D Base Flange Toeboard; for sloped or stair bases see the 251D, 252 and ramp-slope flanges.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

Bolts straight to concrete
No welding required — slips over the tube and tightens with a grub screw
Australian made
Hot-dip galvanised cast iron
Suits 48mm O/D (40 NB) Cope Rail tube
Individually replaceable if damaged — no need to rebuild the run

Common uses

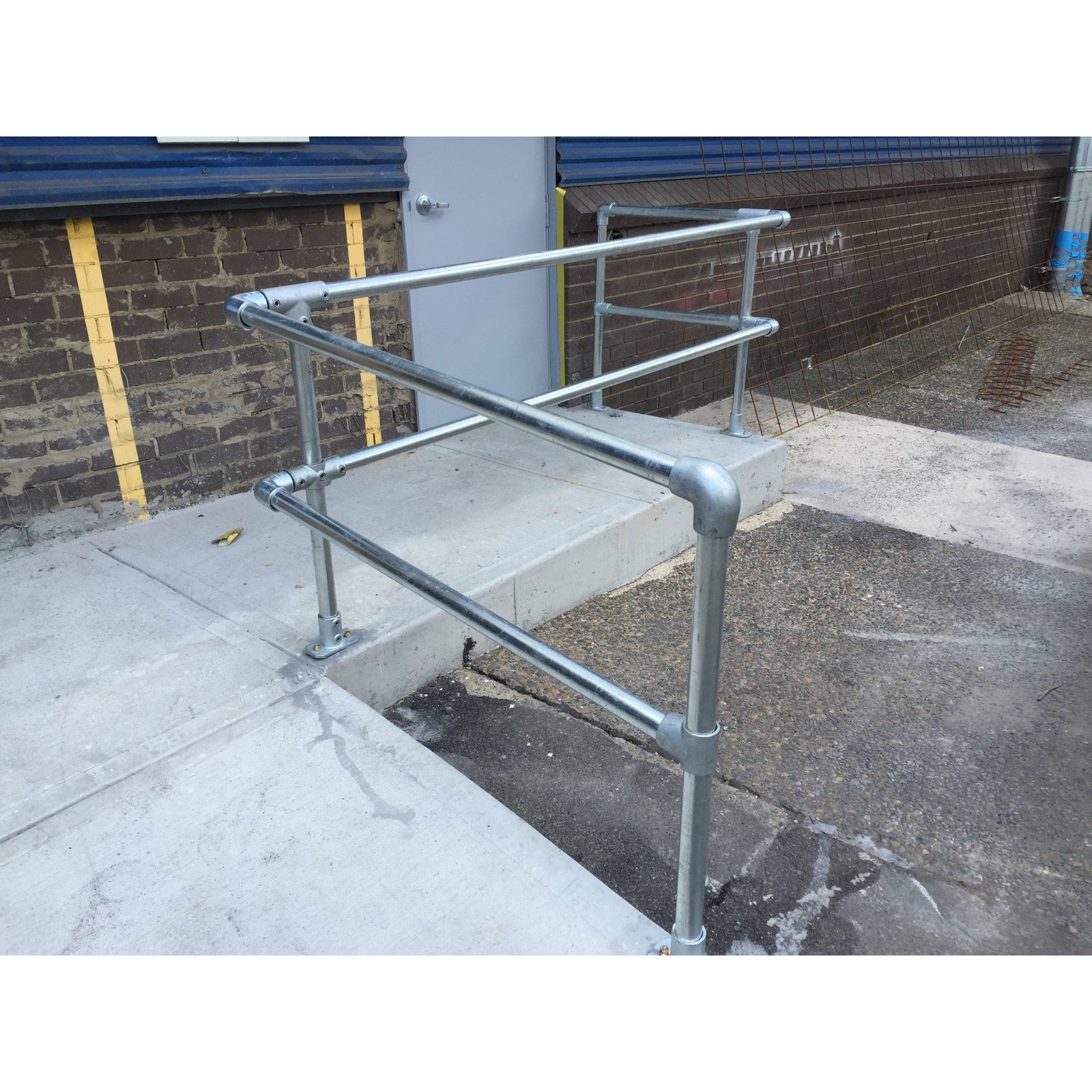

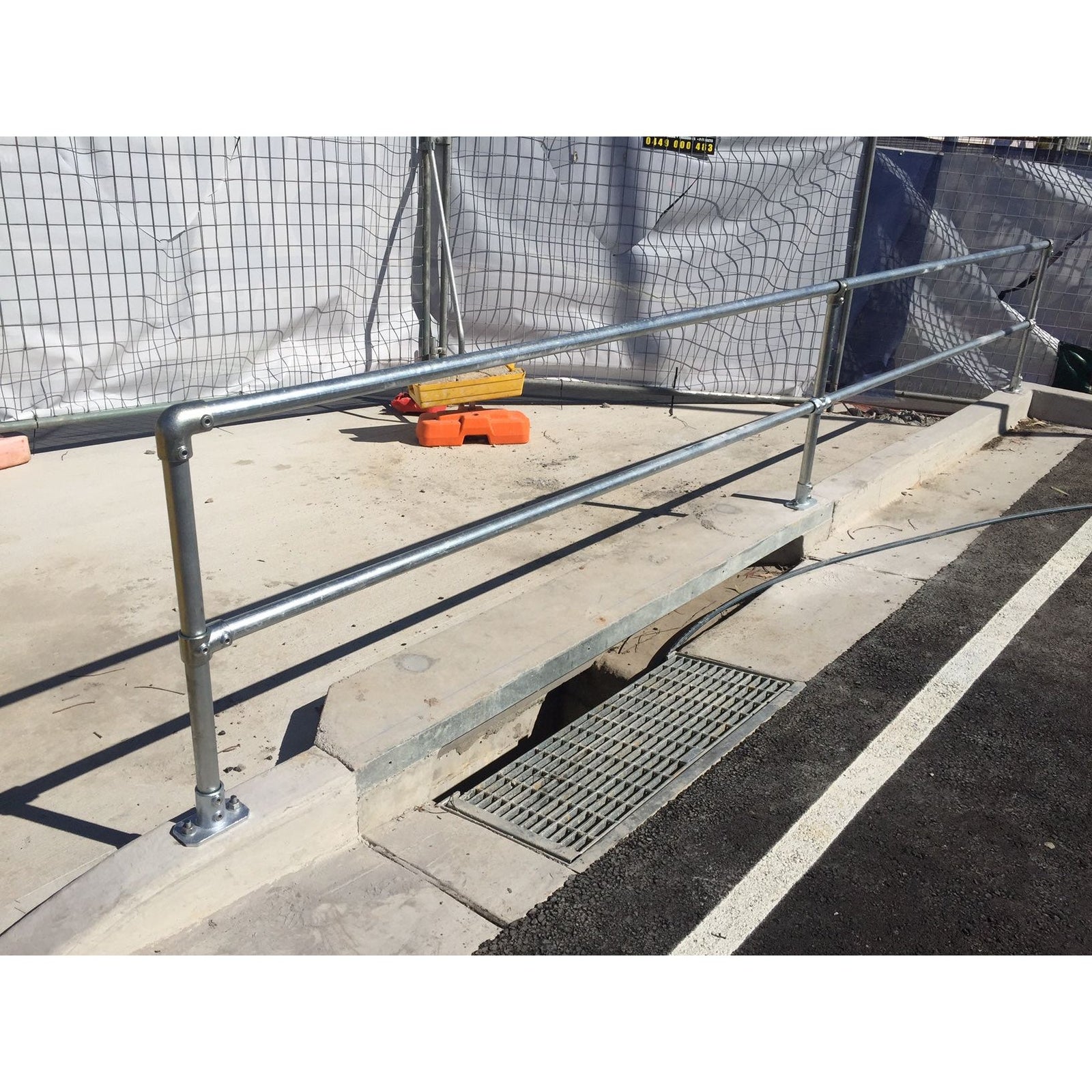

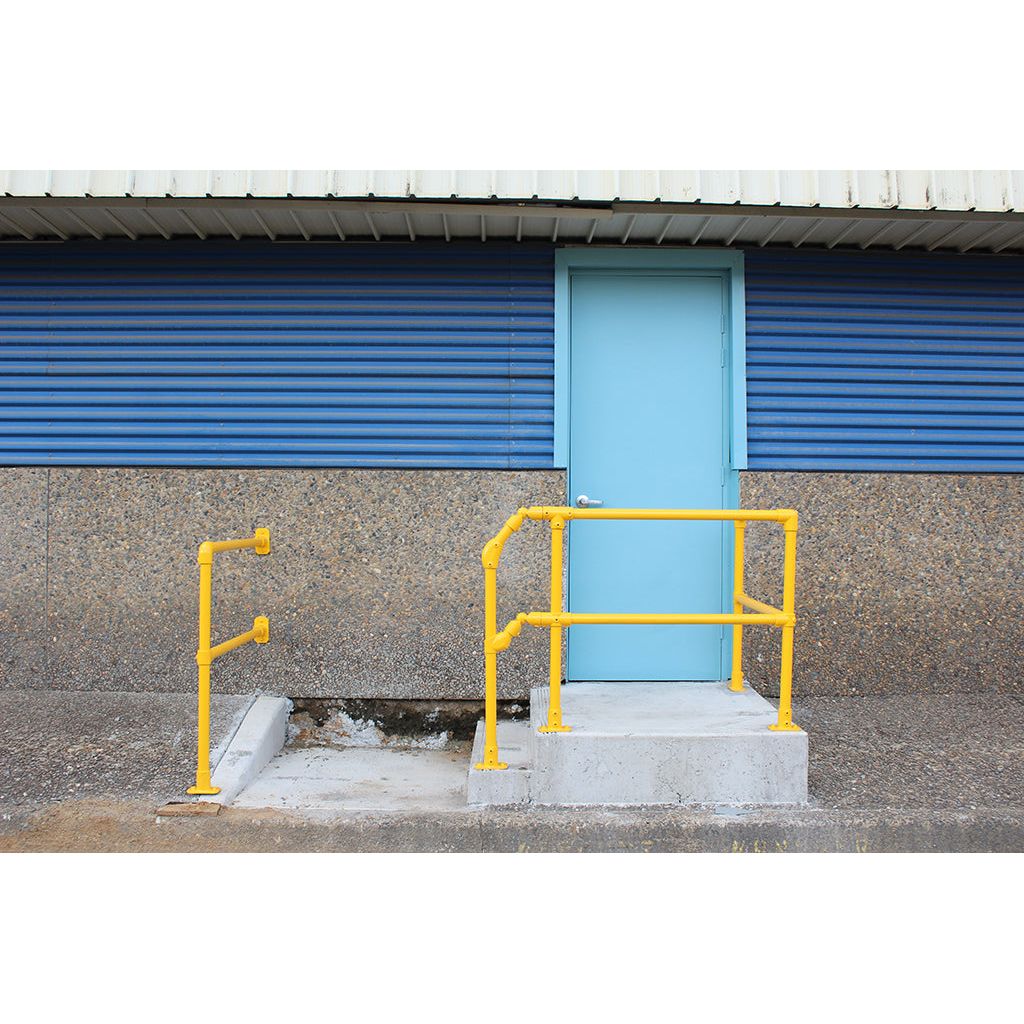

Floor-mounting posts to concrete
Warehouse & car park barrier runs
Site & asset-protection railing

Specifications

Type	Base flange (floor mount)
System	Cope Modular Handrail
Material	Hot-dip galvanised cast iron
Finish	Galvanised
Suits tube	48mm O/D (40 NB)
Assembly	No welding — grub-screw fixing
Rail	Suits Cope Rail (sold separately	by the metre)
SKU	COPE-132D
Origin	Australian made
