What is it made from?

Hot-dip galvanised cast iron, in a galvanised finish, and it's Australian made.

What size tube does it suit?

Standard 48mm O/D (40 NB) from the Cope Modular handrail system.

Do I need to weld it?

No. It slips over the tube and locks with a grub screw — no welding, cutting or threading.

Cope Rail (sold by the metre) plus any other fittings for your layout. This listing is the fitting only.

Can it be replaced if damaged?

Yes — individual fittings swap out without dismantling the whole run.

Frequently Asked Questions

See full FAQ

CopeRail 130 - Adjustable Short Tee (30-45 degree)

Name: CopeRail 130 - Adjustable Short Tee (30-45 degree)
Brand: eSafety Supplies
SKU: COPE-130D
Price: 57.75 AUD
Availability: InStock

SKU: COPE-130D

In Stock

$57.75 inc. GST $52.50 (ex. GST)

Features:

branch adjustable from 30° to 45°
no welding required — slips over the tube and tightens with a grub screw
australian made

Click & Collect

Find out more

Calculate Shipping

Delivery Times

Get my ETA

CopeRail 130 - Adjustable Short Tee (30-45 degree)

SKU: COPE-130D

$57.75

Shipping details

Calculate your rate

Enter your postcode to see your exact shipping cost

Click & collect available

Secure checkout

Easy returns

Fast Dispatch

🚚

Estimated delivery –

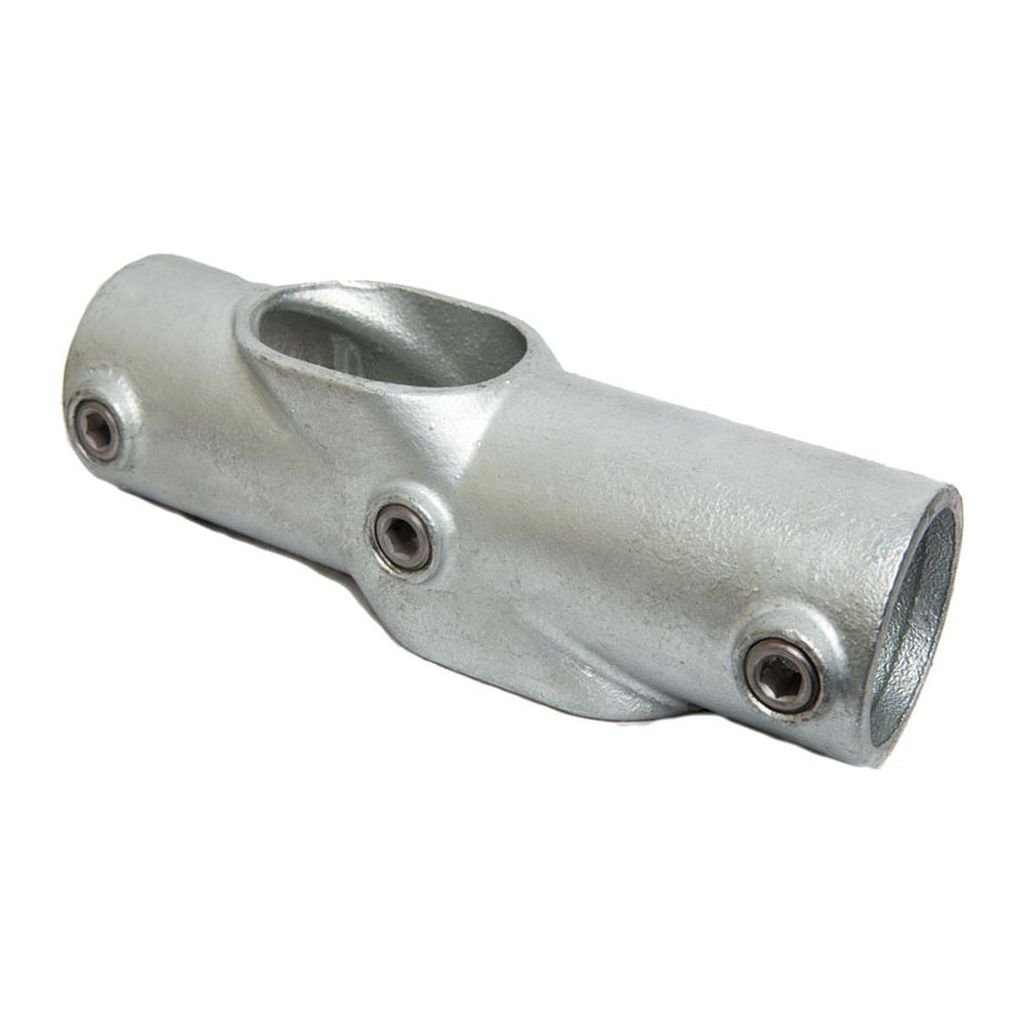

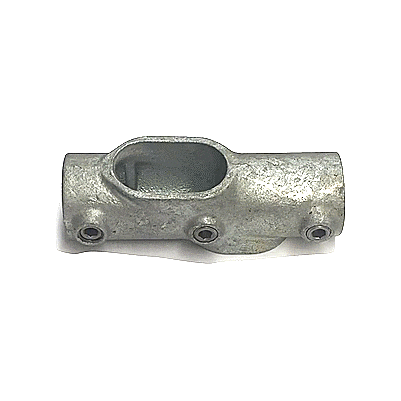

CopeRail 130 Adjustable Short Tee — the adjustable tee for 30–45° branches

The 130 Adjustable Short Tee forms a tee with the branch set anywhere from 30° to 45° — for shallower raking rails and angled junctions. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For a wider 30–60° range use the 129; for a continuous through-rail use the 127 Adjustable Long Tee.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

Branch adjustable from 30° to 45°
No welding required — slips over the tube and tightens with a grub screw
Australian made
Hot-dip galvanised cast iron
Suits 48mm O/D (40 NB) Cope Rail tube
Individually replaceable if damaged — no need to rebuild the run

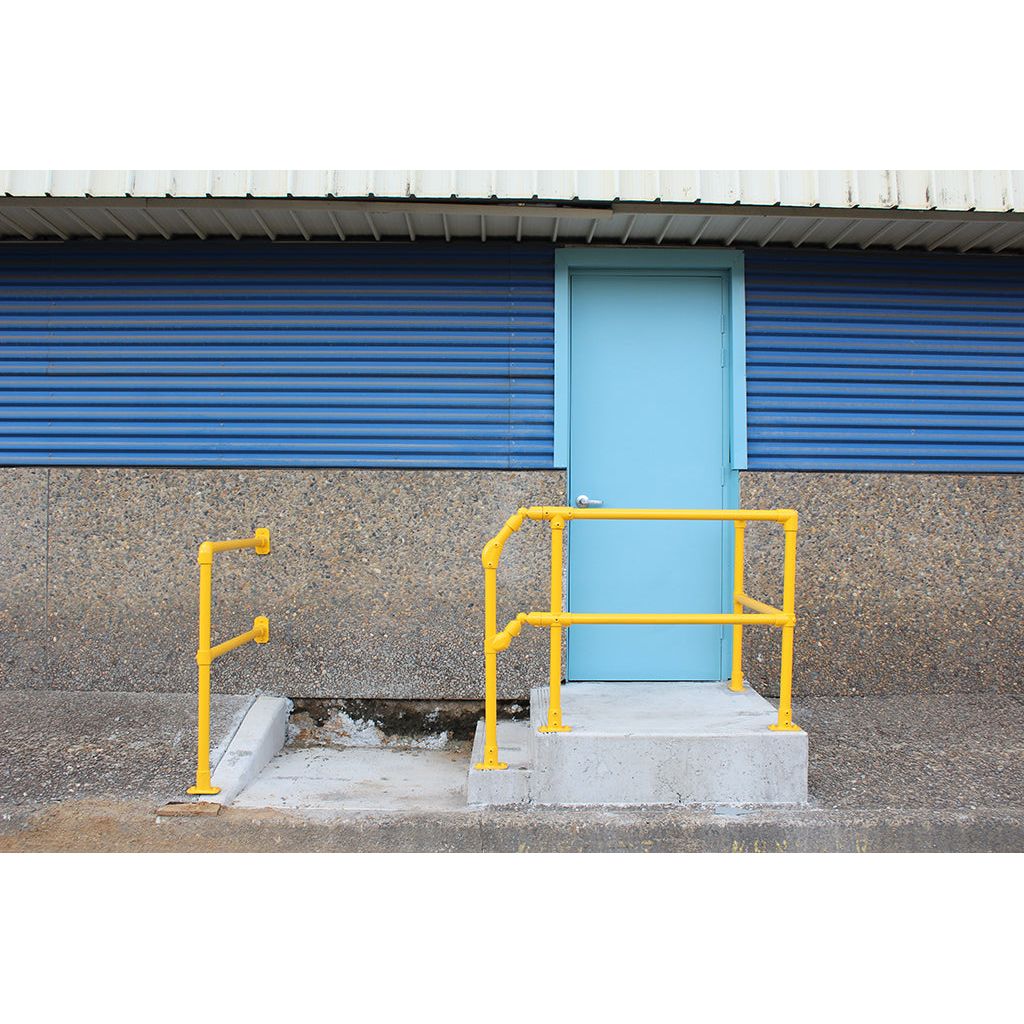

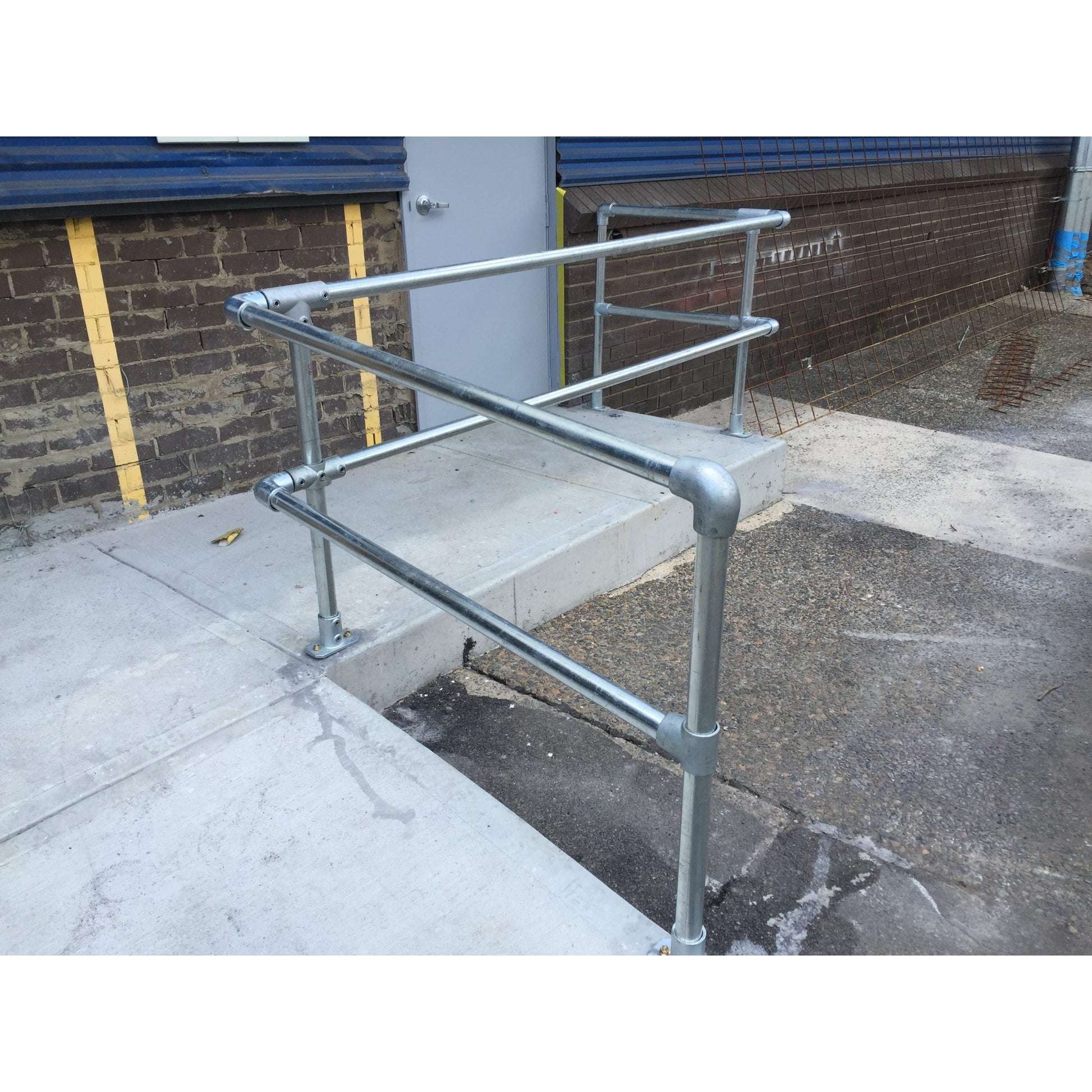

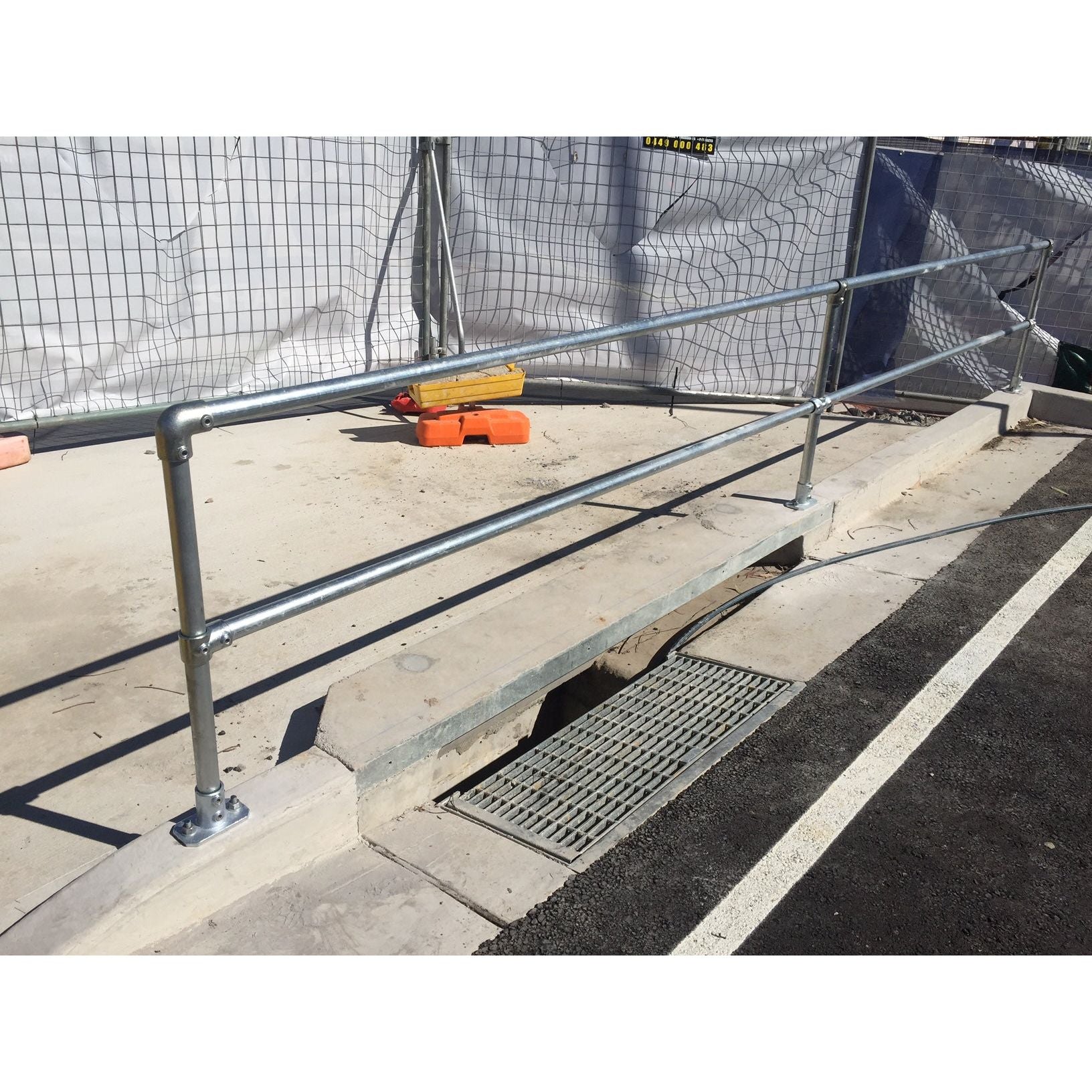

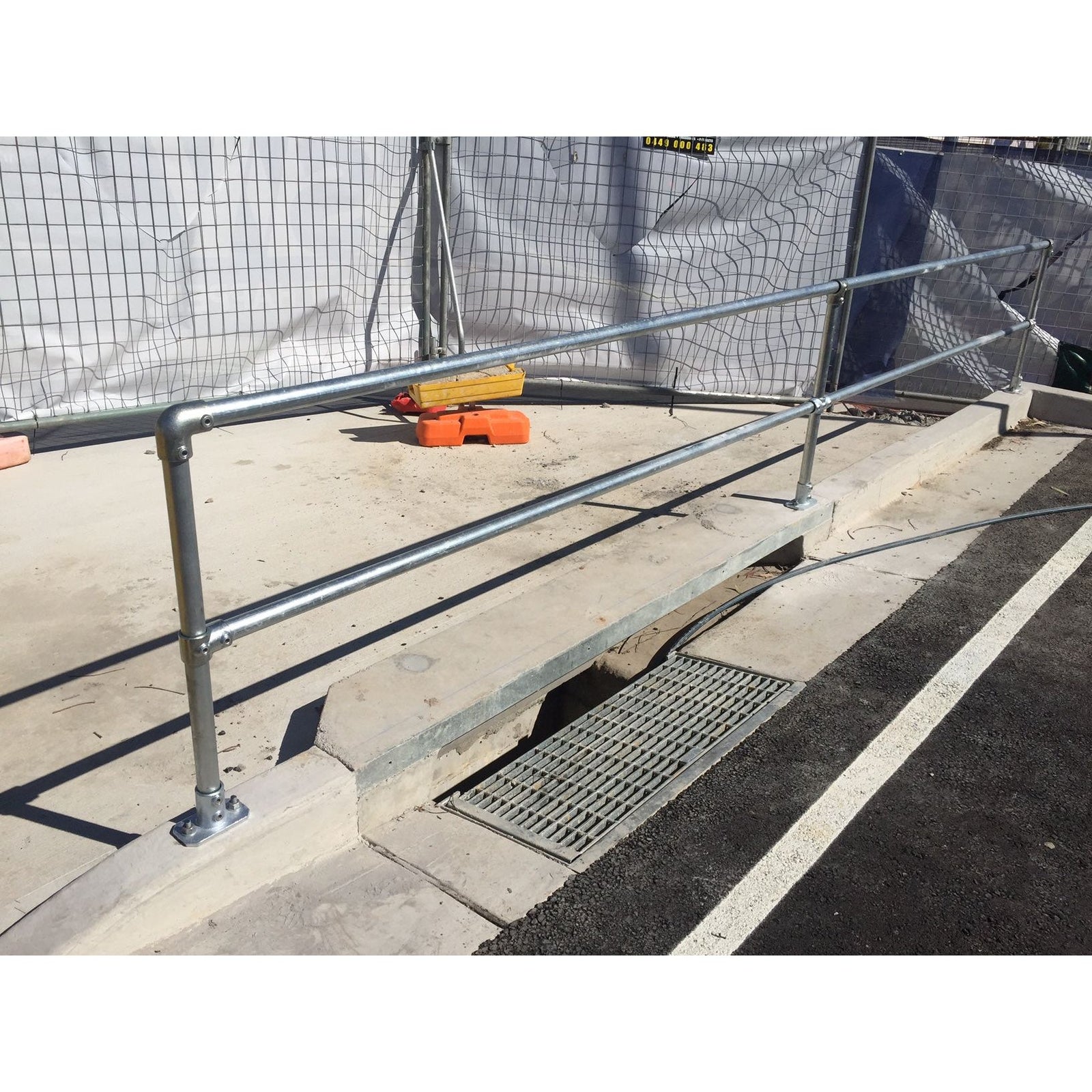

Common uses

Ramp and stair handrails
Raking guardrail branches
Custom barrier runs

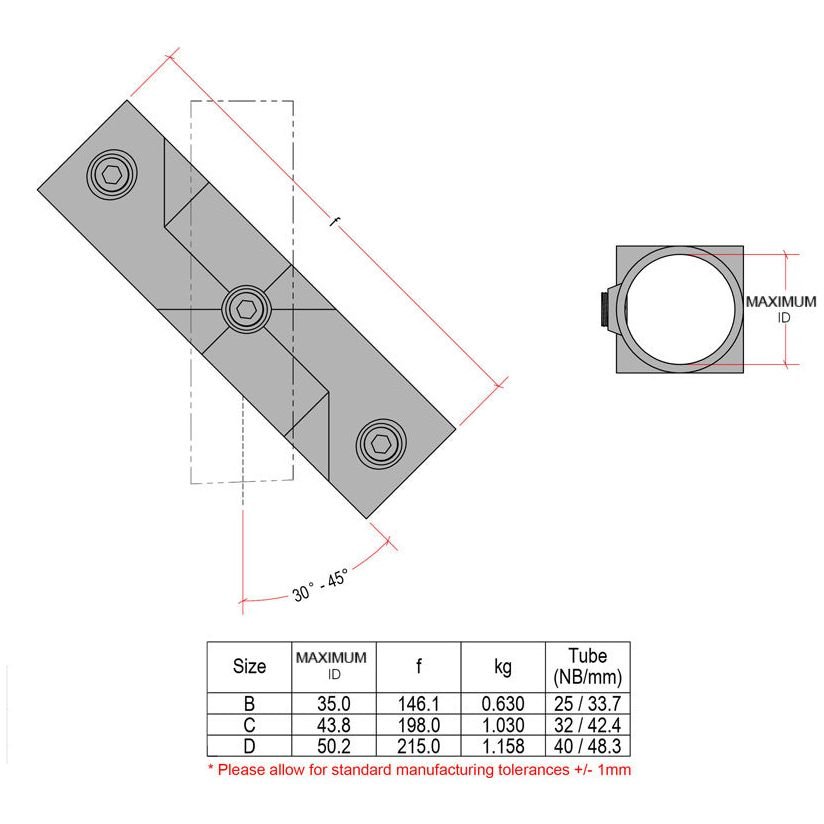

Specifications

Type	Adjustable short tee (30–45°)
System	Cope Modular Handrail
Material	Hot-dip galvanised cast iron
Finish	Galvanised
Angle range	30–45°
Suits tube	48mm O/D (40 NB)
Assembly	No welding — grub-screw fixing
Rail	Suits Cope Rail (sold separately	by the metre)
SKU	COPE-130D
Origin	Australian made
