What is it made from?

Hot-dip galvanised cast iron, in a galvanised finish, and it's Australian made.

What size tube does it suit?

Standard 48mm O/D (40 NB) from the Cope Modular handrail system.

Do I need to weld it?

No. It slips over the tube and locks with a grub screw — no welding, cutting or threading.

Cope Rail (sold by the metre) plus any other fittings for your layout. This listing is the fitting only.

Can it be replaced if damaged?

Yes — individual fittings swap out without dismantling the whole run.

Frequently Asked Questions

See full FAQ

CopeRail 123 - Variable Acute Elbow

Name: CopeRail 123 - Variable Acute Elbow
Brand: eSafety Supplies
SKU: COPE-123D
Price: 55.65 AUD
Availability: InStock

SKU: COPE-123D

In Stock

$55.65 inc. GST $50.59 (ex. GST)

Features:

adjustable angle under 90°
no welding required — slips over the tube and tightens with a grub screw
australian made

Estimated delivery –

Shipping Cost

Calculate now

Get exact cost ›

CopeRail 123 - Variable Acute Elbow

SKU: COPE-123D

$55.65

Shipping details

Clear shipping pricing. No surprises at checkout.

Check shipping cost & ETA

Enter your postcode for an instant delivery estimate before checkout.

Enter your postcode to see your shipping cost, ETA, and whether Click & Collect is available in your area.

Click and Collect

Fast Dispatch

Clear pricing. No surprises

Secure Checkout

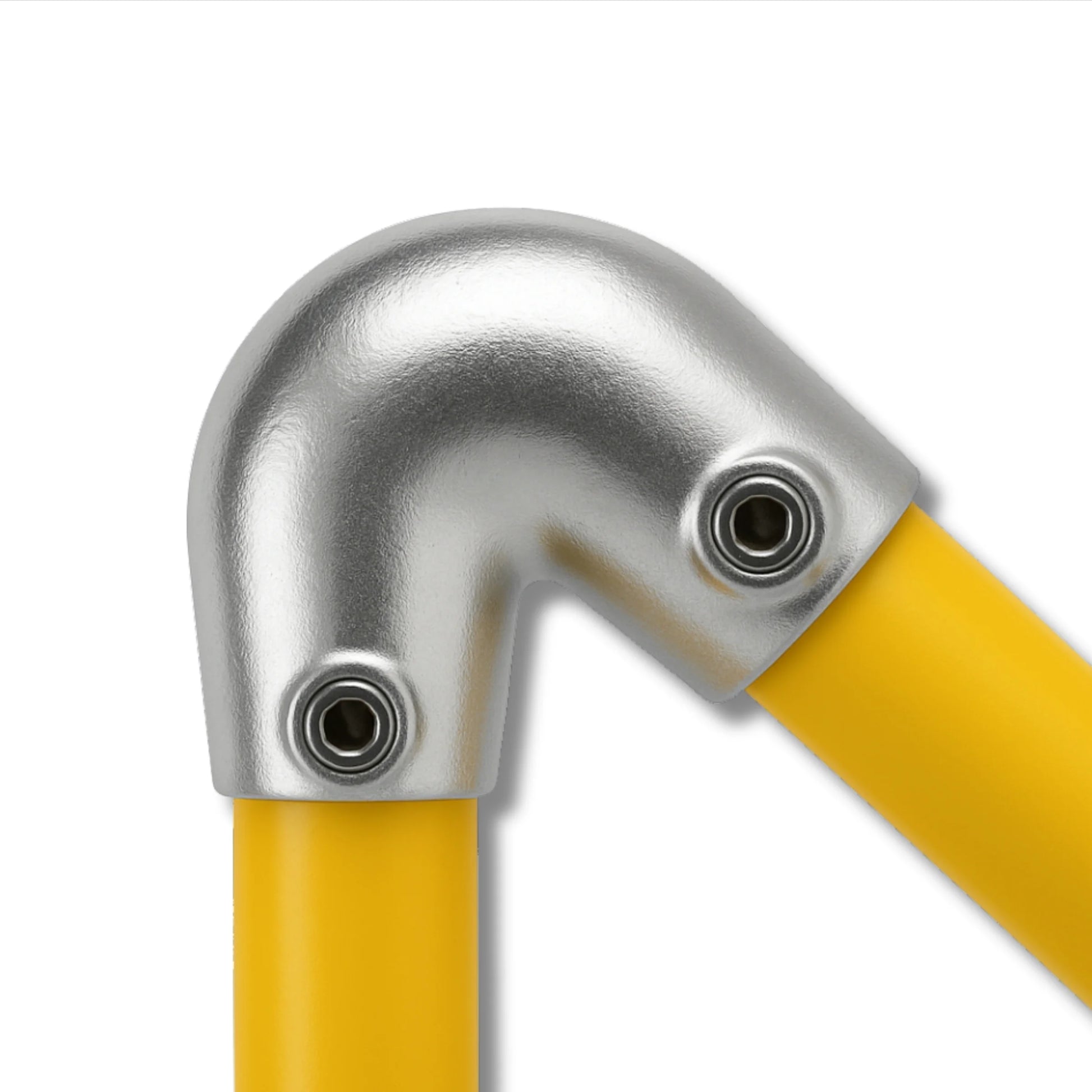

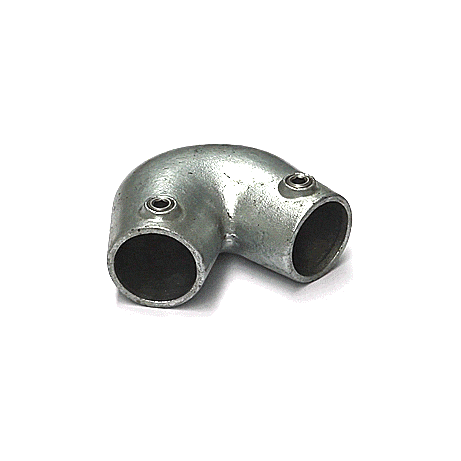

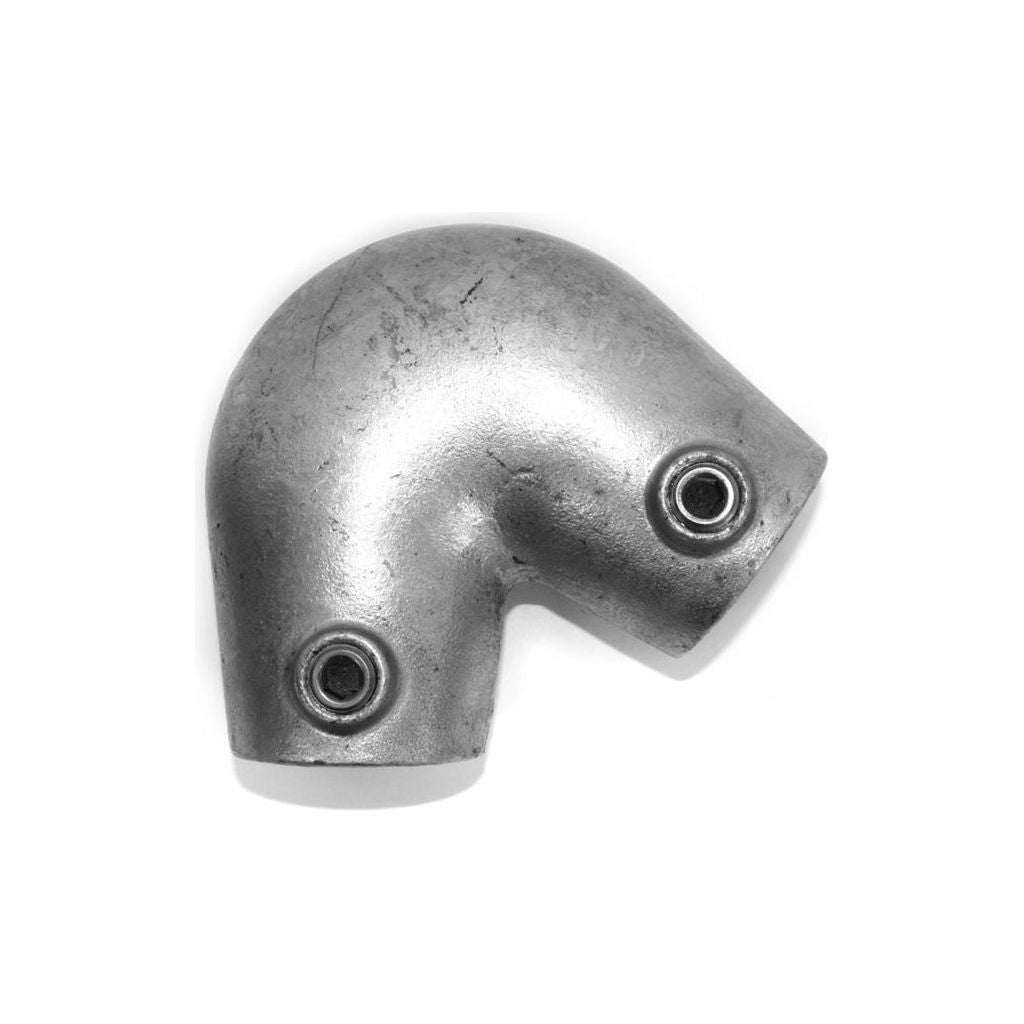

CopeRail 123 Variable Acute Elbow — the adjustable corner for tight angles

The 123 Variable Acute Elbow turns a run through an adjustable angle of less than 90° — set the corner to suit acute layouts on site. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: For angles over 90° use the 124 Variable Obtuse Elbow; for a fixed square corner use the 125 Elbow.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

Adjustable angle under 90°
No welding required — slips over the tube and tightens with a grub screw
Australian made
Hot-dip galvanised cast iron
Suits 48mm O/D (40 NB) Cope Rail tube
Individually replaceable if damaged — no need to rebuild the run

Common uses

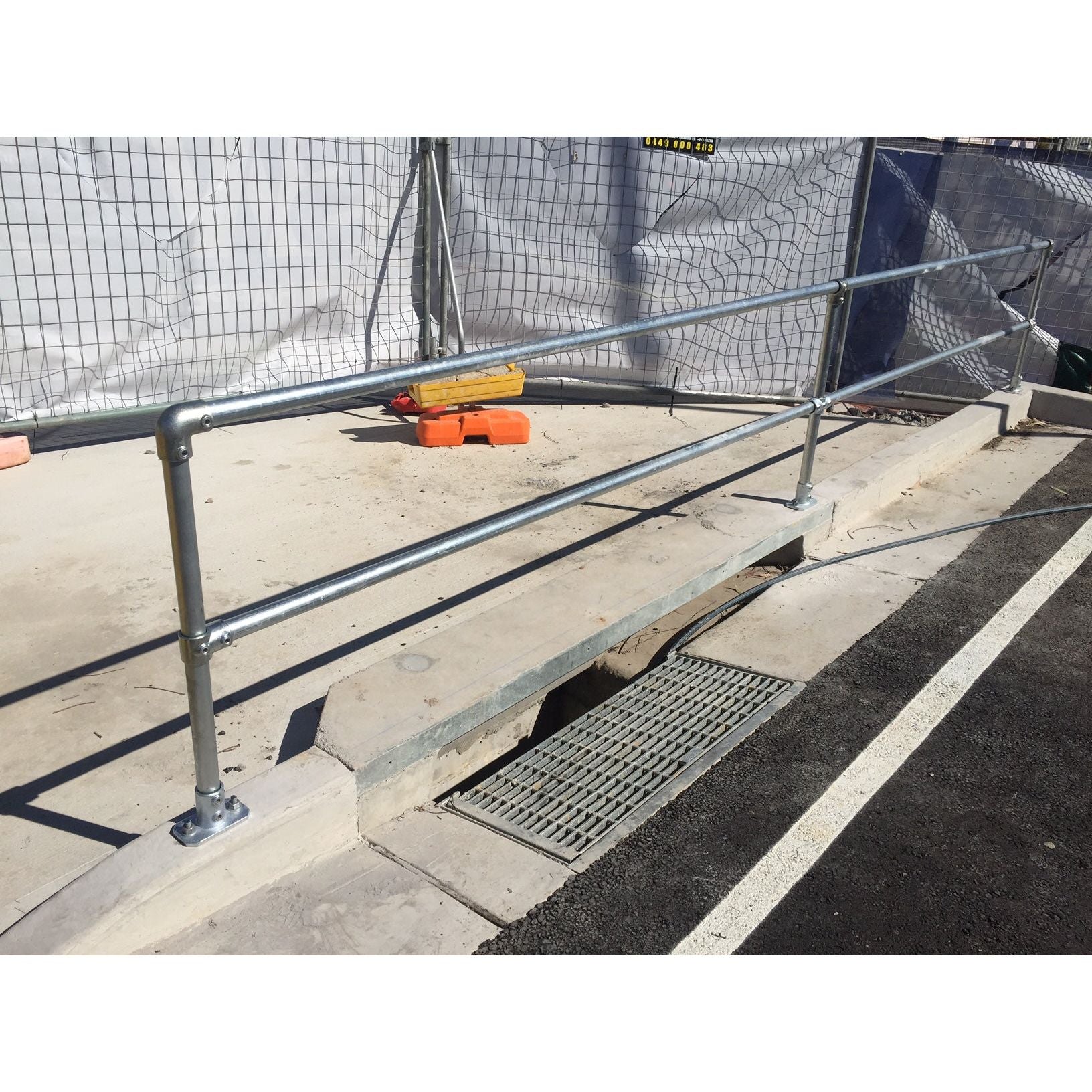

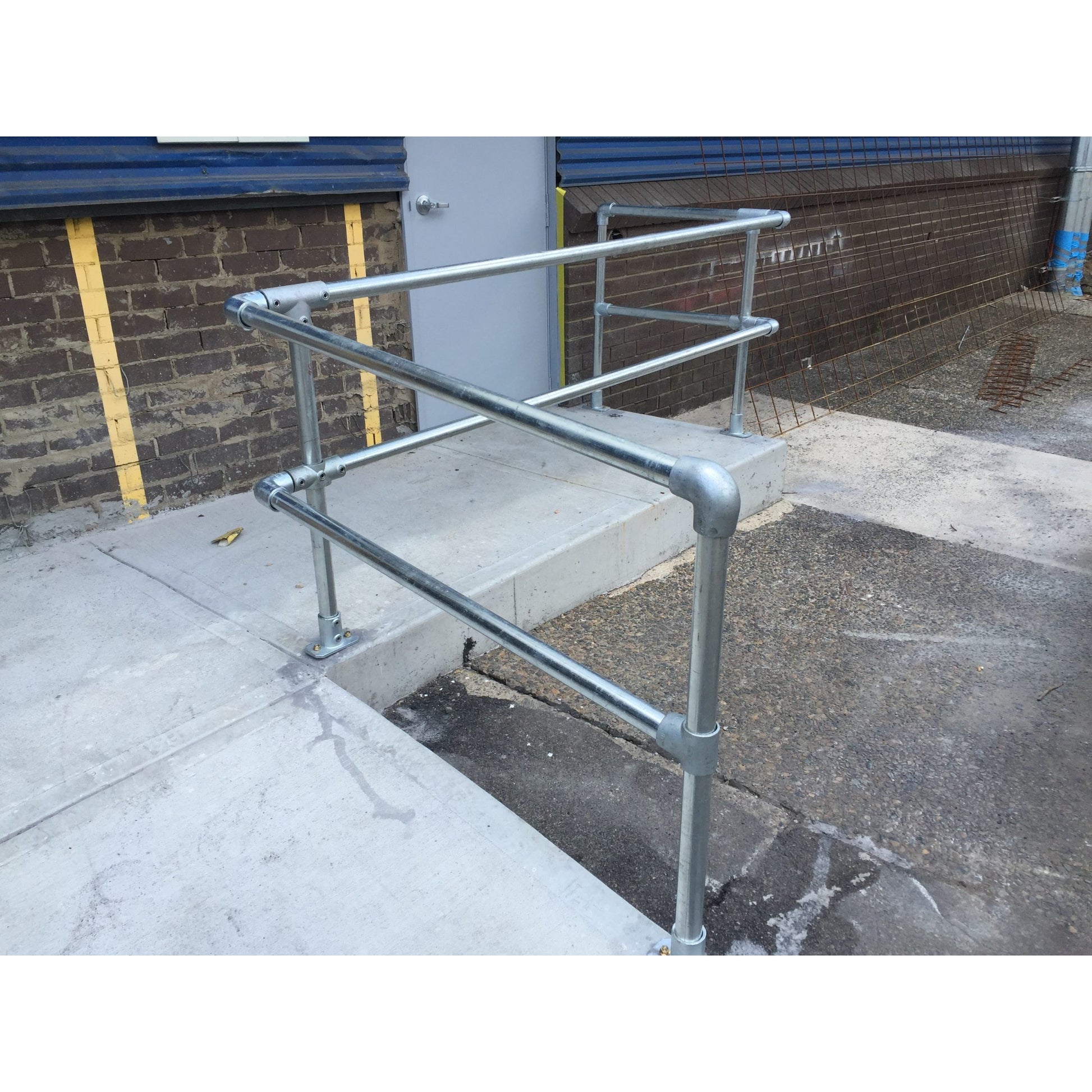

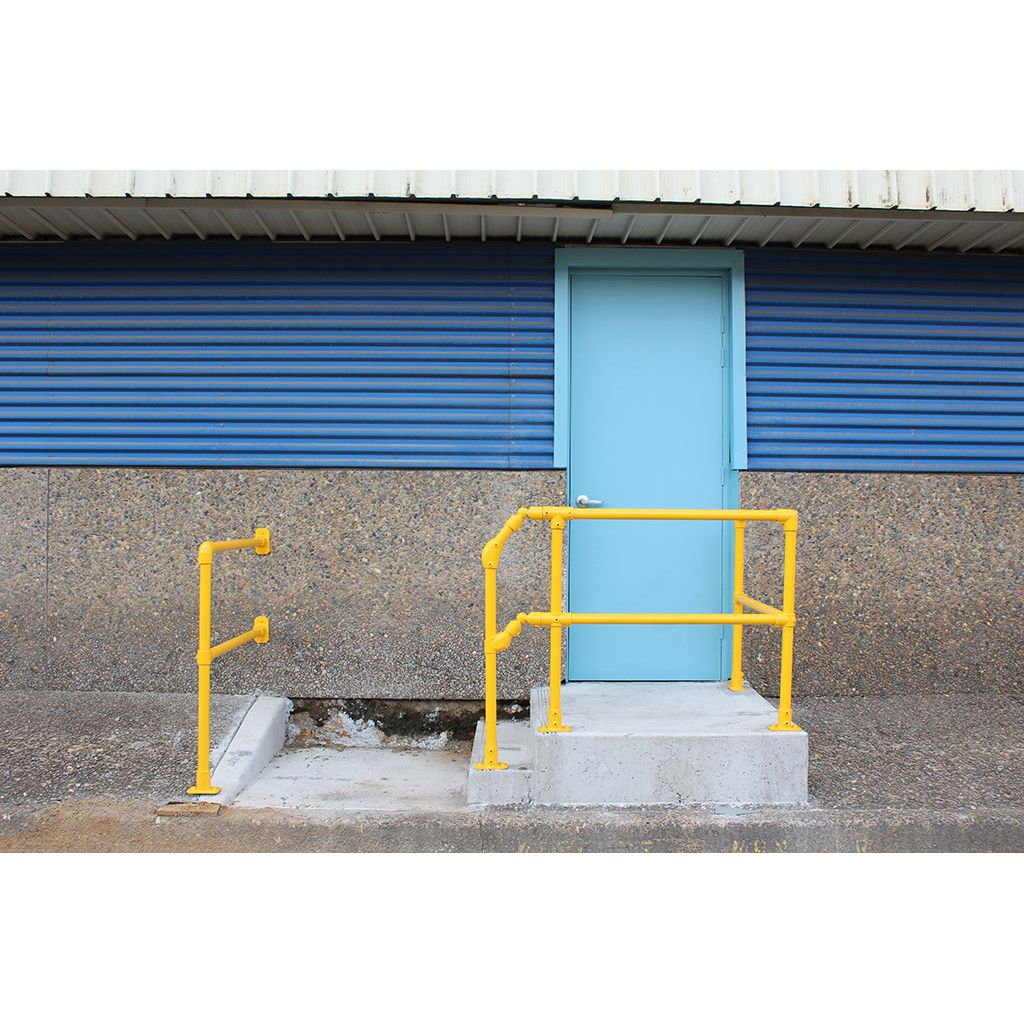

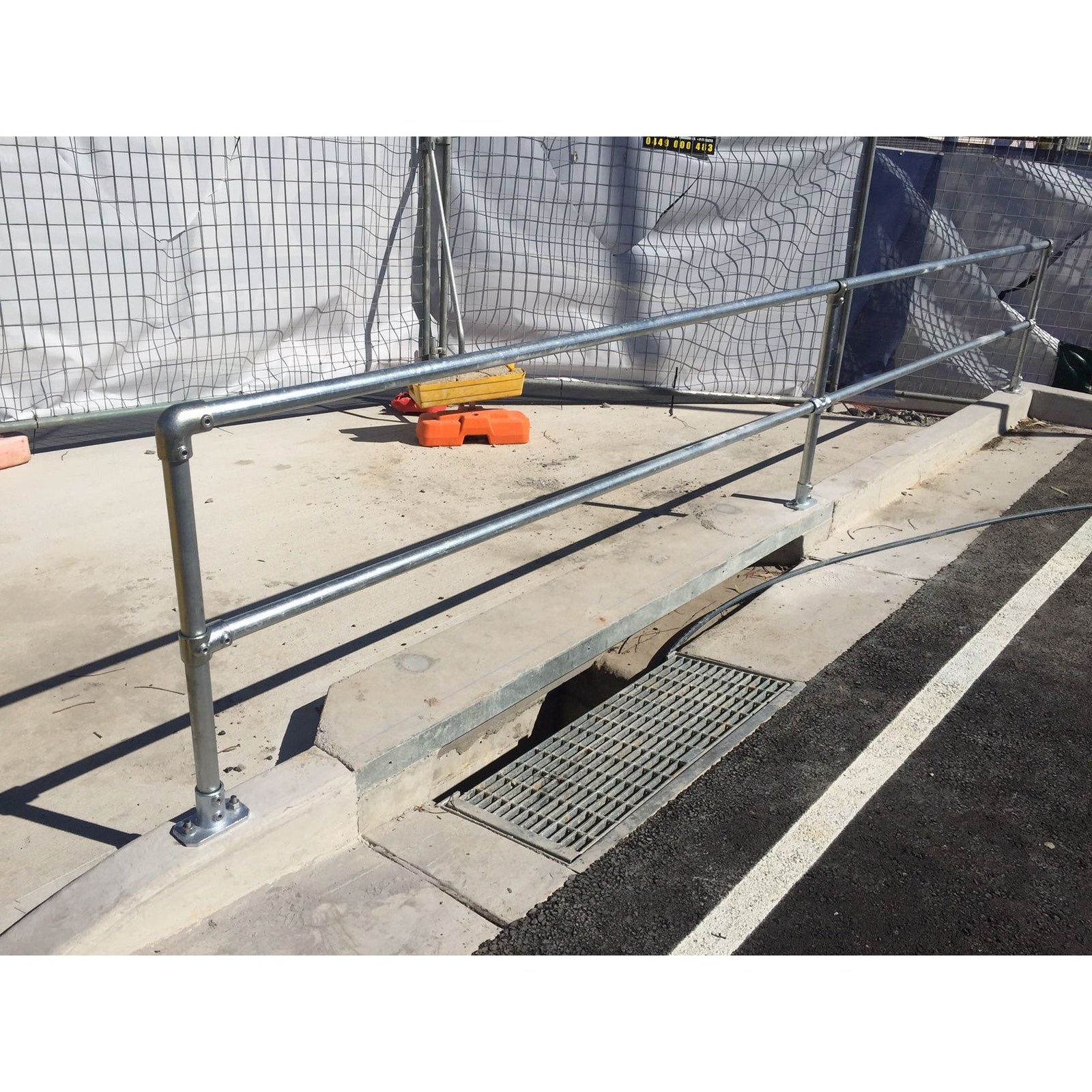

Acute corners on guardrail
Irregular site layouts
Custom barrier runs

Specifications

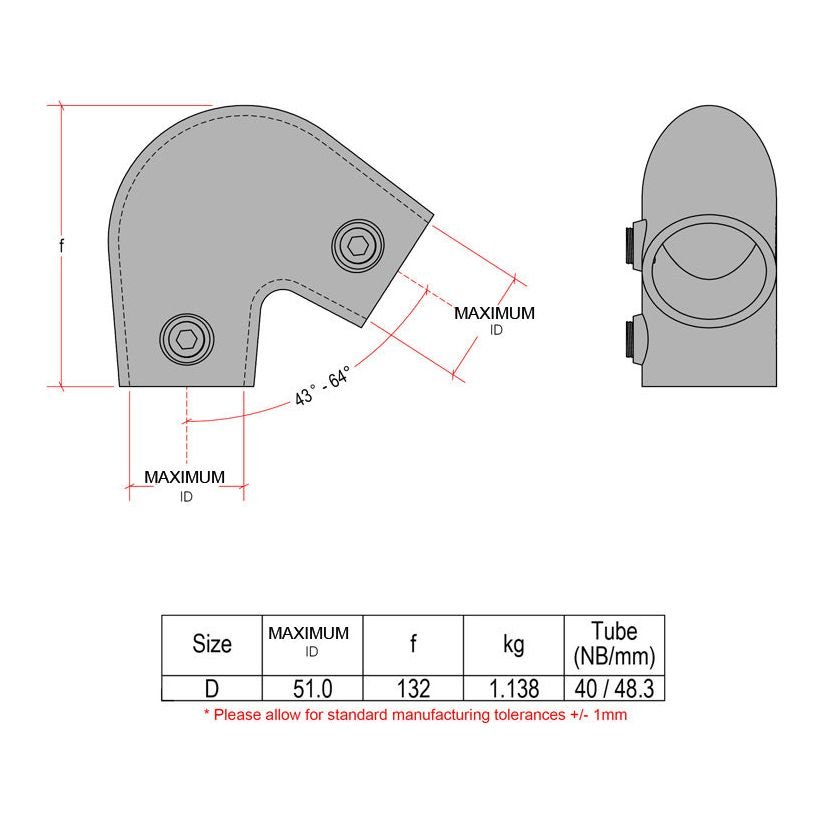

Type	Variable acute elbow (under 90°)
System	Cope Modular Handrail
Material	Hot-dip galvanised cast iron
Finish	Galvanised
Suits tube	48mm O/D (40 NB)
Assembly	No welding — grub-screw fixing
Rail	Suits Cope Rail (sold separately	by the metre)
SKU	COPE-123D
Origin	Australian made

Shipping

Estimated shipping times on our range of stocked items are as follows:

Location	Expected Delivery	Additional Information
NSW Metro		Usually overnight. Same day delivery can be arranged for an extra charge. Click & Collect: Available from our warehouse at 396 Victoria St, Wetherill Park, 2164.
NSW Regional	2-3 business days
VIC Metro	1-2 business days	Usually overnight.
VIC Regional	2-3 business days
QLD Metro	1-2 business days	Usually overnight.
QLD Regional	2-3 business days
ACT	1-2 business days	Usually overnight.
SA Metro	1-2 business days	Usually overnight.
SA Regional	2-4 business days
NT Metro	4-6 business days
NT Regional	5-7 business days
WA Metro	4-5 business days
WA Regional	6-7 business days
TAS	3-4 business days

Returns

Items may be returned within 30 days from the date of purchase. Returned items must be in original packaging and unused.

Address for returns: 396 Victoria Street, Wetherill Park, NSW 2164

Notes: Customer must pay for return shipping. 100% credit will be provided, less shipping costs.

Product Description +

Product Specifications +

Specifications

Type	Variable acute elbow (under 90°)
System	Cope Modular Handrail
Material	Hot-dip galvanised cast iron
Finish	Galvanised
Suits tube	48mm O/D (40 NB)
Assembly	No welding — grub-screw fixing
Rail	Suits Cope Rail (sold separately	by the metre)
SKU	COPE-123D
Origin	Australian made
