CopeRail 104 - Long Tee

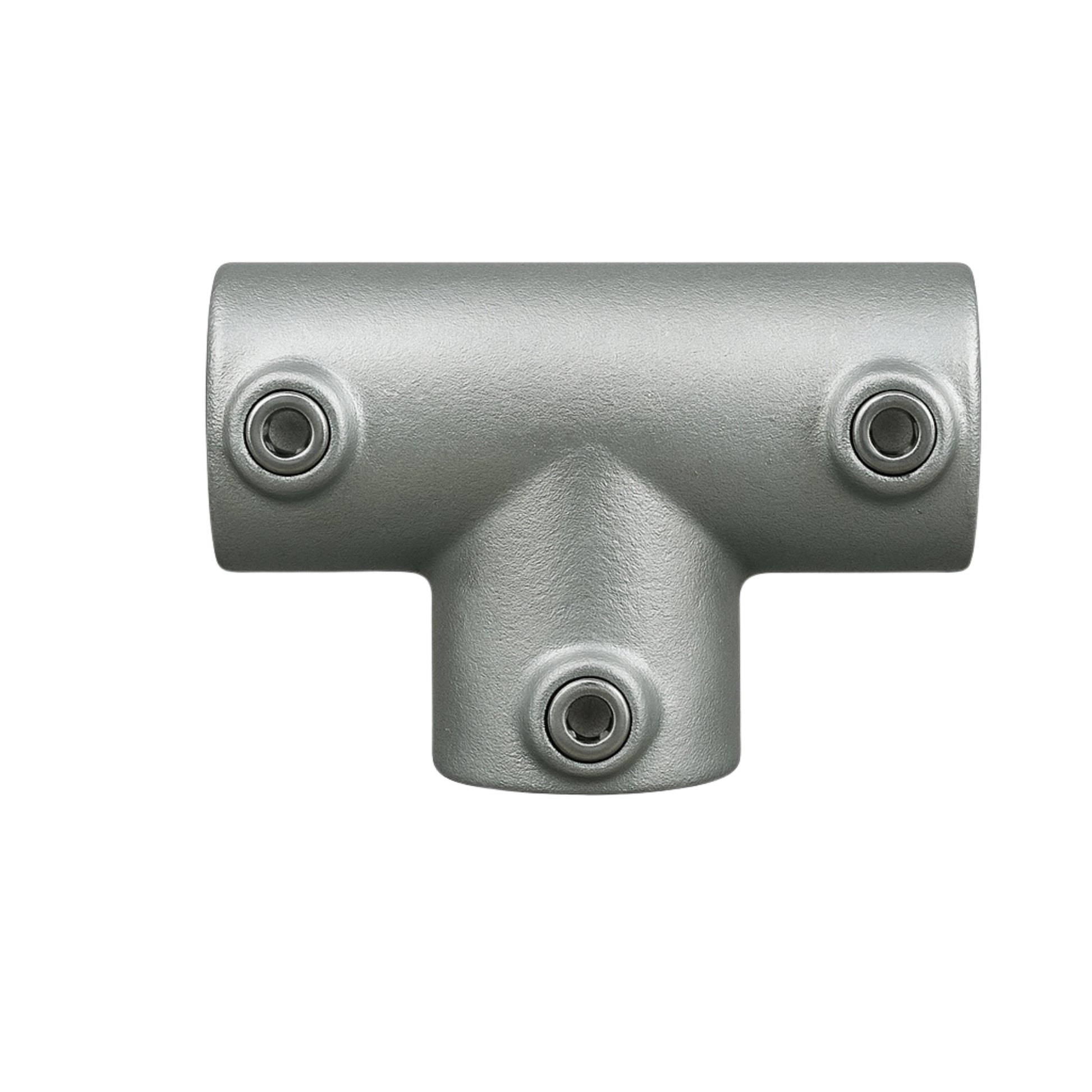

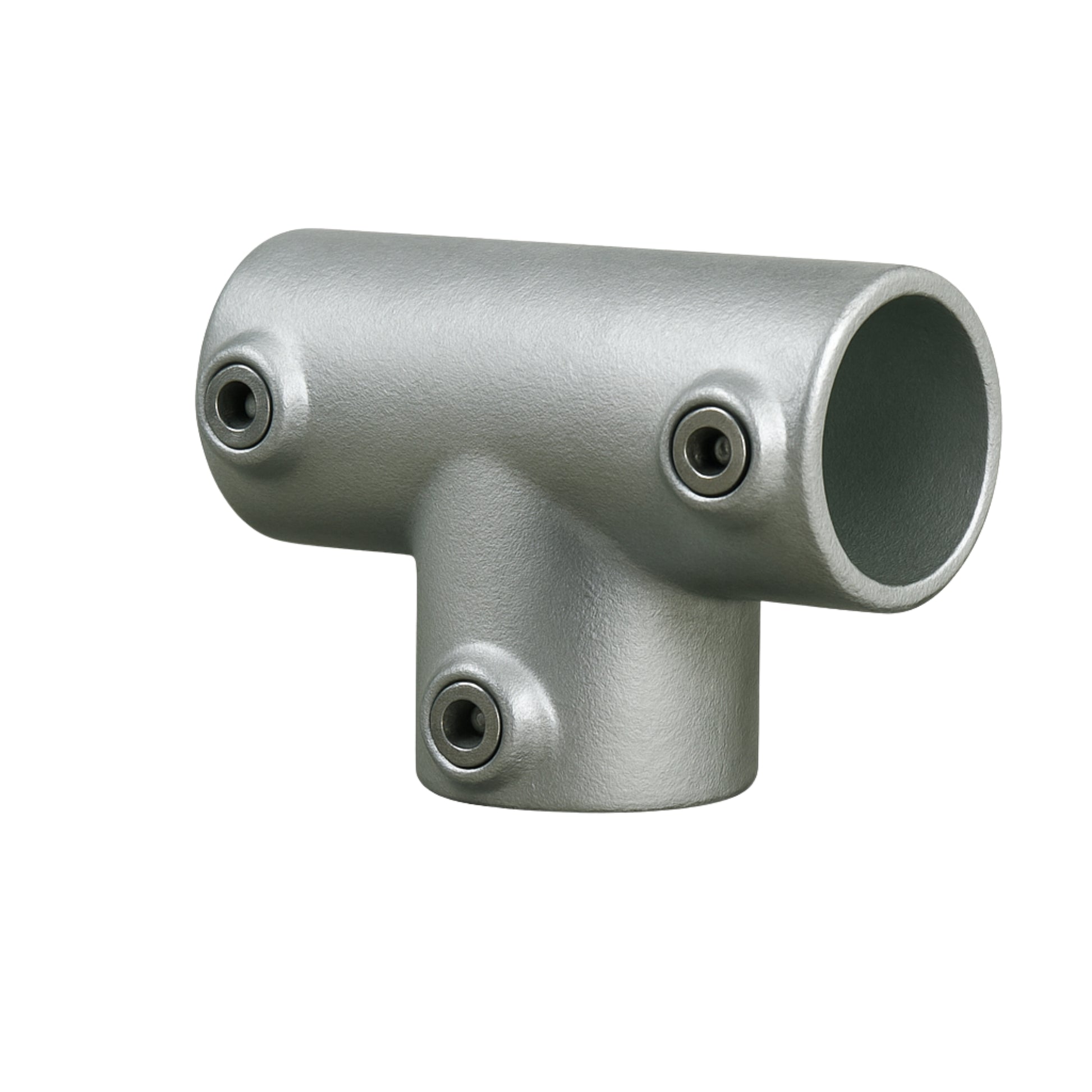

CopeRail 104 Long Tee — the through-tee for continuous rails

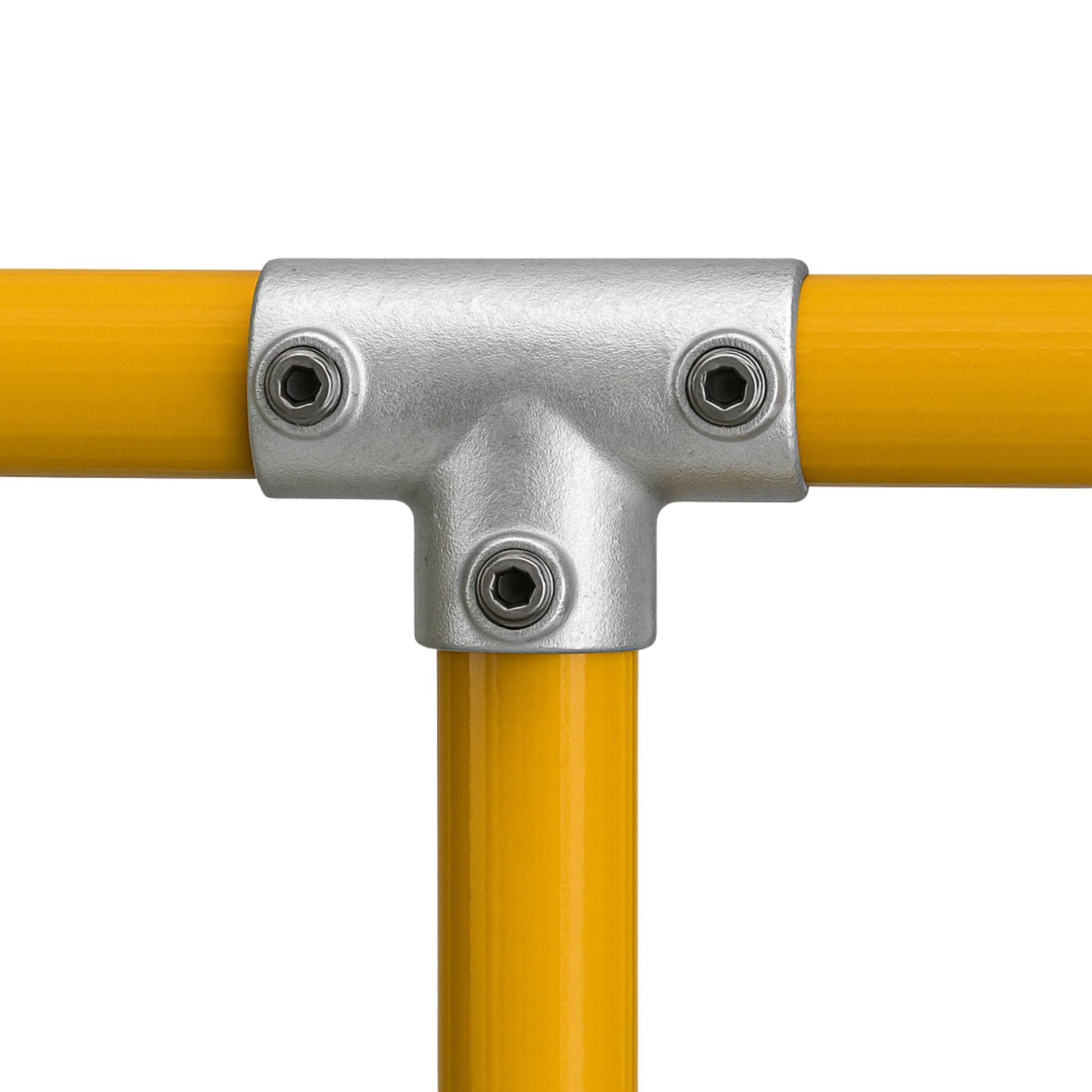

The 104 Long Tee lets a handrail run pass straight through the fitting while a second tube tees off at 90° — the through-rail stays continuous for a stronger, cleaner mid-run junction. It slips over standard 48mm O/D (40 NB) Cope tube and locks with a grub screw, so there's no welding and no thread-cutting. Made from hot-dip galvanised cast iron in a galvanised finish, and proudly Australian made.

When to use it: Use it for tees in the middle of a run where the main rail continues. Where the rail ends at the junction instead, use the 101 Short Tee.

To complete your run you’ll also need Cope Rail (sold by the metre) and any other connecting fittings — this listing is the fitting on its own.

Features

• Through-rail stays continuous for added strength
• No welding required — slips over the tube and tightens with a grub screw
• Australian made
• Hot-dip galvanised cast iron
• Suits 48mm O/D (40 NB) Cope Rail tube
• Individually replaceable if damaged — no need to rebuild the run

Common uses

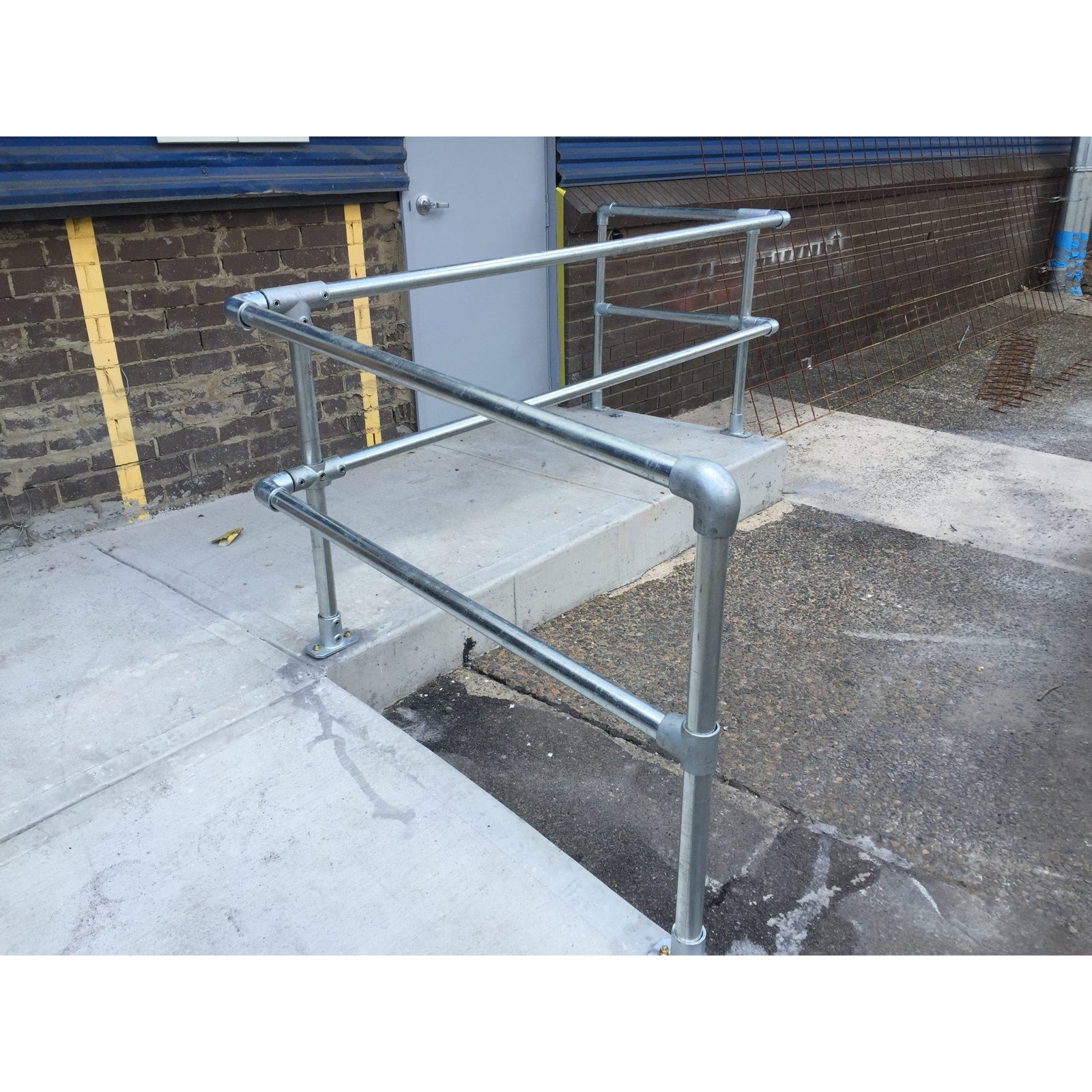

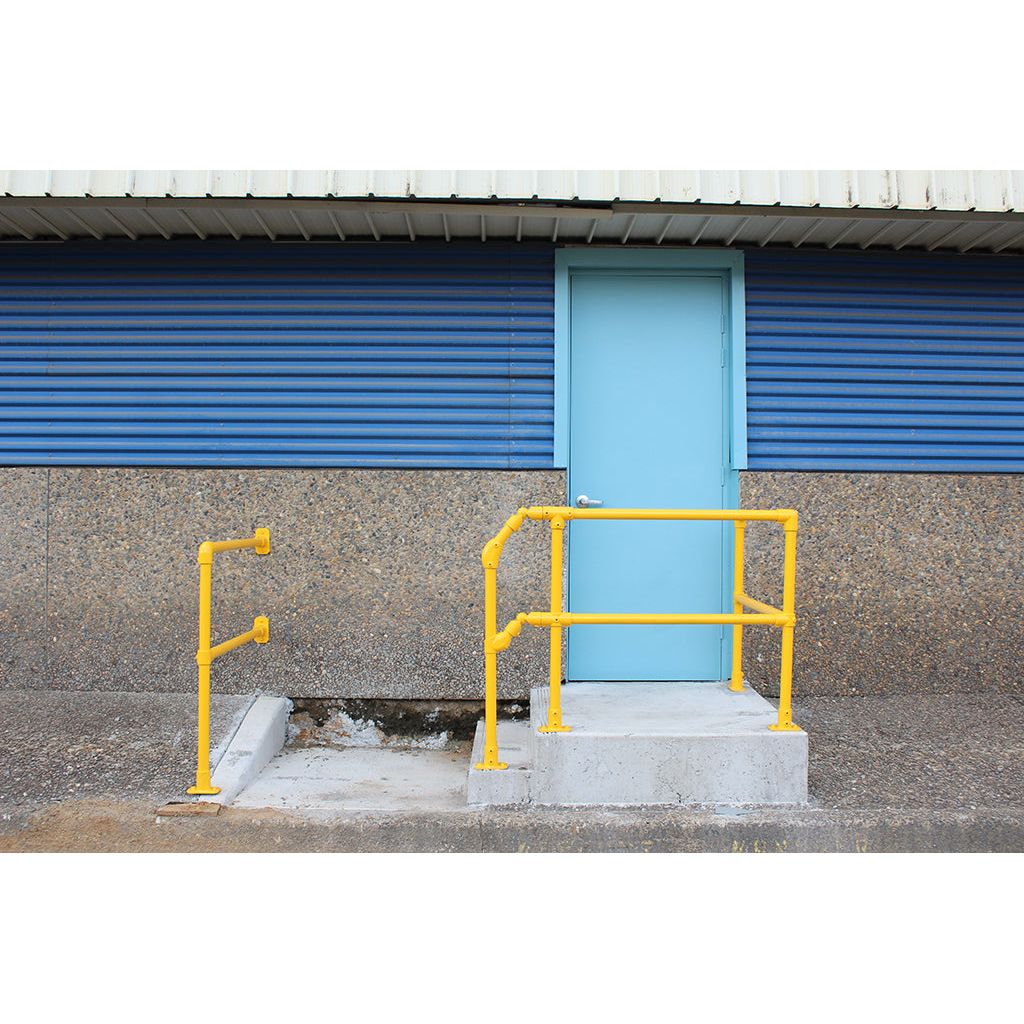

• Mid-run junctions on continuous handrail
• Warehouse & car park barrier runs

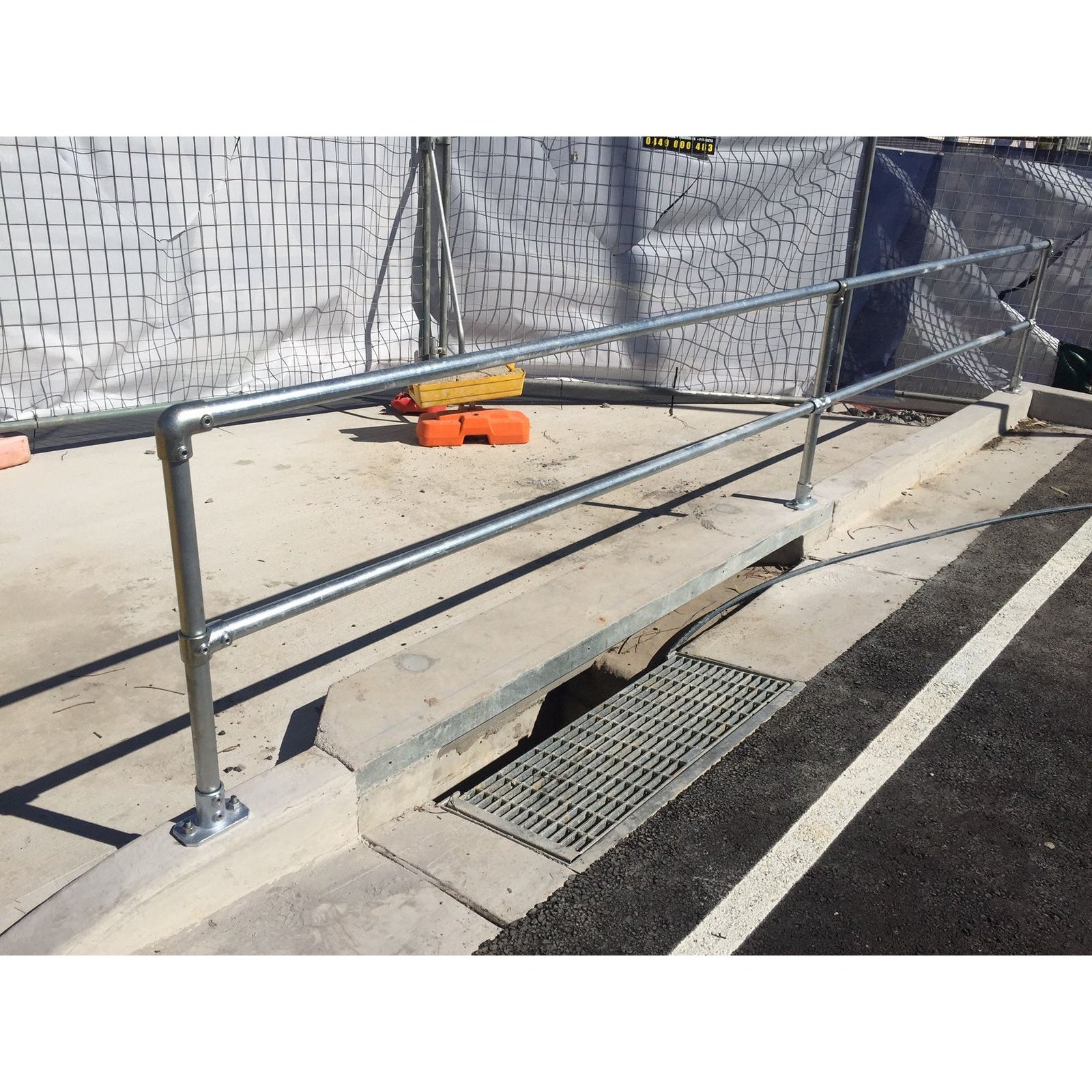

• Site & asset-protection railing
