Cope End Stanchion — the post that finishes a run

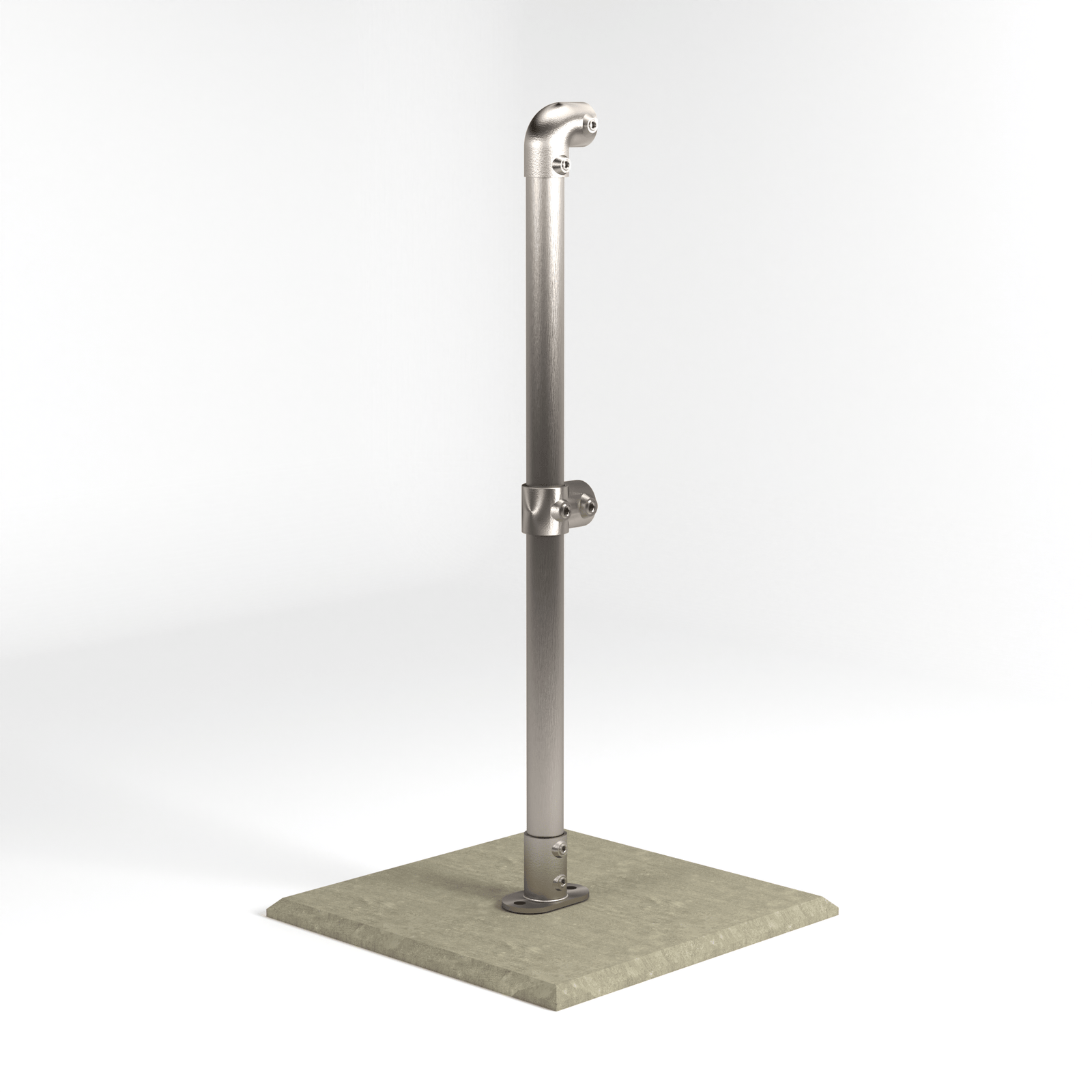

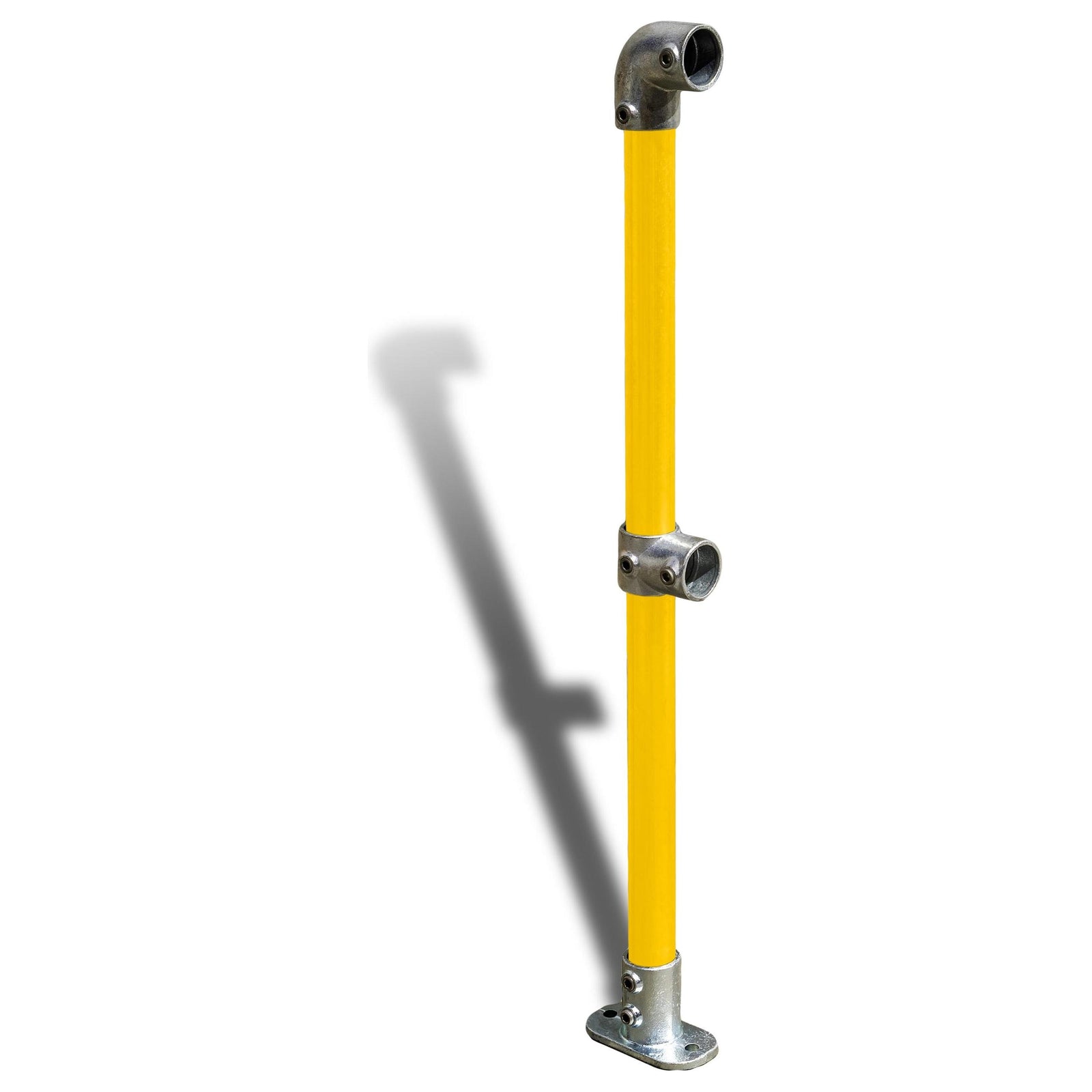

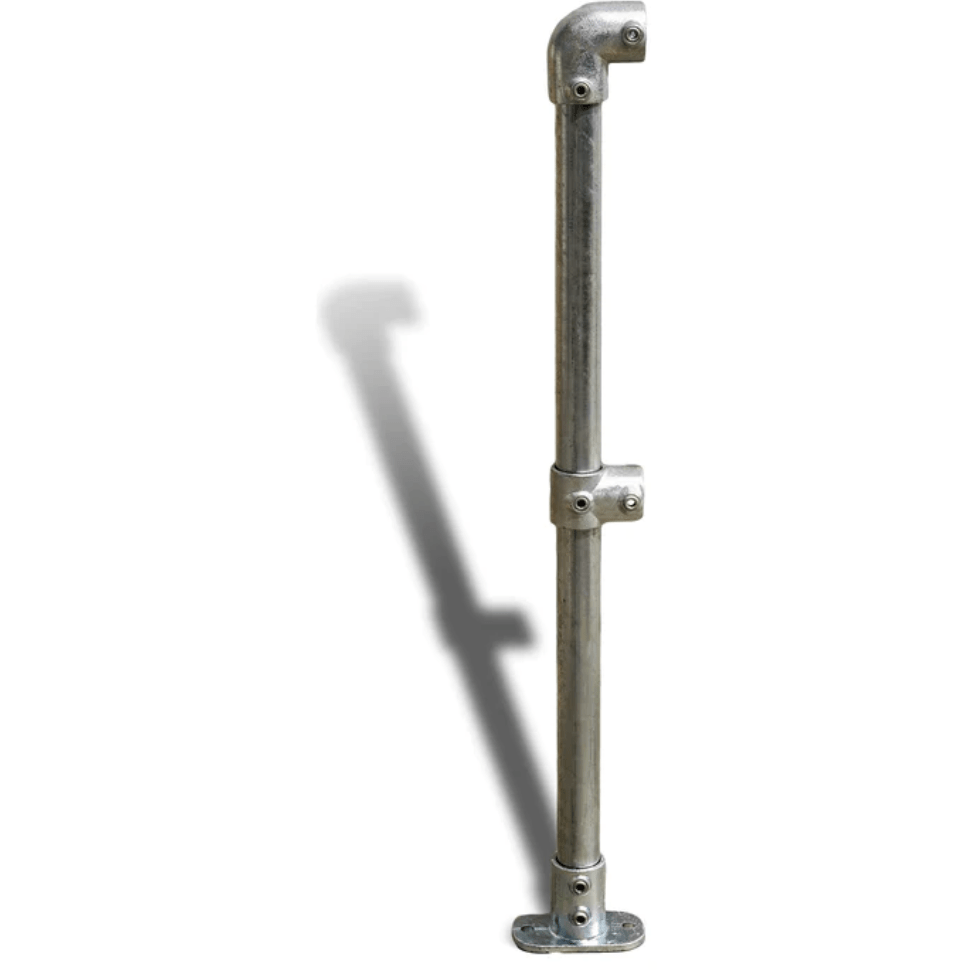

The End Stanchion is the terminating post in the Cope Modular Handrail system. It anchors the end of a handrail run, taking the rail back to a clean, safe stop. Proudly Australian made, it bolts together with no welding — an allen key is all you need — and comes in hot-dip galvanised or powder-coated safety yellow.

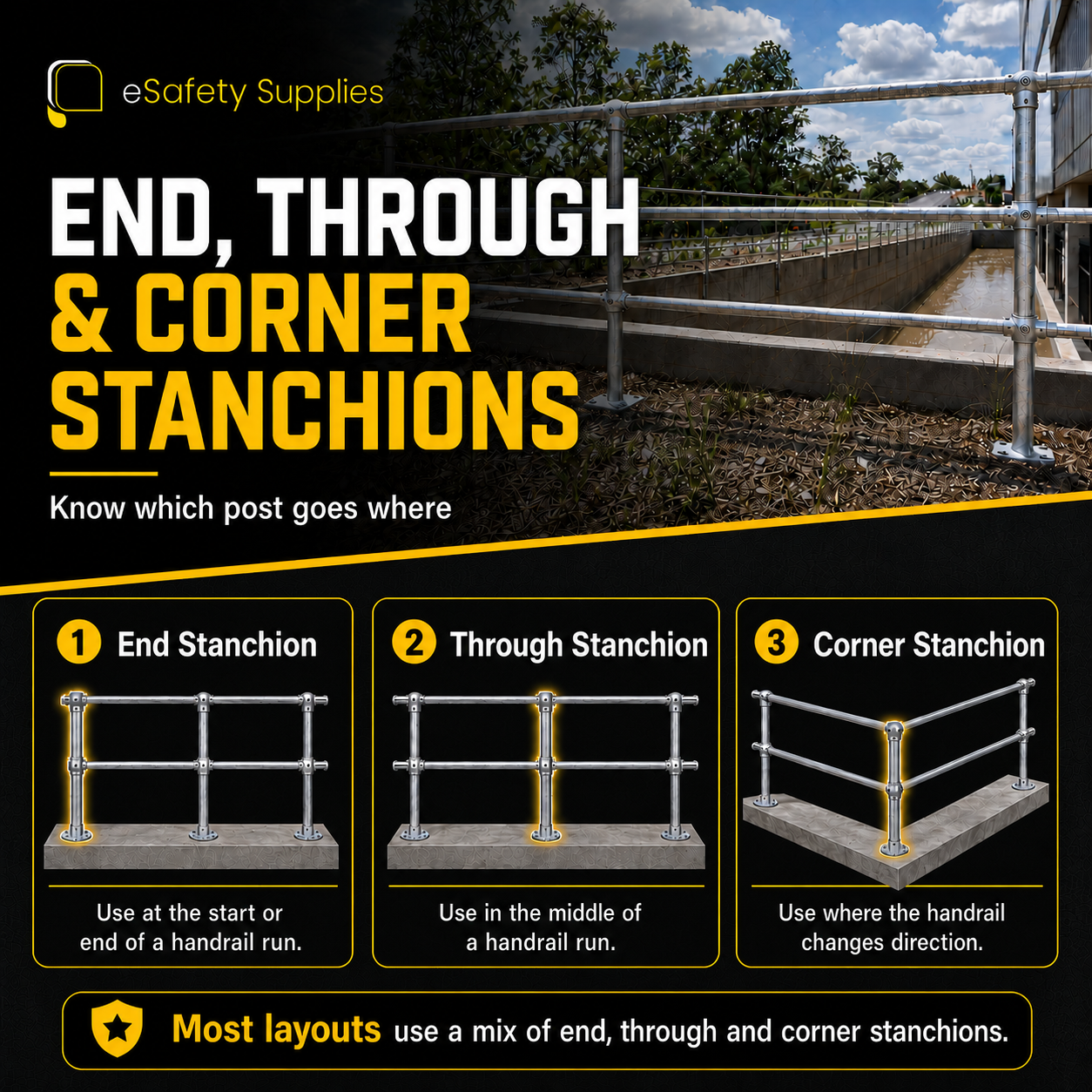

When to use it: at the start or finish of any handrail run. For posts along a straight run use a Through Stanchion; to change direction use a Corner or Variable Angle Stanchion.

To complete your run you'll also need Cope Rail (sold by the metre) and any connecting fittings — the stanchion is the post on its own.

Features

• No welding required — assembles with an allen key
• Australian made
• Hot-dip galvanised steel for long-term outdoor use
• 1 metre (1000mm) height

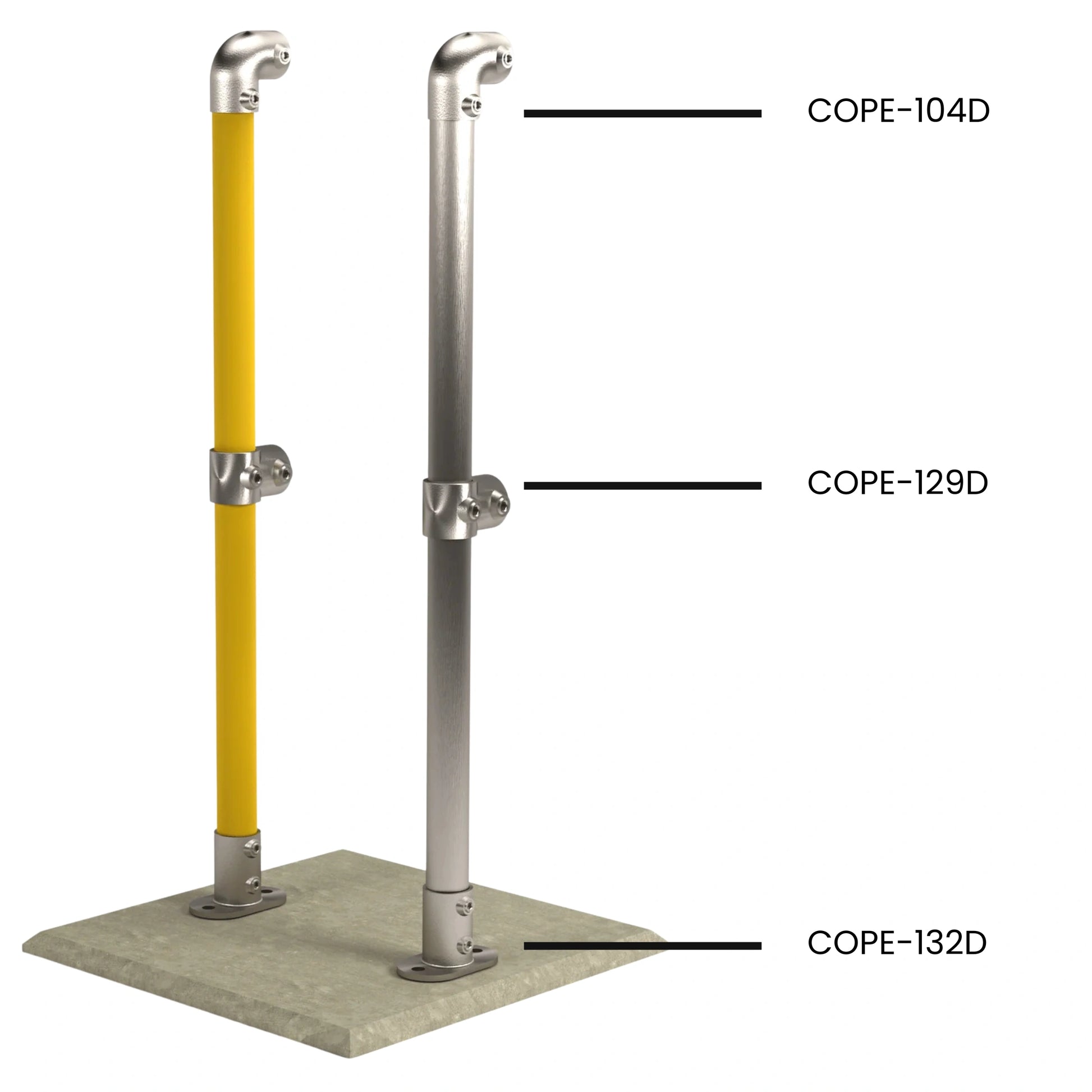

• 48mm O/D (40 NB) tube with cast-iron connectors
• Posts set at up to 2 metre centres

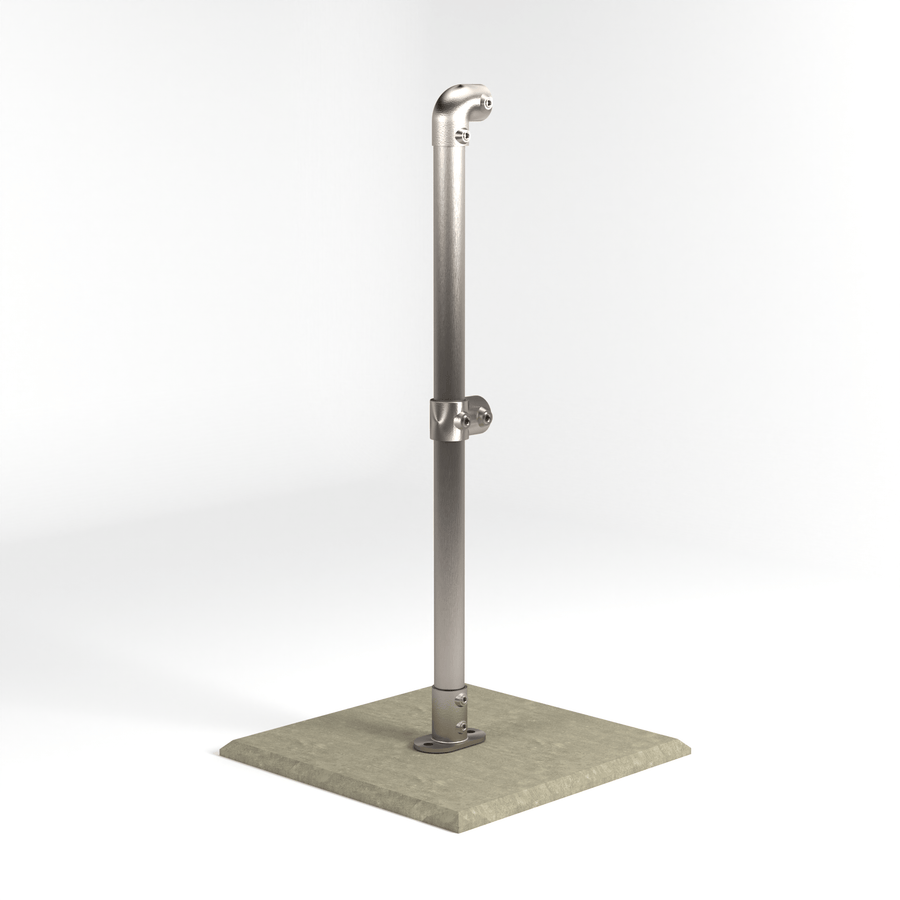

• Floor mounted — base fixing plate bolts straight to concrete

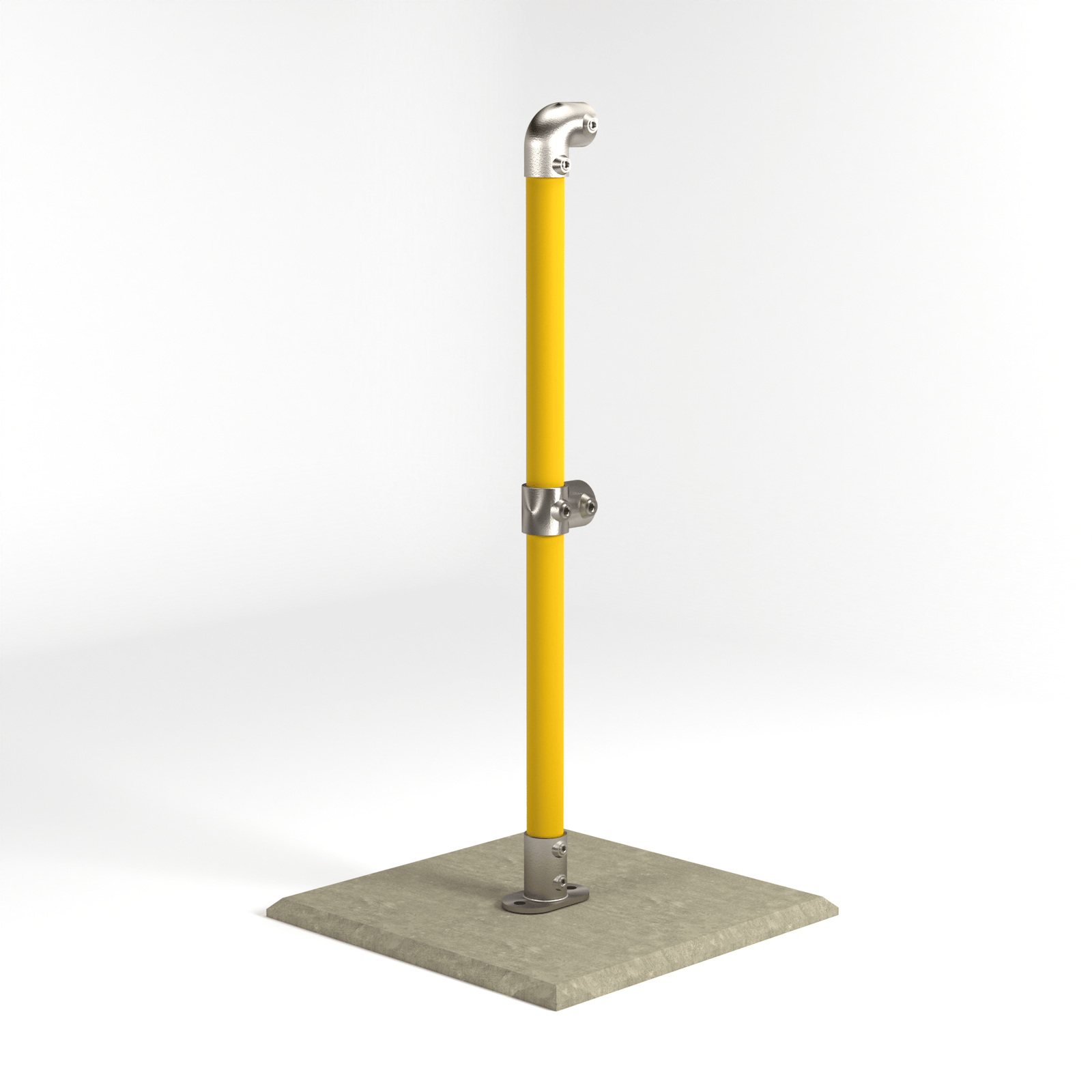

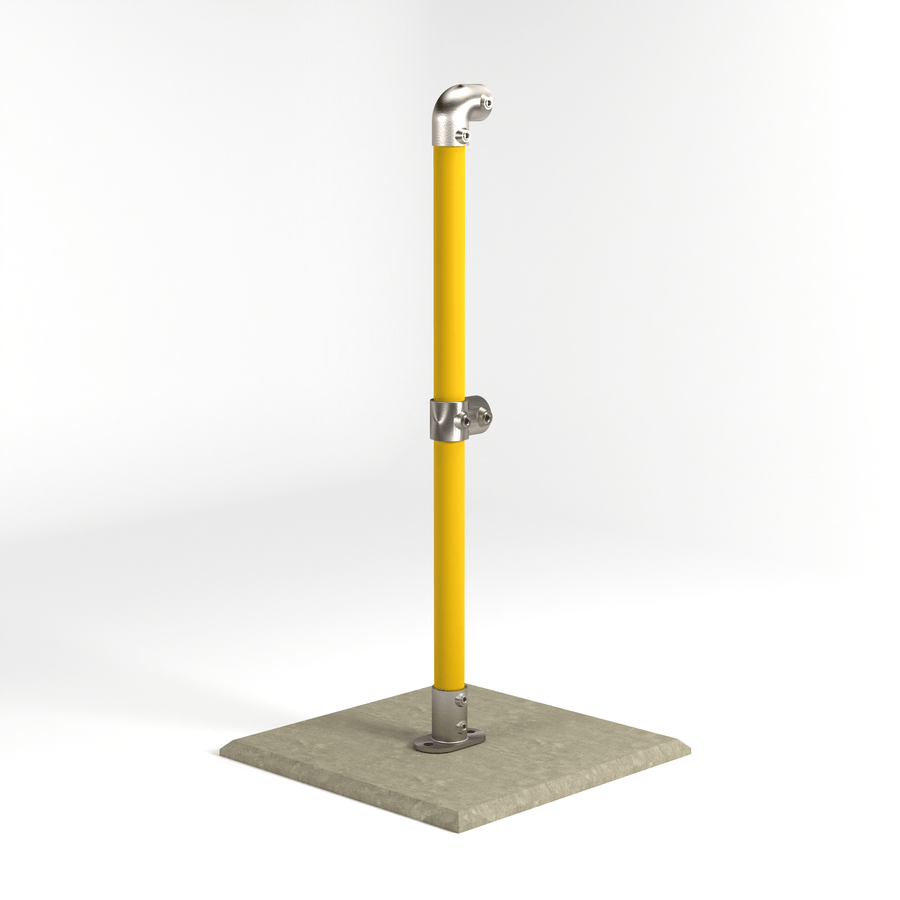

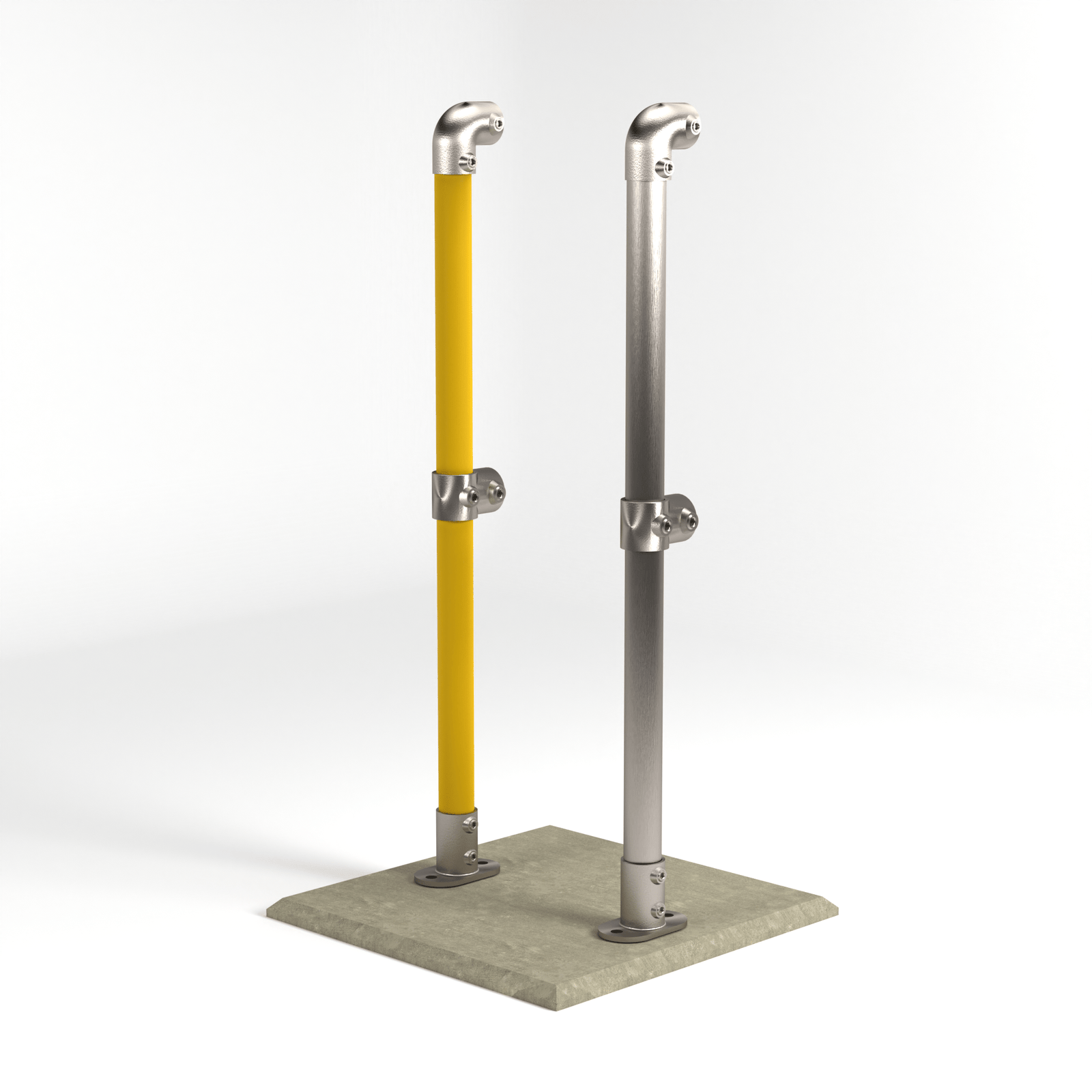

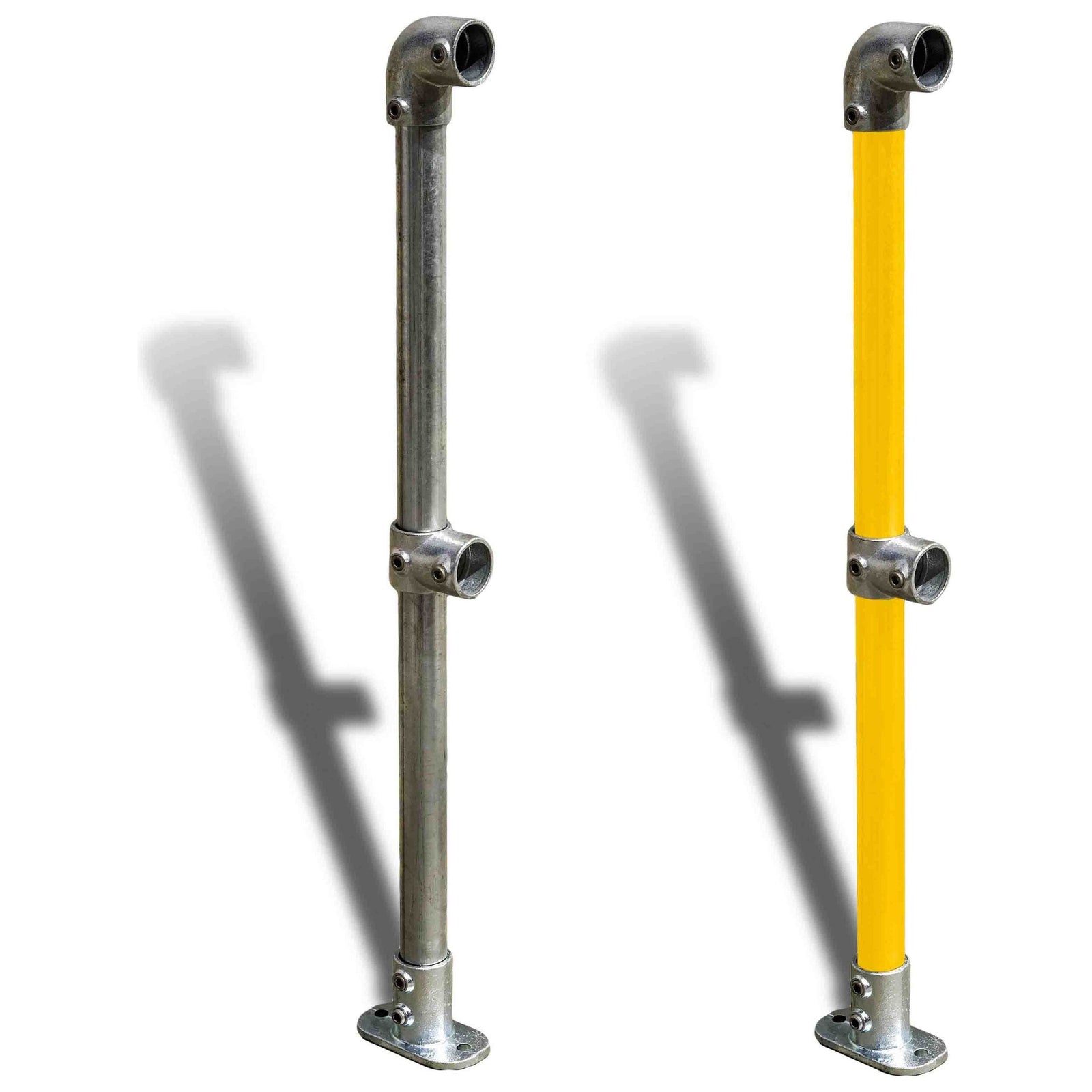

• Galvanised or powder-coated safety yellow finish

Common uses

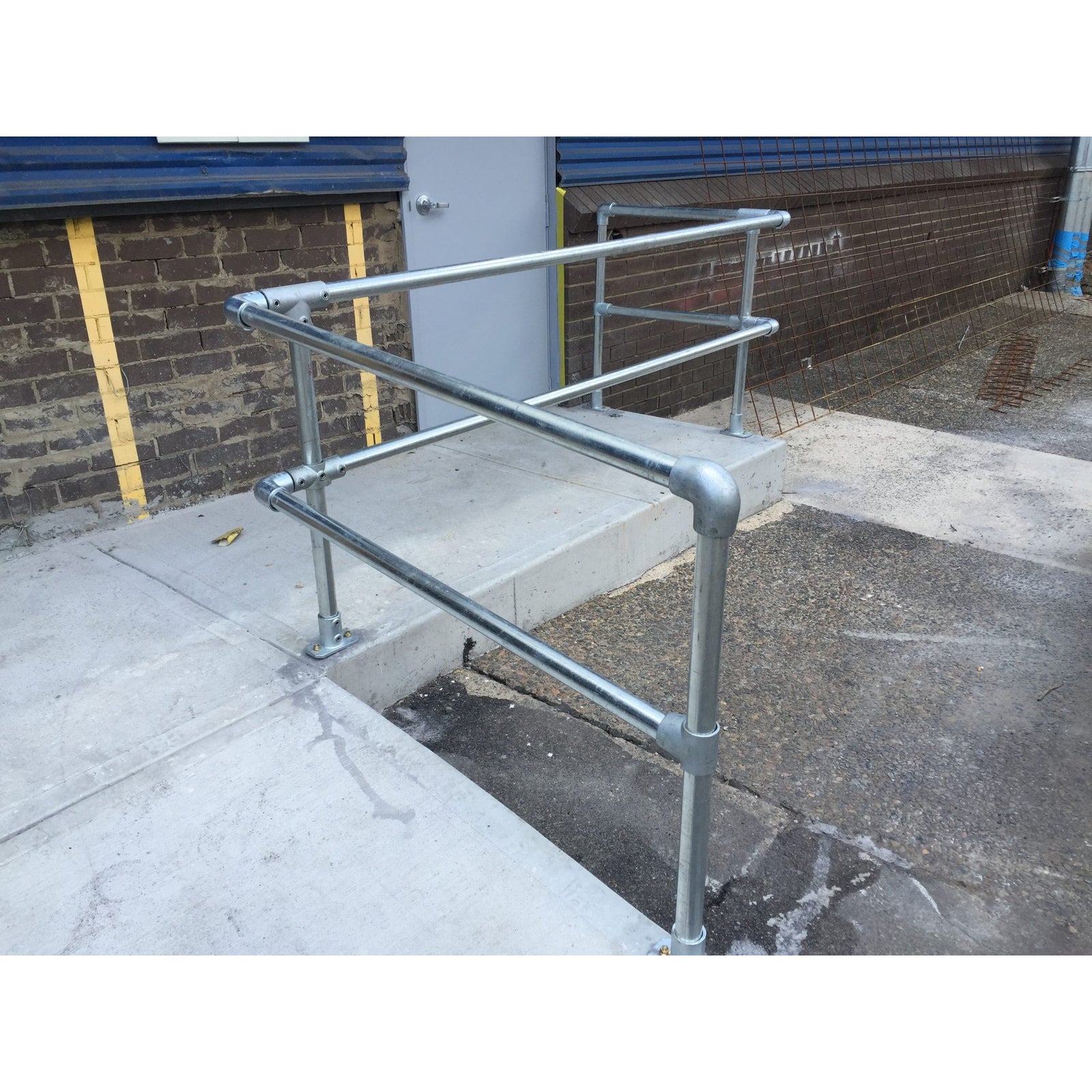

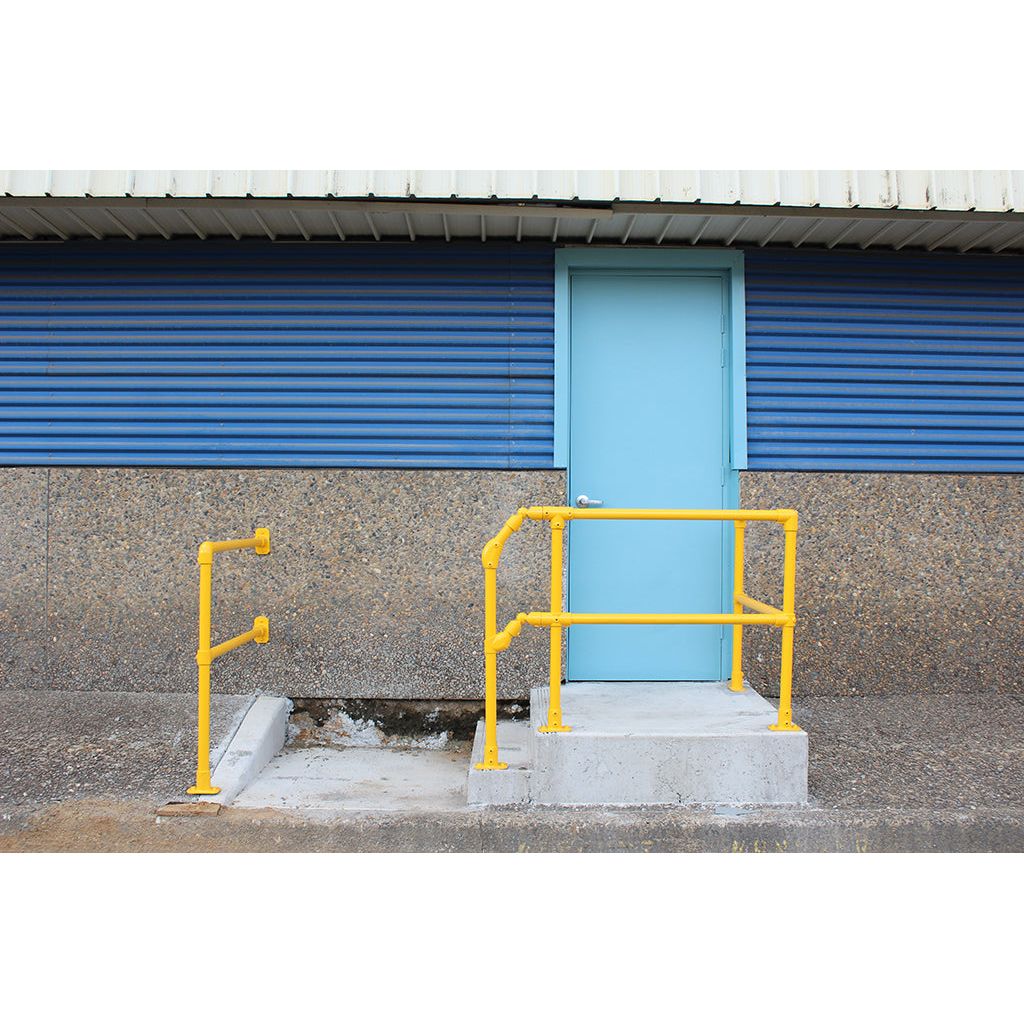

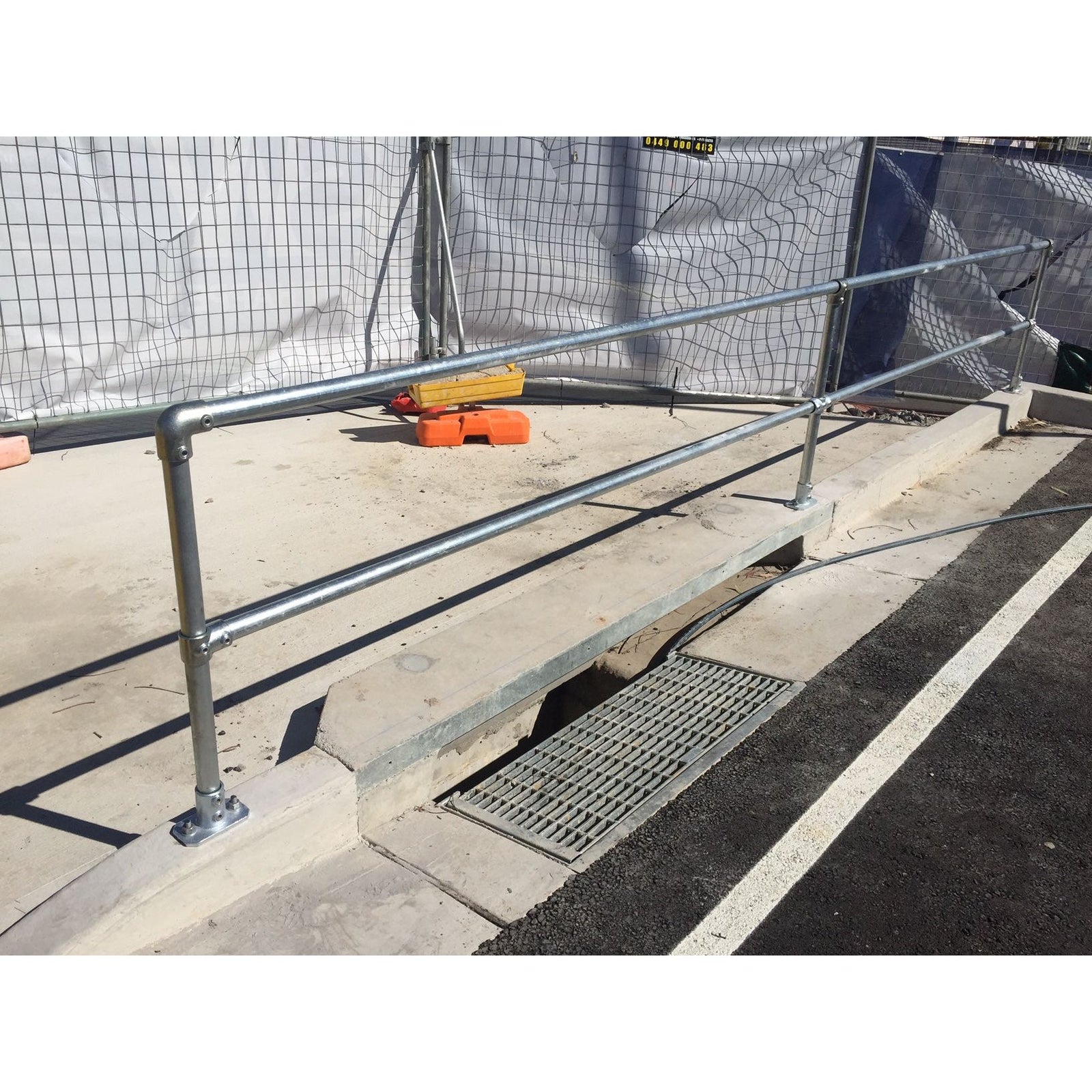

• Site & walkway protection — segregate pedestrians from traffic and plant
• Car parks & warehouses — durable runs that bolt straight to concrete
• Public & commercial walkways — clean, compliant pedestrian railing
