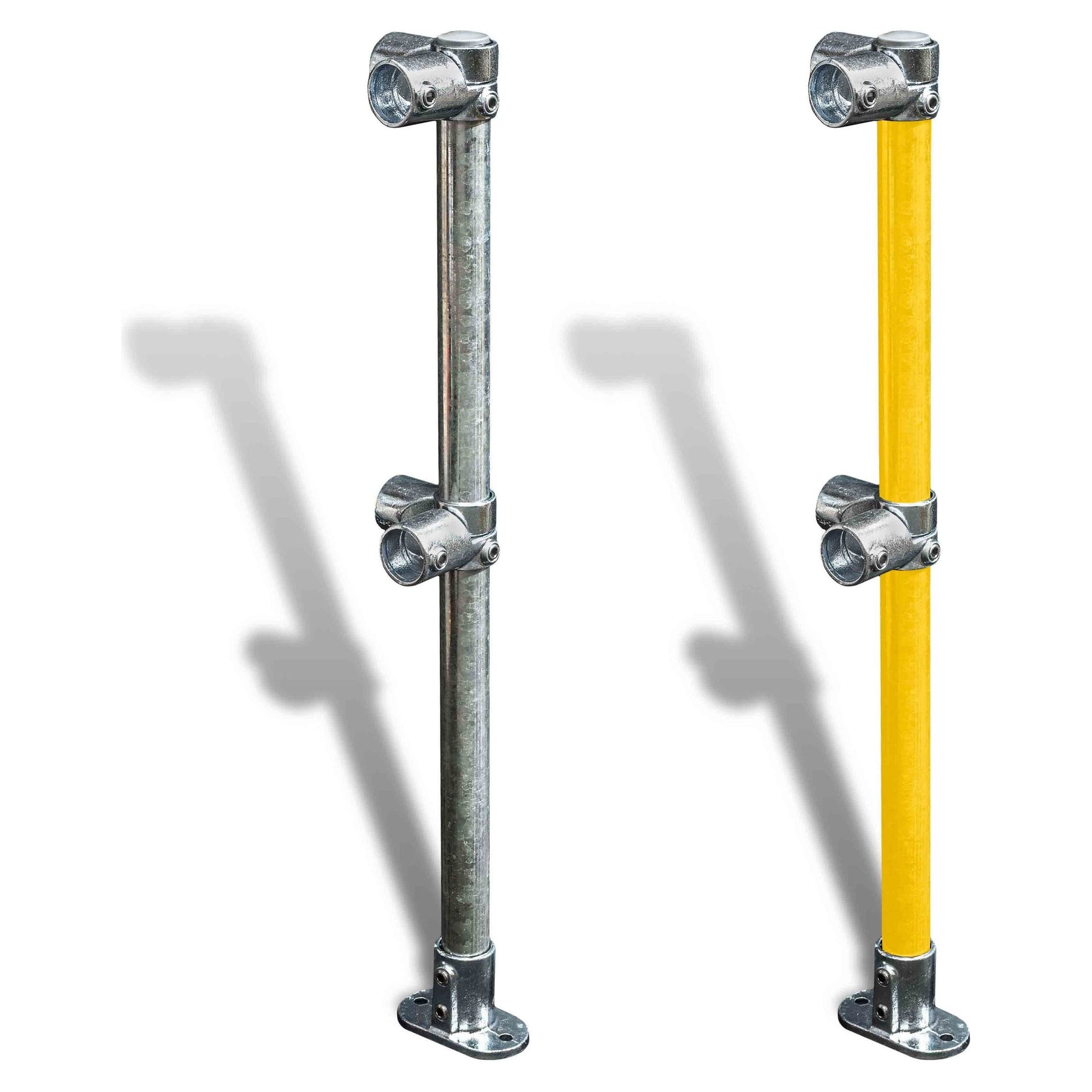

Cope Variable Angle Stanchion

Cope Variable Angle Stanchion — the adjustable post for any change of angle

The Variable Angle Stanchion is the adjustable, any-angle post in the Cope range. It pivots to follow a change of angle in a straight run — set the angle on site and lock it off. Proudly Australian made, it bolts together with no welding — an allen key is all you need — and comes in hot-dip galvanised or powder-coated safety yellow.

When to use it: mid-run wherever the rail changes angle and a fixed band won't fit — it adjusts to the angle you need. For square corners use a Corner Stanchion; for straight runs use a Through Stanchion.

To complete your run you'll also need Cope Rail (sold by the metre) and any connecting fittings — the stanchion is the post on its own.

Features

• No welding required — assembles with an allen key
• Australian made
• Hot-dip galvanised steel for long-term outdoor use
• 1 metre (1000mm) height
• 48mm O/D (40 NB) tube with cast-iron connectors
• Posts set at up to 2 metre centres
• Floor mounted — base fixing plate bolts straight to concrete
• Galvanised or powder-coated safety yellow finish

Common uses

• Site & walkway protection — segregate pedestrians from traffic and plant
• Car parks & warehouses — durable runs that bolt straight to concrete
• Public & commercial walkways — clean, compliant pedestrian railing
