Cable Protector Cover - 5 Channel

Cable Protector Cover – 5 Channel

The Cable Protector Cover – 5 Channel is a heavy-duty cable management solution designed to protect cables and help reduce pedestrian trip hazards in high-traffic areas. Its five-channel design provides multiple pathways for routing and separating cables, helping keep cable runs organised and protected.

Featuring a non-slip surface and a 20-tonne load rating, this cable protector is suitable for indoor and outdoor use across worksites, offices, events and other areas where cables may cross pedestrian or vehicle-accessed spaces.

Individual sections can be connected together to create the required protection length.

Please note: Only one section is included. Additional sections can be connected to extend the protected cable pathway.

Features

• Five-channel design for routing multiple cables
• Non-slip design to help provide a secure walking surface
• 20-tonne load rating for vehicle traffic up to 20 tonnes under normal operating conditions
• Durable and flexible rubber construction
• Poly lid for cable protection
• Easy to install and remove
• Suitable for indoor and outdoor applications
• Connectable sections allow longer cable protection runs
• Suitable for various cable types and configurations


Applications

Office Spaces

Organise and protect cables in busy office environments.
Help keep cable pathways neat and accessible.

Events & Exhibitions

Protect multiple cables running through event and exhibition areas.
Connect sections together for longer cable runs.

Home Entertainment Areas

Keep cables organised and covered around entertainment systems and open areas.

Outdoor Events & Worksites

Suitable for outdoor events, worksites and areas where cables need to cross accessible pathways.
Designed for applications involving pedestrian and vehicle traffic within its stated load rating.

Specifications

• Product Type: 5 Channel Cable Protector Cover
• Material: Rubber with Poly Lid
• Weight: 15kg

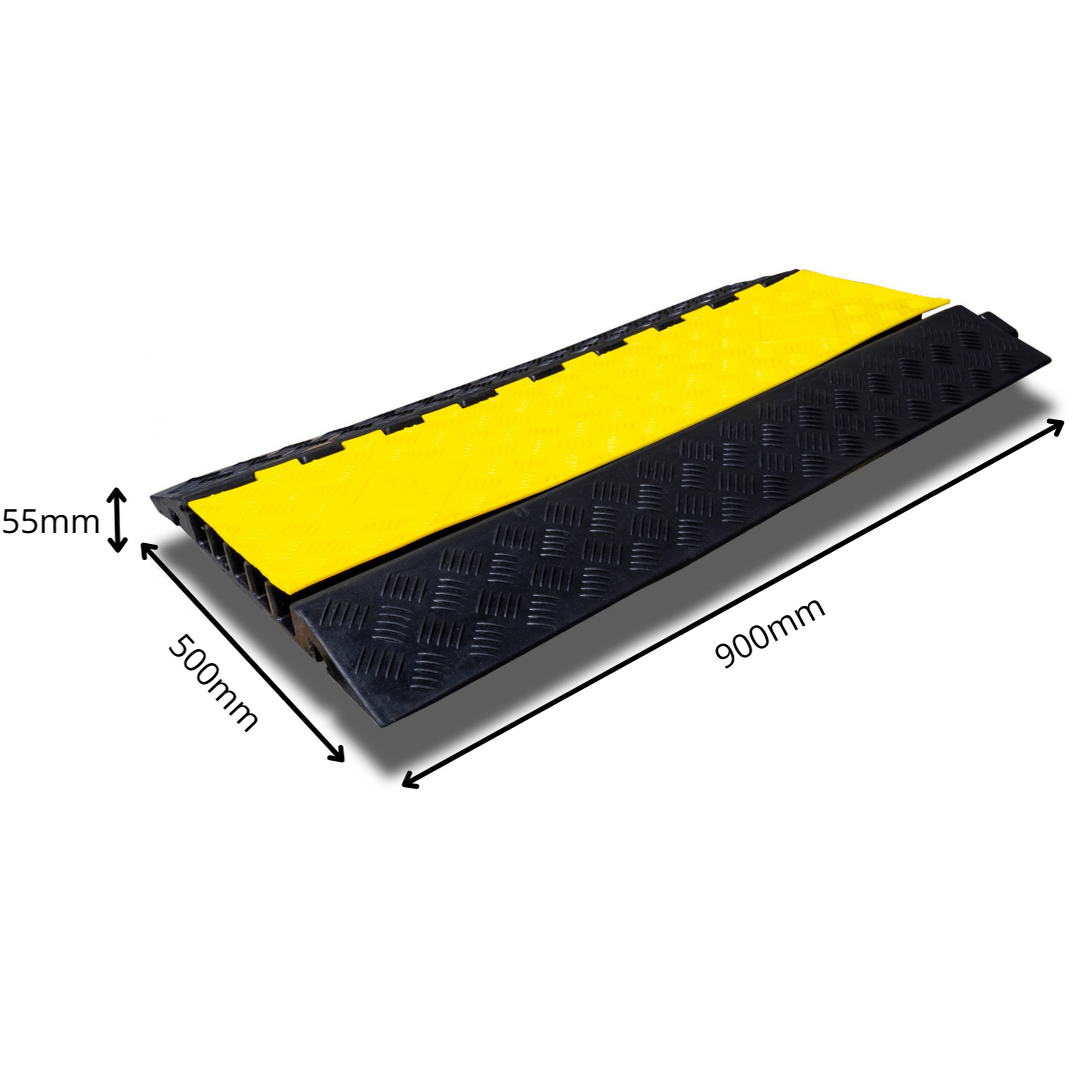

• Length: 900mm
• Width: 500mm
• Height: 55mm
• Cable Channels: 5

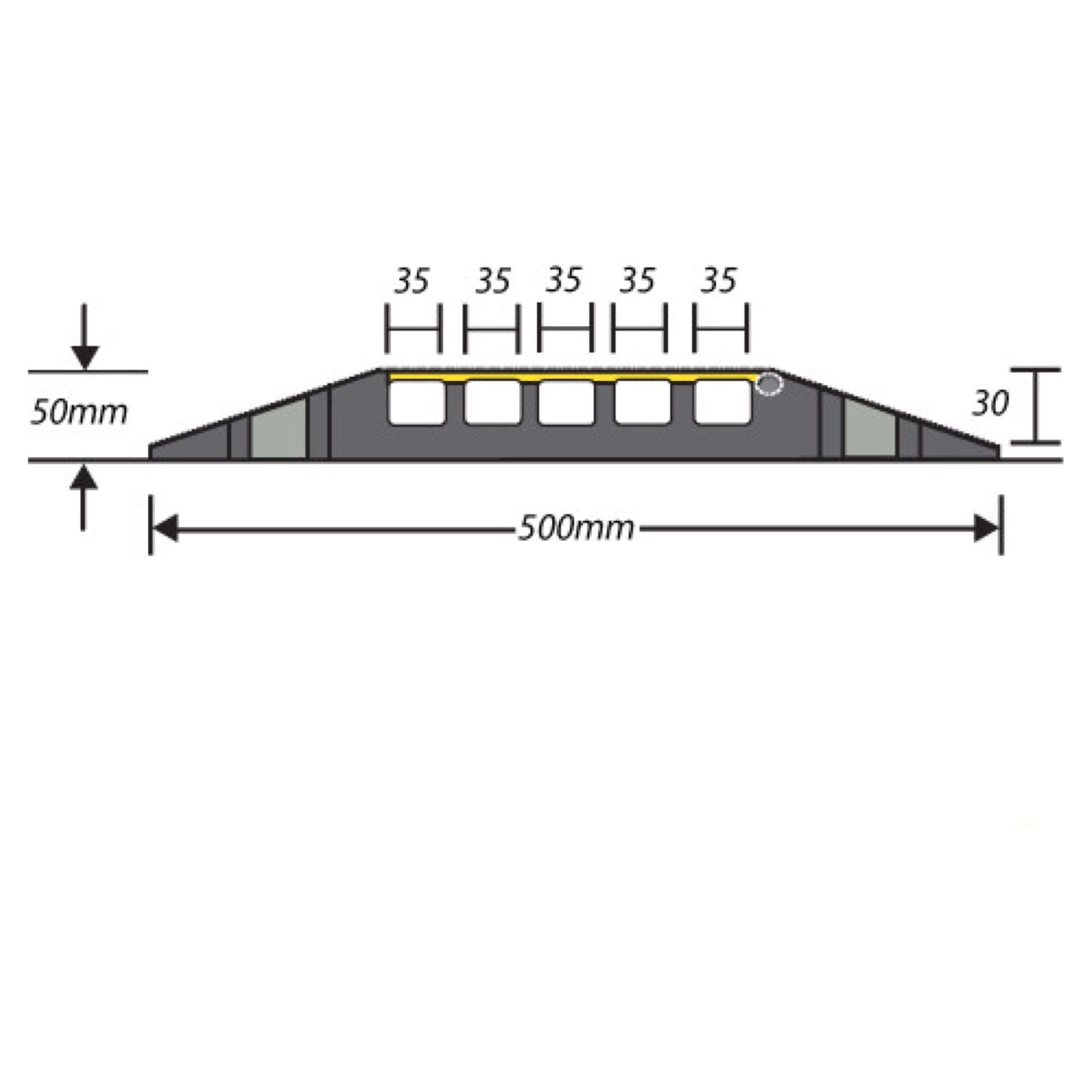

• Channel Dimensions: 30mm H × 35mm W
• Load Rating: 20 tonnes
• Vehicle Traffic: Suitable for vehicle traffic up to 20 tonnes under normal operating conditions
• Standard: AS/NZS 3012:2010
• Section Configuration: Sections connect together to create the required protection length
• Quantity: 1 section included


Why Choose the Cable Protector Cover – 5 Channel?

The Cable Protector Cover – 5 Channel provides a practical solution for cable protection, cable management and pathway organisation where multiple cables need to be routed through busy areas. With five cable channels, a non-slip design and 20-tonne load rating, it is suited to a wide range of workplace, event, indoor, outdoor and vehicle-access applications.
