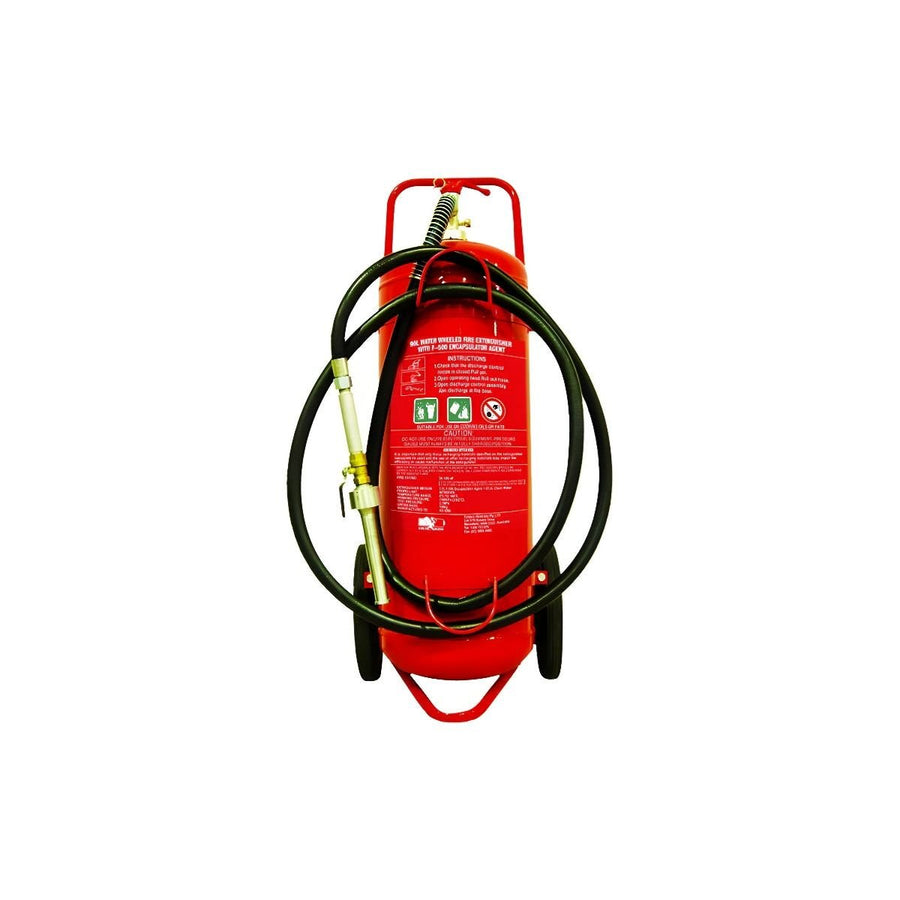

90 Litre Mobile Wheeled LFS Extinguisher – LI-ion Fire Solution
The 90 Litre Mobile Wheeled LFS Fire Extinguisher is a heavy-duty mobile fire protection unit designed for high-risk commercial and industrial environments where larger fire protection capacity is required. Charged with 3% F-500 EA extinguishing agent, this wheeled extinguisher has demonstrated strong performance in controlling and extinguishing lithium-ion battery fires during independent testing and is suitable for Class A and Class B fire risks.
Its large 90-litre capacity and wheeled design make it ideal for facilities where rapid deployment to the fire source is essential, including EV charging stations, electric vehicle workshops, battery storage facilities, wind farms, renewable energy sites, warehouses, manufacturing plants, transport depots, and industrial facilities.
Manufactured with a stainless steel cylinder, durable epoxy polyester coating, and industrial-grade hose assembly, this extinguisher is engineered for demanding workplace conditions while remaining manoeuvrable during emergency response.
Important: There is currently no Australian Standard specifically covering portable extinguishers for lithium-ion battery fires. Independent testing has demonstrated effective performance on lithium-ion battery fires; however, this testing is separate from the scope of the extinguisher certification.
Portable and wheeled extinguishers are intended for use by trained individuals as first-attack fire protection on small, contained fires only. If a fire grows rapidly or produces heavy smoke, evacuate immediately and call 000.
Features
- Large 90L mobile wheeled extinguisher for industrial fire protection
- Charged with 3% F-500 EA extinguishing agent
- Suitable for Class A and Class B fires
- Demonstrated performance in controlling lithium-ion battery fires during independent testing
- Wheeled design allows rapid movement to the fire location
- Fluorine-free formulation containing no PFOA, PFOS, or other fluorinated compounds
- Non-corrosive, non-toxic, non-hazardous, and fully biodegradable agent
- Stainless steel cylinder for long-term durability
- Epoxy polyester coated cylinder for additional surface protection
- Industrial-grade hose assembly with horn included
- Suitable for commercial, industrial, and infrastructure applications
Specifications
- Product Type: Mobile wheeled fire extinguisher
- Agent: 3% F-500 EA
- Capacity: 90 Litres
- Fire Rating: 10A:40B
- Propellant: Dry Nitrogen
- Weight: 139kg
- Product Height: 1465mm
- Cylinder Dimensions: 1140 × 406mm
- Cylinder Volume: 102L
- Cylinder Construction: Stainless Steel
- Cylinder Finish: Epoxy Polyester Coating
- Handle Finish: Stainless Steel
- Valve Material: Nickel-Plated Brass
- Hose Assembly: PA6, EPDM & Brass
- Hose/Horn Included: Yes
- Configuration: Mobile wheeled unit
Standards & Certification
- AS 4265 – Wheeled Fire Extinguishers
- Global-Mark Certification ID: 109076
The Global-Mark certification applies to the extinguisher standard and does not include lithium-ion battery fire performance.
Ideal Applications
- EV charging stations
- Electric and hybrid vehicle workshops
- Battery storage facilities
- Wind farms and renewable energy sites
- Warehouses and distribution centres
- Manufacturing plants
- Industrial workshops
- Transport depots and fleet facilities
- Commercial and infrastructure projects
Why Choose the 90L Mobile Wheeled LFS Extinguisher?
Large facilities and high-risk environments often require greater extinguishing capacity than portable handheld extinguishers can provide. The 90L wheeled unit offers extended firefighting capability together with mobility, allowing trained operators to respond more effectively in larger industrial areas.
Benefits include:
- High-capacity 90L extinguishing agent
- Mobile wheeled design for rapid deployment
- Suitable for Class A and B fire risks
- Environmentally responsible fluorine-free agent
- Durable stainless steel construction
- Designed for demanding industrial environments
Works Best With
The 90 Litre Mobile Wheeled LFS Fire Extinguisher works best with fire extinguisher stands, fire hose reels, fire blankets, emergency response signage, EV charging safety equipment, lithium-ion battery storage systems, spill kits, and workplace emergency stations to help create a comprehensive industrial fire protection system.
Safety Notice: This extinguisher is intended for first-attack fire response by trained personnel on small, contained fires only. Do not use on energised AC electrical equipment or lithium-ion batteries that are actively charging. Always follow workplace emergency procedures, ensure operators are appropriately trained, and contact emergency services immediately if the fire cannot be safely controlled.
