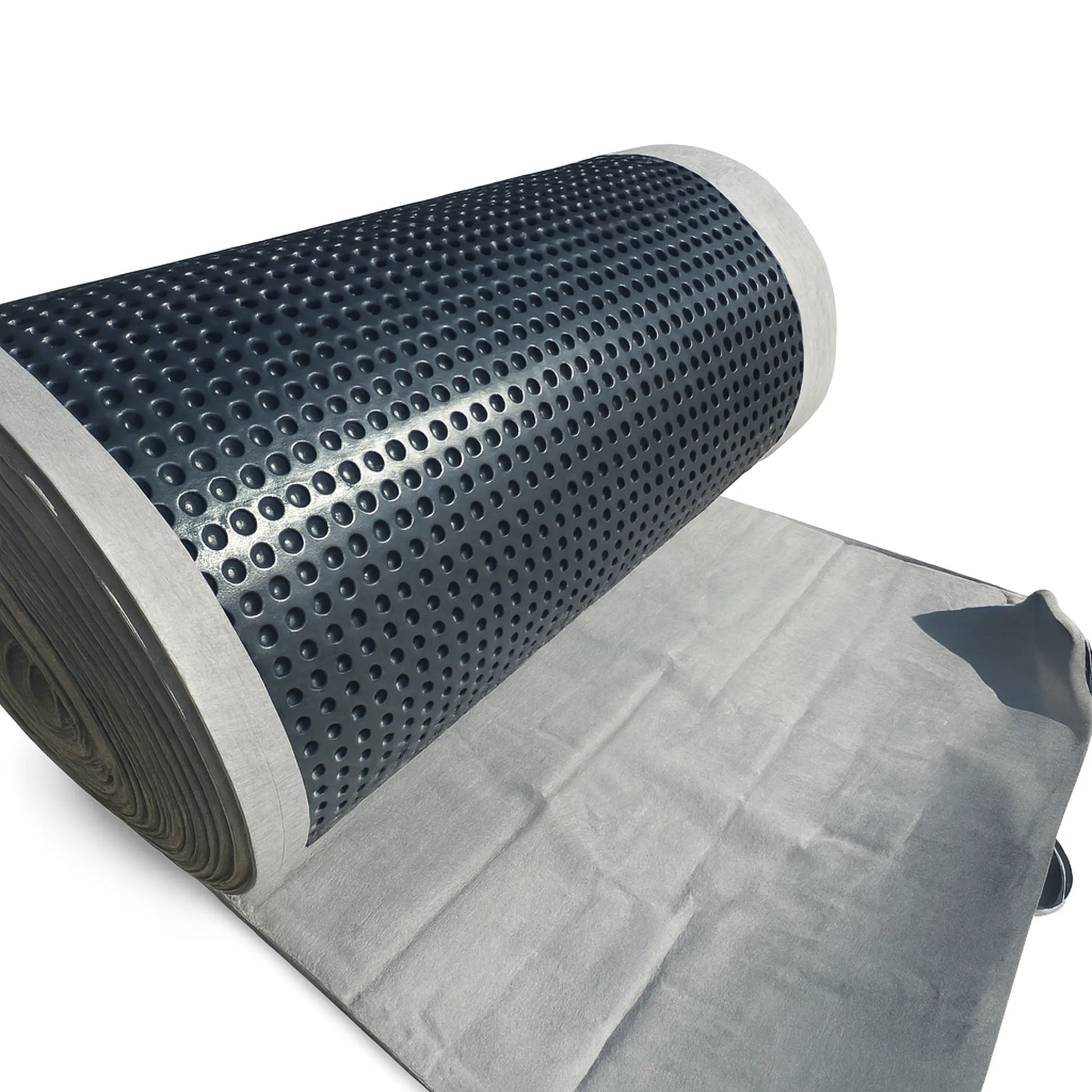

Nipple Board Roll with Filter Fabric 1 M x 25M

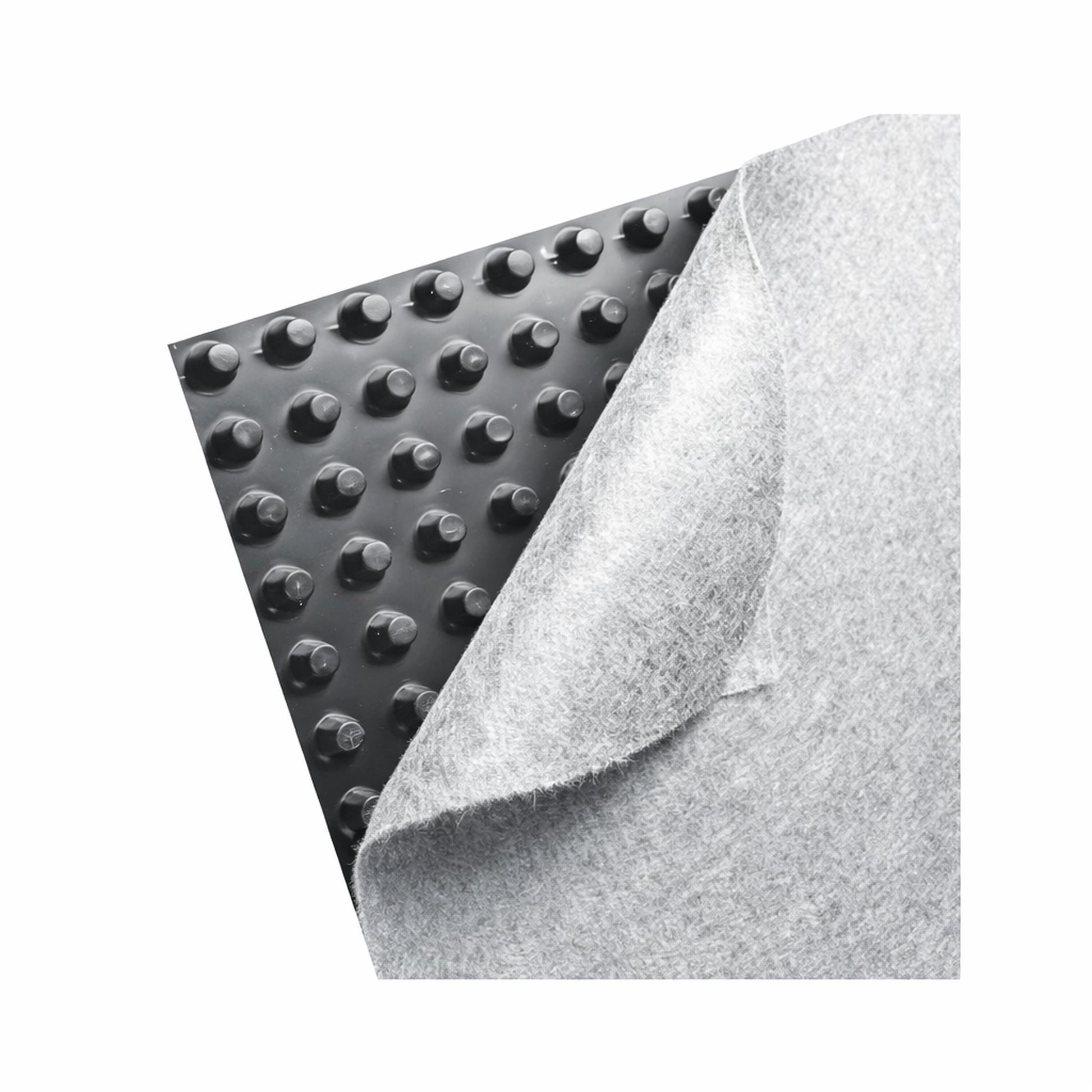

The Nipple Board Roll with Filter Fabric rolls also known as J Drains are geocomposite drainage solutions made from selected polymers that create a stable core and void, then encased in a high-quality nonwoven geotextile. This design ensures efficient filtration and drainage. This range replaces traditional aggregate drainage in various vertical and horizontal applications, offering a cost-effective, reliable solution for drainage issues.

Features

• Cost-effective alternative to traditional granular drainage methods
• Lightweight and easy to install

• Replaces traditional aggregate drainage systems

Benefits

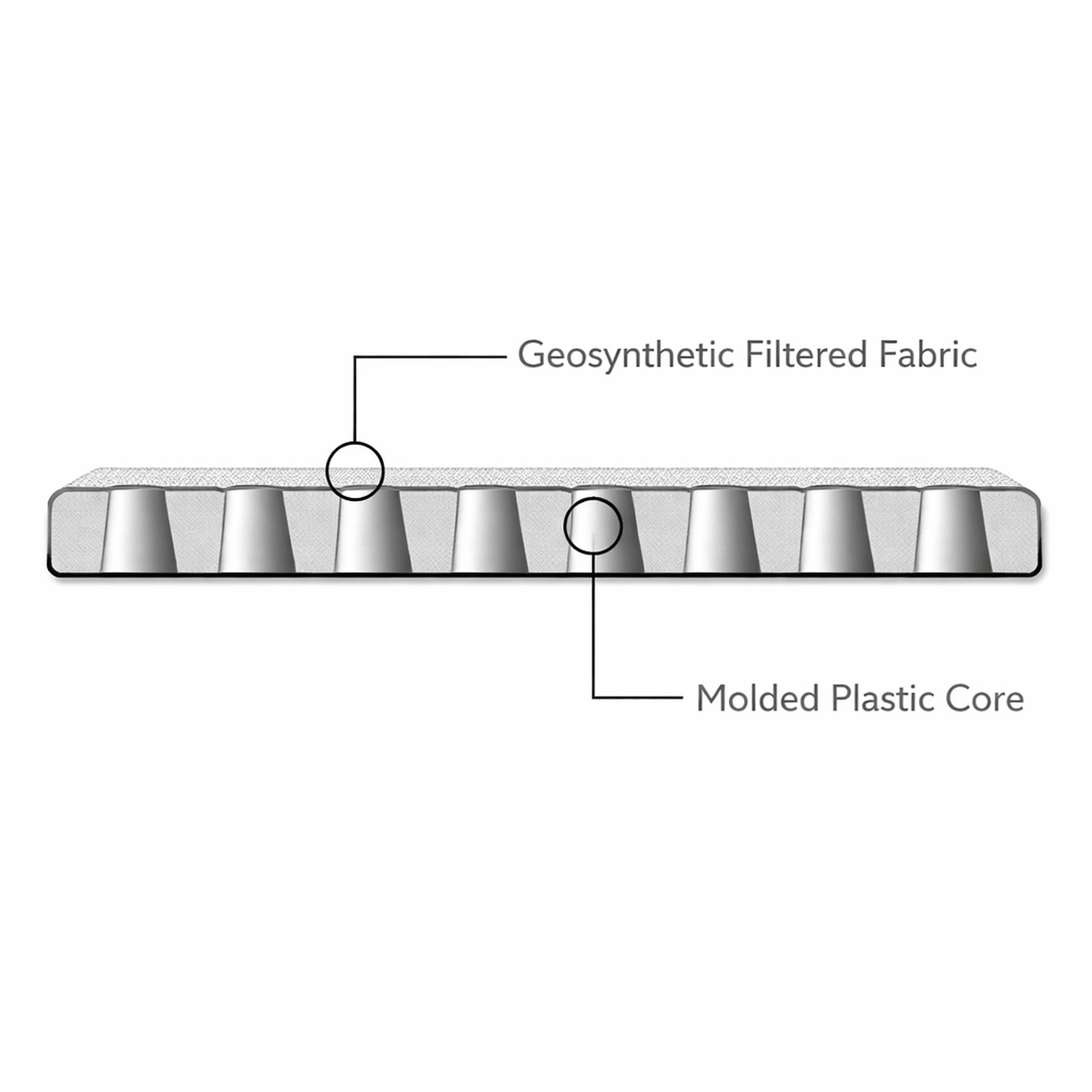

1) Geosynthetic Filtered Fabric:

Holds back the soil and allows water to enter the core.

Geotextile fabrics have outstanding water flow levels, providing water to enter the drainage core quickly. The fabric is attached to the core preventing the backfill from entering the core channels and is resistant to clogging.

2) Molded Plastic Core:

3-dimensional dimpled or honeycombed polymeric core.

The core is made of high strength plastic and provides tremendous in-plane water flow levels. It is made to withstand the tough backfill stages and will provide better drainage than the old pipe and stone method.

Over the years the prefabricated drainage system has evolved and many new and exciting products have been developed. These products are described as either sheet drains or strip drains.

3) Sheet Drain

A sheet drain is primarily used vertically or horizontally against waterproofing or damproofing. The prefabricated drainage system sheet drain provides 3 primary benefits:

• Quickly gets water away from the wall, relieving hydrostatic head pressure.
• Provides a channel to get the water down to the collection system.
• Protects the waterproofing, especially during backfilling.

Applications

• Vertical Wall Drainage
• Horizontal Roof Drainage
• Planter Box Drainage
• Membrane Protection
• Landfill Cap Drainage
• Leachate Collection System

Disclaimer:

This products is fitted with a nonwoven geotextile filter wrap. The product may be laid in various directions to suit specific applications. In all cases, it should be positioned so that the side with the attached geotextile faces towards the soil. The geotextile is designed to filter a wide range of soil types and can generally be backfilled with on-site materials. However, it is important to note that the possibility of geotextile blockage due to problematic soils should always be investigated by the client’s appointed engineer.
